Автоматическая гибочная машина для стальной


Поделиться:


Цена:1 114 905,76 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 1415929.70 $* 1444248.86 $*
Jul-18-2025 1148352.63 $* 1171319.37 $*
Jun-18-2025 1393631.64 $* 1421504.34 $*
May-18-2025 1382482.36 $* 1410132.86 $*
Apr-18-2025 1103756.5 $* 1125831.90 $*
Mar-18-2025 1360184.3 $* 1387388.82 $*
Feb-18-2025 1349035.96 $* 1376016.45 $*
Jan-18-2025 1337886.85 $* 1364644.38 $*

Характеристики

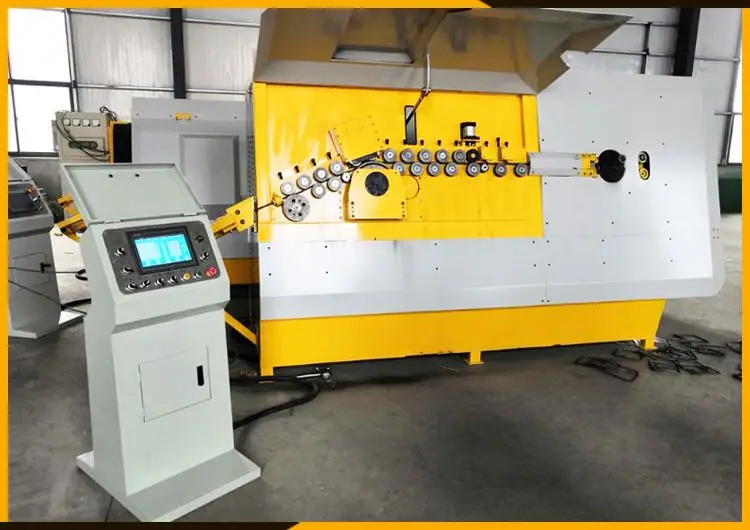

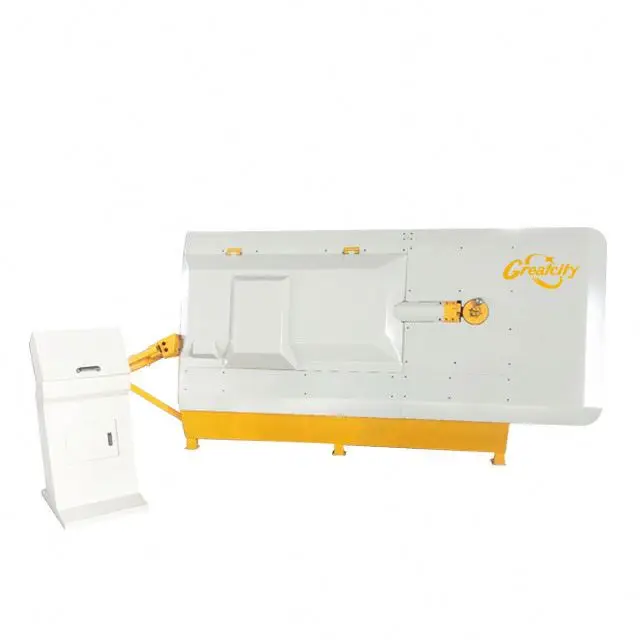

Automatic steel bar wire stirrup bending machine



Features:


· This wire stirrup bending machine steel adopts servo controlling system;
· Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc.;
· Biggest bending diameter of rebar is 12mm;

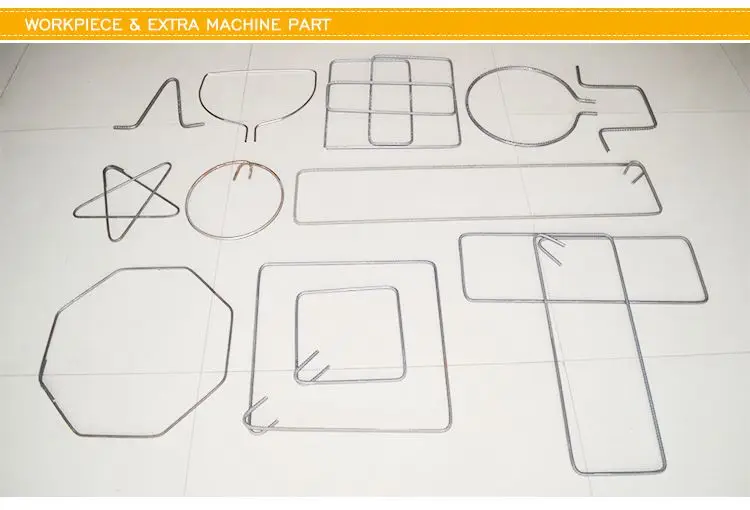

· Continuously bend various stirrup of plane figure;
· Widely used in construction industry and rebar manufacturing enterprise;
· High efficiency and accurate processing precision.


Advantages:


1. Mechanical cut, more stable, no failure
Not affected by the weather, bending fast.

2. Main frame material is 10*10 square steel; National standard; High stability

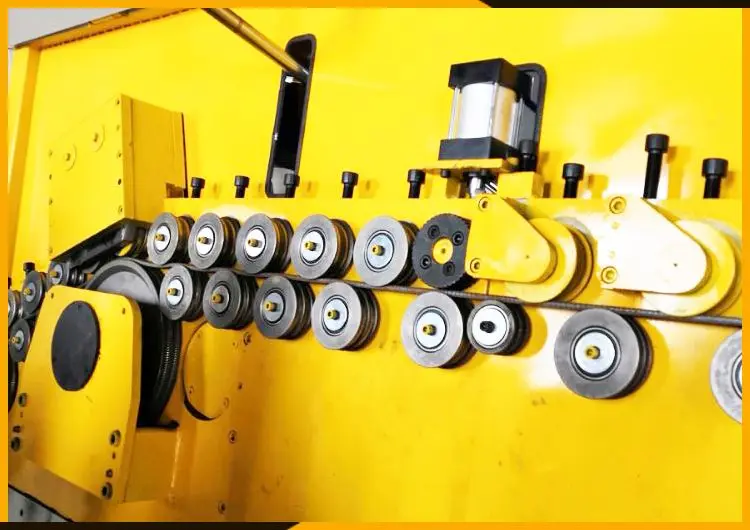

3. More wheels on the Straighten plate, good effect

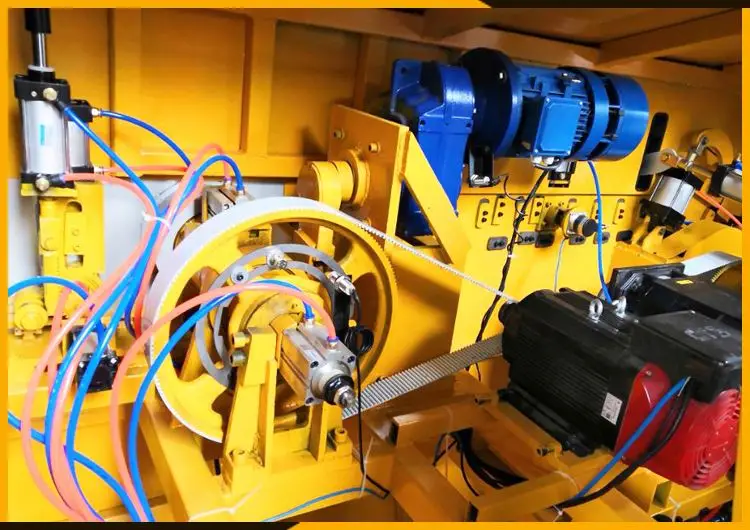

4.Feeding device is box structure, stable wire feeding, high speed, high precision
5. Can choose forward and reverse bending
6. Free air pump (air compressor)
7. Variety of species for choose. High-end, mid-range, low-end.


Motors brand: ALPHA
Controller brand : Kinco
Electircal Components brand: CHAT and DELIXI

Technical Parameter
Product name
wire stirrup bending machine
Model
F12 developer
Single bar diameter (mm)
4-13
Double bar diameter (mm)
4-10
Biggest bending angle
180
Biggest towing speed (m / min)
130
Biggest bending speed
1460
Angular accuracy
1
Power (kw)
21
Shape processing (kinds)
150
Working temperature (℃)
-5 -- 40
Weight (kg)
2000kg
Dimension (mm)
3800*1100*1700
Average power(kw / h)
28kw
Detailed Photos
Packing & Delivery

Packing of wire stirrup bending machine

Standard Export wooden case

Delivery of wire stirrup bending machine

By sea or by logistic

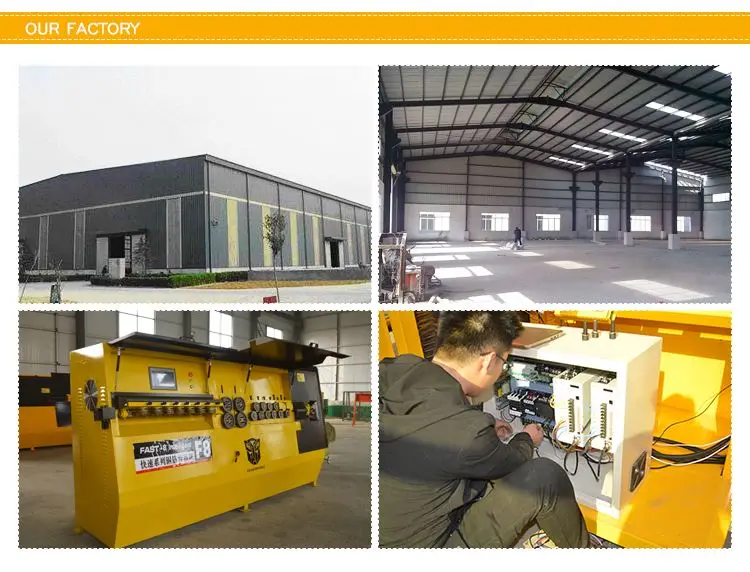

Our Company

Xingtai Judu Technology Co. Ltd is located in the historical industrial zone, Hebei province. Founded in 1999, we are a professional manufacturer of series of wire stirrup bending machine, steel wire 2d/3d cnc bending machine and rolling machine. For twenty years in development, our company has always been adhering to credit the first best quality in after sale service, innovation, self-improvement, adhere an independent intellectual property right as the core of scientific and technological innovation. The current steel hoop bending machine and horizontal lathes for the company's main product are sold throughout the country, some products exported to Asia, Africa, and other countries and regions, we are abide by integrity and innovation, entrepreneurial spirit, relying on leading research and development capabilities efficient manufacturing, stable quality and good service to meet the needs of our customers at home and abroad, the company has now passed the ISO9001:2000 international quality management system certification.

'Greatcity' trademark has been identified as an unique brand name product that got the honorary title among many.

Within more than 20 years of development besides struggles, GreatCity is still keeping up its effort to maintain a brilliant business success in whole over the world due to its hardworking, courage and the will to improve its creation for customer satisfaction and maintain the reputation to be the best Chinese machinery manufacturer.

FAQ

1. Q: How about the after-sale service?
A: We have a strong team, specialized in after-sale service. We can arrange engineers to do service for you.


2. Q: Are you factory or trading company?
A: We are a factory in this field nearly 20 years


3. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Xingtai City. Hebei province. You can fly to zhengding airport and or by high-speed train directly. I will pick you up .


4.Q:How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the beginning.and we have CE certificate.

Our Service

All inquiries replied after 12 hours by email or phone call
Available engineer for overseas service
For more details of wire stirrup bending machine, some expert can provide information in different language (Chinese, French, Spanish, Arabic)
Available for any contact to different social net work.
Any visit to our factory authorized for test, or simple visit.

Contact Ways

Xingtai Judu Technology Co.,Ltd

Sales Manager: Ms Kitty Liu
Email:kitty@greatcitygroup.cm
Whatsapp:+0086 18832961161
Wechat: 008615512868421
Skype: greatcity77
QQ: 694679222

Pls kindly contact me to confirm the model which is suitable for you.
For this type wire stirrup bending machine, we also have 3 kinds.
