1. Adoption of 32-bit DSP , pure sine wave subdivision technology.
2. Low-noise, low-vibration and low temperature rising
3. Voltage 24-580VDC
4. With 8 stalls output current setting,peak current 2.4-7.2A
5. With 16 stalls microstep subdivision setting.
6. Automatic Half current, self-test, over voltage, under voltage, over current protection
7. Internal optical isolation, highest frequency response 200KHZ
8. Suitable for current range 2.1-5.6A 2,4 phase nema 23, nema 34 Hybrid stepper motor .
Current selection
Peak
RMS
SW1
SW2
SW3
Default
Default
OFF
OFF
OFF
2.1A
1.5A
ON
OFF
OFF
2.7A
1.9A
OFF
ON
OFF
3.2A
2.3A
ON
ON
OFF
3.8A
2.7A
OFF
OFF
ON
4.3A
3.1A
ON
OFF
ON
4.9A
3.5A
OFF
ON
ON
5.6A
4.0A
ON
ON
ON
Microstep selection
Pulse/REV
SW5
SW6
SW7
SW8
Default
ON
ON
ON
ON
800
OFF
ON
ON
ON
1600
ON
OFF
ON
ON
3200
OFF
OFF
ON
ON
6400
ON
ON
OFF
ON
12800
OFF
ON
OFF
ON
25600
ON
OFF
OFF
ON
51200
OFF
OFF
OFF
ON
1000
ON
ON
ON
OFF
2000
OFF
ON
ON
OFF
4000
ON
OFF
ON
OFF
5000
OFF
OFF
ON
OFF
8000
ON
ON
OFF
OFF
10000
OFF
ON
OFF
OFF
20000
ON
OFF
OFF
OFF
40000
OFF
OFF
OFF
OFF
Note:The pulse can be customized according to customers’ requirements.
Dimension:(Unit=mm)
Product Description
Produce process
Our Services

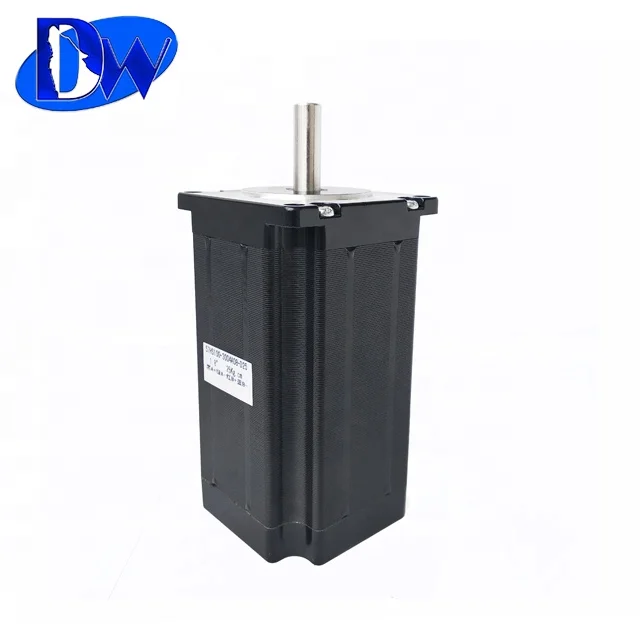

Different specification of stepper motor with competitive price for your choice:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
First-class service:
customization and OEM is available.
Warranty: 12 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
Company Information
Changzhou Dewo Motor Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.
Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.
If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!
