dc motor drive

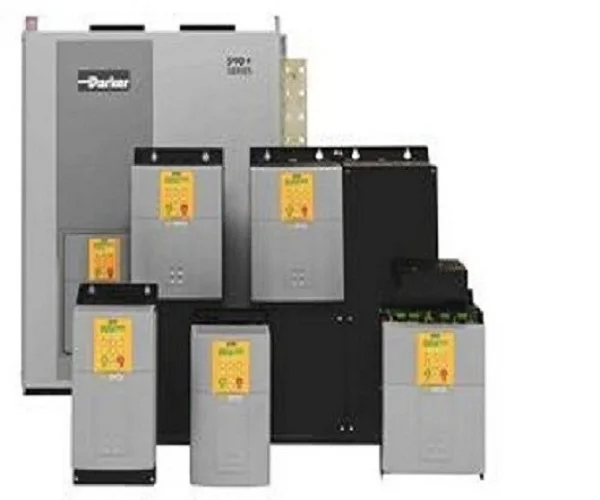

Integrator dc motor drive   From 15 to 2700 ampere (1 to 2000 HP)

Description of dc motor drive

The Integrator series is a single family of both AC drives (690+) and DC drives (590+) that provides the benefits of common programming, set-up and communication across both technologies. The 590+ Integrator series highly advanced DC drive meets the demands of the most complex motor control applications.

Extensive application software (including winder control as standard) together with Function Block Programming and configurable I/O creates a total drive system in a single module..

Innovation of dc motor drive



The 590Plus series introduced a new world, radical approach, in DC drive design: the philosophy of DRV.

Each 590Plus DRV is internally integrated with all auxiliary power components.

TECHNICAL SPECIFICATIONS of dc motor drive Input Power 50-60Hz ±5% Three Phase 110-220Vac ±10% Three Phase 220-500Vac ±10% Three Phase 500-690Vac ±10% Ambient Temperature of dc motor drive 0-45°C (Frame 15-165A) 0-35°C (Frame 180-800A)  0-40°C (Frame 900-2700A) Overload for 15 to 450A Frame of dc motor drive 150% for 60 sec. 115% for 10 sec. Overload fro 720A and Higher of dc motor drive Refer to manual for options

TECHNICAL CHARACTERISTICS of dc motor drive 590Plus 4 quadrant regenerative of dc motor drive Dual (2) Three Phase SCR bridgesi 591Plus non-regenerative 2 quadrant of dc motor drive Single (1) SCR bridge Variable Field control with SCR's Available frames by armature current rating of dc motor drive 15, 35, 40, 70, 110, 165, 180, 270, 380, 500, 725, 830, 1200,  1580, 1700, 2200 and 2700 Ampere. (DRV Version available only 15 to 165A frame)

INPUTS/OUTPUTS of dc motor drive Analog Inputs (5 total, 4 configurable) 12 bit; 0-±10V Analogue Outputs   (3 total, configurable) 10 bit; 0-±10V Digital Inputs   (9 total, 5 configurable) 24Vdc (max 30Vdc) Digital Outputs (3 total, configurable) 100mA max 30VdcShort circuit protected

INTERNATIONAL CODES of dc motor drive The 590Plus complies to standard code when installed in accordance to manufacturers installation manual: EN50178 (Protection, Low Voltage Directive) EN50081-2 (1992) (EMC emissions in industrial ambience ) EN50082-2 (1995) (Immune in industrial EMC environment) EN61000-3-2 (Standard harmonics with line inductors)

Package Contents of dc motor drive

1. The drives will be shipped via sea transportation, air transportation or express. Parcel Post is depended on the weight and destination. We get very good rates on freight shipments. Please use the shipping calculator to determine shipping costs. Shipping to a commercial location with loading dock or forklift is always the cheapest option for freight

2. Rush Delivery is available upon request. Please e-mail for quote (please include zip code) Handling Time is normally

3. business days. Please use the shipping calculator to determine transit times. (Holidays are an exception). Your tracking number will be emailed to you once your order has been shipped



Product Model of dc motor drive:

590c/0350    35A   500V   reversible      591c/0350   35A   500V   irreversible

590c/0700    70A   500V   reversible      591c/0700   70A    500V   irreversible

590c/1100  110A  500V    reversible      591c/1100  110A   500V   irreversible

590c/1500  150A  500V    reversible      591c/1500  150A   500V   irreversible

590c/1800  180A  500V    reversible      591c/1800  180A   500V   irreversible

590c/2700  270A  500V    reversible      591c/2700  270A   500V   irreversible





Parameter	Current	Mode of operation	Input voltage	Dimension
591P/15A	15A	Irreversible	500-220V	375*200*220mm
591P/35A	35A	Irreversible	500-220V	375*200*220mm
591P/40A	40A	Irreversible	500-220V	434*200*292mm
591P/70A	70A	Irreversible	500-220V	434*200*292mm
591P/110A	110A	Irreversible	500-220V	434*200*292mm
591P/165A	165A	Irreversible	500-220V	434*200*292mm
591P/180A	180A	Irreversible	500-220V	485*250*180mm
591P/270A	270A	Irreversible	500-220V	485*250*180mm
591P/380A	380A	Irreversible	500-220V	700*253*358mm
591P/500A	500A	Irreversible	500-220V	700*253*358mm
