Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Хорошее качество 100 мл-1500 мл полуавтоматическая выдувная формовочная машина 5 галлонов для производства пластиковых бутылок с водой
- Категория: Выдувная машина >>>
- Поставщик: Taizhou,Baoge,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.68 $* | 0.86 $* |
| Aug-17-2025 | 0.29 $* | 0.99 $* |
| Jul-17-2025 | 0.71 $* | 0.98 $* |
| Jun-17-2025 | 0.99 $* | 0.76 $* |
| May-17-2025 | 0.0 $* | 0.82 $* |
| Apr-17-2025 | 0.85 $* | 0.92 $* |
| Mar-17-2025 | 0.84 $* | 0.70 $* |
| Feb-17-2025 | 0.81 $* | 0.30 $* |
| Jan-17-2025 | 0.53 $* | 0.94 $* |
Характеристики
Product Description

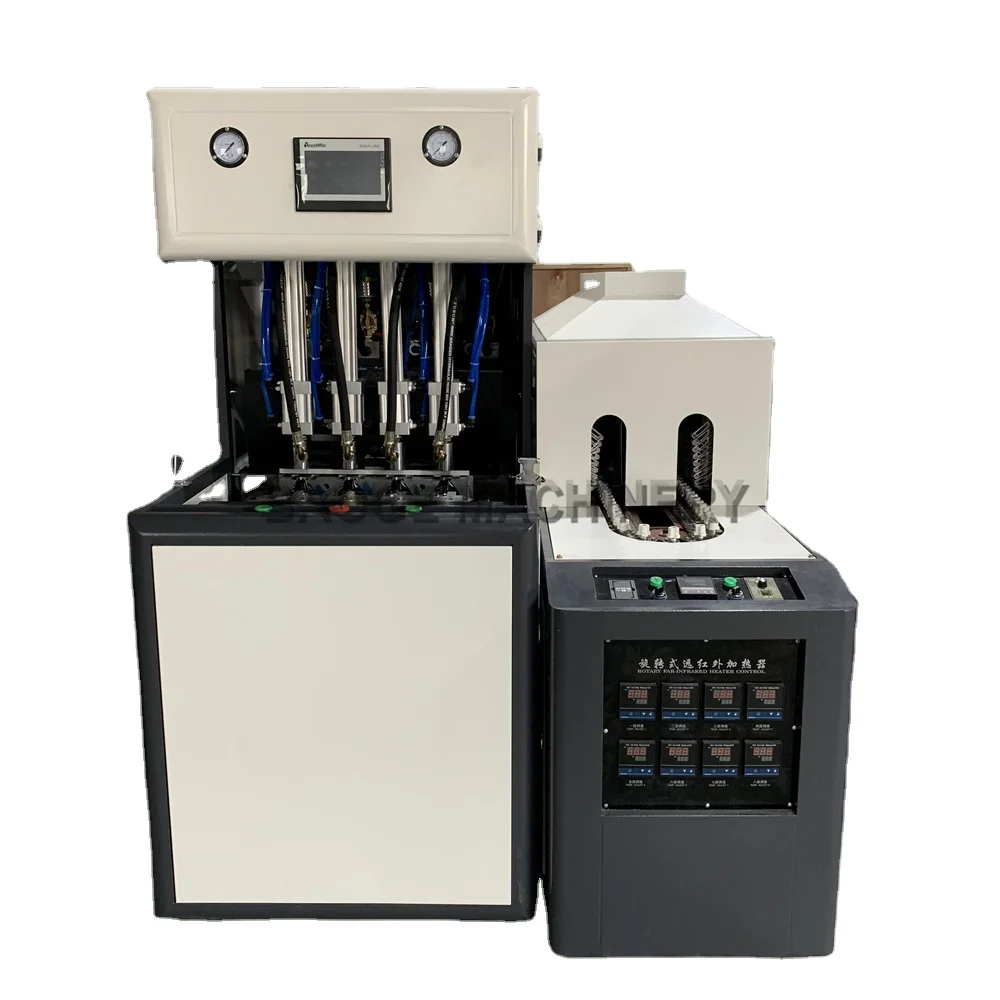

Good Quality 100 ML - 1500 ML Semi - Auto 5 Gallon Blow Molding Machine Plastic Water Bottle Making Machinery Blower Machine
1. Machine Power: 13 KW
2. Theoretical Output: 1800-2200 BPH
3. Suitable Bottle: Mineral Water Bottle, Beverage Bottle, Medicine Bottle.
4. Blower Size: 1600*800*1850mm (MM)
5. Oven Size: 2260*560*1480mm (MM)
6. The Weight Of Blower And Oven: 1600(KG)
Model | BG-2000A Good Quality 100 ML - 1500 ML Semi - Auto 5 Gallon Blow Molding Machine Plastic Water Bottle Making Machinery Blower Machine | ||||
Theoretical output | 1800-2200 pcs/h | ||||
Finished bottle | Max. bottle volume | 1.5 Liters | |||
Max. neck diameter | 38 mm | ||||
Max. bottle diameter | 110 mm | ||||
Max. bottle height | 350 mm | ||||
Cavity | 4 cavity | ||||
Cavity | 95mm-250mm neck size with 1 cavity | ||||
Mold thickness | 110mm-160mm | ||||
Open stroke | 320 mm | ||||
Electrical system | Power voltage | 380v/3Phase/50HZ | |||
Installation power | 28 kw | ||||
Actual power consumption | 13 kw | ||||
Air source | Recommend air compressor | 1.2m³/min 30Kg | |||
Cooling water | Recommend water chiller | 3HP | |||
Blower size | Length*width*height/weight | 1600*800*1850 (MM) / 1200 kg | |||
Oven size | Length*width*height/weight | 2260*560*1480mm (MM) / 300 kg | |||
Mitsubishi PLC : It is a very popular brand all over the world . It has two big funcations: manual and automatic. Turn it to be Manual . It can help to install mold . Turn it to be automatic . It can produce bottles be stable.

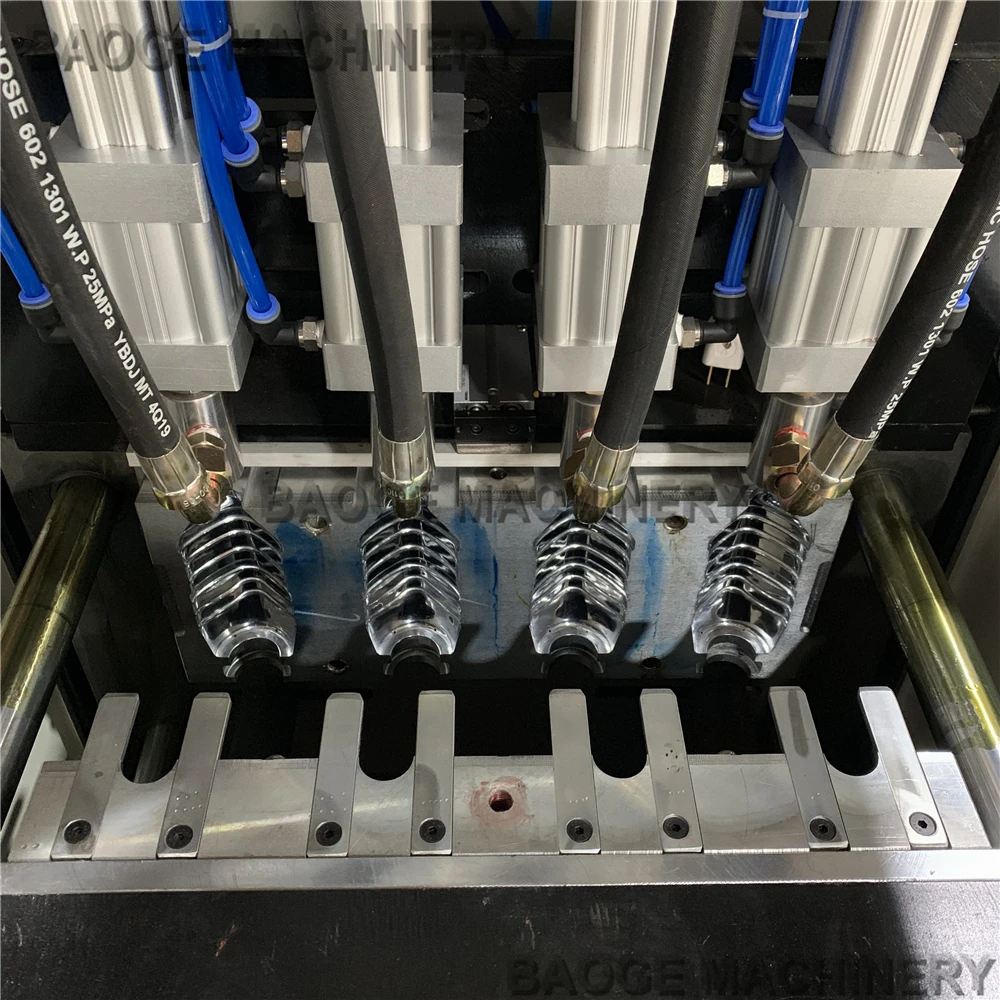

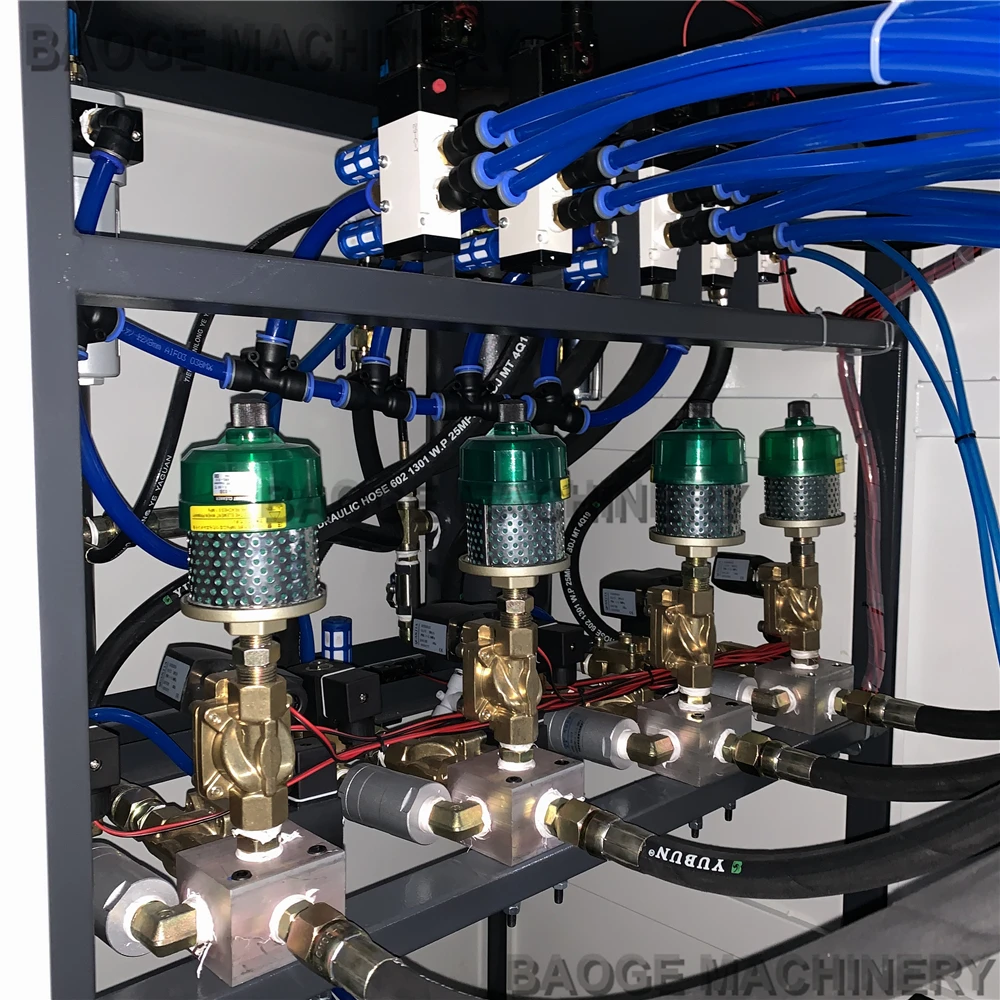

Parker Blowing Valves: Parker valves made by USA . The 12 pieces of Parker valves control three functions: Pre-blowing , High pressure Blowing , Exhaust . The 12 valves can work for a long time .
Bottle volume: BG-2000A can produce 100-1500 ml PET bottle . It also can produce PC bottle . Oven has water cooling system and air cooling system .
Will let the heating system be stable .

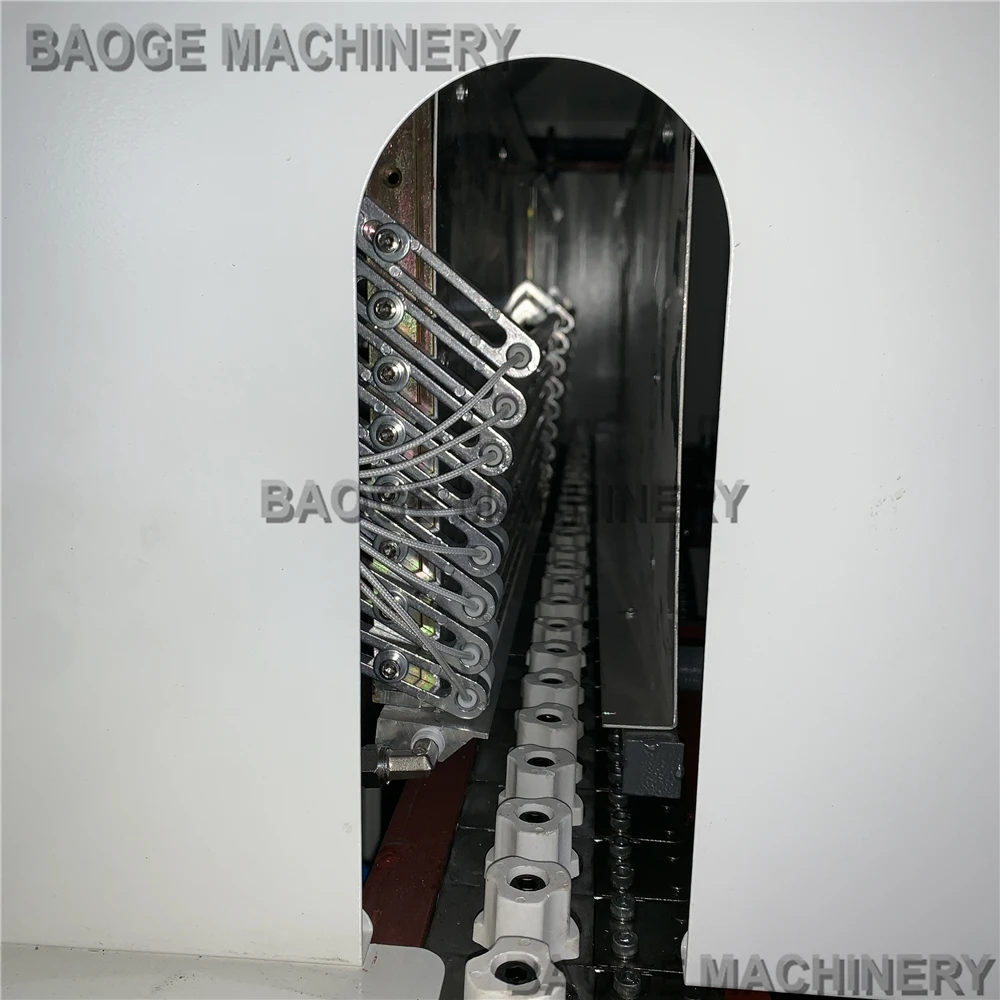

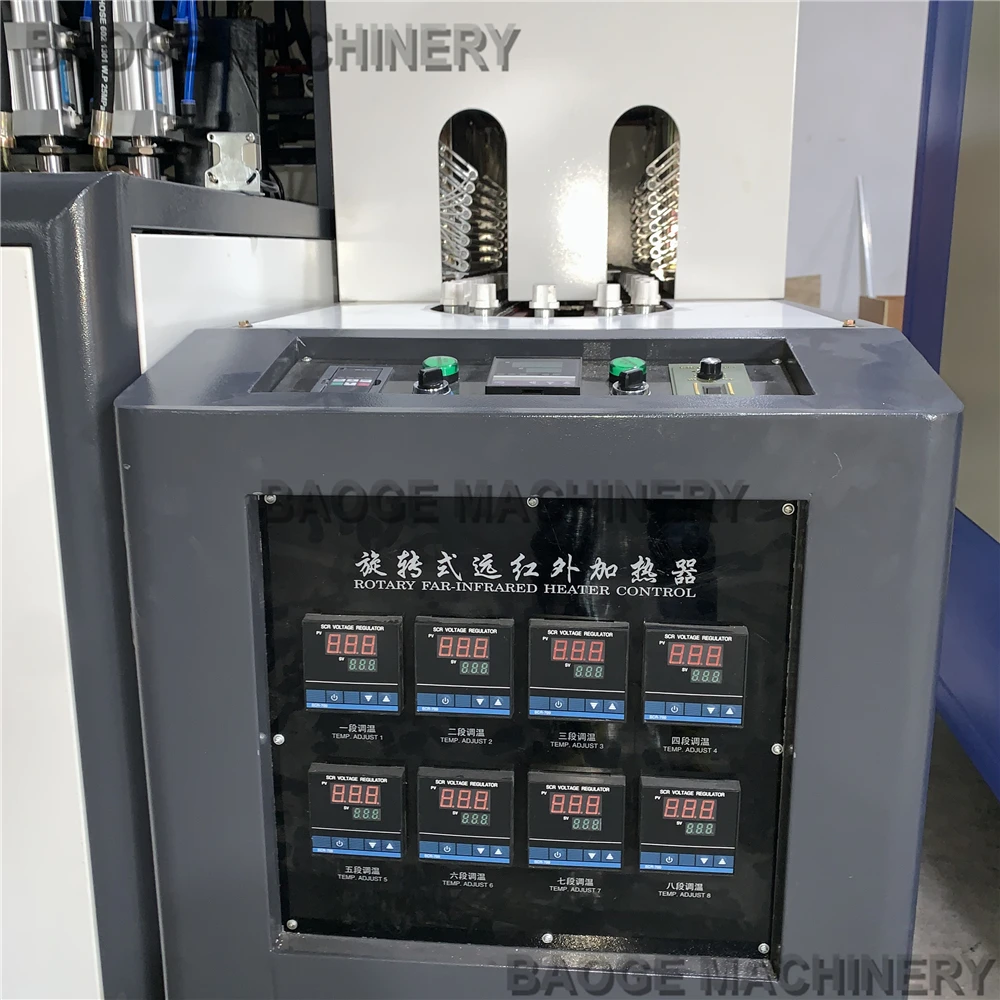

Heating lamps: 32 pieces heating lamps can heat the preform be longer an longer . And the Heating lamps quality is very good . Let it can work for a long time .
Packing & Delivery
Packing by PE film inside and wooden case outside. Make sure it can be shipped be stable by sea .
