The incremental digital displays are used in combination with our high-precision displacement sensors 8738. The digital technology of these measuring systems satisfies high demands for precision and long service life, as is required more and more nowadays
- in measuring laboratories - in production - in testing laboratories - in workshops and many other areas.
Typical uses: - Automatic assembly machines - Semiconductor industry - Keyboard tests - Robot controllers - Testing of shafts and planes - Measurement of differential displacement

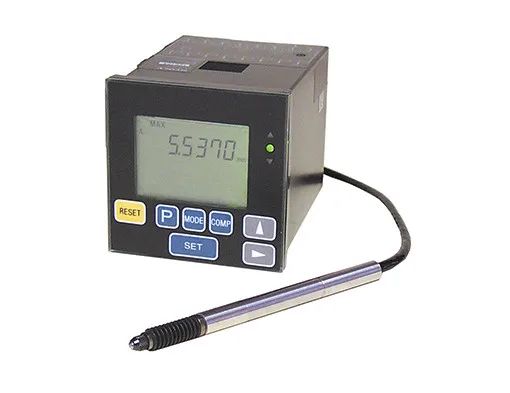

With its phenomenal resolution of 0.1 microm and the high response frequency of 20 MHz, the 9140 is a powerful display unit with a compact design. The comparator function integrated as standard allows for direct evaluation of measurements almost in real-time; these can be processed further by a higher-level controller. A rather more comprehensive acquisition method is also integrated into the system. Device settings can be made either through the keypad on the front, or through the optionally available serial interface.

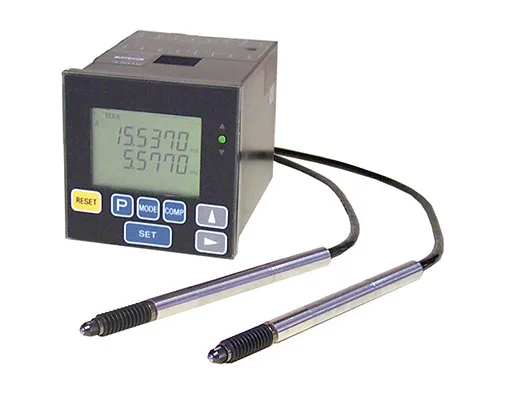

The two-channel version also offers simple mathematical functions such as addition and subtraction. These are particularly handy for differential displacement measurements.
Features: - Display resolution from -999999 ... 999999 - Resolution to 0.1 microm - Peak value memory for min, max and peak-to-peak - Classifier comparator - Up to 2 measuring channels - RS232 interface - Mathematical functions
Characteristics:
Type of sensor
Incremental position sensor
Interfaces
RS232
Indicator
± 999 999
Supply voltage
10.8 ... 26.4 VDC, max. 12 VA
Measurement channels
2
Pictures:
