Промышленный цифровой инфракрасный термометр
US $4.40-$4.60
GSHZY-V Горячая Распродажа 35KV тестер
- Категория: Other Electrical Instruments >>>
- Поставщик: Wuhan,Guoshi,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 14280.57 $* | 14994.66 $* |
| Aug-15-2025 | 14160.0 $* | 14868.80 $* |
| Jul-15-2025 | 11880.67 $* | 12474.39 $* |
| Jun-15-2025 | 13920.82 $* | 14616.25 $* |
| May-15-2025 | 12120.80 $* | 12726.66 $* |
| Apr-15-2025 | 13680.35 $* | 14364.18 $* |
| Mar-15-2025 | 13560.36 $* | 14238.52 $* |
| Feb-15-2025 | 13440.42 $* | 14112.90 $* |
| Jan-15-2025 | 13320.49 $* | 13986.4 $* |
Характеристики
Product Description
Specification
Display mode | 12.1inch industrial LCD screen (XP operating platform) |
Test methods | low voltage pulse method, lightning flow method |
Operation mode | Double operation, touch pen and touch mouse |
Operation test distance: | not less than 60km |
Minimum test distance (blind area) | 0-5 m or no blind area |
Accurate fixed point error | 0.2m |
Pulse width | 100ns, 200ns, 1μs, 2μs, and 5μs (automatic software matching) |
Power supply and power consumption | AC 220V 10% not more than 15W |
Host weight | 6.2kg |
Hoverall dimensions | 180mm × 300mm × 400m |
Ambient temperature | -20 ℃ ~ +40 ℃ |
Relative humidity | 80%. |

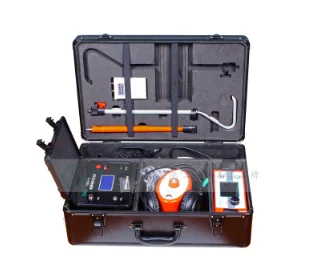

Path meter parameters:
pathometer is composed of transmitter and routing receiver. This instrument is a special instrument for fault location test of low voltage cable. Its main function is to detect the cable path. Detection depth ≤ 3m; Routing error <5cm.
1) Transmitter:Output frequency: 9.82kHz
Output power: 2W
2) Routing receiver:Input frequency: 9.82kHz
Detection route error: ± 2cm
detection depth error: 5cm
battery: 9V laminated battery; Continuous operation for 8 hours

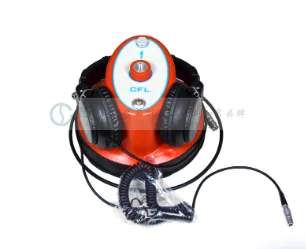

3.Fixed-point instrument parameters
ultra-quiet noise reduction, excellent discharge sound quality and quieter background. Monitor headphones
pathometer is composed of transmitter and routing receiver. This instrument is a special instrument for fault location test of low voltage cable. Its main function is to detect the cable path. Detection depth ≤ 3m; Routing error <5cm.
1) Transmitter:Output frequency: 9.82kHz
Output power: 2W
2) Routing receiver:Input frequency: 9.82kHz
Detection route error: ± 2cm
detection depth error: 5cm
battery: 9V laminated battery; Continuous operation for 8 hours
3.Fixed-point instrument parameters
ultra-quiet noise reduction, excellent discharge sound quality and quieter background. Monitor headphones
are selected to quickly and reliably point the fault point.
1) sensor dynamic range: sound channel> 104dB.
2) impulse discharge sound amplification factor> 90dB, impulse discharge volume upper limit 84dB(A).
3) LCD: highlight true color screen, pixel 320 x 240 suitable for outdoor.
4)on-site continuous working time: alkaline replaceable battery battery, convenient for on-site use
4.Integrated High Frequency and high voltage power supply for cable test
This product is mainly used for high resistance fault waveform sampling impulse discharge and impulse discharge when fault point precision is determined for power cable fault test of 35kV and below, it can also be used for burning through high resistance faults of power cables and accurate fixed-point use of the outer sheath of ultra-high voltage cables above 110kV. The burning through capability can burn through the breakdown point in a short time and reduce the resistance of the breakdown point.touch screen man-machine interaction, simple setting and operation, intuitive and convenient instrument status display;
◆ It has the functions of voltage regulation, automatic voltage stabilization and automatic protection;
◆ Engineering chassis design, compact structure, small size, light weight, easy to carry by a single person.
output mode: pulse output and DC output
output voltage: negative pressure, 0 ~-35kV continuously adjustable
◆ Operating current: ≤ 40mA
operation mode: single pulse, continuous pulse, DC output
built-in capacitor: 2.8uF/35kV discharge energy: ≤ 1715J
pulse period: 3s ~8s adaptive automatic discharge: shutdown automatic discharge
power supply: 220v 10% power frequency
display screen: 800 × 480 resolution touch display screen
Operating temperature:-10 ℃ ~ 40 ℃ Operating humidity: ≤ 80%
altitude: ≤ 1000 meters
overall dimensions: 478(L)* 370(W)* 448(H) mm
Weight: ≤ 28kg
flash meter: DL/T 849.1-2004 pointing meter reference standard: DL/T 849.2-2004 path meter reference standard: DL/T 849.3-2004 is used for testing various faults of power cables, cable path and cable embedding depth. and accurate testing of railway airport signal control cable and street light cable faults.
1) sensor dynamic range: sound channel> 104dB.
2) impulse discharge sound amplification factor> 90dB, impulse discharge volume upper limit 84dB(A).
3) LCD: highlight true color screen, pixel 320 x 240 suitable for outdoor.
4)on-site continuous working time: alkaline replaceable battery battery, convenient for on-site use
4.Integrated High Frequency and high voltage power supply for cable test
This product is mainly used for high resistance fault waveform sampling impulse discharge and impulse discharge when fault point precision is determined for power cable fault test of 35kV and below, it can also be used for burning through high resistance faults of power cables and accurate fixed-point use of the outer sheath of ultra-high voltage cables above 110kV. The burning through capability can burn through the breakdown point in a short time and reduce the resistance of the breakdown point.touch screen man-machine interaction, simple setting and operation, intuitive and convenient instrument status display;
◆ It has the functions of voltage regulation, automatic voltage stabilization and automatic protection;
◆ Engineering chassis design, compact structure, small size, light weight, easy to carry by a single person.
output mode: pulse output and DC output
output voltage: negative pressure, 0 ~-35kV continuously adjustable
◆ Operating current: ≤ 40mA
operation mode: single pulse, continuous pulse, DC output
built-in capacitor: 2.8uF/35kV discharge energy: ≤ 1715J
pulse period: 3s ~8s adaptive automatic discharge: shutdown automatic discharge
power supply: 220v 10% power frequency
display screen: 800 × 480 resolution touch display screen
Operating temperature:-10 ℃ ~ 40 ℃ Operating humidity: ≤ 80%
altitude: ≤ 1000 meters
overall dimensions: 478(L)* 370(W)* 448(H) mm
Weight: ≤ 28kg
flash meter: DL/T 849.1-2004 pointing meter reference standard: DL/T 849.2-2004 path meter reference standard: DL/T 849.3-2004 is used for testing various faults of power cables, cable path and cable embedding depth. and accurate testing of railway airport signal control cable and street light cable faults.
Product packaging
Carton packaging or wooden boxes
