Гидравлический сварочный аппарат для стыковой сварки труб HDPE
- Категория: Plastic Welders >>>
- Поставщик: Shandong,E-Touch,Shipping,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1190.51 $* | 1250.98 $* |
| Aug-16-2025 | 1180.34 $* | 1239.63 $* |
| Jul-16-2025 | 990.17 $* | 1040.41 $* |
| Jun-16-2025 | 1160.52 $* | 1218.67 $* |
| May-16-2025 | 1010.36 $* | 1061.28 $* |
| Apr-16-2025 | 1140.24 $* | 1197.14 $* |
| Mar-16-2025 | 1130.55 $* | 1187.66 $* |
| Feb-16-2025 | 1120.88 $* | 1176.92 $* |
| Jan-16-2025 | 1110.56 $* | 1166.39 $* |
Характеристики
Products Description
450mm Plastic pipe hydraulic butt fusion Welding Machine for HDPE Pipe Fitting
E-touch butt welding equipment is suitable for ditches or field operation of pipes and fittings of PP, PB, PE, PVDF and other
thermoplastic materials. With strong technical force, senior engineer r & D team, using the latest technology, in strict
accordance with the German electrical industry standards manufacturing, to provide customers with quality products.
thermoplastic materials. With strong technical force, senior engineer r & D team, using the latest technology, in strict
accordance with the German electrical industry standards manufacturing, to provide customers with quality products.
Main Features

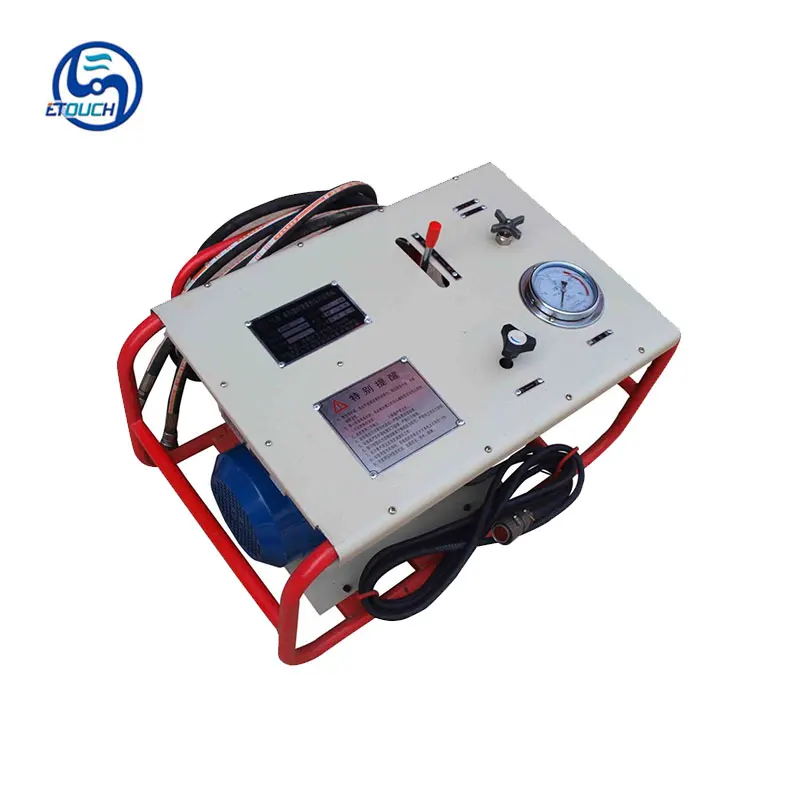

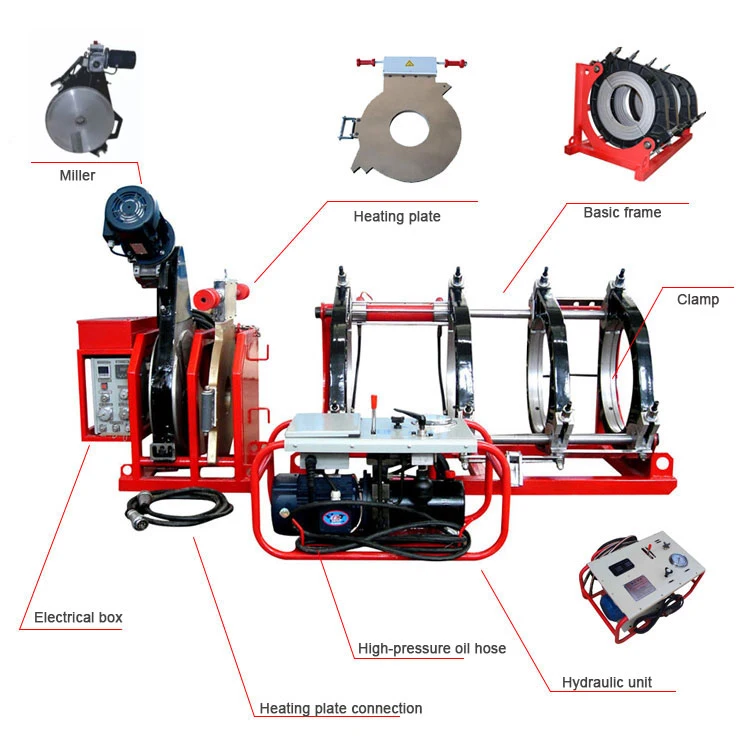

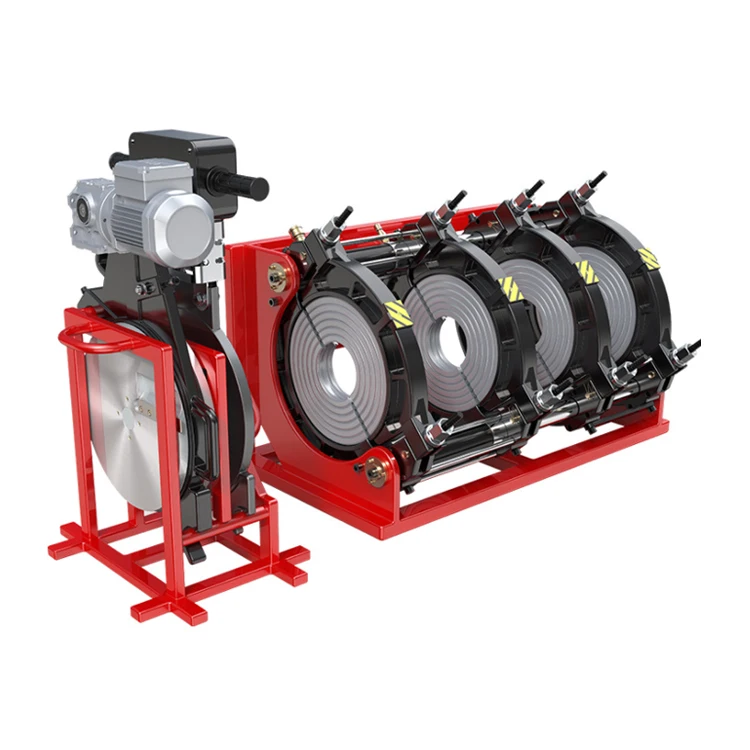

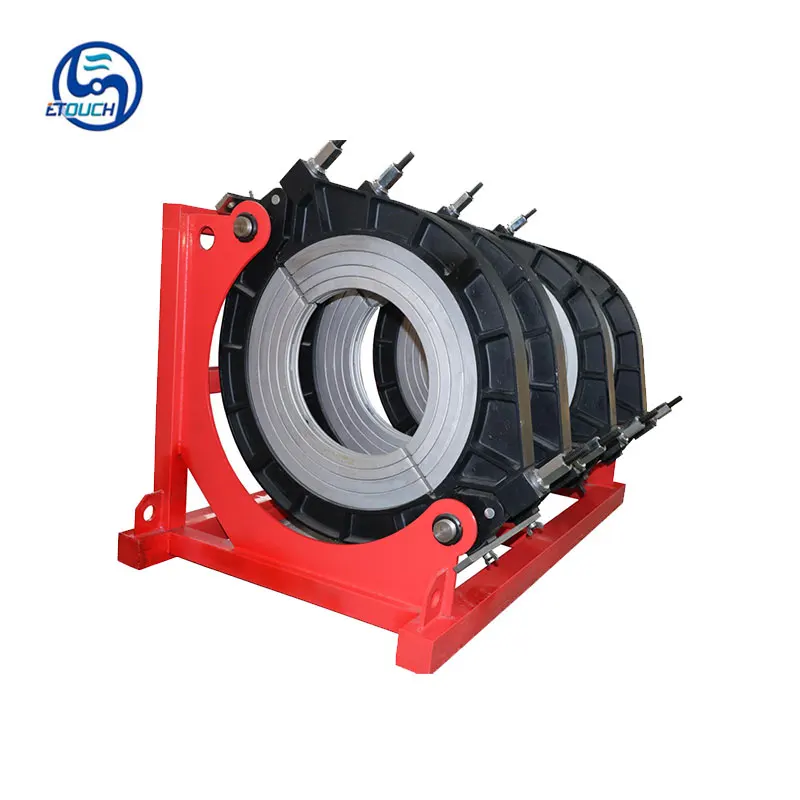

Hydraulic butt fusion Welding Machine
1.The raw material of the machine frame is aluminum ZL104, it's light but strong,is one of the best material of the machine.
2.The main electrical parts elements are best in china, many are imported from abroads.

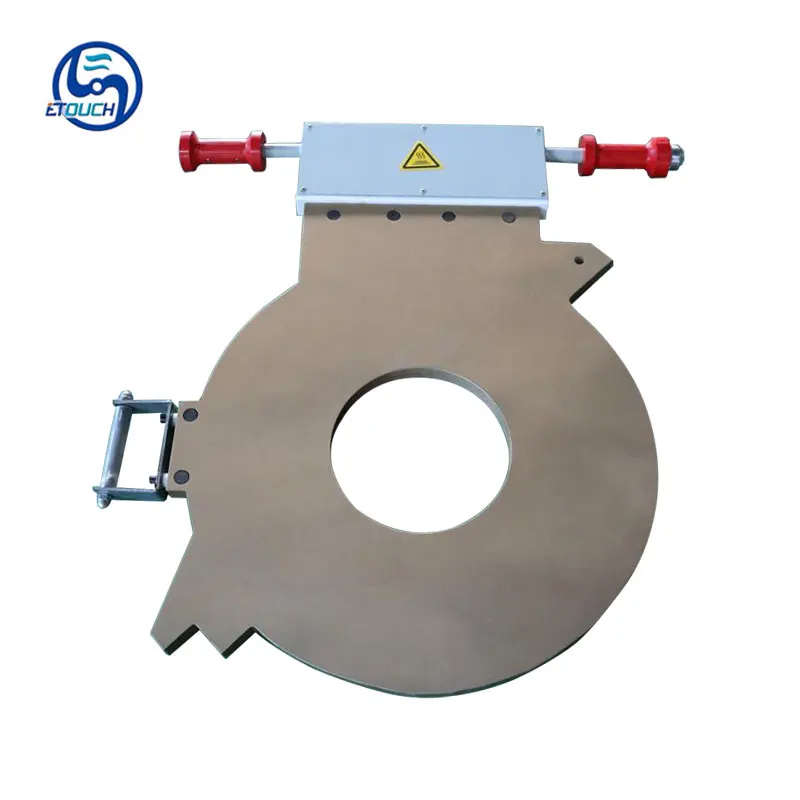

3.Reovable PTFE coated heater with separate
temperature ontrol system,the temperature can be controlled to a minimum range.
temperature ontrol system,the temperature can be controlled to a minimum range.

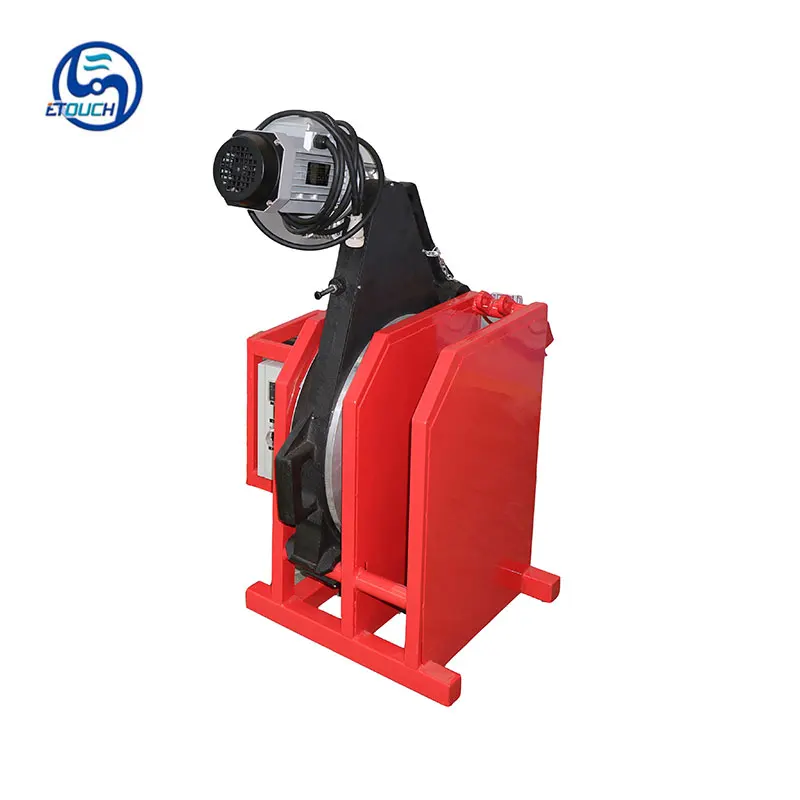

4.The cutter adopts powerful motor, specal material of the blade, making the cutting effect more perfect.
5.The machine with simple structure can be operated by one person,it's suitable for use under complex conditions.
Specifications
Parameter for Hydraulic butt fusion welding machine
Model | SHBD160-63 | SNBD200-63 | SNBD250-110 | SHBD315-160 | SHBD355-90 | SNBD450-280 |
Welding range(mm) | 63-160 | 63-200 | 100-250 | 160-315 | 90-355 | 280-450 |
Heating plate temperature | 270℃ | 270℃ | 270℃ | 270℃ | 270℃ | 270℃ |
Heating plate surface temperature(170-250°C) | <±5 | <±5 | <±5 | <±5 | <±5 | <±5 |
Pressure adjustment range | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa | 0-6.3MPa |
Cross-sectional area of the cylinder | 626mm2 | 626mm2 | 1100mm2 | 2000mm2 | 2000mm2 | 2236mm2 |
Operating Voltage | 220V ,50Hz | 220V ,50Hz | 220V ,50Hz | 220V ,50Hz | 220V ,50Hz | 220V ,50Hz |
Heating plate power | 1.0KW | 1.0KW | 2.1KW | 3.1KW | 3.5KW | 5.2KW |
Cutter power | 0.85KW | 0.85KW | 1.36KW | 1.36KW | 1.36KW | 1.5KW |
Hydraulic station power | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 0.75KW | 1.5KW |
Total Power | 2.6KW | 2.6KW | 4.21KW | 5.21KW | 5.61KW | 8.2KW |
Product Details
Our Factory
Application
Company Profile
01 Company Introduction
SHANDONG E-TOUCH SHIPPING ENGINEERING Co., Ltd. is located in the beautiful kite capital of Weifang, Shandong, and has branches in Bangladesh and India. The company relies on the current first-class shipbuilding technology achievements, advanced strength and technological reserves, sound business and sales concepts, high-quality production quality control, and reasonable and humanized enterprise management to provide customers with high-end and high-quality products and services.The company is guided by high-end talent strategic planning, based on the supporting resource market of small and medium-sized environmentally friendly engineering ships and equipment, focusing on intelligent supporting in the mid to high end dredging field, and providing the best cost-effective services for international dredging and environmental protection industry customers.
Customer Photos
Our Service
Packing & Delivery
FAQ
Q1:who are we?
We are based in Shandong, China, start from 2018,sell to South Asia(45%), Southeast Asia(20%), Africa(10%),Domestic
Market(20.00%).
Q2:Can we visit your factory?
Sure, we sincerely welcome you to visit and check our factory, we would show you around of our workshop.
Q3:Do you also supply the accessories of dredgers?
Yes, sure,our main business scope are:
* Manufacturing different size of dredgers, Booster Pump stations,slurry pumps, Inland ships, tugs &Business Service Craft.
* Supplying Dredging Pipeline ,Spares as DAMEN/ IHC Dredge Pumps,Pump spares , Cutter teeth, HDPE Pipe, Dredging steel pipe, \\flexible hosepipe, floaters, floating Jetty and Marine guide Buoy
* Supporting international clients to get full solution on different dredgers, ships design and manufacturing assist in Clients local dockyard.
* Providing dredging project analysis, assistance and services to help overseas clients improving working efficiency
Q4:how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
Q5:why should you buy from us not from other suppliers?
SHANDONG E-TOUCH SHIPPING ENGINEERING Is on the base of first-rate ship technological to provide ships and dredgers for worldwide customers from dredging industry. We give support on dredging project analysis, assistance to help clients improving their working efficiency to get high rate profit return.We are managing up one stop purchase and service for international marine and engineering clients.
Q6:what services can we provide?
We believe in building a relationship with our customers and therefore SHANDONG E-TOUCH offers global service.Our service team consists of highly skilled and experienced professionals and dredging specialists who can provides the best desired dredgers and integrated dredging solutions according to the customer's specific project. E-TOUCH also provide technical supports such as operational skills training, repair technology teaching.
We are based in Shandong, China, start from 2018,sell to South Asia(45%), Southeast Asia(20%), Africa(10%),Domestic
Market(20.00%).
Q2:Can we visit your factory?
Sure, we sincerely welcome you to visit and check our factory, we would show you around of our workshop.
Q3:Do you also supply the accessories of dredgers?
Yes, sure,our main business scope are:
* Manufacturing different size of dredgers, Booster Pump stations,slurry pumps, Inland ships, tugs &Business Service Craft.
* Supplying Dredging Pipeline ,Spares as DAMEN/ IHC Dredge Pumps,Pump spares , Cutter teeth, HDPE Pipe, Dredging steel pipe, \\flexible hosepipe, floaters, floating Jetty and Marine guide Buoy
* Supporting international clients to get full solution on different dredgers, ships design and manufacturing assist in Clients local dockyard.
* Providing dredging project analysis, assistance and services to help overseas clients improving working efficiency
Q4:how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
Q5:why should you buy from us not from other suppliers?
SHANDONG E-TOUCH SHIPPING ENGINEERING Is on the base of first-rate ship technological to provide ships and dredgers for worldwide customers from dredging industry. We give support on dredging project analysis, assistance to help clients improving their working efficiency to get high rate profit return.We are managing up one stop purchase and service for international marine and engineering clients.
Q6:what services can we provide?
We believe in building a relationship with our customers and therefore SHANDONG E-TOUCH offers global service.Our service team consists of highly skilled and experienced professionals and dredging specialists who can provides the best desired dredgers and integrated dredging solutions according to the customer's specific project. E-TOUCH also provide technical supports such as operational skills training, repair technology teaching.
Q7:Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.Alibaba trade assurance,credit card,western union.
Normally both of T/T & L/C at sight are ok for us.Alibaba trade assurance,credit card,western union.
Q8: What's your MOQ?
MOQ: 1 set
Q9:Can you accept OEM%ODM service?
Yes for sure my friend.We provide logo,package,customized,and also can customized the product according to your requirements.
MOQ: 1 set
Q9:Can you accept OEM%ODM service?
Yes for sure my friend.We provide logo,package,customized,and also can customized the product according to your requirements.
