Сжиженный природный газ/L-CNG заправочной станции изготовления на
- Категория: Chemical Storage Equipment >>>
- Поставщик: Jianyang,Greenfir,New,Energy,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 59500.47 $* | 62475.7 $* |
| Aug-20-2025 | 59000.27 $* | 61950.56 $* |
| Jul-20-2025 | 49500.19 $* | 51975.97 $* |
| Jun-20-2025 | 58000.20 $* | 60900.92 $* |
| May-20-2025 | 50500.25 $* | 53025.8 $* |
| Apr-20-2025 | 57000.4 $* | 59850.84 $* |
| Mar-20-2025 | 56500.51 $* | 59325.80 $* |
| Feb-20-2025 | 56000.96 $* | 58800.46 $* |
| Jan-20-2025 | 55500.59 $* | 58275.21 $* |
Характеристики
Product Paramenters
L-cng Equipment parameter table | ||||||
Number | Indicator name | Data | ||||
1 | LNG tank working pressure / effective volume | 1.0Mpa/60m³ | ||||
2 | Booster carburetor vaporization volume / working | 300Nm³/h / 1.6Mpa | ||||
3 | Maximum flow rate of single cryogenic and high pressure plunger pump / power | 28L/min / 30Kw | ||||
4 | High-pressure air-temperature carburetor vaporization / working | 1000Nm³ / 25Mpa | ||||
5 | Explosin-proof water bath electric heating reheater | 1000Nm³ / 25Mpa /24Kw | ||||
6 | Sequence control panel(one in and four out)maximum | 1800Nm³/h / 25Mpa | ||||
7 | Working pressure / water volume of cng gas storage tank | 25Mpa / 3.99m³ | ||||
8 | Low-pressure EAG heater | 100Nm³/h / 1.6Mpa | ||||
9 | Total equipment power | 115Kw | ||||
10 | Adapt to ambient temperature | -30~50℃ | ||||
11 | Control method | PLC | ||||
12 | Cng filling machine metering error | ±0.5% | ||||
13 | Vacunm degree of lng storage tank | ≤3Pa | ||||
14 | Vacunm degree of lng vacunm insulation pipe | 0.05Pa | ||||
15 | Equipment size | tank | LxDN 14500mmx3000mm | |||
pump skid(reference) | LxWxH 6000mmx2438mmx2591mm | |||||
Note:LNG storage tanks are available in three sizes of 60m³ 120m³ 180m³ | ||||||
Related Products
Product Details
Product Description:
According to production of oil field and natural gas field, wellhead gas recovery plant can fill CNG tube trailer by low pressure dehydration unit and CNG compressor, or by high pressure dehydration unit if gas pressure is enough, or by high pressure filling directly and low pressure CNG compressor, to recover natural gas from outlying and test wells.
Product Specification:
1. Full recovery of natural gas under 1.0MPa~25MPa inlet pressure.
2. Stand-alone operation without external energy,
3. Easy installation and disassembly.
2. Stand-alone operation without external energy,
3. Easy installation and disassembly.

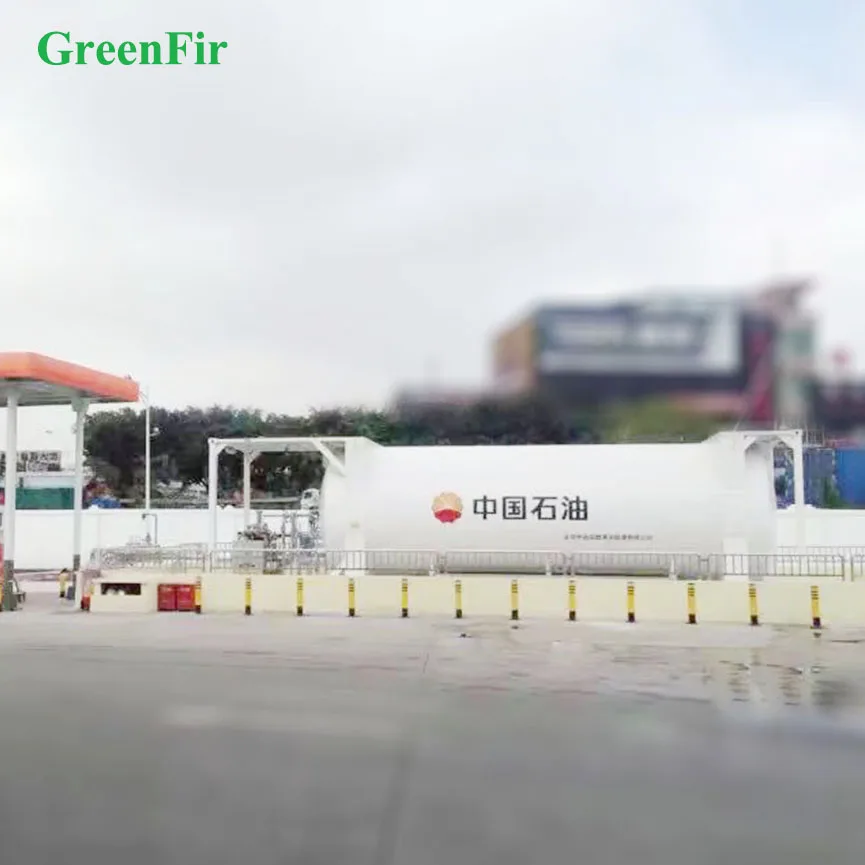

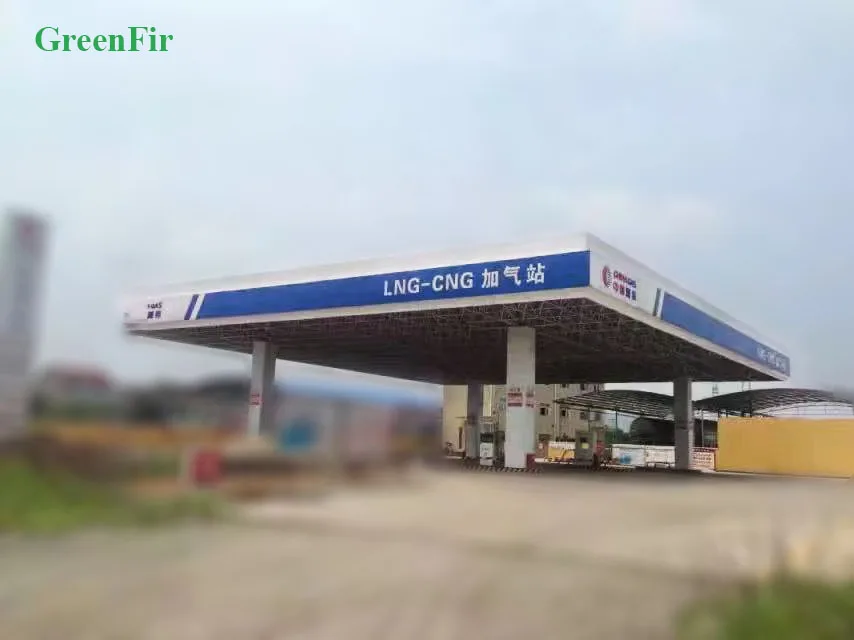

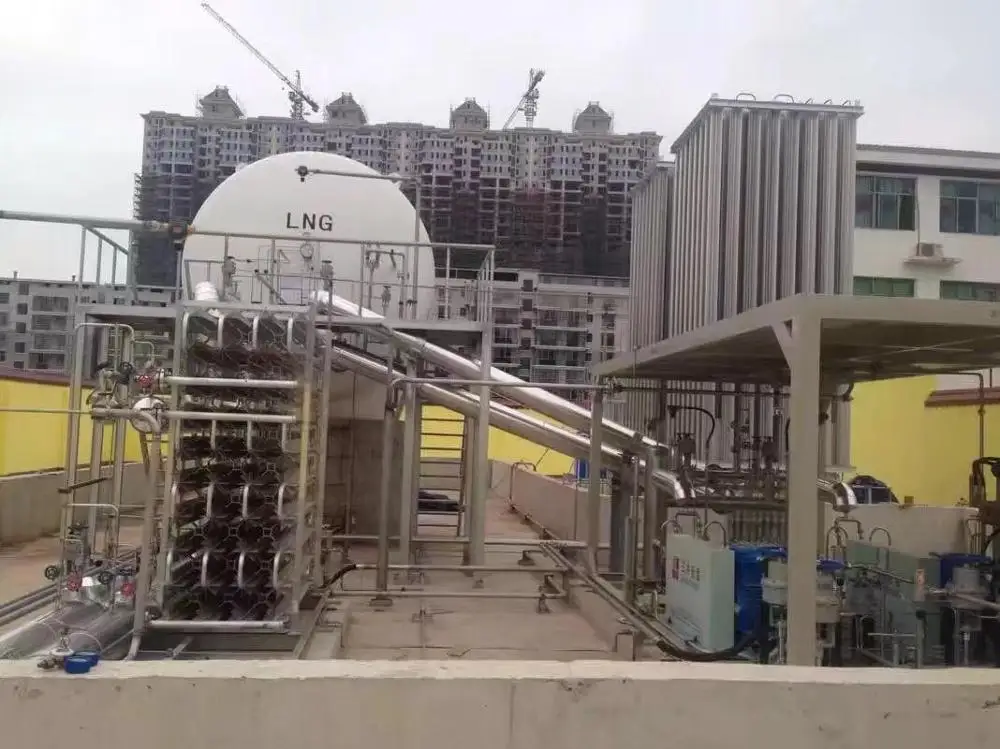

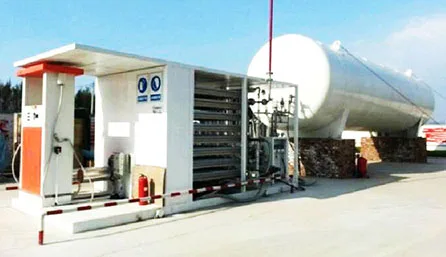

Project display
Company Profile
Jianyang Greenfir New Energy Equipment Co, Ltd is located in ten dam industrial park, Jianyang city,Sichuan province. The main design and manufacturing products include natural gas purification andliquefaction equipment (LNG/NGL), natural gas pressure regulating equipment, natural gas well gasrecovery equipment, air separation unit, LNG/CNG filling equipment, and hydrogen and liquid hydrogenfilling equipment.
The company gathers top-notch talents in the industry and pursues the business philosophy of honesty-based, down-to-earth, pioneering and enterprising, technology-based enterprise to provide customers with stable,safe,reliable and cost-effective products.
Factory Display
FAQ
Q1.Are you manufacturer or trading company?
We are professional manufacturer in cryogenic equipment filed.
Q2.What's your advantage?
We provide you not only techology-leading,stable and reliable,cost-efficient equipment,but also solutionsand after-sales service.
Q3.Have your engineers participated in any foreign projects?
Yes,our engineers have more than 15 years experience in this field and have participated in the design ,manufacture ,installation and commissioning of the equipment in Turkey,Eygpt,Myanmar,ect.
Q4.How can i get the exact price of the product?
Please tell us your specific requirements and environmental data,so we can provide the most suitable products and solutions for you.
