Automatic UV coating line Standard tunnel annealing furnace
Product Description
Production Features:
1.The material of effective drying liner is 304 stainless steel,with high cleanliness feature.

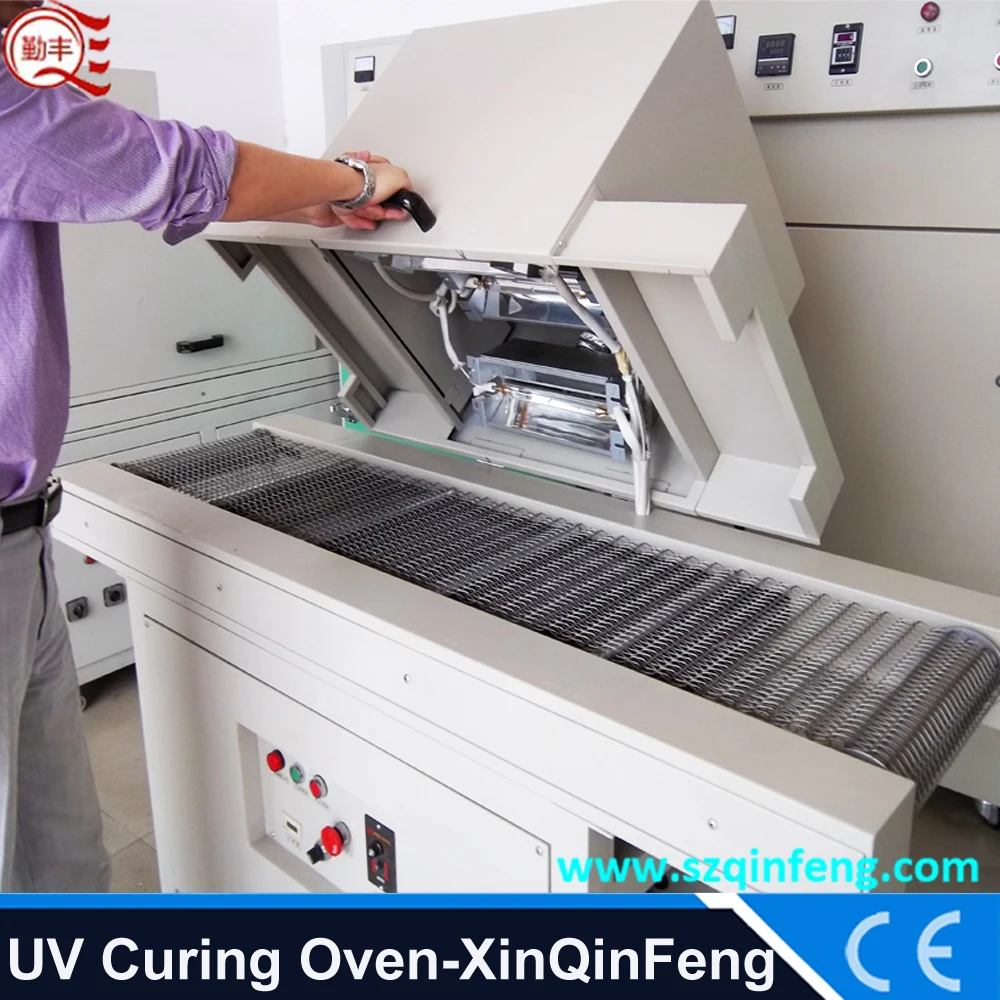

2.With opening type design,very portable and convenient to test and maintenance.
3.The adjustable foot cup and the universal wheel is equipped easy to transport and insall.
4.The conveyor speed can be adjustable according to your requirements
5.The touch screen with PLC control can be provided
6.Inside and outside of produce is heated evenly, The quality is stable, not deformed,not discolored.
7.It can be used with the automatic spraying line and production line,which can effectively control the labor, reducing the handing,reducing the bad product,Saving time.
8.The temperature can be controller in sections to adapt the change of product, The reasonable temperature curve make the quality more stable,anti-explosion and environmental protection.
9.The shell surface temperature is almost 40℃,can be touch by hand,which can reduce the energy consumption. The working environment will be more comfortable.
Product Specification:
No.
Item
Specification
A
The conveyor line of Drying oven
Size:L2200mm×W600mm×H750mm(Qty:1pcs )
1
Material
The body of equipment is made of 1.2t 50# box section.The foot of the machine is made of welding 50x50 steel box section. The foot stool is equipped with M12 adjustable foot cup. The adjustable height is 1050±20. the feeding area is 1m,the heating area is 1m
2
The conveyor line
The conveyor adopts the teflon high temperature mesh belt with black double knit.the effective width is 400mm
3
Motor
The motor use the Taiwan imported 40W electronic speed regulating motor. The
Main speed ratio of gearbox is 1:60 and the speed of the conveyor is 0.1-2m/min.
4
Driving System
A set of seamless tube precision machinery processing and production of the transmission chain wheel, a set of belt pulley.
5
Painting colour
Computer white electrostatic powder coating
B
Drying furnace cover
Size:L1000mm×W510mm×H100mm(Qty: 1pcs)
1
The outside plate material
The outside plate is made of 1.2t folding welding cold plate. The inner plate is made of 1.0t galvanized sheets. The thick of heat insulation layer is 50mm.
2
The electrical heated tube
It uses quartz infrared heating tube, the power is 4KW/set.
4
Temperature
The design temperature is adjusted from room temperature to 250℃.
5
Wind Motor
The wind motor use 60W vertical high temperature resistant motor, which is equipped with 4 inch fan blade to form wind system.
6
Electronic Controller
The temperature-controller uses the Japan RKC digital display temperature controller. The control circuits has electric relay switch with indicator light, electric relay, contactor etc and it has the overload protection.

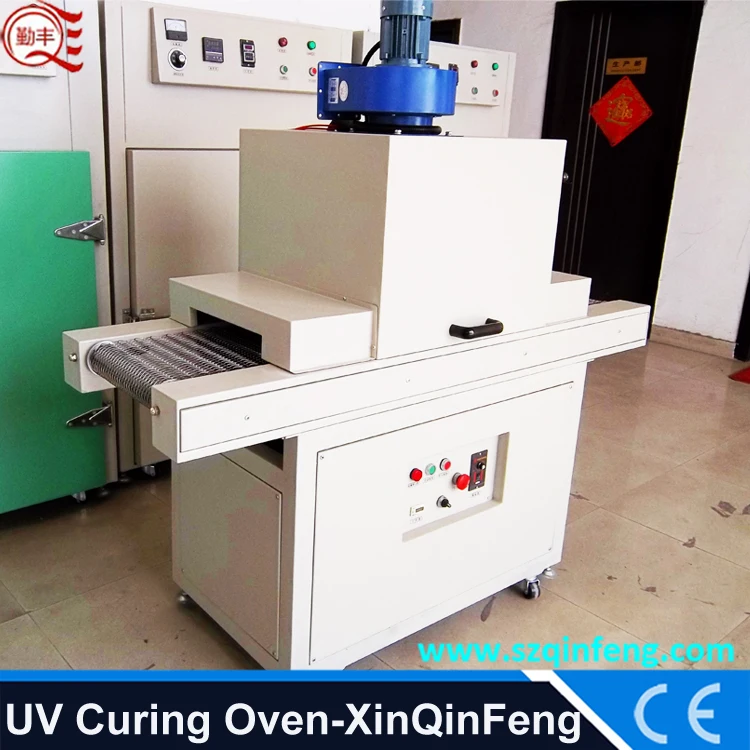

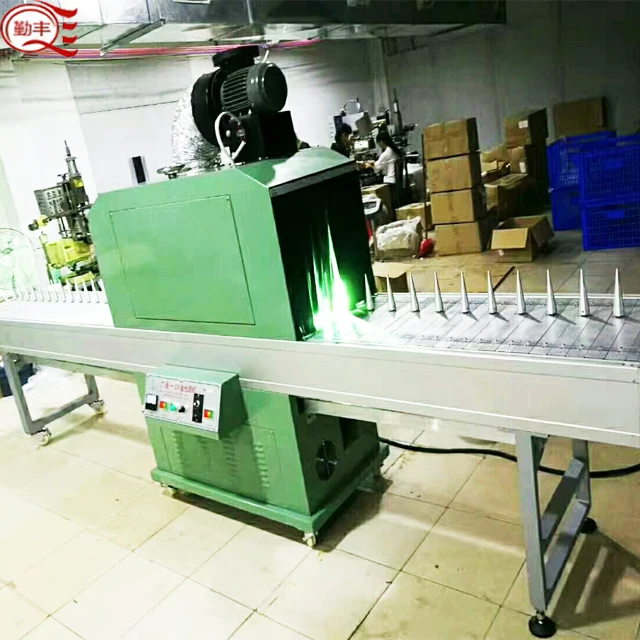

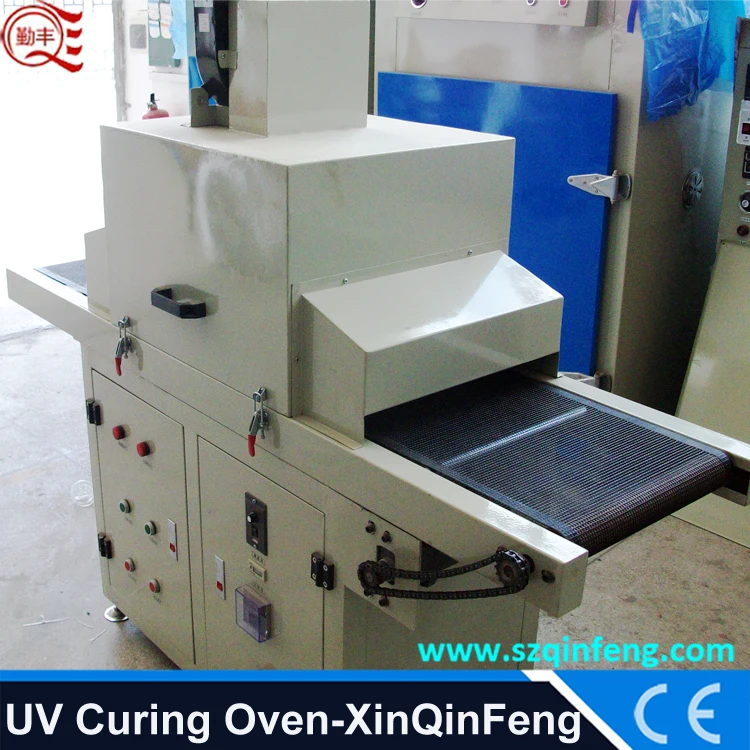

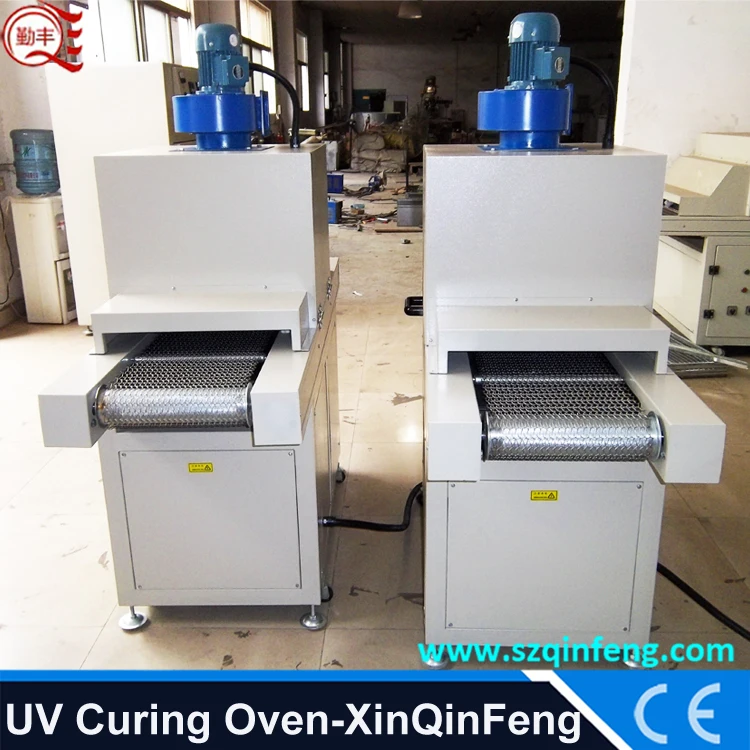

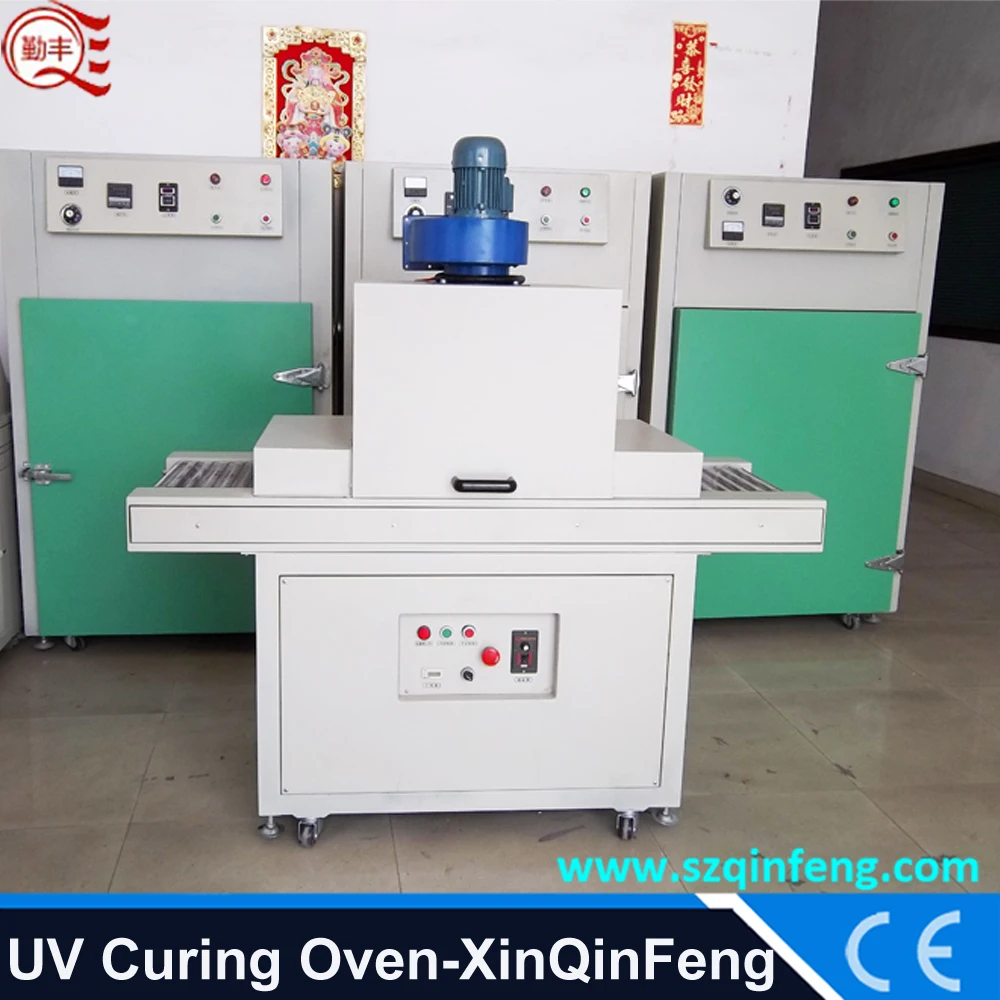

Product Pictures:
Application:
The Tunnel Furnace has the teflon tunnel furnace, PVC tunnel furnace,steel wire melt furnace etc, which can be widely used to the electronics, plastic,leather,wooden,hardware,glass etc fields.
