Электрическая индукционная стальная оболочка плавильная алюминиевая печь Цена 5 тонн Средняя
- Категория: Industrial Furnace >>>
- Поставщик: Luoyang,Ding,Hong,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 53550.41 $* | 56228.74 $* |
| Aug-17-2025 | 53100.45 $* | 55755.37 $* |
| Jul-17-2025 | 44550.19 $* | 46778.85 $* |
| Jun-17-2025 | 52200.54 $* | 54810.74 $* |
| May-17-2025 | 45450.57 $* | 47723.25 $* |
| Apr-17-2025 | 51300.31 $* | 53865.59 $* |
| Mar-17-2025 | 50850.65 $* | 53393.67 $* |
| Feb-17-2025 | 50400.22 $* | 52920.2 $* |
| Jan-17-2025 | 49950.87 $* | 52448.19 $* |
Характеристики
Why Choose Us
Products Description

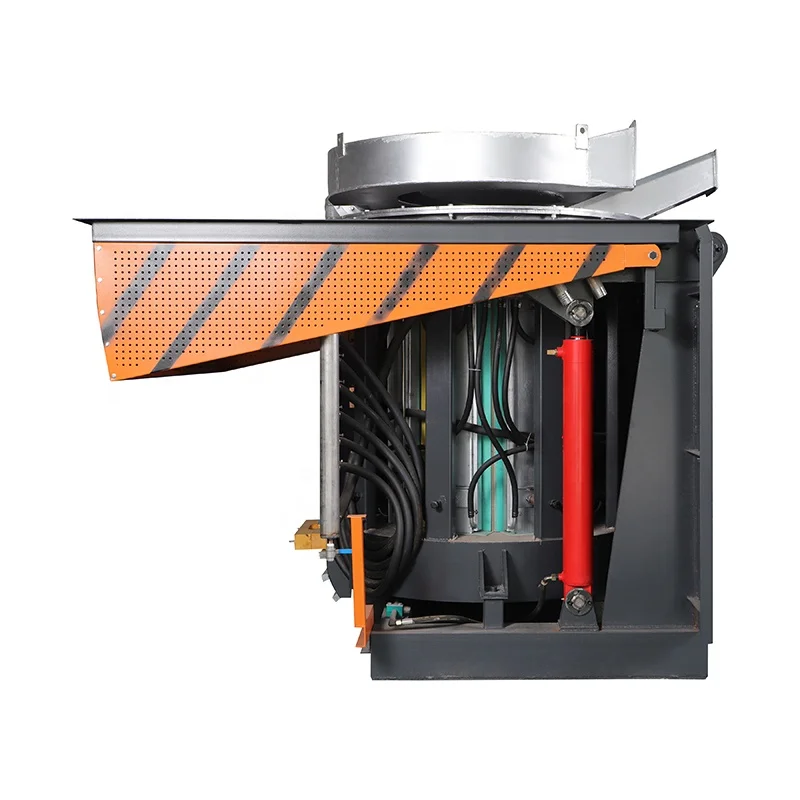

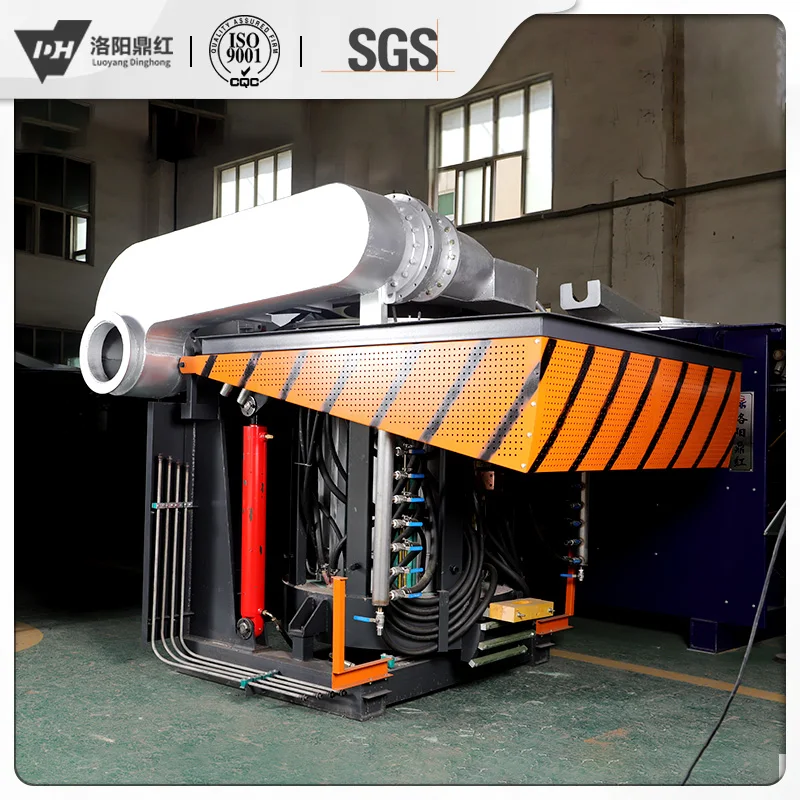

Steel shell induction furnace
1. The steel shell furnace adopts the hydraulic station tilting device
2. The furnace body is welded with high quality steel structure, which is safer, firmer and more durable.
3. The inductor is surrounded by a yoke and covers an area of more than 65%. Because the magnetic leakage is small, the efficiency is high, and the energy consumption of the aluminum shell furnace is reduced by nearly 5% - 8%.
4. It is equipped with a leak-proof furnace alarm device to remind you of the purpose of safe production.
5. The steel shell furnace body is designed with two kinds of environmental dust removal and heat preservation furnace cover systems, which are cyclone type and side suction type, which meet the requirements of environmental assessment. Users can choose the configuration according to their needs.
2. The furnace body is welded with high quality steel structure, which is safer, firmer and more durable.
3. The inductor is surrounded by a yoke and covers an area of more than 65%. Because the magnetic leakage is small, the efficiency is high, and the energy consumption of the aluminum shell furnace is reduced by nearly 5% - 8%.
4. It is equipped with a leak-proof furnace alarm device to remind you of the purpose of safe production.
5. The steel shell furnace body is designed with two kinds of environmental dust removal and heat preservation furnace cover systems, which are cyclone type and side suction type, which meet the requirements of environmental assessment. Users can choose the configuration according to their needs.
Product Advantage
◆ The existence of cyclone dust removal furnace cover reduces the loss of heat and improves the safety of the equipment.
◆ Cyclone smoking hood has excellent dust absorption and heat preservation effect, occupying less space.It can roll back and forth, and it can stay in any position.
◆ The cyclone dust hood can effectively absorb dust in the process of spherification in front of the furnace, which is impossible to achieve with the traditional dust hood.
◆ long service life, aluminum in high temperature strong magnetic field environment, easy to cause metal toughness fatigue.
◆ Cyclone smoking hood has excellent dust absorption and heat preservation effect, occupying less space.It can roll back and forth, and it can stay in any position.
◆ The cyclone dust hood can effectively absorb dust in the process of spherification in front of the furnace, which is impossible to achieve with the traditional dust hood.
◆ long service life, aluminum in high temperature strong magnetic field environment, easy to cause metal toughness fatigue.
Model | Inside Diameter | Tube ThIckness | Steel Thickness | Magnet Yokes | Reducer Furnace Size | Hydraulic Furnace Size |
0.5T | 550mm | 5-6mm | 12mm | 6 sets | 1.8*1.5*1.35m | |
0.75T | 630mm | 5-6mm | 12mm | 6 sets | 1.8*1.5*1.45m | |
1T | 700mm | 5-6mm | 12mm | 6/8 sets | 1.8*1.5*1.55m | 2.5*2.3*1.83m |
1.5T | 760mm | 5-8mm | 12mm | 8 sets | 1.8*1.5*1.6m | 2.5*2.3*1.83m |
2T | 820mm | 5-8mm | 12mm | 8 sets | 2.7*2.7*2.1m | |
3T | 920mm | 5-8mm | 12mm | 10 sets | 2.7*2.7*2.3m | |
5T | 1150mm | 5-8mm | 12mm | 10 sets | 3.1*3.1*2.65m | |
8T | 1350mm | 8mm | 12mm | 12 sets | 3.5*3.8*3m | |
10T | 1400mm | 8mm | 12mm | 12 sets | 3.6*4*3.3m | |
20T | 1750mm | 8mm | 12mm | 16 sets | 4.2*4.5*3.9m |
Details Images
Product Advantage
Technology

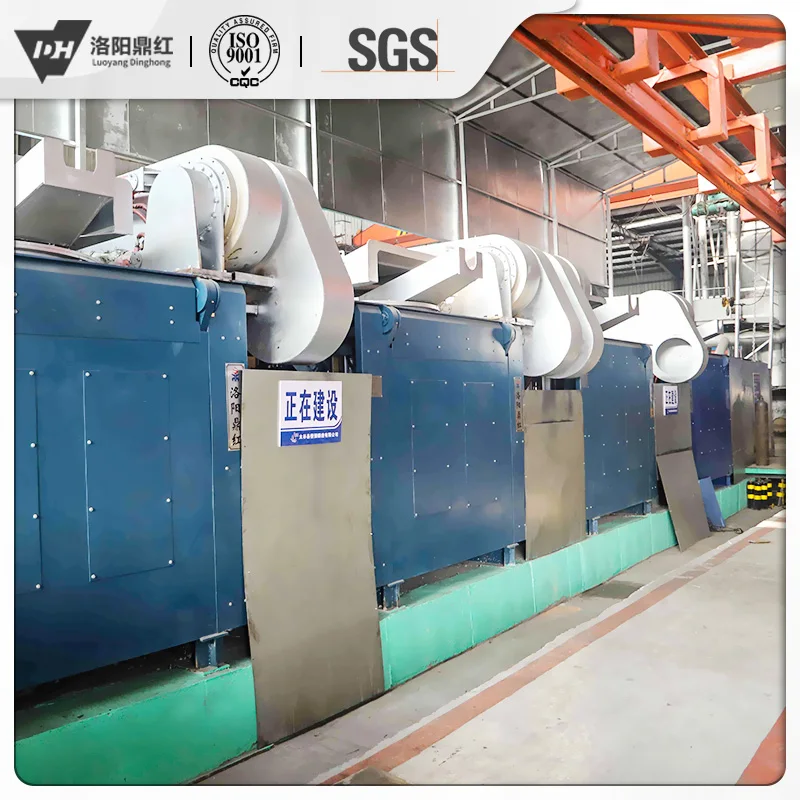

Cooperation Cases
About Us
Luoyang Dinghong Electric Technology Co.,Ltd. Located in Luoyang city ,China. We are specialized in designing and manufacturing all kinds of induction furnace and Diathermy furnace for more than 30 years.
Cooperating with researching and scientific institute, our factory designs and manufacture most advantage induction furnace and own 24 patents.
FAQ
Q1: How to choose melting furnace if it is first time we have used furnace?
A2: We are manufacturer with 30 years experience, which is specialized in manufacturing all kinds of induction furnace. We can also provided OEM service as customer requirement.
A3:The power supply we provide is electricity.
A5: Spare parts will be sent out at most 10 days, and will be sent immediately if it is in stock.
Usually induction furnace will be finished within 30 days once receipt the prepayment.
A1:Don't worry, inform us what you want to melt, how about the capacity and your solution/ requirement. we will provide professional proposal for your reference. Overseas service will be provided when installation,commission, and training during using process. until the workers can operate by themselves.
Q2: Are you a trader or producer?
A2: We are manufacturer with 30 years experience, which is specialized in manufacturing all kinds of induction furnace. We can also provided OEM service as customer requirement.
Q3: Which kind of power supply do you supply? Electricity or gas?
A3:The power supply we provide is electricity.
Q4: What is your QC measure?
A4: 1. sound quality system to ensure products quality.
2. Process inspection during each step production line.
3. All accessories of induction furnace are from well-known brands both China and abroad.
4. Strict test and inspection before leaving the factory and will provide ex-factory inspection report to customer.
Q5: How about the delivery time of induction furnace?
A5: Spare parts will be sent out at most 10 days, and will be sent immediately if it is in stock.
Usually induction furnace will be finished within 30 days once receipt the prepayment.
