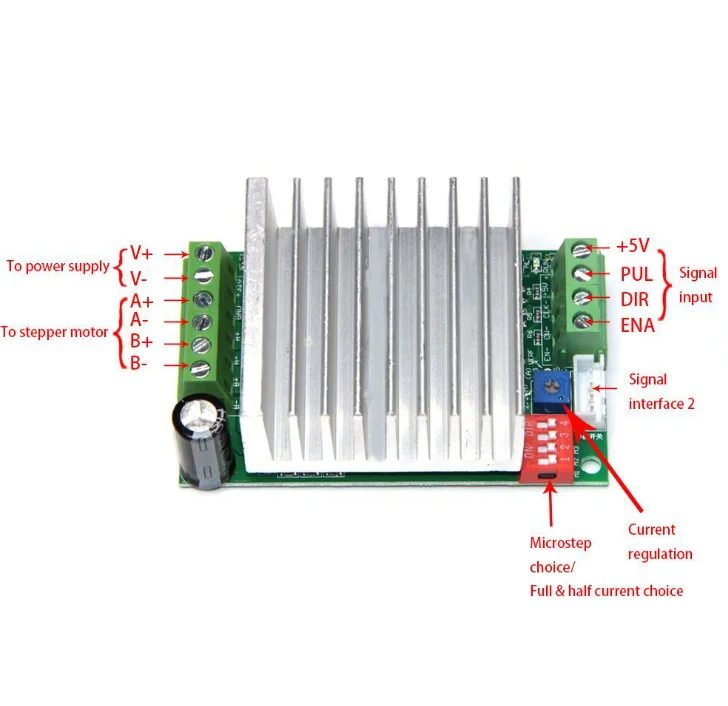

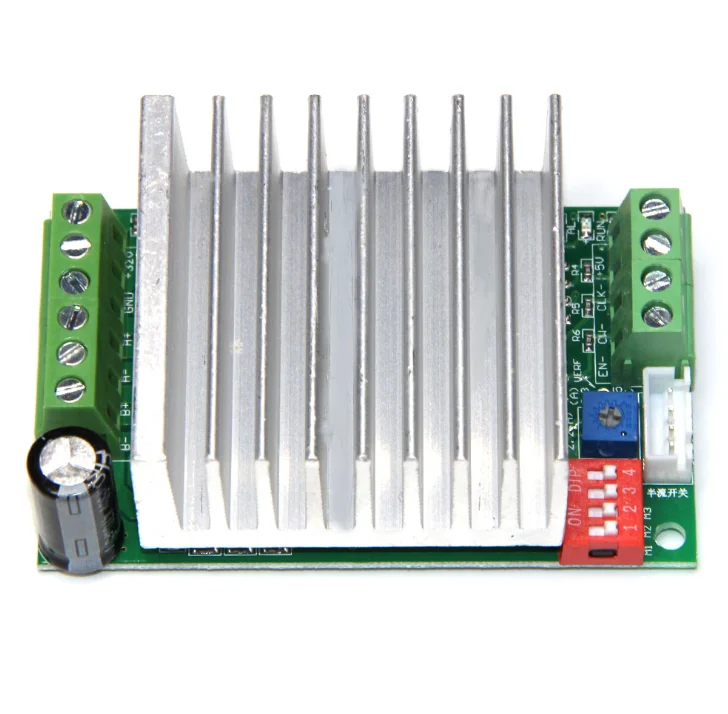

4.5A stepper motor driver TB6560



High current 4.5A, high voltage 45V, output short circuit protection, superior performance!


1) Operating voltage DC 10V-45V. Switching power supply DC32V is recommended.

2) 6N137 high-speed optical coupling, high-speed without losing step.

3) High-current, high voltage TB6600HG new original chip, there are low-voltage shutdown, over-temperature shutdown and overcurrent protection circuit, and increased compared to TB6560 short-circuit protection.

4) Rated maximum output: ± 4.5A.

5) Suitable for 42,57,86 two-phase / four-phase / four-wire / six-wire stepping motor within 4.2A.

6) automatic semi-flow function.

7) Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, maximum 16 segments.

8) Volume: Width 50 * Length 82 * Height 35 (MM)



feature of product:

1, the output current stepless adjustable to meet your needs of a variety of applications.

2, automatic semi-flow function. And with automatic semi-flow switch, easy to use.

3, using 6N137 high-speed optical lotus, to ensure high-speed without losing step.

4, the board printed on the back of the sub-set instructions.

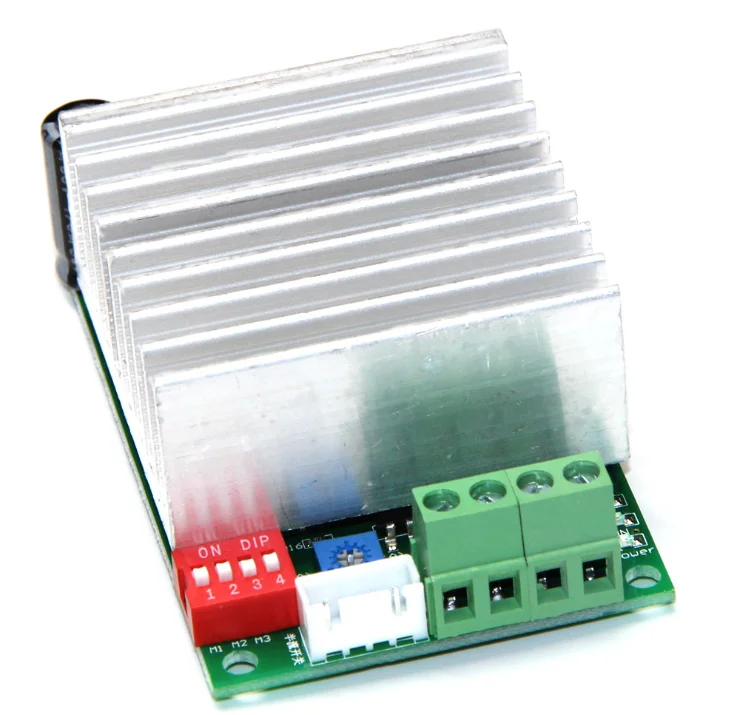

5, the use of increased heat sink, good heat dissipation.

6, with output short-circuit protection, the use of worry-free.

7, using a total of Yang input mode, there are two input terminals, wiring more convenient.
