Планетарный редуктор NEMA 17 шаговый электродвигатель
- Категория: Stepper Motor >>>
- Поставщик: Changzhou,Jkongmotor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.48 $* | 0.65 $* |
| Aug-16-2025 | 0.58 $* | 0.72 $* |
| Jul-16-2025 | 0.35 $* | 0.2 $* |
| Jun-16-2025 | 0.7 $* | 0.0 $* |
| May-16-2025 | 0.69 $* | 0.42 $* |
| Apr-16-2025 | 0.46 $* | 0.64 $* |
| Mar-16-2025 | 0.15 $* | 0.83 $* |
| Feb-16-2025 | 0.9 $* | 0.7 $* |
| Jan-16-2025 | 0.29 $* | 0.88 $* |
Характеристики
 |  |  |
 |  |
|
Genaral Specification:

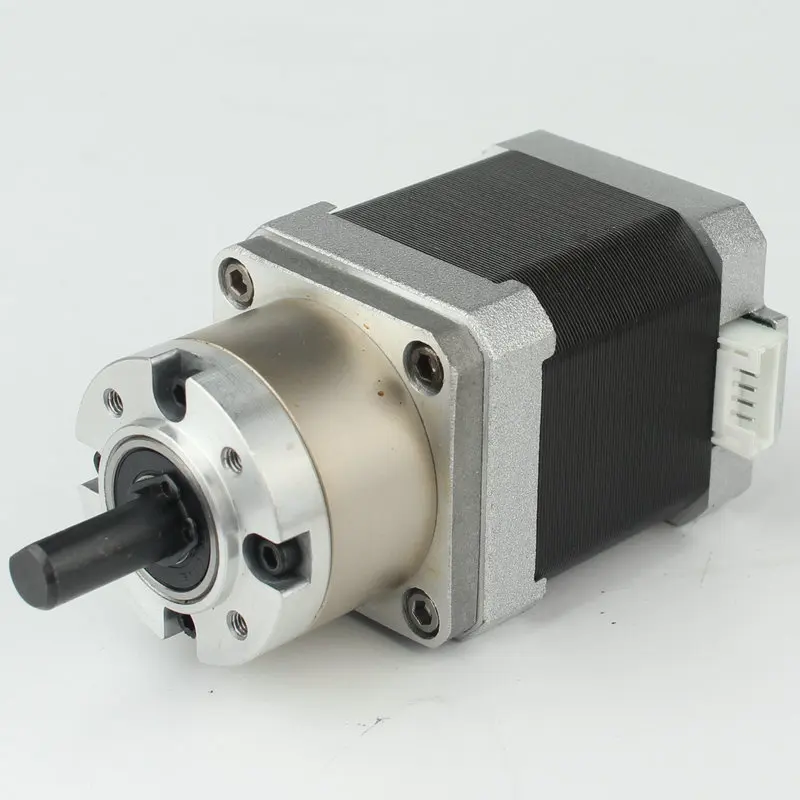

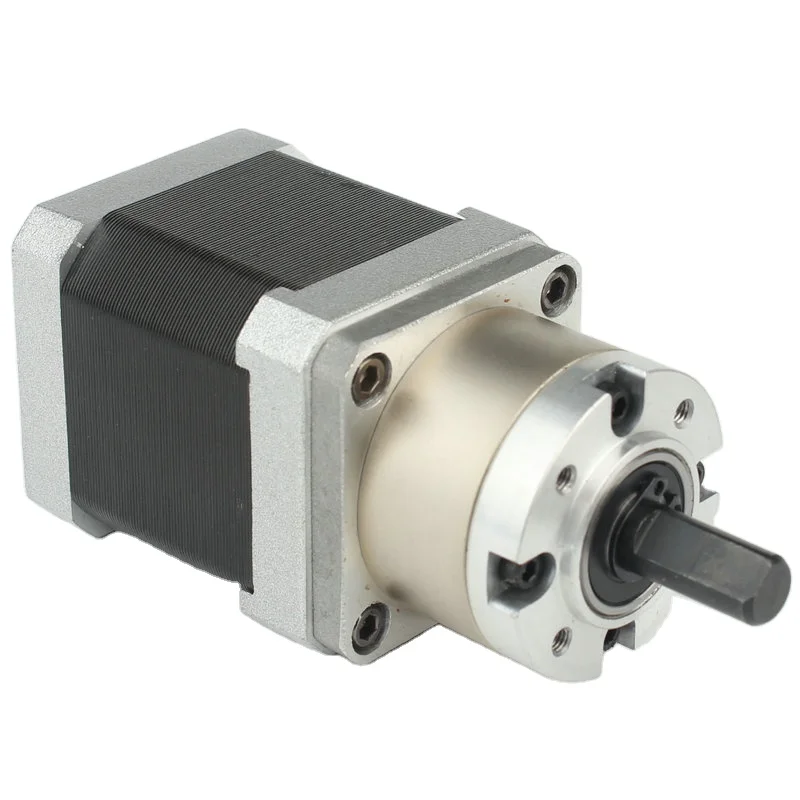

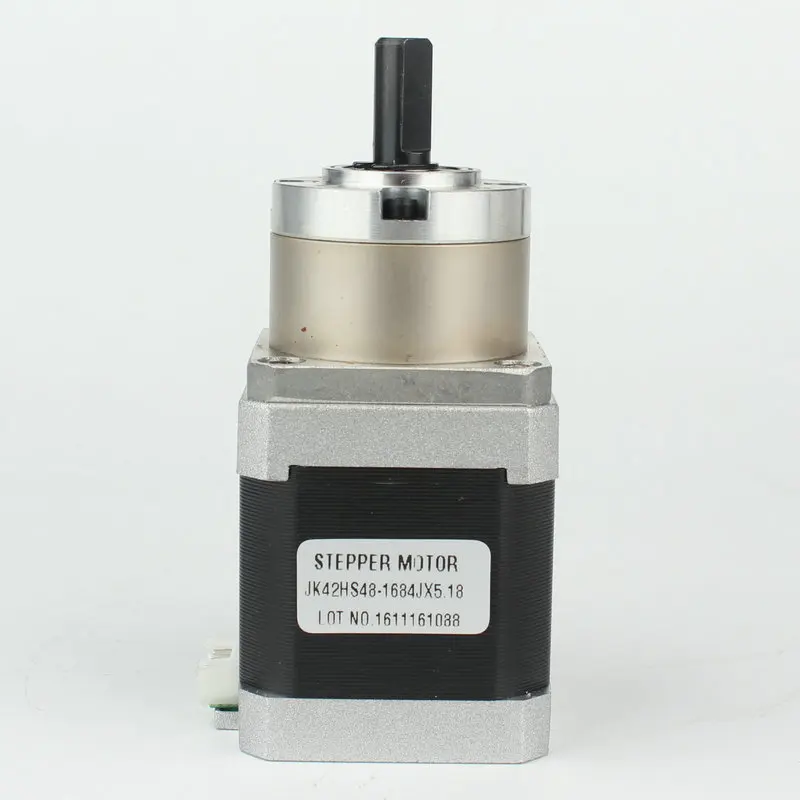

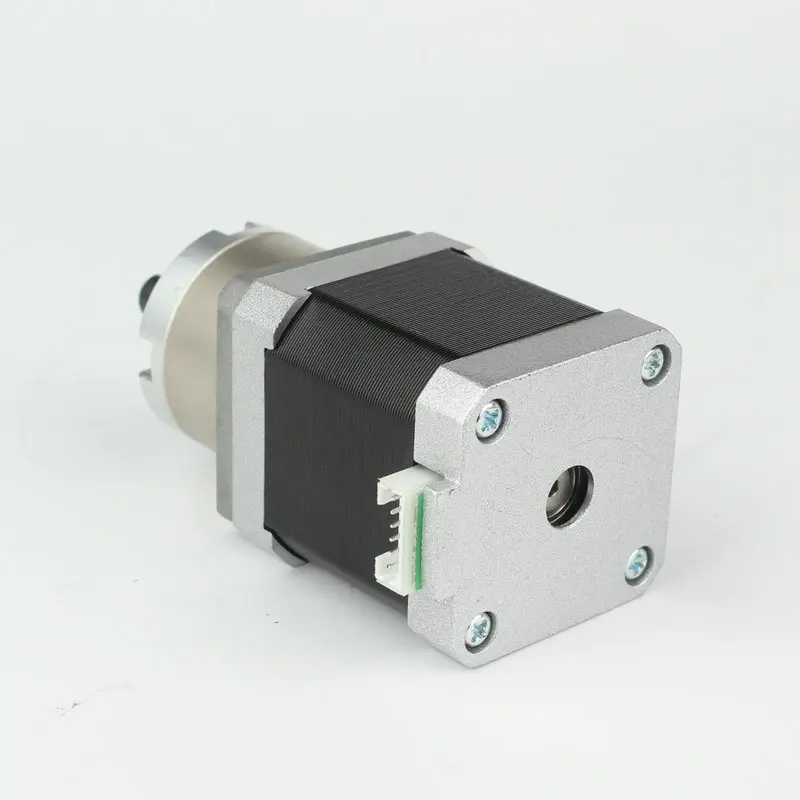

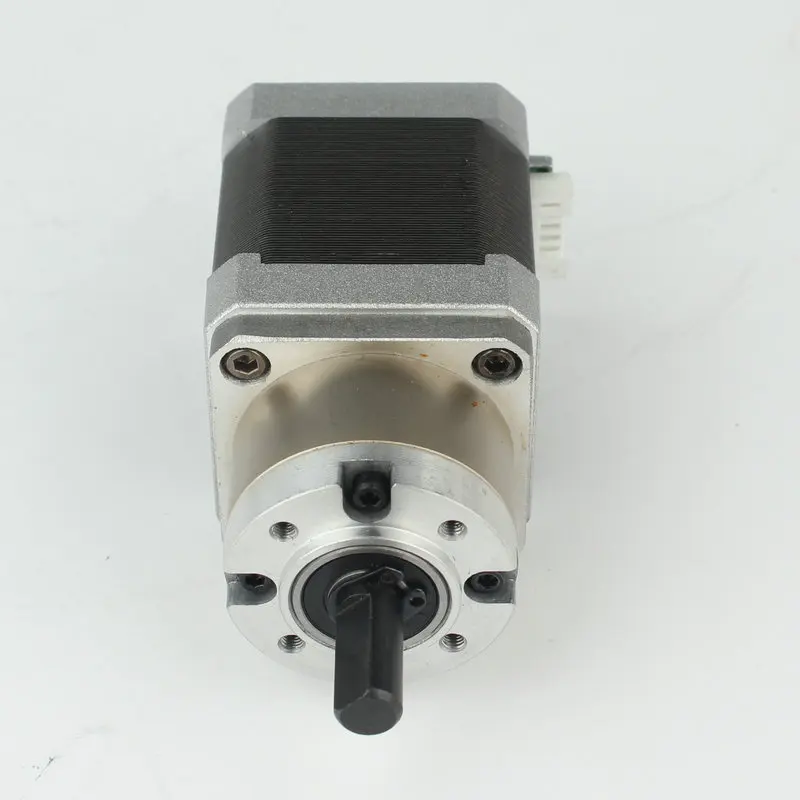

42mm(NEMA17) 3.2kg.cm Planetary Gearbox Stepping Motor with factory price and high quality
Genaral Specification:
Housing Material | Metal |
Bearing at Output | Ball Bearings |
Max.Radial Load(12mm from flange) | ≤80N |
Max.Shaft Axial Load | ≤30N |
Radial Play of Shaft (near to Flange) | ≤0.06mm |
Axial Play of Shaft | ≤0.3mm |
Backlash at No-load | 1.5° |
42HS Hybrid Stepping Motor Specifications
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm
| Kg |
JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 5.6 | 6 | 280 | 102 | 0.5 |
42HS Planetary Gearbox Specifications
Reduction ratio | 3.71 | 5.18 | 13.76 | 19.2 | 26.8 | 51 | 71 | 99.5 | 139 |
Number of gear trains | 1 | 2 | 3 | ||||||
Length(L2) mm | 27.3 | 35 | 42.7 | ||||||
Max.rated torque kg.cm | 20 | 30 | 40 | ||||||
Short time permissible torque kg.cm | 40 | 60 | 80 | ||||||
Weight g | 350 | 450 | 550 | ||||||
calla
Tel: 0086 519 88372558
Fax: 0086 519 88713769
QQ:3002031108
We chat:15189786485
Q1: What about your warranty?
A: We guarantee is one year . for sea order . is 15months.
Q2: Do you have any certificates?
A: Yes, we have. All the motors have been approved by CE and Rohs.
Q3: Do you offer OEM AND ODM service?
A: Yes. We can supply OEM andmake customized design for any specific application.
Q4: How can be your brand distributor?
A: We will check your capacity and help you promote and expand the market.
Q5: What's the delivery time ?
A: Except special order. For samples usually 10-14 working days . for batch order . usually 20-25days.
