Гибридный солнечный инвертор 5 кВт вкл./выкл. сетевой с резервным аккумулятором однофазный выход 220
- Категория: Солнечные инверторы >>>
- Поставщик: Ningbo,Zhenhai,Geebo,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.15 $* | 0.49 $* |
| Aug-17-2025 | 0.75 $* | 0.68 $* |
| Jul-17-2025 | 0.74 $* | 0.71 $* |
| Jun-17-2025 | 0.39 $* | 0.40 $* |
| May-17-2025 | 0.71 $* | 0.98 $* |
| Apr-17-2025 | 0.59 $* | 0.90 $* |
| Mar-17-2025 | 0.48 $* | 0.92 $* |
| Feb-17-2025 | 0.96 $* | 0.83 $* |
| Jan-17-2025 | 0.3 $* | 0.12 $* |
Характеристики
Products Description
1. Colorful touch LCD, IP65 protection degree
2. 6 time periods for battery charging/discharging
3. Max. charging/discharging current of 120A
4. Frequency droop control, Max.16pcs parallel
5. DC couple and AC couple to retrofit existing solar system
6. Support storing energy from diesel generator
2. 6 time periods for battery charging/discharging
3. Max. charging/discharging current of 120A
4. Frequency droop control, Max.16pcs parallel
5. DC couple and AC couple to retrofit existing solar system
6. Support storing energy from diesel generator

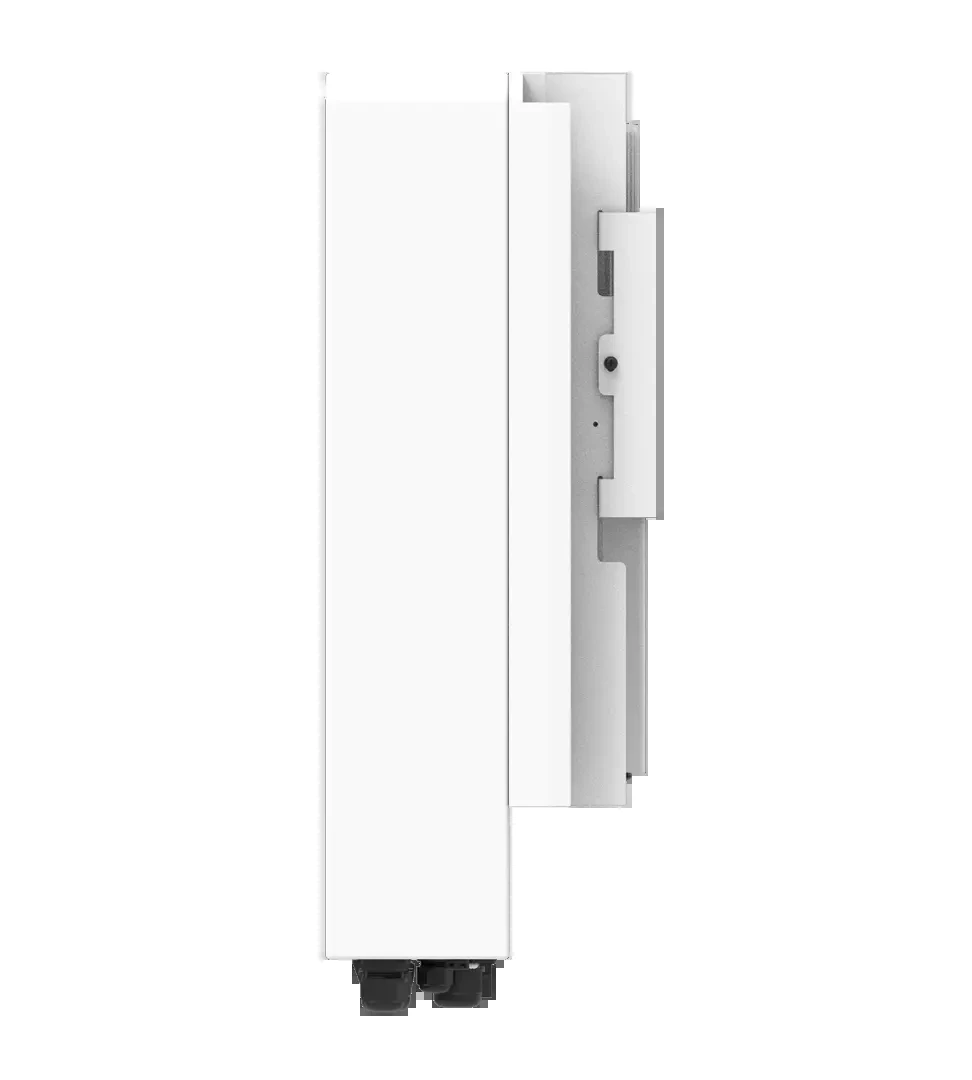

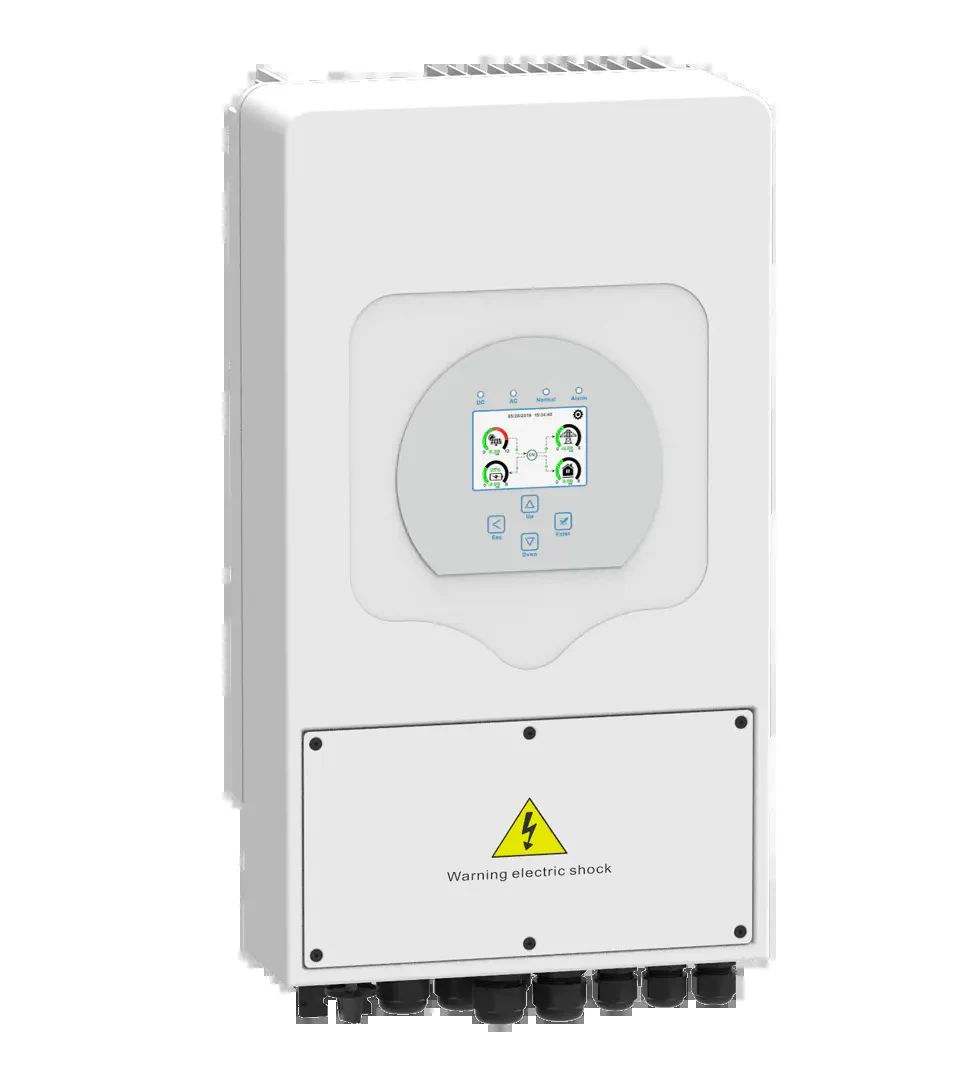

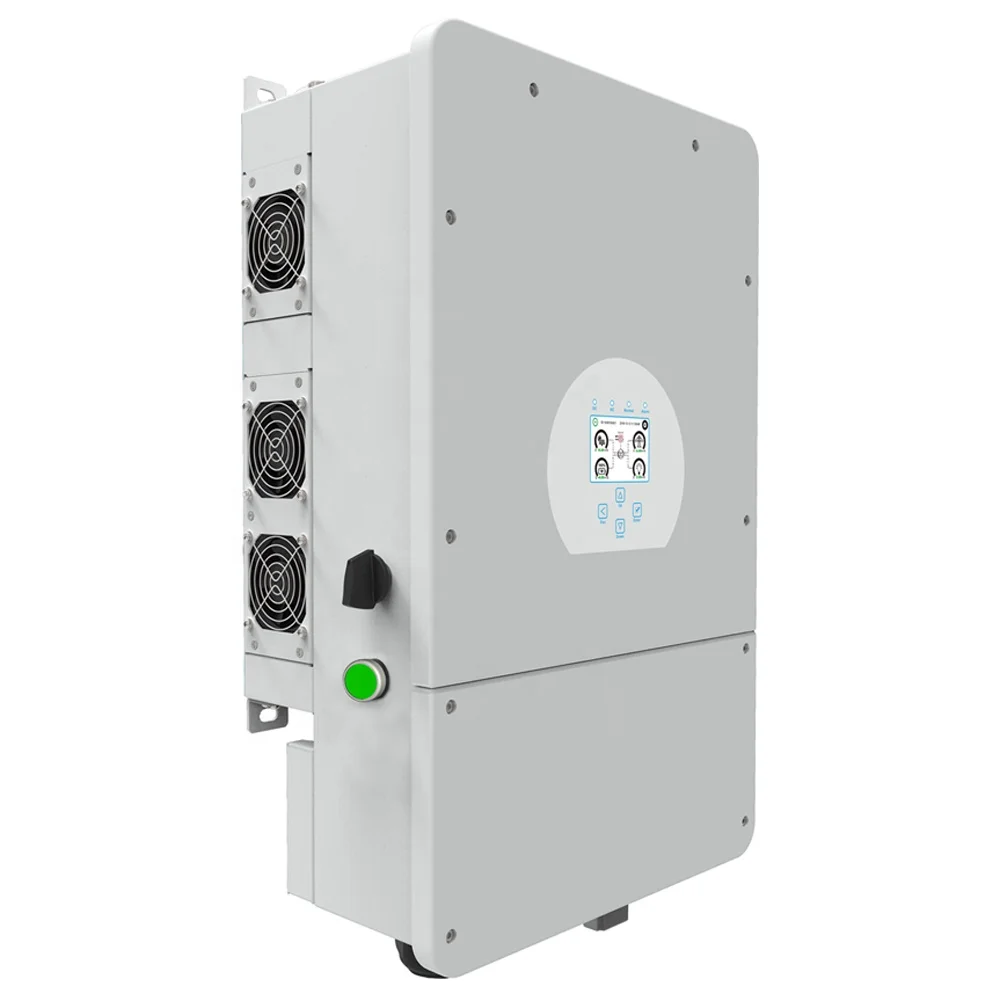

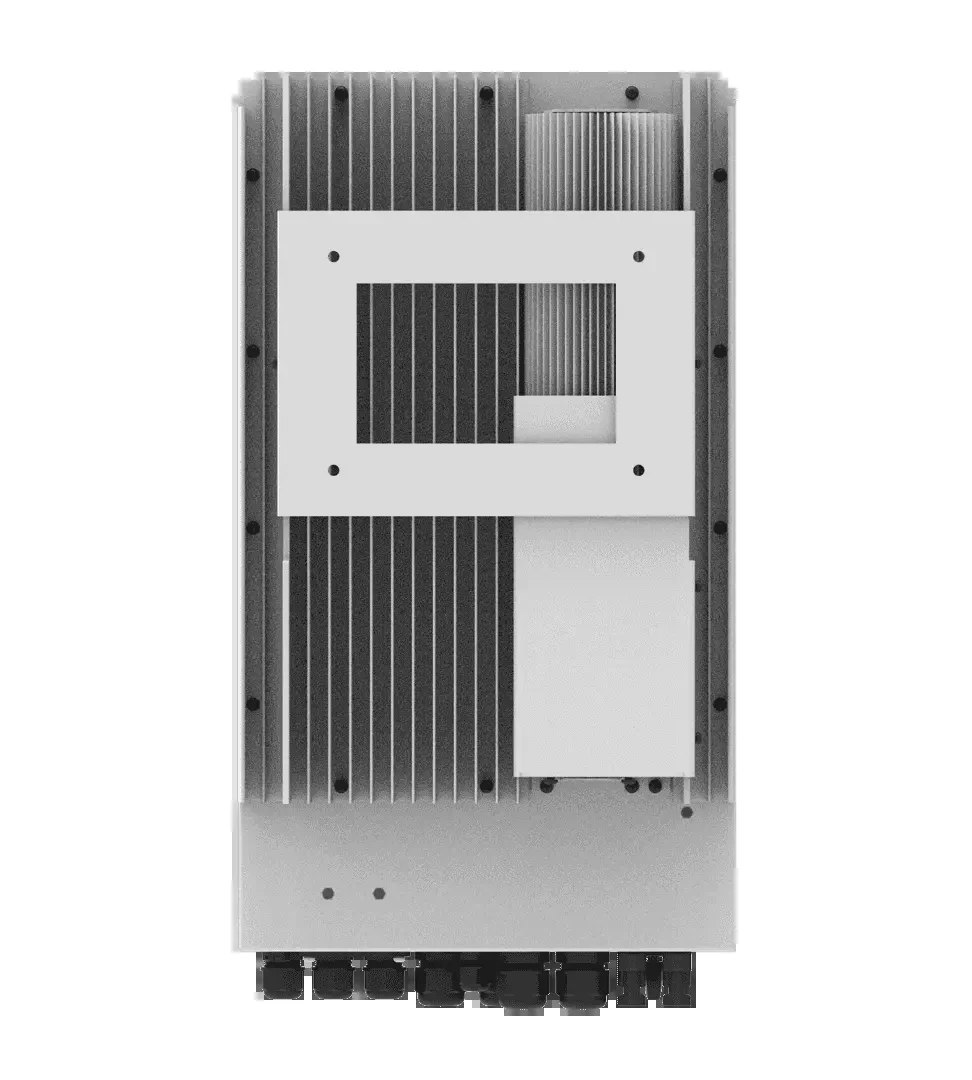

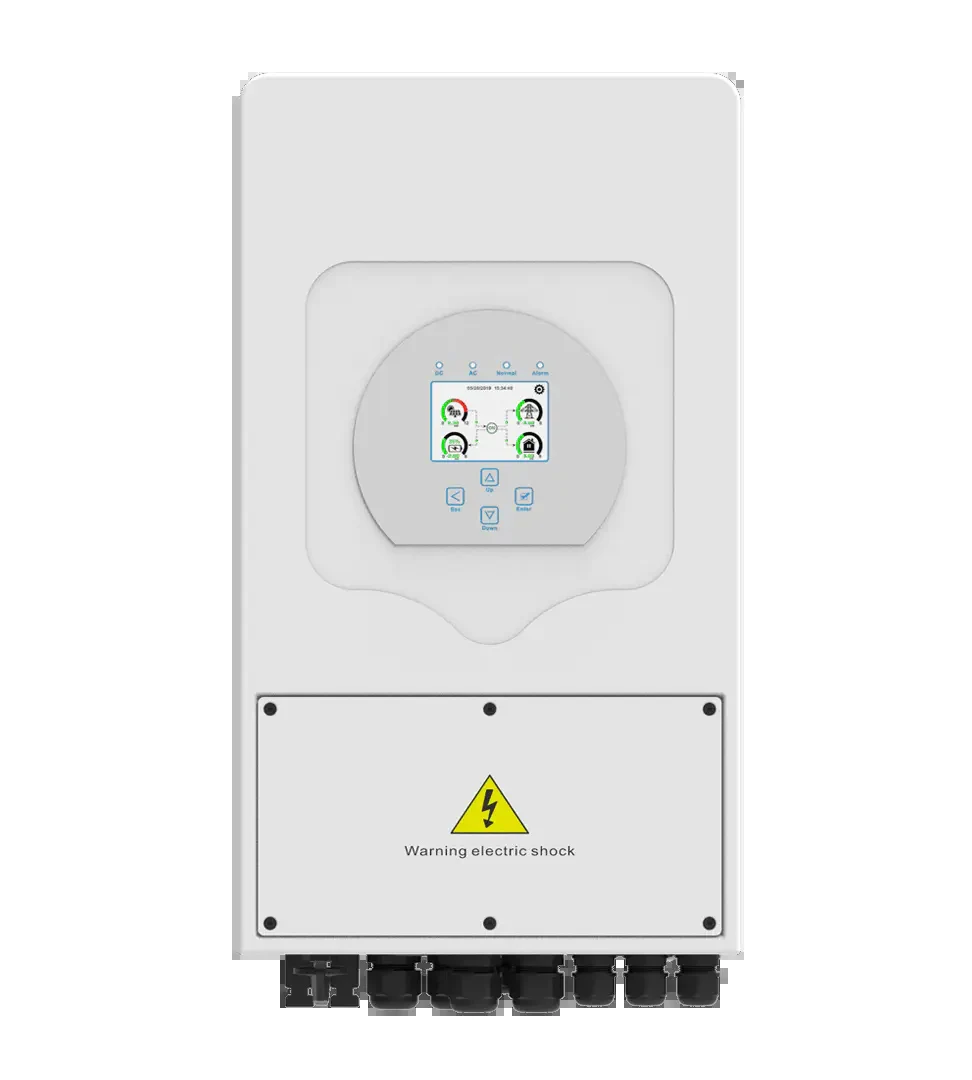

Details Images

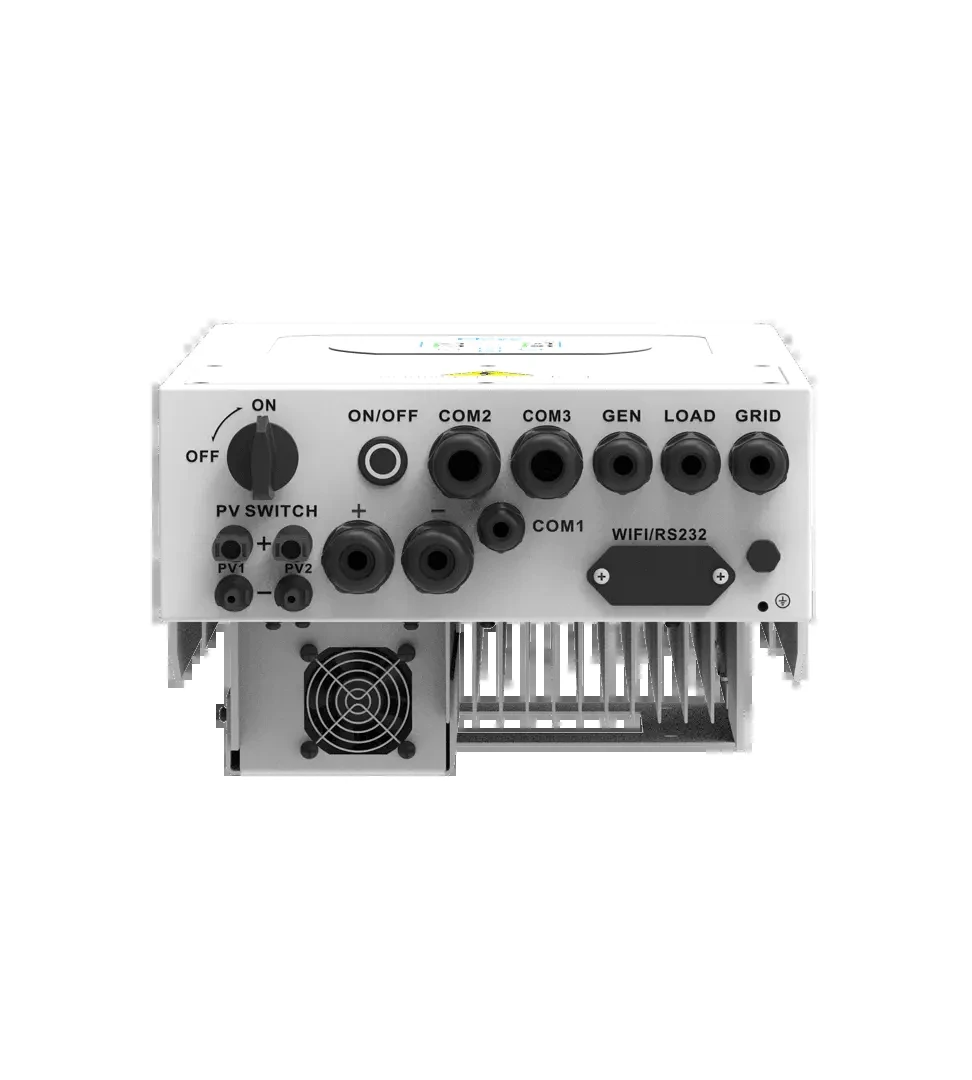

Wiring order & Accessories
Product Paramenters
Model | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU | SUN-8K-SG01LP1-EU | |||||
Battery Input Data | ||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||
Battery Voltage Range (V) | 40~60V | |||||||
Max. Charging Current (A) | 90A | 120A | 190A | |||||
Max. Discharging Current (A) | 90A | 120A | 190A | |||||
Charging Curve | 3 Stages / Equalization | |||||||
External Temperature Sensor | Optional | |||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||
PV String Input Data | ||||||||
Max. DC Input Power (W) | 4680W | 6500W | 9880W | |||||
PV Input Voltage (V) | 370V (100V~500V) | |||||||
MPPT Range (V) | 125~425V | |||||||
Full Load DC Voltage Range | 240~425V | |||||||
Start-up Voltage (V) | 150V | |||||||
PV Input Current (A) | 11A+11A | 22A+22A | ||||||
No.of MPPT Trackers | 2 | |||||||
No.of Strings Per MPPT Tracke | 1+1 | 2+2 | ||||||
AC Output Data | ||||||||
Rated AC Output and UPS Power (W) | 3600W | 5000W | 7600W | |||||
Max. AC Output Power (W) | 3960W | 5500W | 8360W | |||||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||||
AC Output Rated Current (A) | 15.7A | 21.7A | 33A | |||||
Max. AC Current (A) | 18A | 25A | 36.3A | |||||
Max. Continuous AC Passthrough (A) | 35A | 50A | ||||||
Power Factor | 0.8 leading to 0.8 lagging | |||||||
Output Frequency and Voltage | 50/60Hz; 220/230 / 240Vac (single phase) | |||||||
Grid Type | Single Phase | |||||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||||
Efficiency | ||||||||
Max. Efficiency | 97.60% | |||||||
Euro Efficiency | 96.50% | |||||||
MPPT Efficiency | 99.90% | |||||||
Protection | ||||||||
PV Input Lightning Protection | Integrated | |||||||
Anti-islanding Protection | Integrated | |||||||
PV String Input Reverse Polarity Protection | Integrated | |||||||
Insulation Resistor Detection | Integrated | |||||||
Residual Current Monitoring Unit | Integrated | |||||||
Output Over Current Protection | Integrated | |||||||
Output Shorted Protection | Integrated | |||||||
Output Over Voltage Protection | Integrated | |||||||
Surge protection | DC Type II / AC Type II | |||||||
Certifications and Standards | ||||||||
Grid Regulation | VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3, CEI 0-21 | |||||||
Safety Regulation | IEC62109-1, IEC62109-2 | |||||||
EMC | EN61000-6-1, EN61000-6-3 | |||||||
General Data | ||||||||
Operating Temperature Range (℃) | -25~60℃, >45℃ Derating | |||||||
Cooling | Smart cooling | |||||||
Noise (dB) | <30dB | |||||||
Communication with BMS | RS485; CAN | |||||||
Weight (kg) | 20.5 | 32 | ||||||
Size (mm) | 330W×580H×232D | 420W×670H×233D | ||||||
Protection Degree | IP65 | |||||||
Installation Style | Wall-mounted | |||||||
Warranty | 5 years | |||||||
