Бренд DINGHONG заводская цена индукционная печь для плавки

Бренд DINGHONG заводская цена индукционная печь для плавки

Категория: Industrial Furnace >>>
Поставщик: Luoyang,Ding,Hong,Electric,Technology,Co.,Ltd.

Цена:6 800,00 $ - 7 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	8092.67 $*	8497.94 $*
Aug-19-2025	8024.27 $*	8425.5 $*
Jul-19-2025	6732.41 $*	7069.98 $*
Jun-19-2025	7888.72 $*	8282.22 $*
May-19-2025	6868.12 $*	7211.5 $*
Apr-19-2025	7752.98 $*	8140.17 $*
Mar-19-2025	7684.84 $*	8068.86 $*
Feb-19-2025	7616.52 $*	7997.72 $*
Jan-19-2025	7548.59 $*	7925.41 $*

Характеристики

Why Choose Us

Products Description

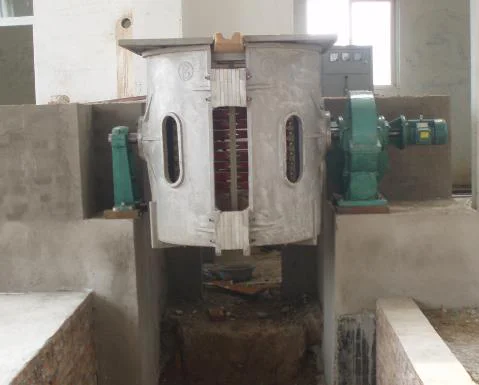

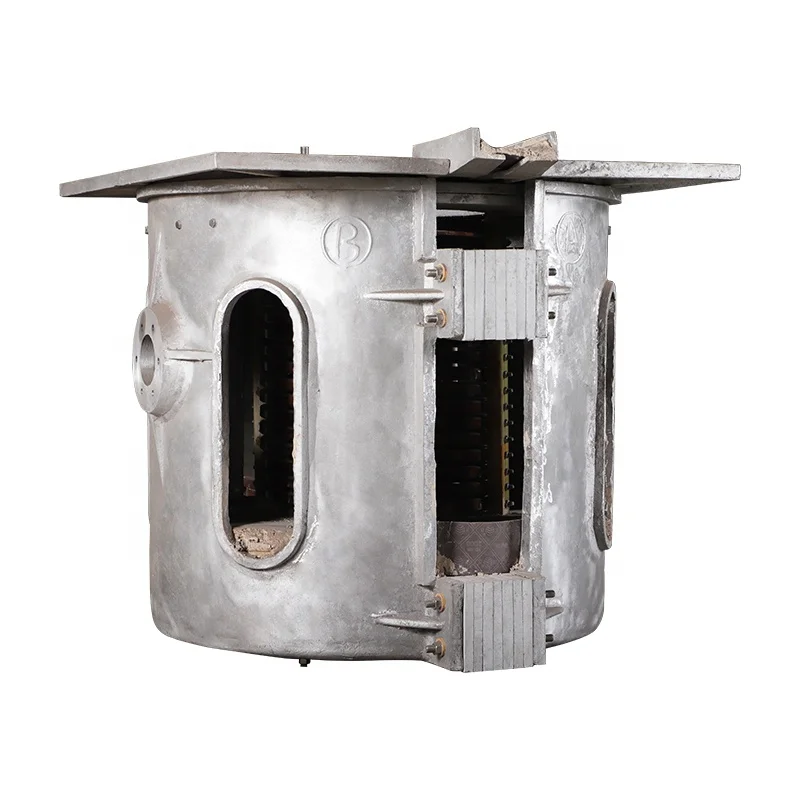

500kg aluminum shell induction furnace

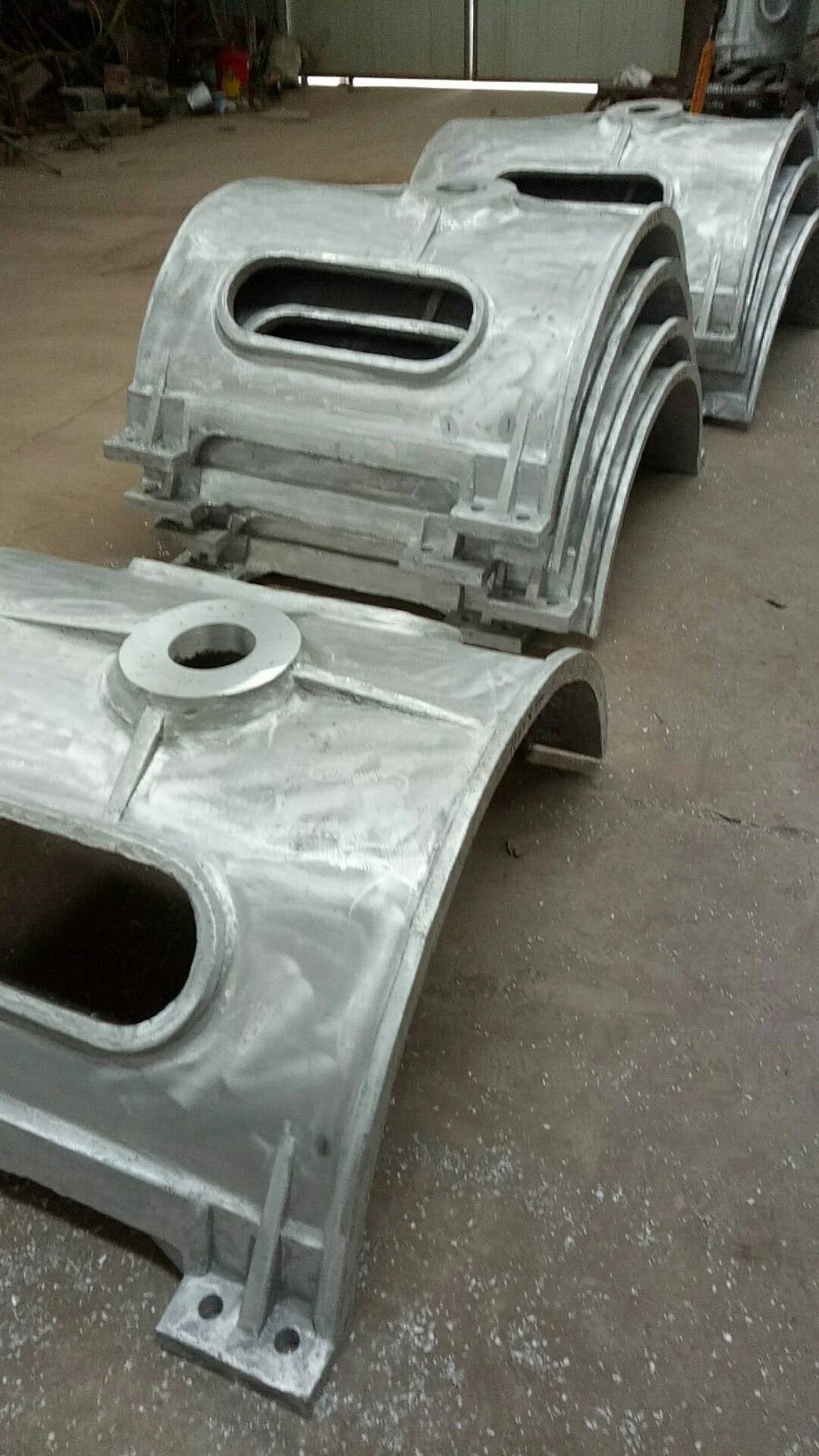

1.There is a large leakage of magnetic flux during the operation of the aluminum-clad induction furnace. The case (aluminum) will be oxidized strongly under high temperature conditions, which will result in the decrease of metal toughness.If the aluminum shell is not thick enough, it will deform and be damaged.

3.The copper tube of the sensor should be of good quality.This will save electricity.Long service life. If not good use of copper pipe.It can cause the device to consume a lot of power.There is a breakdown and maintenance is inconvenient.

2.Good insulation treatment gives workers safe work and production, and the furnace will not leak electricity even if it works for many years.If power leakage is found and needs to be stopped for maintenance, it will be very troublesome and will also bring economic losses to the factory.

Product Advantage

1.Main control board built-in multifunctional protection system - the complete chenghua veneer, rectifier, inverter, protection and starting control into an organic whole, intermediate frequency furnace control board over voltage, over current, load pressure limiting, current limiting, frequency sweep, frequency, intermediate frequency lock detection, restart, power, system and other status indication, make the medium frequency furnace has high reliability, high precision, easy to debug, less relay component, adjust the intuitive, easy maintenance.

2.Water pipes need to be of good quality.So that it is not easy to age leakage.Make the equipment safer.

3.Copper bars need to be of high quality so that they can save energy and electricity.

Model	Inside Diameter	Tube ThIckness	Steel Thickness	Magnet Yokes	Size
0.5T	550mm	5-6mm	8-12mm	6 sets	1250*1250 mm
0.75T	630mm	5-6mm	8-12mm	6 sets	1310*1310 mm
1T	700mm	5-6mm	8-12mm	6/8 sets	1400*1400 mm
1.5T	760mm	5-6mm	8-12mm	8 sets	1540*1540 mm
2T	820mm	6-8mm	12-16mm	8 sets	1600*1600 mm
2.5T	860mm	6-8mm	12-16mm	10 sets	1740*1740 mm
3T	935mm	6-8mm	12-16mm	10 sets	1950*1950 mm
5T	1175m	8mm	16-20mm	12 sets	2100*2100 mm
8T	1380mm	8mm	16-20mm	12 sets	2200*2200 mm

Product Advantage

Technology

Cooperation Cases

About Us

Luoyang Dinghong Electric Technology Co.,Ltd. Located in Luoyang city ,China. We are specialized in designing and manufacturing all kinds of induction furnace and Diathermy furnace for more than 30 years.

Cooperating with researching and scientific institute, our factory designs and manufacture most advantage induction furnace and own 24 patents.

FAQ

Q1: How to choose melting furnace if it is first time we have used furnace?

A1:Don't worry, inform us what you want to melt, how about the capacity and your solution/ requirement. we will provide professional proposal for your reference. Overseas service will be provided when installation,commission, and training during using process. until the workers can operate by themselves.

Q2: Are you a trader or producer?

A2: We are manufacturer with 30 years experience, which is specialized in manufacturing all kinds of induction furnace. We can also provided OEM service as customer requirement.

Q3: Which kind of power supply do you supply? Electricity or gas?

A3:The power supply we provide is electricity.

Q4: What is your QC measure?

A4: 1. sound quality system to ensure products quality.

2. Process inspection during each step production line.

3. All accessories of induction furnace are from well-known brands both China and abroad.

4. Strict test and inspection before leaving the factory and will provide ex-factory inspection report to customer.

Q5: How about the delivery time of induction furnace?

A5: Usually induction furnace will be finished within 30 days once receipt the prepayment.Spare parts will be sent out at most 10 days, and will be sent immediately if it is in stock.
