Характеристики
Product Description
Applications :
♦Hybrid and off grid solar power system
♦ UPS Systems
♦Wind solar energy system
♦ Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power station and plant room
Specification

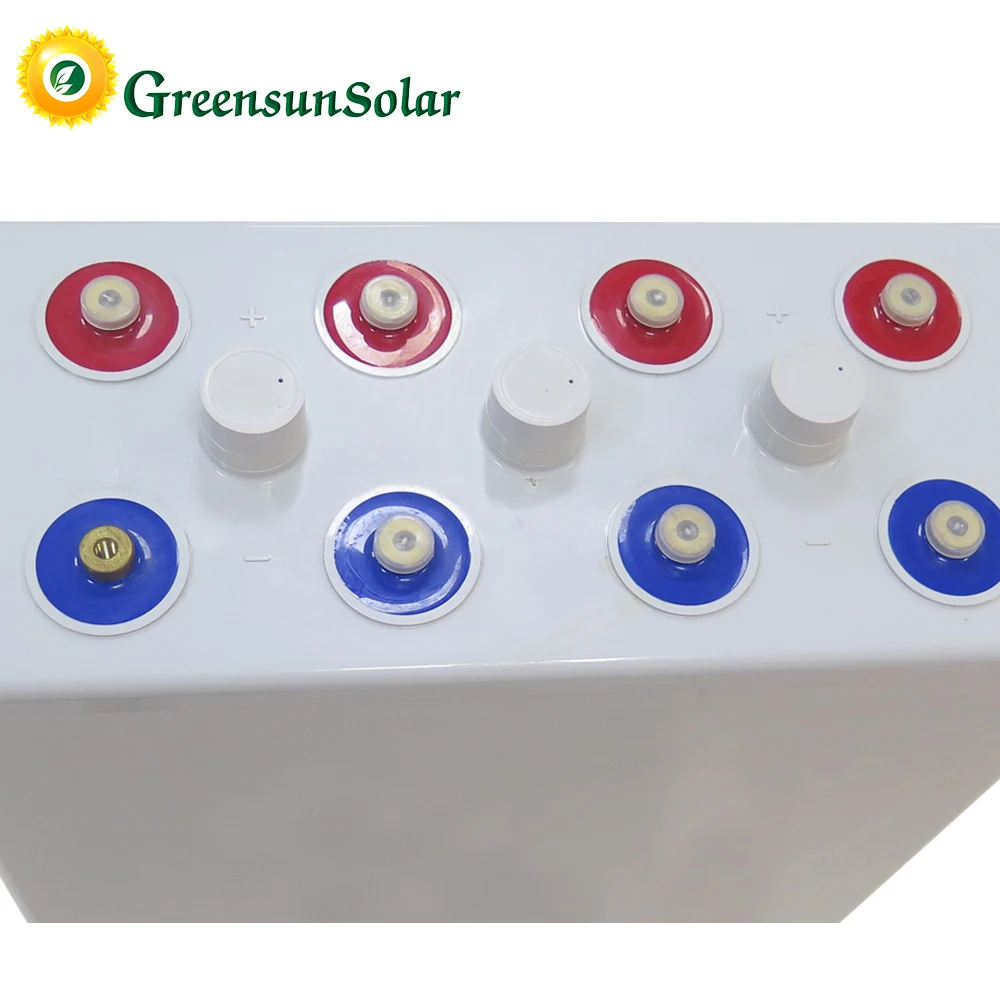

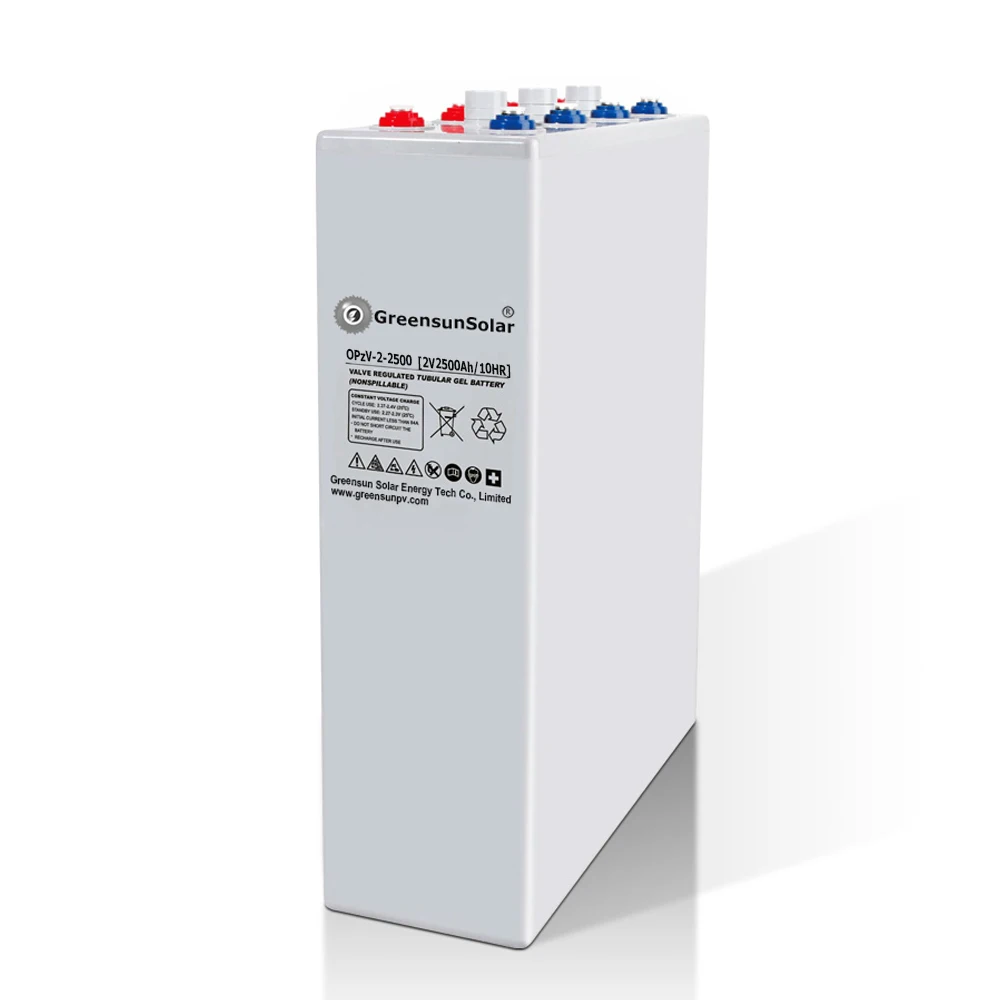

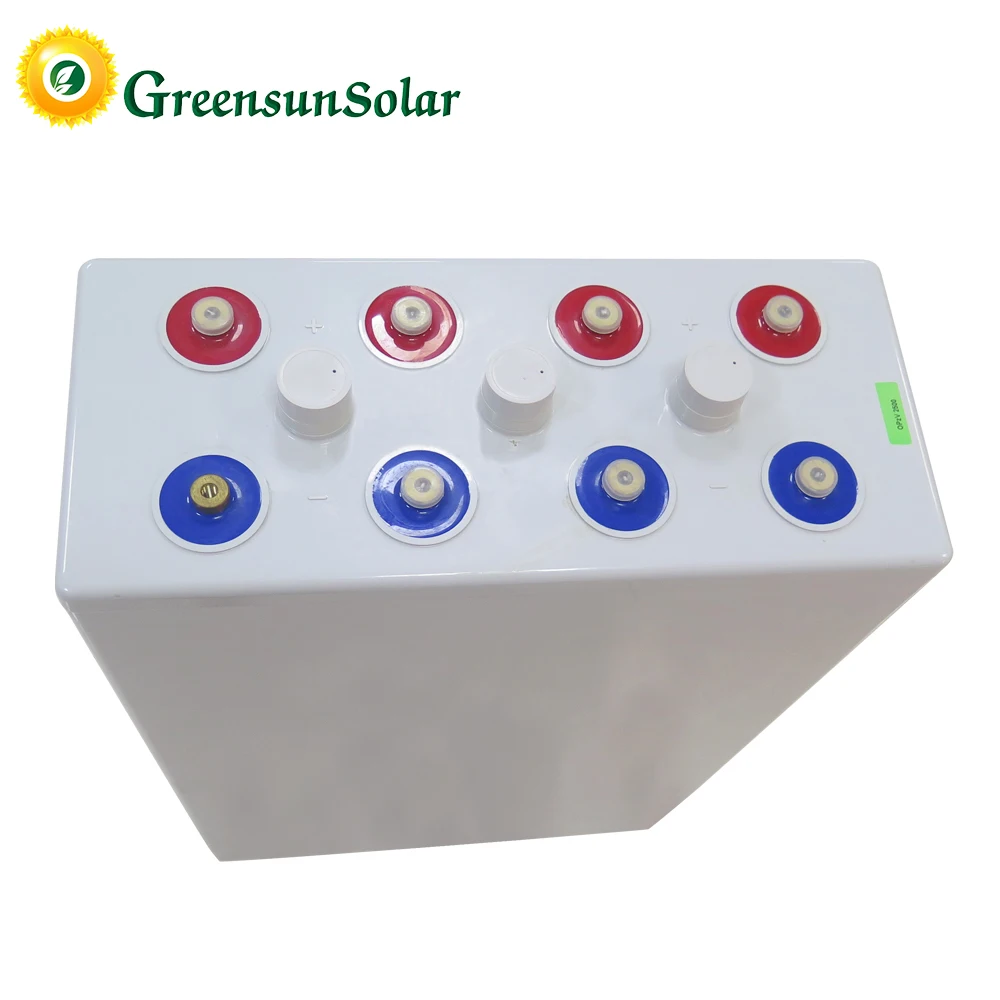

Specifications of OPzV Batteries 2V 2500AH
Nominal Voltage | 2V | ||||
Nominal Capacity | 2500AH@10hours rate F.V.(1.80V/Cell) | ||||
Approx. Weight | 182KG | ||||
Termainals | M8 Female Large Size Copper Post | ||||
Internal Resistance | <=0.33mΩ (Fully Charged) | ||||
Max. Discharge Current | 40000A (3 See) | ||||
Max. Charge Current | 500A | ||||
Operating Temperature Range | Charge: -20℃~+50℃ (-4℉~+122℉) Discharge: -40℃~+55℃ (-40℉~+131℉) Storage: -20℃~+40℃ (-4℉~+104℉) | ||||
Self Discharge | About 2.0% of Capacity Delined per Month at 25℃ | ||||
Constant Power Discharge Characteristics at 25℃/77℉ Unit: W | ||||||||||||||||
F.V/Time | 15MIN | 30MIN | 1HR | 2HR | 3HR | 5HR | 10HR | 20HR | ||||||||
1.70V | 4568.8 | 3718.8 | 2881.3 | 1693.8 | 1334.4 | 915.6 | 493.8 | 280.3 | ||||||||
1.75V | 4206.3 | 3568.8 | 2762.5 | 1650.0 | 1303.1 | 903.1 | 487.5 | 275.9 | ||||||||
1.80V | 3725.0 | 3356.3 | 2434.4 | 1606.3 | 1256.3 | 887.5 | 481.3 | 275.6 | ||||||||
1.90V | 2768.8 | 2496.6 | 1984.4 | 1475.0 | 1103.1 | 800.0 | 431.3 | 255.0 | ||||||||
Charge Voltage
Cycle Use: 2.35~2.40V(+/-4mV)
Max Current: 750A
Constant Current Discharge Characteristics at 25℃/77℉UNit: A | ||||||||||||||||
F.V/Time | 15MIN | 30MIN | 1HR | 2HR | 3HR | 5HR | 10HR | 20HR | ||||||||
1.70V | 2650.0 | 2150.0 | 1462.5 | 893.8 | 662.5 | 443.8 | 256.3 | 145.0 | ||||||||
1.75V | 2350.0 | 2006.3 | 1400.0 | 868.8 | 650.0 | 440.6 | 253.1 | 144.1 | ||||||||
1.80V | 2050.0 | 1750.0 | 1300.0 | 831.3 | 625.0 | 434.4 | 250.0 | 143.4 | ||||||||
1.90V | 1300.0 | 1225.0 | 975.0 | 687.5 | 537.5 | 387.5 | 221.9 | 131.6 | ||||||||
Float USE
2.25~2.30V(+/-3mV)
Curves
OPzV Tulubar GEL Battery Curves

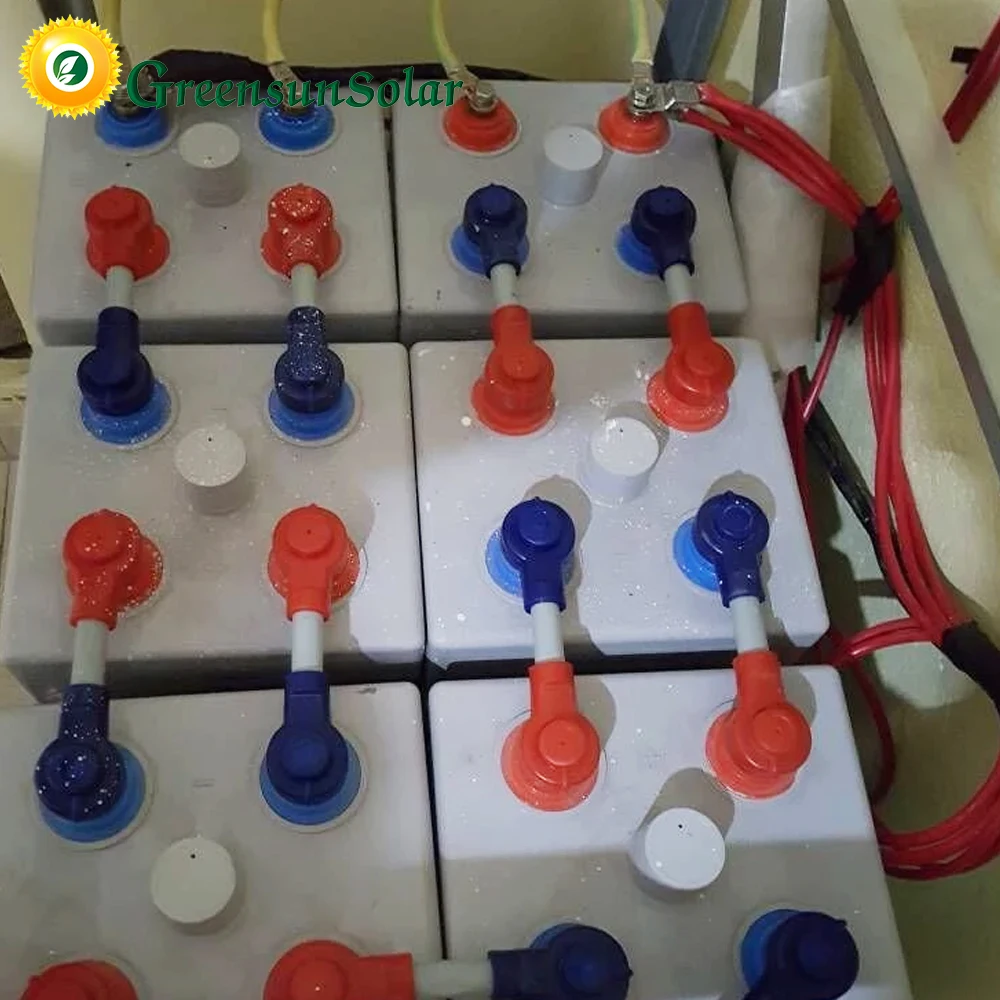

Projects of Battery
Factory & Production
Greensun Solar
♦ Founded in 2004, 500MW solar panel production capacity, millions of battery, charge controller, inverter and pump production capacity.
♦ Three factories, solar panel factory, battery factory, and pump factory.
♦ Products are exported to more than 150 countries.
♦ Products are certified by TUV(Germany), CE.
♦ Turn-key solar systems are offered, to save the time and money for the clients.
♦ Rich experience in overseas installation of solar projects.
♦ Professional after sale service.
♦ Three factories, solar panel factory, battery factory, and pump factory.
♦ Products are exported to more than 150 countries.
♦ Products are certified by TUV(Germany), CE.
♦ Turn-key solar systems are offered, to save the time and money for the clients.
♦ Rich experience in overseas installation of solar projects.
♦ Professional after sale service.

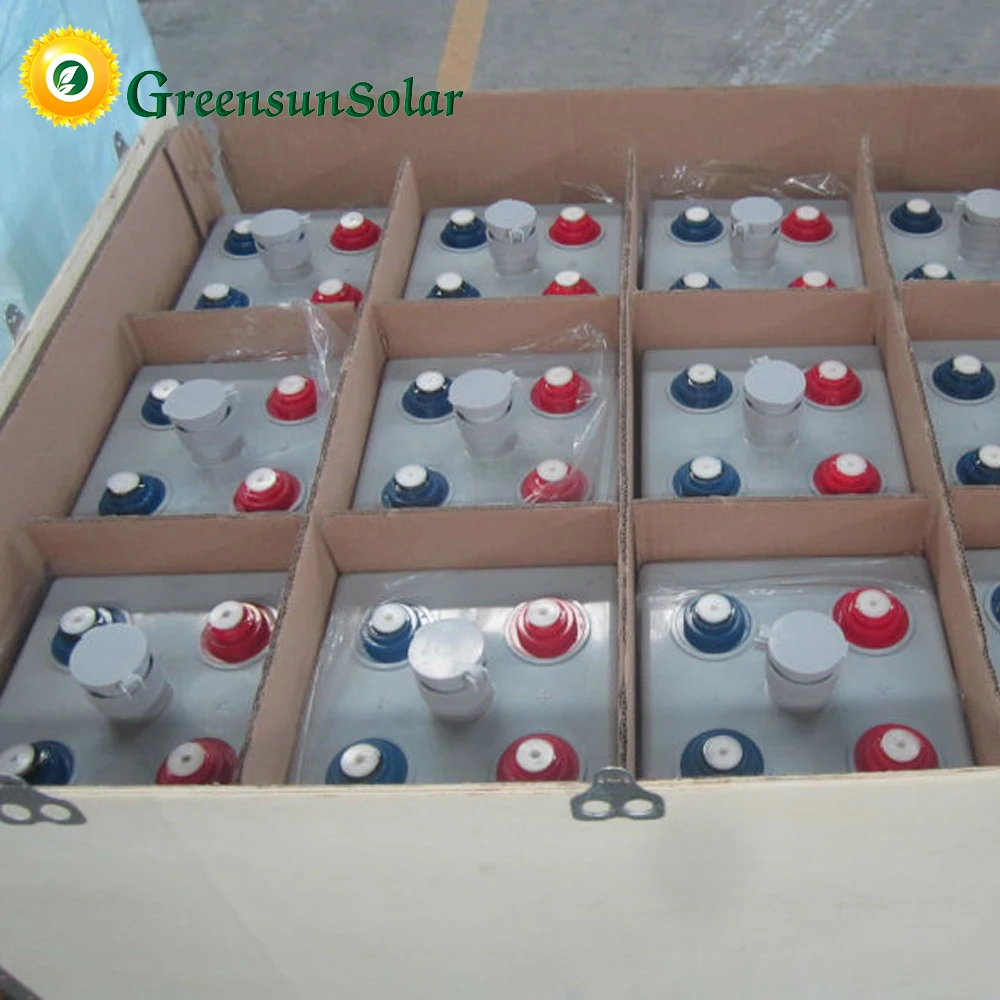

Packing & Delivery
