Характеристики

Product Description

Product Application

The veneer roller dryer  is the main machine in plywood industry, and used to remove moisture from the veneer. The heat medium can be thermo oil and heat steam which can be produced according to customer's requirement. The whole machine can be divided into two parts: heating section and cooling section. All the instruction can be operated in switch board. Specific requirement can be done according to customers' production requirement!


Main Paramater


Model
BG1333-13
Density (kg/m3)
550
Transmission speed (m/min)
1.5-15
Thickness(mm)
1.5
Drying capacity (m3/h)
4.8-5.5
Initial moisture content(%)
80
Steam consumption (kg/h)
2800-3000
Final moisture content(%)
10
Total motor power (kw)
168.5
Load ratio(%)
80
Transmission motor power(kw)
7.5x1+11*1
Working tempreture
170
Ventilation motor power (kw)
11 x13
Working width (mm)
2800
Cooling Fan power (kw)
3+4
Working decks (layer)
3
Overall dimensions (mm)
32500 x 5400 x 4300
Length of heating section (mm)
2000x13=26000
Weight (kg)
≈98000
Length of cooling section(mm)
2000x2

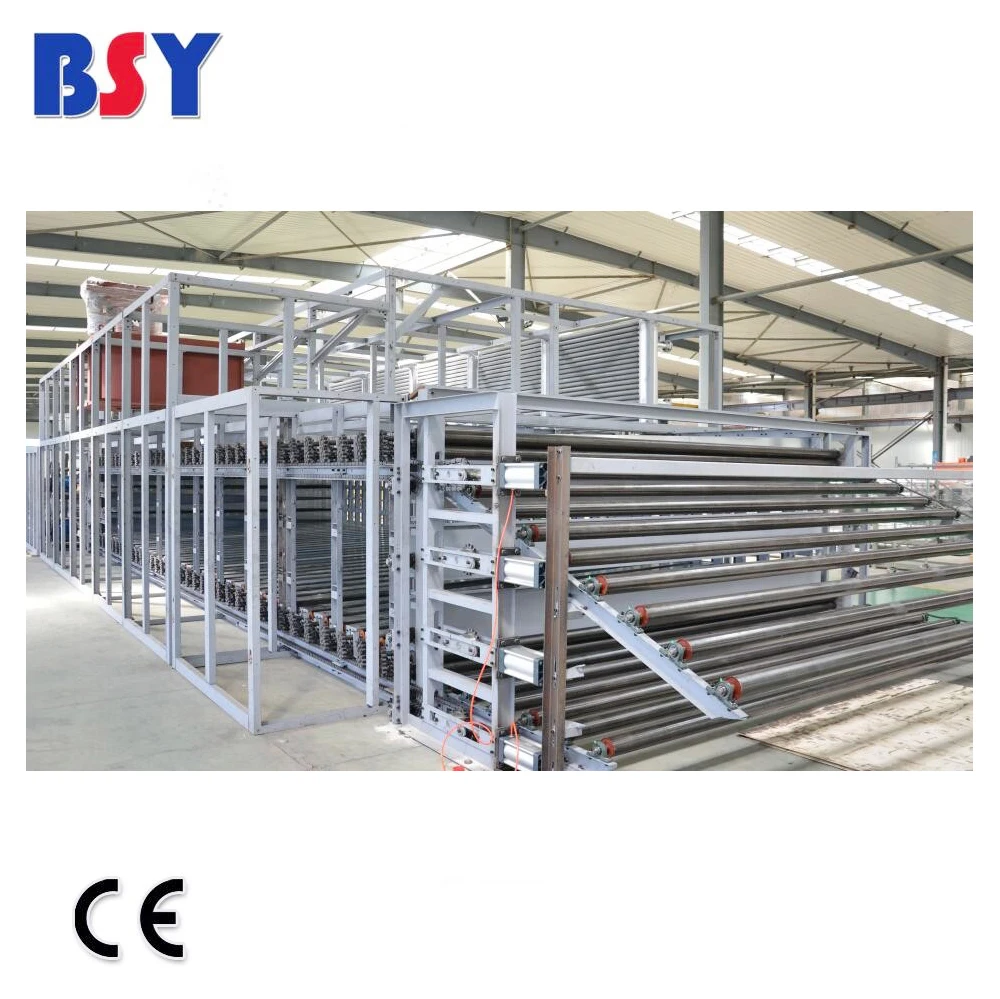

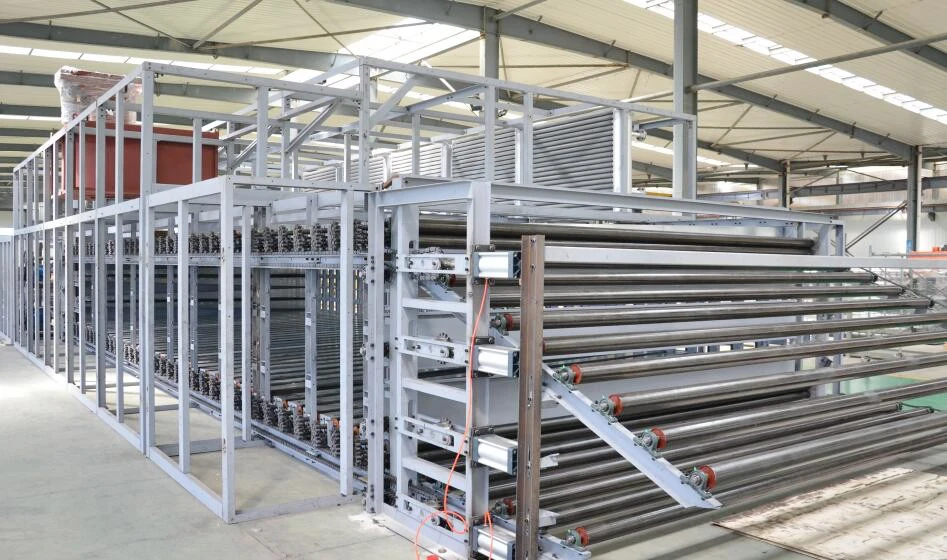

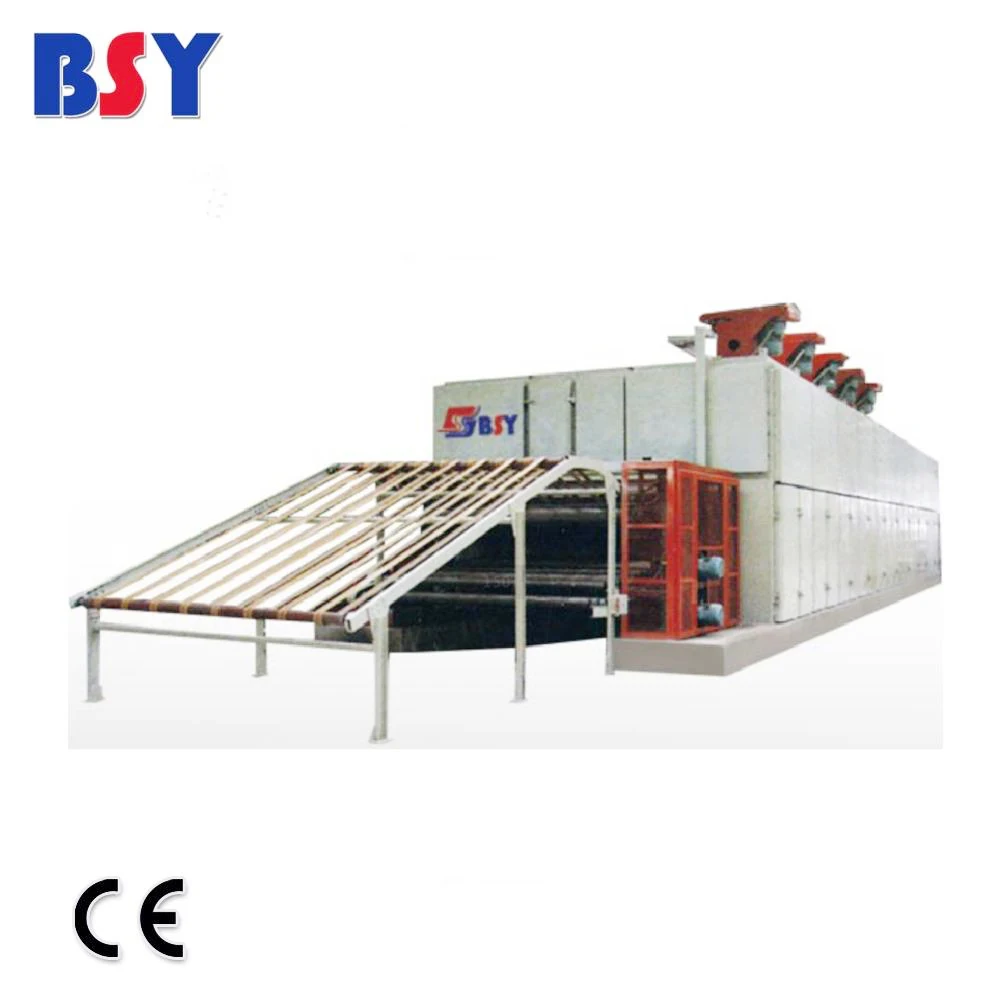

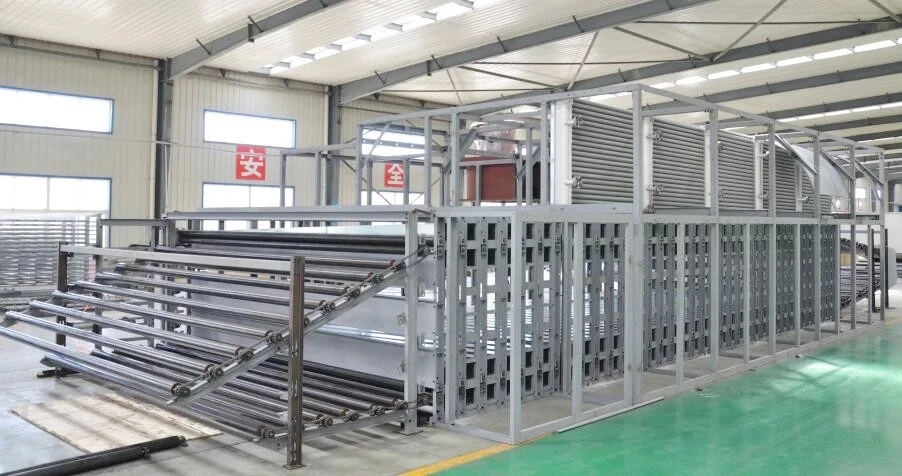

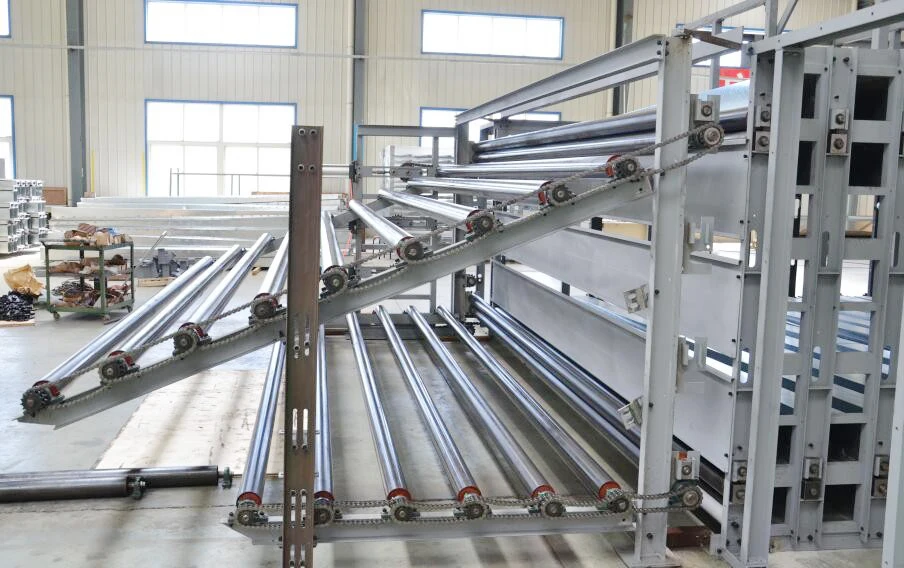

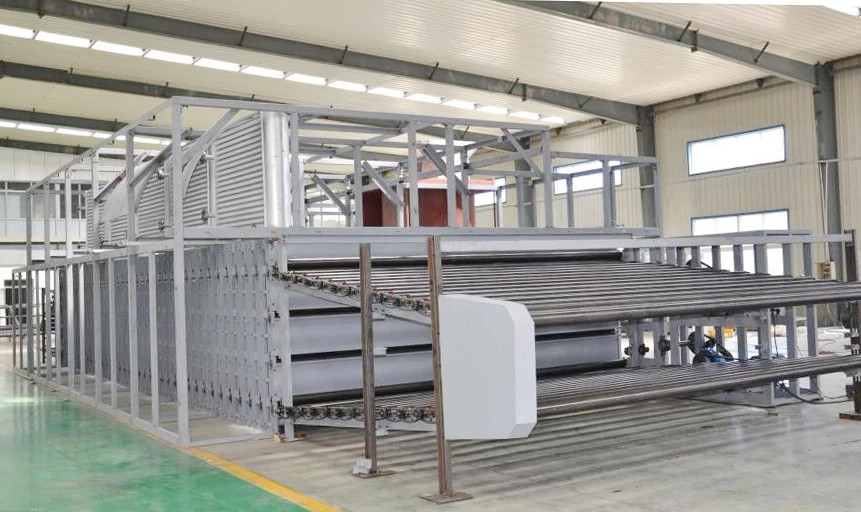

Detailed Images

Main Features Of Veneer Roller Dryer for Plywood
1) Easy operation with high efficiency
2) Adopting advanced world famous brand components in electric parts and operation parts.
3) Automatic feeding device is option
4) Different capacity sizes for option
