12V Silicone Heated Beds for 3D Printer heating plate

Silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment.

It consists of high temperature resistance wire wound around a fiberglass core for added support and flexibility while still allowing for expansion and contraction during heat up and cool down. The element is laid out in a computer designed pattern to provide maximum heat transfer and temperature uniformity. After the element is laid out, it is vulcanized between two sheets of silicone rubber until they become one. The silicone rubber sheets also have a layer of fiberglass for added strength and tear resistance. The same vulcanization process is used to attach the power leads and cord sets to the heater windings.

Specification

Shape	round,square, Rectangular (Customized)	Max Using Temperature	250℃
Volt	12v-480v	Withstand Voltage	1.5KV
Watt	0.1-0.3w/cm2	Power Deviation	±5%
Thickness	1.5mm or customized	Insulation Resistance	≥5MΩ
Max Size	3000x1200mm	Min Size	20x20mm
Heating Material:Etched Nickel Chrome Foil
Power Lead Wire:Silicone Rubber,SJ Power Cord or Teflon Insulated Stranded Wire



Silicone drum heater Size list

Volume	200L	200L	20L	20L	100L
OD(Oil Barrel)	580mm	580mm	300mm	300mm	580mm
Size	250x1740mm	125x1740mm	200x860mm	120x860mm	250x1250mm
Voltage/Watt	220v/2000w	220v/1000w	220v/800w	220v/500w	220v/1500w
Weight(kg)	1.4	1	0.8	0.7	1.2
Waterproof	IP68	IP68	IP68	IP68	IP68

Liquefied Gas Cylinder Heating Belt Size list

Capacity	15KG	15KG	50KG
Size	100X970mm	150x970mm	120x1250mm
Voltage/Watt	220v/300w	220v/350w	220v/400w
Weight(kg)	0.5	0.6	0.8

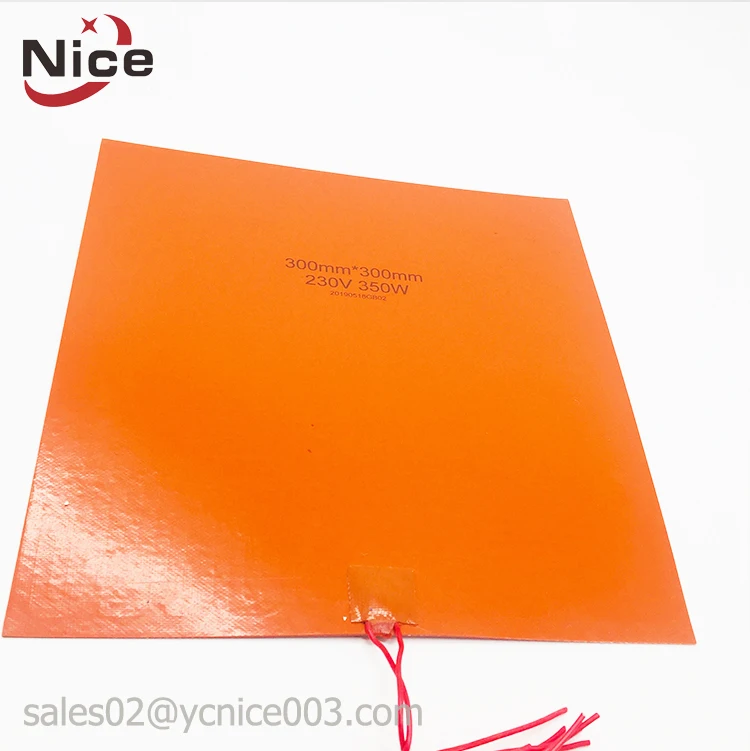

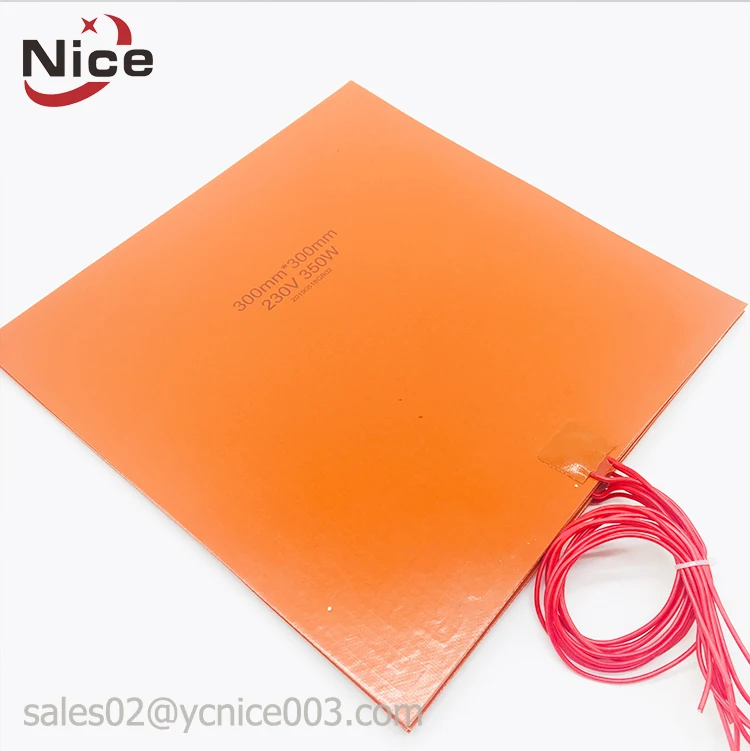

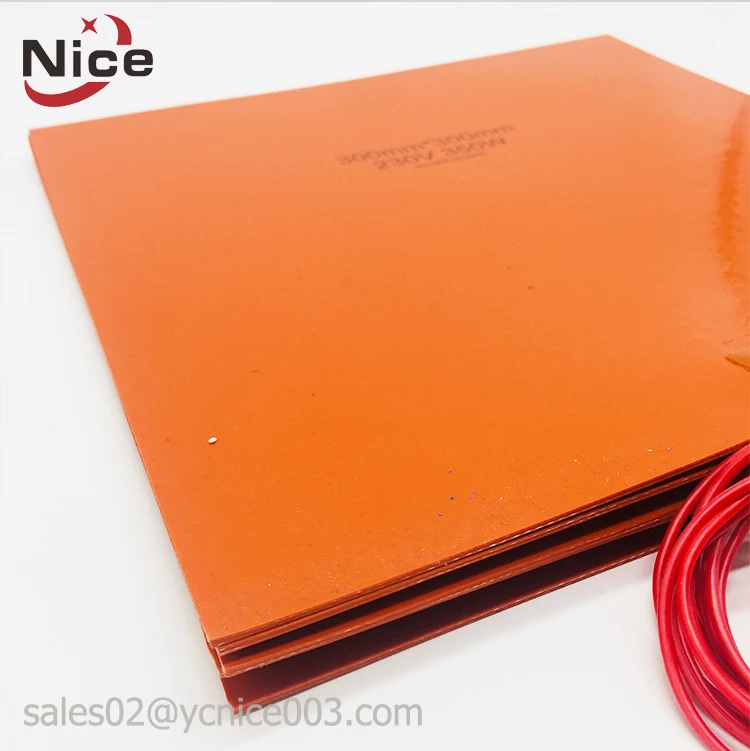

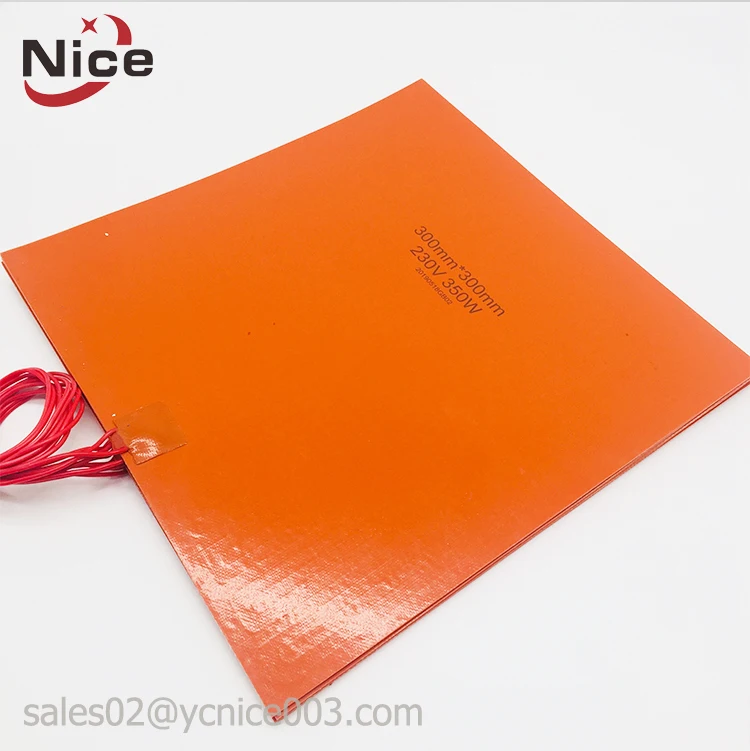

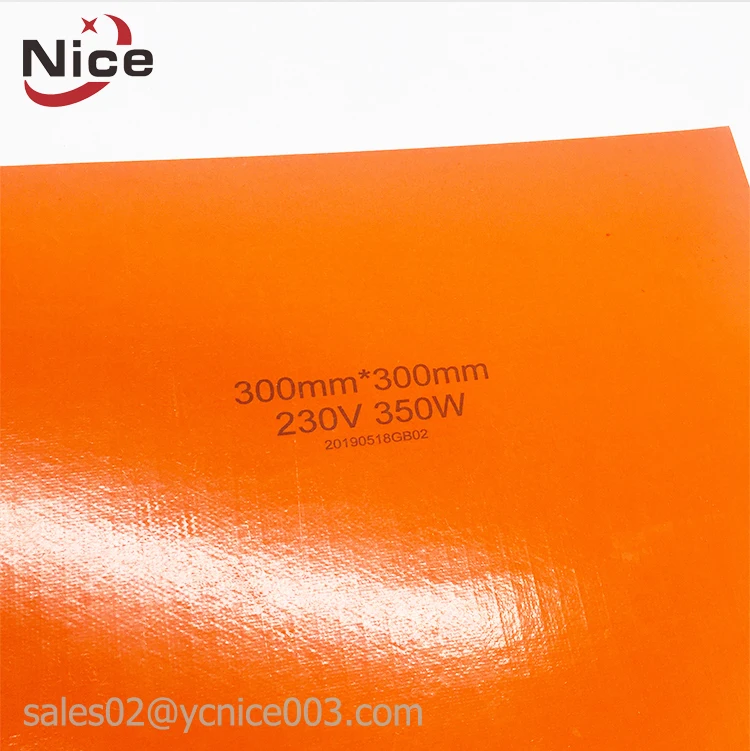

Product Show

Features

1.Low MOQ: It can meet your promotional business very well.

2.OEM Accepted : We can produce any your design as long as you provide us the drawing.

3.Good Service : We treat clients as friend.

4.Good Quality :We have strict quality control system .Good reputation in the foreigner market

5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract)

Company Information

Yancheng Nice Electric Heating Equipment Co.,Ltd,a professional manufacturer according to customers’ requirements,has advanced production lines,testing equipment and QC department to provide clients with high quality goods.In addition,an experienced R&D department and service team to give clients best heating solutions.

Our products have been exported to Europe,America,Asia,Mid East etc,more than 200 countries,and used widely in Plastic Machinery,Vacuum Packing,Petroleum Chemical Industry,Food,Industrial Furnaces and Autonmation etc.

Thank you for your patience and welcome your cooperation.

Production Shop

Exhibition

Delivery & Package

1.Delivery time

  For samples,5 to 7 days after payment

  For big quantity,negotiated time

2.Package

   1pcs/1 plastic bag    10 pcs/1 paper box

   For heavy products,wooden case
