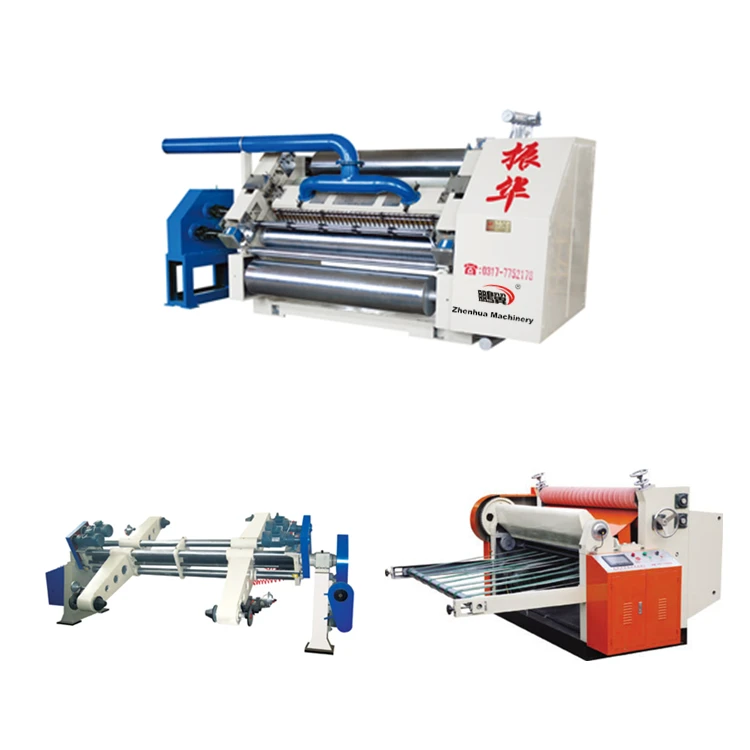

Однопокровная машина для изготовления двухслойного 2 слоя из гофрированного картона производственная линия/однопокровная картонная коробка

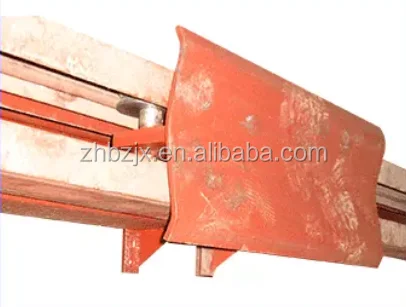

Paper trolley, track

The whole track buried,The main frame of the 14th Channel steel with ¢ 20mm cold drawn welded round,length of track 6000mm.

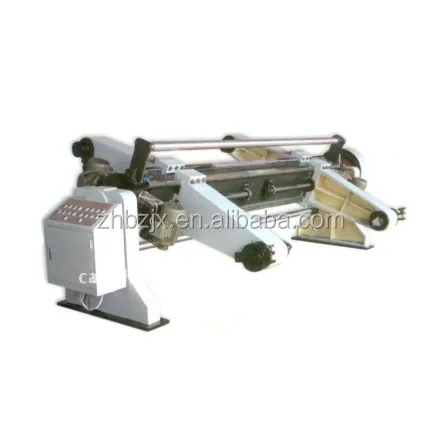

Each paper holder matched two sets paper trolley, and paper on both sides at the same time.pull the roller paper to the right place.

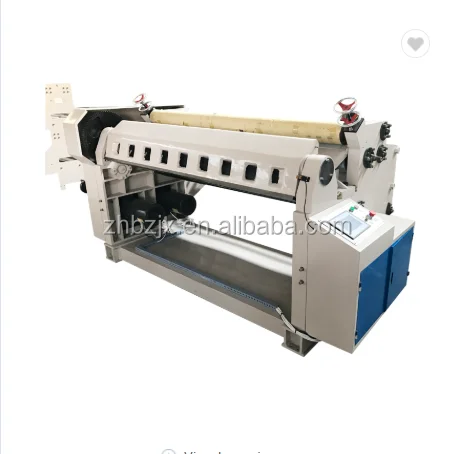

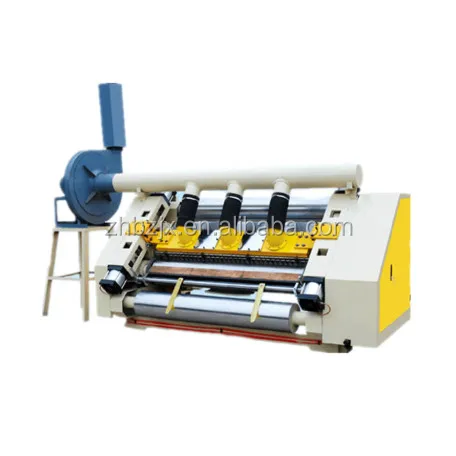

1.High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.

2.Glue roller unit structure with the overall relocation,Maintenance can sway the machine at the overall maintenance,improve the working efficiency.

3.The humidity control apparatus equipped with a spray, so flute type to maintain good stability of deformation, avoid dry.

4.Automatic circulation system for glue, two-cylinder pneumatic gluing device, with good cushioning effect.

5.Active force variable frequency motor drive, energy efficient, low failure rate.

6.Amount of glue size with electric adjustment, touch screen display and operation of the encoder

transmission coating gap, high accuracy.

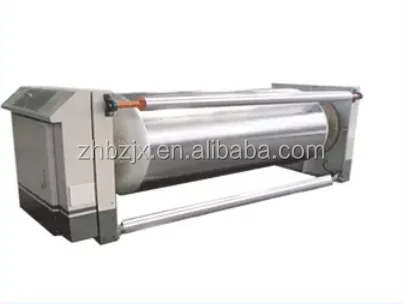

Preheat roller accord the pressure container national standards,and enclose the pressure container certificates and inspection certificate.

Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.

Electromotion adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.(Whether it depends on customer requirements)

1.The highest rate of 70-80m/min machine

2.The length of the longest 1500mm machine

3.the machine can be up to 4 copies of the paper collection

4.The machine can realize automatic points automatic step

5.The highest of each stack height is 100mm
