15 6 дюймовый EDP-интерфейс с разрешением 1920*1080 TFT ЖК-дисплей сенсорный ЖК-экран панель для
- Категория: ЖК-дисплей с сенсорным экраном >>>
- Поставщик: Shenzhen,Hengtaicheng,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.27 $* | 0.99 $* |
| Aug-16-2025 | 0.9 $* | 0.24 $* |
| Jul-16-2025 | 0.88 $* | 0.81 $* |
| Jun-16-2025 | 0.1 $* | 0.14 $* |
| May-16-2025 | 0.96 $* | 0.96 $* |
| Apr-16-2025 | 0.58 $* | 0.0 $* |
| Mar-16-2025 | 0.84 $* | 0.71 $* |
| Feb-16-2025 | 0.76 $* | 0.14 $* |
| Jan-16-2025 | 0.75 $* | 0.70 $* |
Характеристики
Product Description
Specification
item | value |
Type | lcd modules |

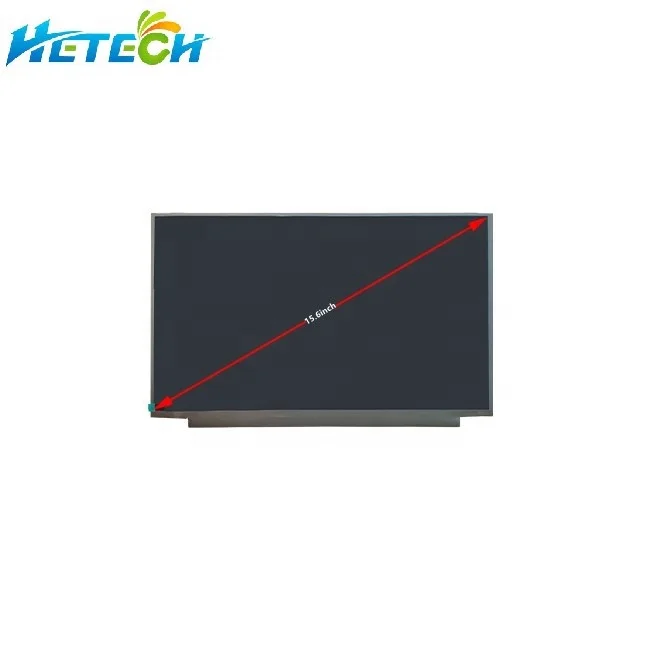

Display Size | 15.6 inch |
Place of Origin | China |
Guangdong | |
Model Number | HC156IV30030-C60 |
Brand Name | Hetech |
Size | 15.6 inch |

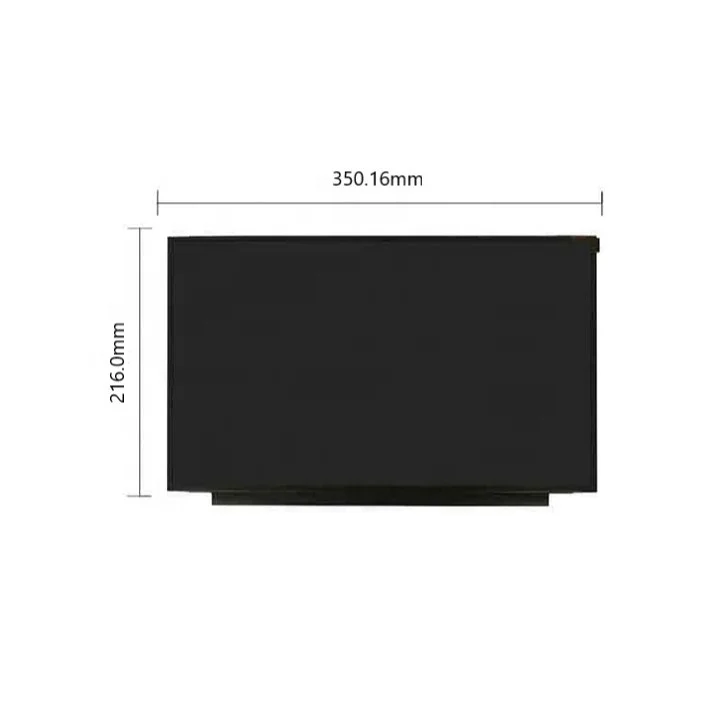

Outline Dimension | 350.16*216.0*3.05mm |
Active Area | 344.16*193.59mm |
Display mode | IPS,Normal Black,transimissive |
Resolution | 1920 x RGBx 1080 |
Brightness | 300cd/m2 |
Viewing Angle | 89/89/89/89(Typ.)(CR 10) |
Operating Temperature | -20~70 |
color gamut | 72% |
Interface | 30pin EDP |
Description
15.6 inch EDP interface 1920*1080 Resolution TFT LCD display touch screen lcd panel for tablet
OVERVIEW
HC156IV30030-C60 is a 15.6” (15.6” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 30 pins eDP interface.
This module supports 1920 x 1080 FHD mode and can display 16.7M colors.
HC156IV30030-C60 is a 15.6” (15.6” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 30 pins eDP interface.
This module supports 1920 x 1080 FHD mode and can display 16.7M colors.
Drawing
Customization
Touch panel:
Shape
Dimension
FPC
Touch point
FPC:
Shape
Dimension
Definition
EMI film
Definition
EMI film
Backlight:
Dimension
Lifetime
Luminance
Application
Packing&Shipping
Packaging Details:
All the products are packed in right way to keep it safe.
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation through our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
For small sizes of products we use tray + carton,
For bigger sizes we use foam slot + carton.
we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation through our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Company Profile
