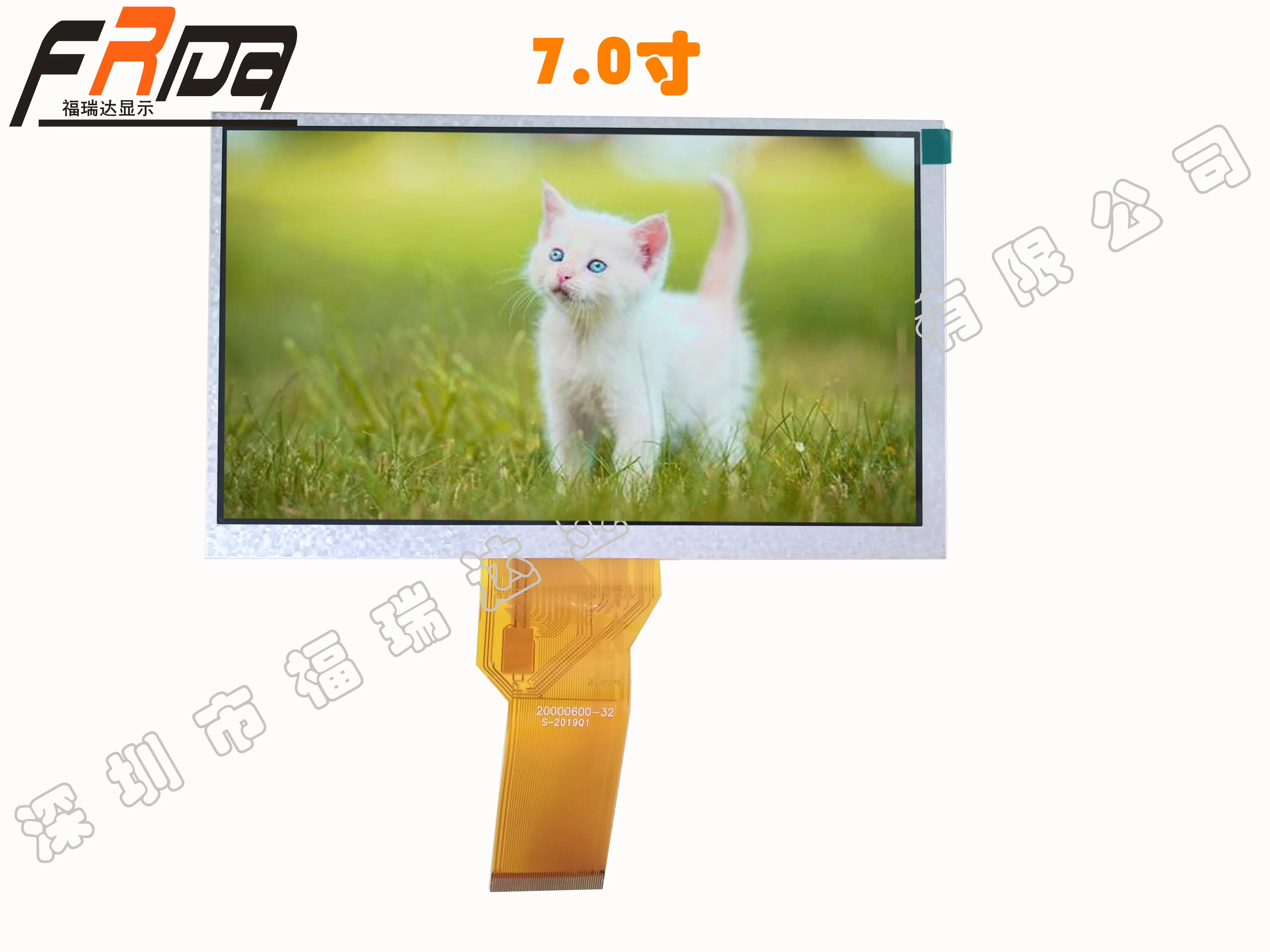

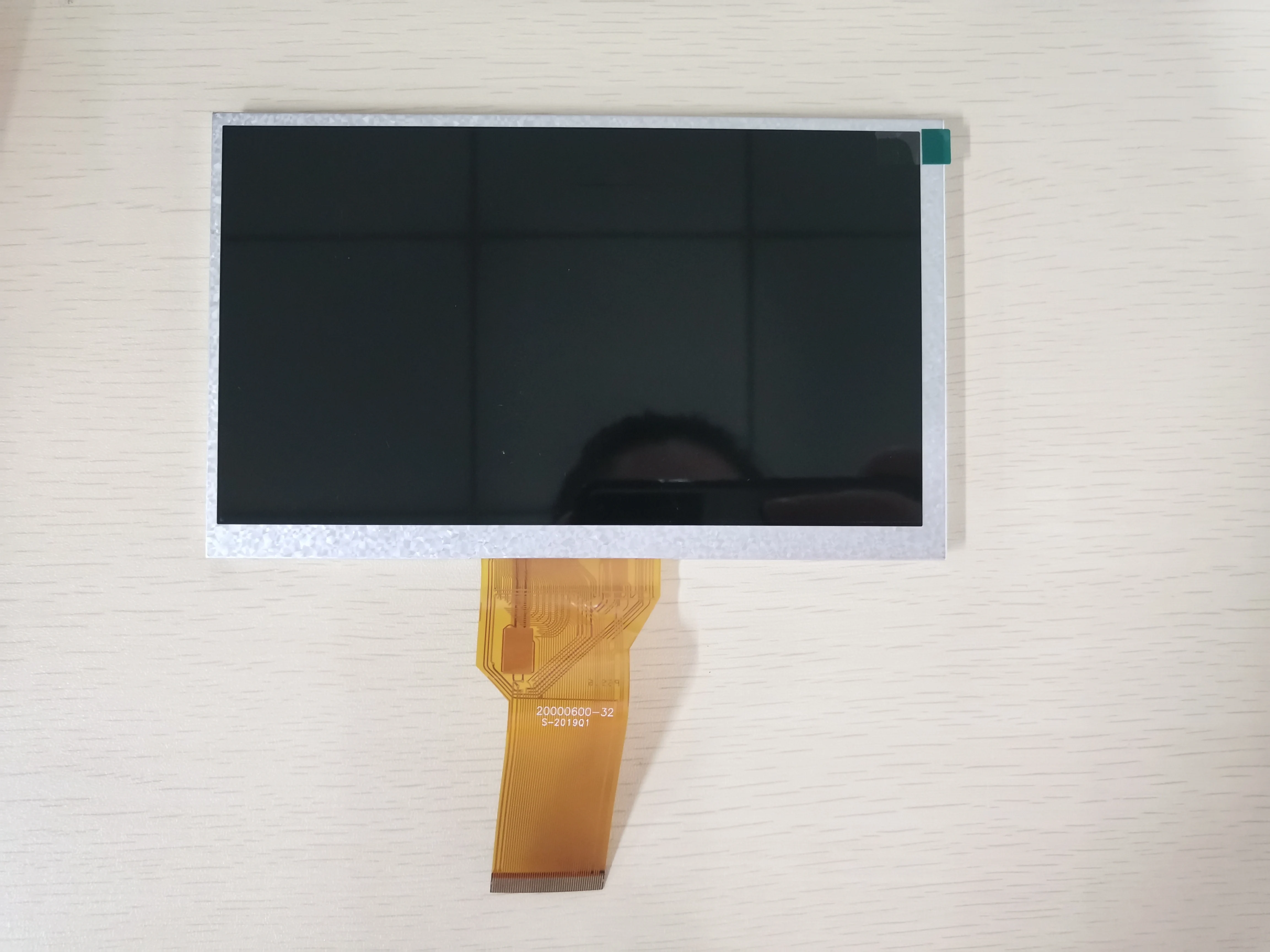

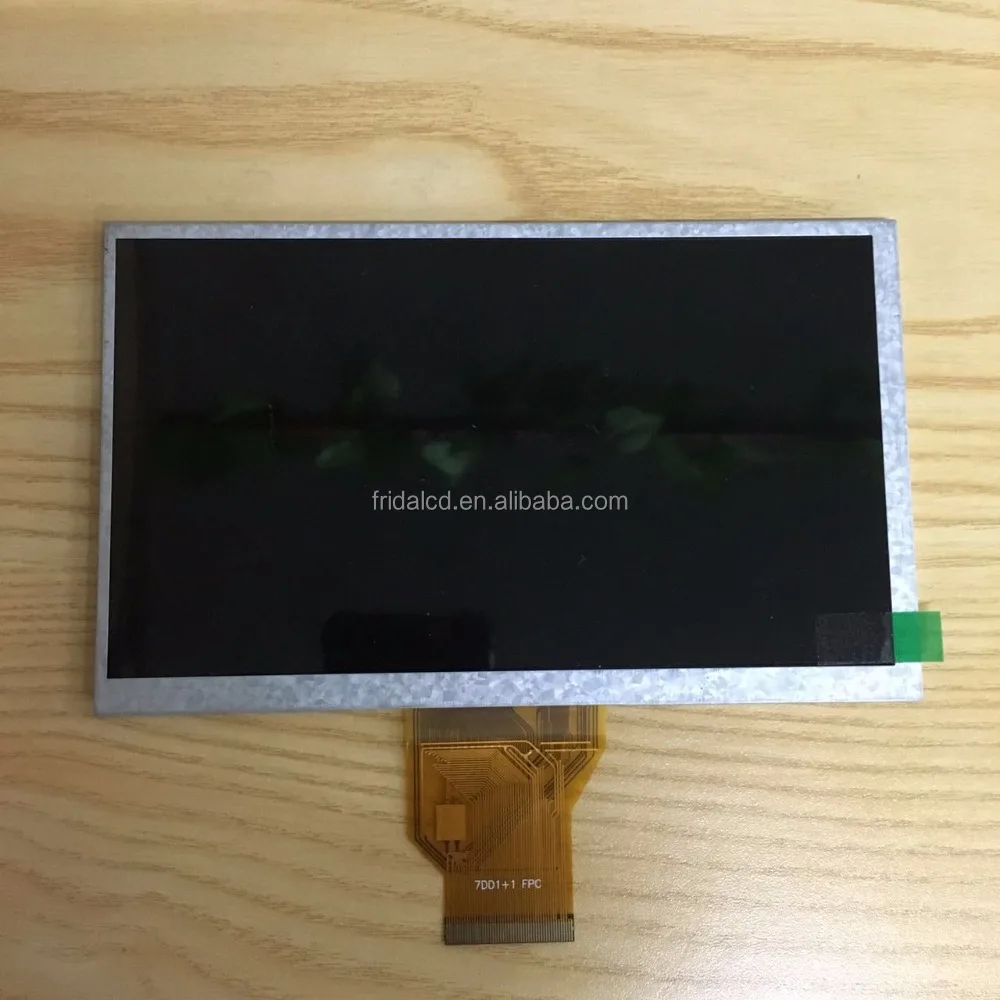

Низкая цена 7 'дюймовый сенсорный экран ЖК-дисплей на основе тонкоплёночной технологии WVGA/800x480 цветная (RGB) = TTL интерфейсом HX8264E + HX8664B 6 & 12 часов просмотра

LCD size 7 inch TFT LCD screen

Driver element a-Si TFT active matrix

Resolution 800 X 3(RGB) X 480

Display mode Normally White/BLACK, Transmissive

Dot pitch  0.0642(W) X 0.1790(H) mm

Active area 154.08(W) X 85.92(H) mm

Module size 164.9(W) X 100(H) X 5.7(or 3.5)(D) mm

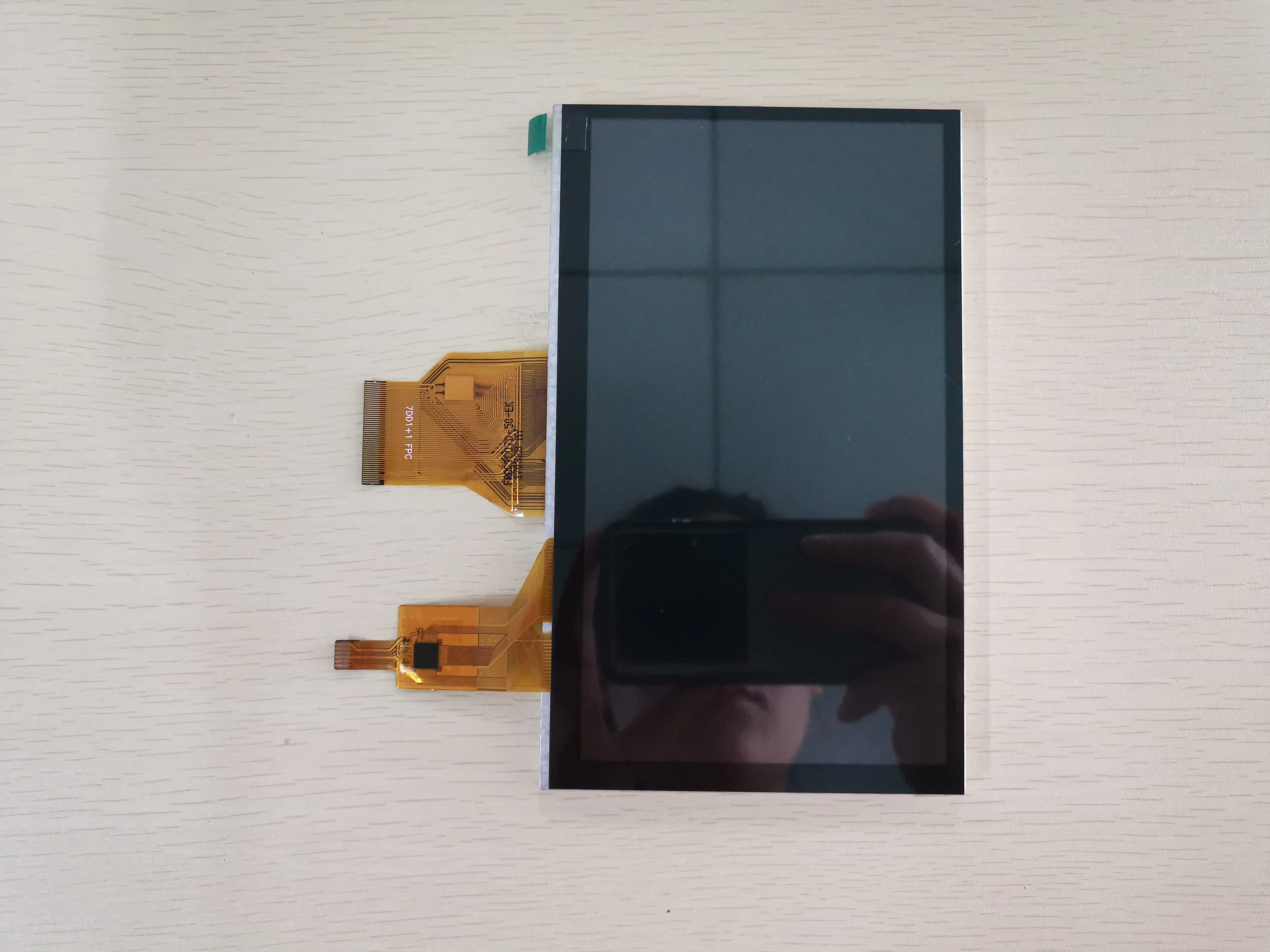

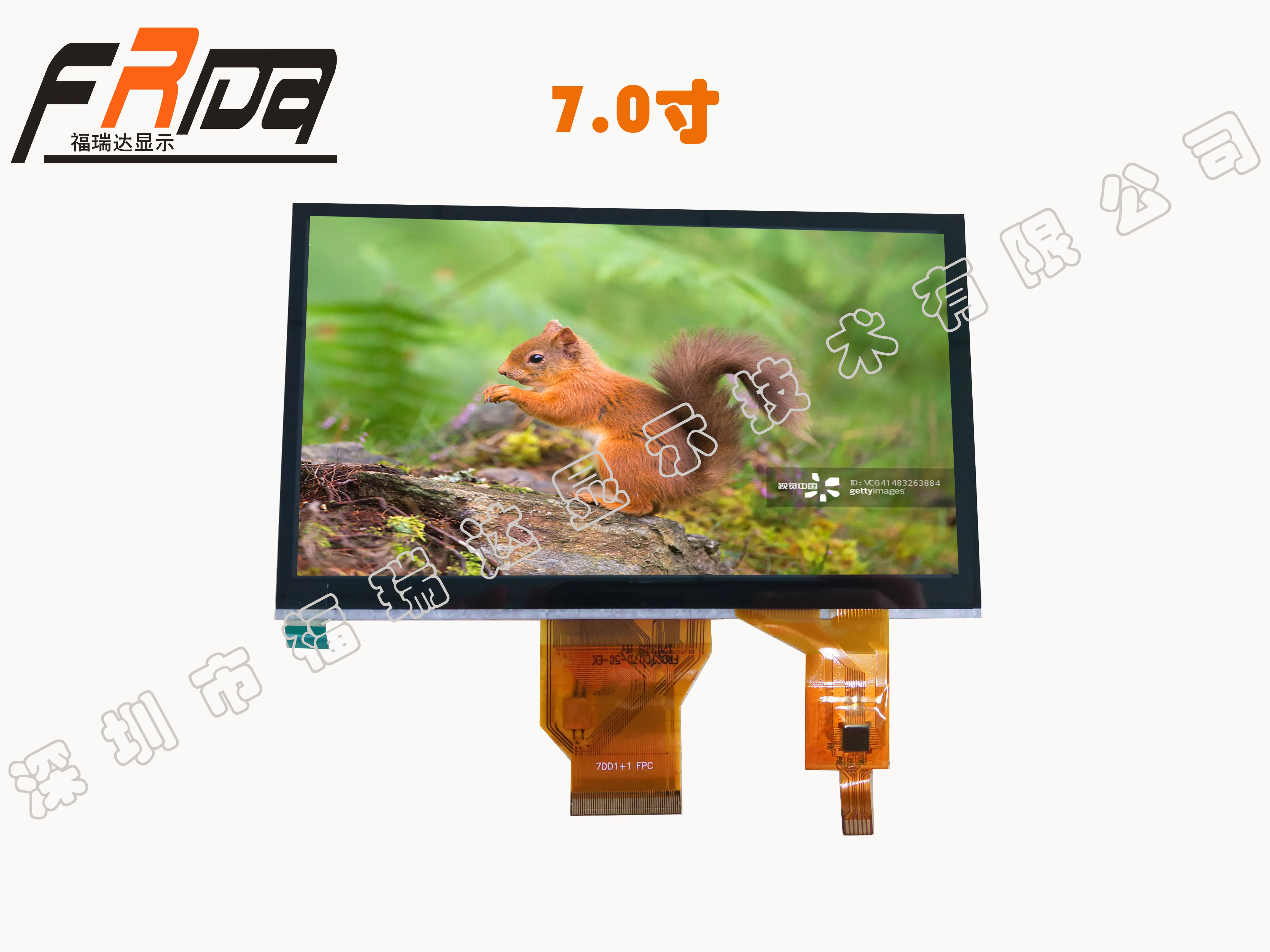

Touch panel  Optional, resistive or capacitive

Surface treatment Anti-Glare

Color arrangement RGB-stripe

Interface Digital

Number of Colors 16.7M

Viewing Direction 6 o’clock/ALL

Luminance (brightness) 200-600(TYP.) nit

Backlight White LED

Operation Temperature -20~70 ℃

Storage Temperature -30~80 ℃

Our production Process

Reliability Tests

Inspections

Shenzhen Frida LCD Co., Ltd will be your good business partner. Let's grow up together.

Our products can be 100% customized according to the request. We provide TFT LCD module from 0.96 inches to 10.1 inches.

We welcome all kinds of request and we will be happy to be your reliable partner.

Certifications
