Машина для переработки печатных плат отходов Для Переработки Медных машина

Машина для переработки печатных плат отходов Для Переработки Медных машина

Категория: Управление отходами >>>
Поставщик: Henan,Hengyi,Heavy,Industry,Equipment,Co.,Ltd.

Цена:7 000,00 $ - 7 200,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	8330.98 $*	8747.42 $*
Aug-15-2025	8260.8 $*	8673.8 $*
Jul-15-2025	6930.2 $*	7277.31 $*
Jun-15-2025	8120.18 $*	8526.79 $*
May-15-2025	7070.27 $*	7424.93 $*
Apr-15-2025	7980.78 $*	8379.86 $*
Mar-15-2025	7910.29 $*	8306.44 $*
Feb-15-2025	7840.91 $*	8232.81 $*
Jan-15-2025	7770.94 $*	8159.34 $*

Характеристики

Related Products

Hot Sale Recycling Machinery
Click the Picture Below to Know More↓	Click the Picture Below to Know More↓	Click the Picture Below to Know More↓	Click the Picture Below to Know More↓

Motor Recycling Plant Our rotor production line is suitable for a variety of scrap steel, motor, stator, rotor...	Upvc Recycling Plant Our factory focus on produce different raw materials recycling production Line. Our hammer mill can not only deal with UPVC and AL window frame but also deals with low carbon thin shell scrap, scrap cars, old appliances, cans and other metal stuffs	Radiator Recycling Plant Scrap Radiator Copper and Aluminum Separating Machine for Sale is a new product developed for processing waste radiators or heat sinks for recycle use.	Double Shaft Shredder Shaft shredder for electric cable, also known as shear shredder, by cutting, tearing and extrusion materials to achieve reduced size, this shredder is widely used in waste plastics, rubber, wood, straw and other large the volume of waste

pcb recycling machine for copper metals and resin powder

Working principle:
1. Shredder machine:make the big pats of pcb board into small pieces.
2. Crusher:crushing the small partical into mixture powder of metal and resin.
3. Grinding machine: let the small board to powder
4. Pulse dust catcher:collect the waste dust ,make sure no are pollution.
5. Electrostatic separator:Most of final profuct will be out by those two outlets,one for metal and another for resin powder.

Application

Main types of pcb recycling machine for copper metals and resin powder:

Raw Material and Final Production

1> Electricity cable.

2> Electronic components.

3> Telephone cable.

4> Computer board.

Product Flow

Detail image

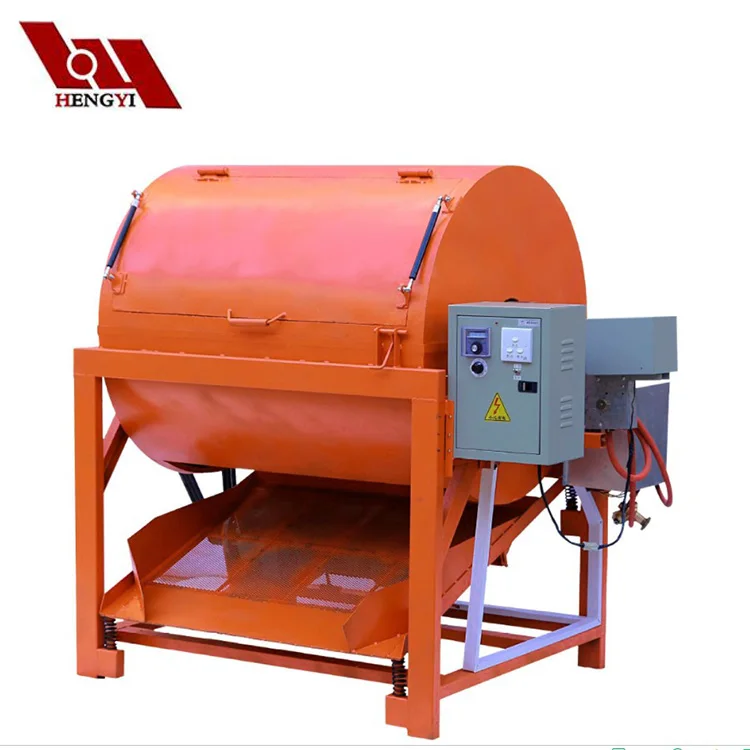

1. Dismantling machine	Capacity	300 kg/ hr
	Power	0.75+2.2+3 kw
	Weight	700 kg
	Size	1.851.21.52
	Use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works.
2. shredder machine	Capacity	600-800KG/hour
	Power	15*2KW
	Blades No	24 pieces
	Weight	1700KG
	By cutting, tearing and extrusion materials to achieve reduced size, this shredder is widely used in waste plastics, rubber, wood, straw and other large the volume of waste.
3. Crusher	Capacity	500kg/hr
	Power	37 kw
	Weight	2.1ton
	Size	1800×1600×2600mm
	Metal crusher has low noise, non-pollution, high crusher tatio with uniform discharging, it can adjust the feed particue size, stable performance

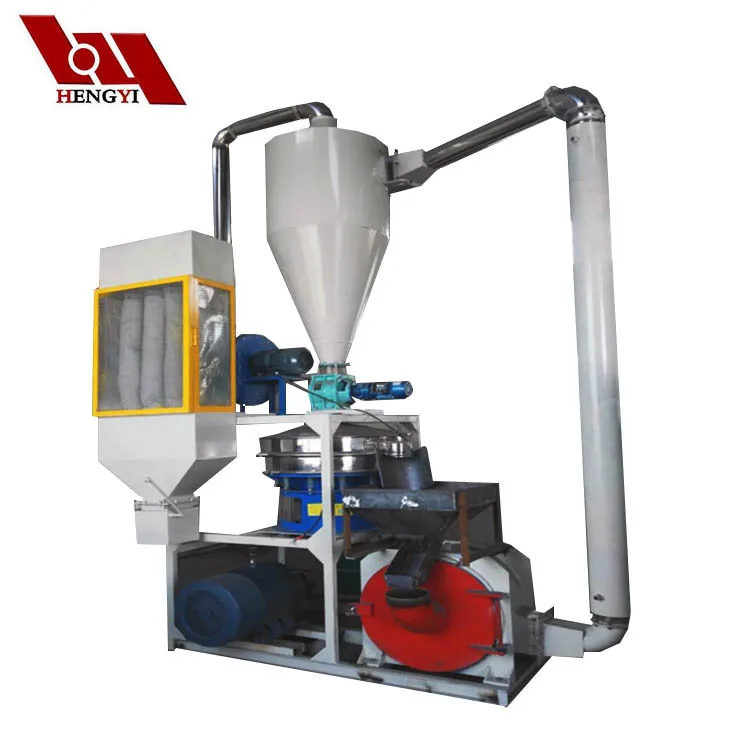

4. Grinding Machine	Capacity	300-400 kg/hr
	Power	42 kw
	Water recycling system	Included
	Output size	Adjustable
	New abrasive disk design, high capacity, good wear restance, the service life is two times longer than the common abrasive disk, Feedback system makes the grind more effective
6.Airflow Separator	The airflow sorter is also a specific gravity sorting method. The materials of similar size and different specific gravity have different weights. Through the joint action of the blower and the induced draft fan and the from the discharge ports at the front and rear ends. Thereby achieving the purpose of sorting. Used in copper&plastic, aluminum&plastic, copper&aluminum and other materials with large differences in specific gravity
5.Impulse dust catcher	Related	Sealant Included
		Selant washer Included
	The impulse dust catcher has the simple construction to process dust pollution in the production process It effectively solves the dust pollution problem

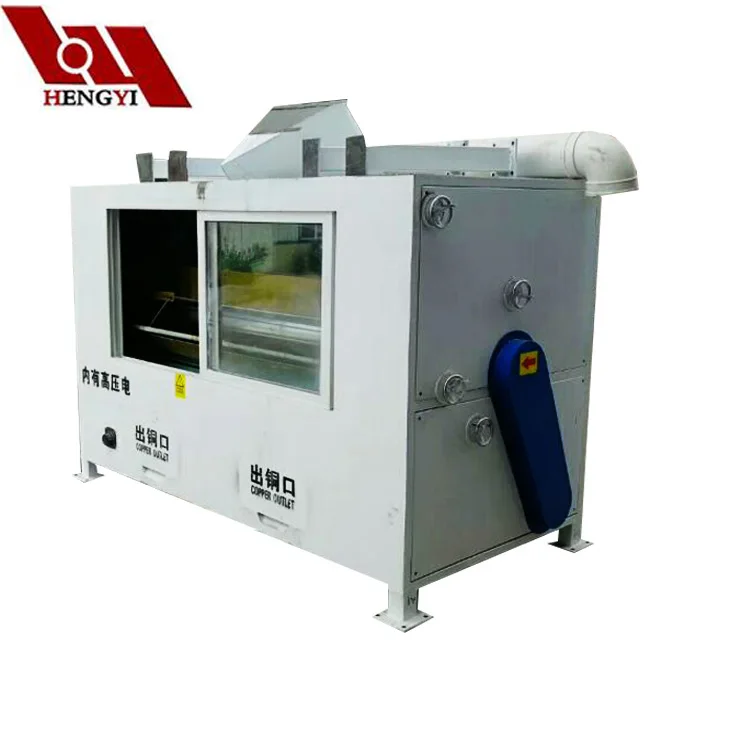

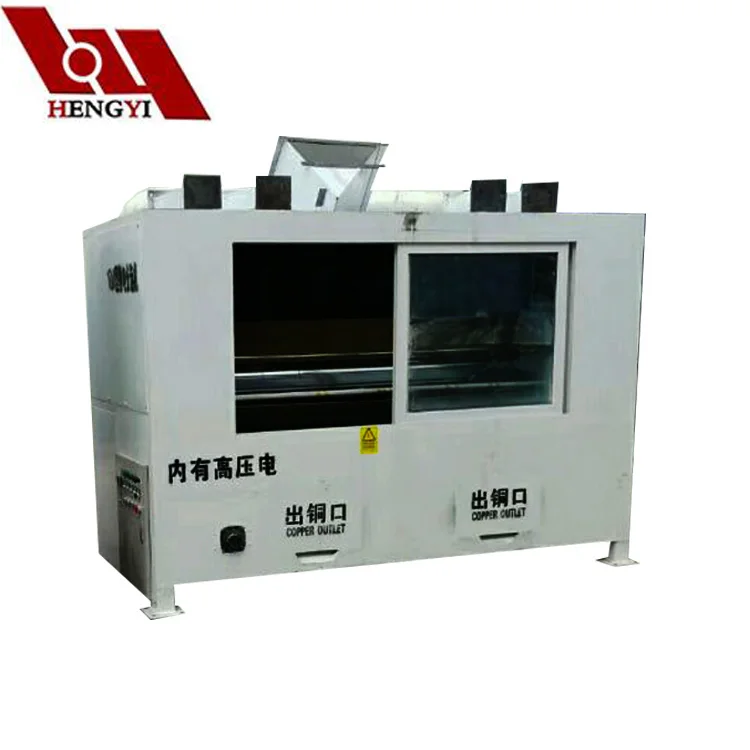

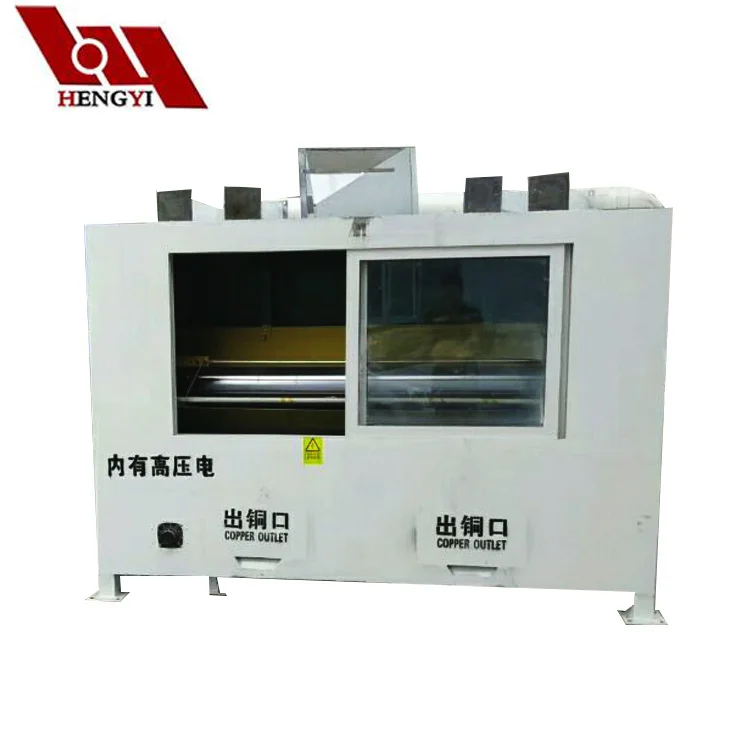

7.Electrostatic separator	Input Dimension	<0.85mm
	Capacity	300-500kg/hr
	Output rate	≥95%, ≤2%
	Power	1.1kw+2.2kw
	High voltage electrostatic separator adopt physical high voltage separating tech to separate conductive material from the non-conductive material.

Packaging & Shipping

e-waste recycle machine.jpg

FAQ

Q: What about your delivery time ?
A: 10 days after received deposit if we have stock;

15-20 days after received deposit if we need produce according to your request.

Q: What about your quality warranty?What u will do if there is some wrong with my machine in this period ?

A: Our products have 12 months quality warranty.We will send wear parts freely and dispatch our engineer to your country to repair it if need.

Q: I want to buy a plant of your machine,but I do not know how to install them and how to

run the entire line .could you help me ?

A:Our senior engineer will make a project drawing for your reference first.

The drawing will point out the machine size/space cost. even the worker numbers suggestion.

Our engineer will help to install the machine personally.

Q: What can I do if the machine can not work?

A: We appreciate that if you can send us a video to show the machine situation .

Our engineer will try to find out the problem and reply you soon. if it can not be solved through our guidance. Our engineer will come to your country and fix the problem personally

(Except intentionally)

Q: How I go to visit your factory?

A: Our factory located at Heluo Road, New East District, Gongyi city, China. We have an office in Zhengzhou city .We suggest you go to Zhengzhou city first by plane or railway. We will pick you up and go to factory directly.
