PLC (Delta) Trainer 24 вход-22 выход 4 аналоговых IP 2

PLC Trainer - Order Code - 52017B

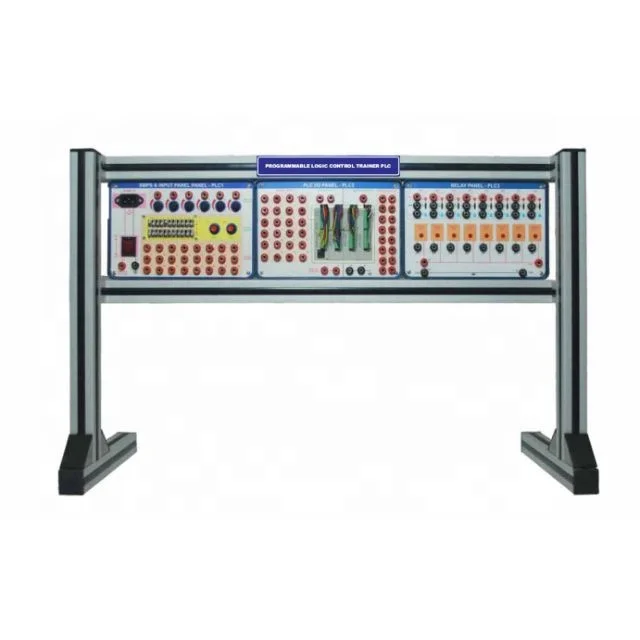

52017B PLC trainer basic is designed for understanding the basic PLC programming logic principles for the Process automation, mounted on Aluminum profile rack with sturdy table top flat panel. The PLC setup consists of 24 inputs & 22 Output with panel. For Simulating input this unit has 14 toggle switch & 2 push switch. For simulating output this unit provided with 8 SPDT relay output with Led indicator. Each panel has ABS molded plastic sturdy enclosure with 4mm shrouded connectors showing circuit diagram & its connection tag numbers for easy understanding and connections.

Specifications
•\tTrainer having control panel should provided in 40X40mm Aluminum profile rack with sturdy table top flat panel.
•\tShould have 3 ABS plastic panel mounted on the aluminum rack with mimic diagram
•\tDVP-14SS2 type PLC Controller panel
-\t32 bit CPU controller built in
-\t24 Digital input ports
-\t22 Digital Output ports
-\t4 Analog Input channels with 12 bit resolution
-\t+/-10V Voltage or +/-20mA current range
-\t2 Analog output channel
-\t0 to10V Voltage or +/-20mA current range
-\tProgram capacity : 8K step/data register 5K words
-\t4 points of 10Khz pulse output
-\t8 points of high speed counter: 20Khz/4 points & 10Khz/4points
-\tSupports modbus, RTU protocol
-\tRS-232 link for pc communication

•\tDigital/Analog Input Simulation panel
-\t14 bit digital input toggle switch provided for Hi & Lo output
-\t2 bit digital input Push switch provided for Hi & Lo output

-\tHI output is 24V dc & LO output is 0V.
-\t4 Analog Simulation Potentiometer.
-\t24V DC supply in built
-\t230V AC power socket with On/Off Switch

•\tDigital Output Simulation panel
-\t8 bit SPDT Relay output
-\tLed indicator for output indication.

•\tAll input & output are terminated in 4mm connector & should provide 4mm banana cable for experiments.

Experiments
•\tStudy of NO,NC & Coil Operation
•\tStudy of Interlock Operation
•\tStudy of Latch Operation
•\tStudy of Set & Reset Operation
•\tStudy of Rising & Falling Edge Operation
•\tStudy of Timer & Counter Operation
•\tStudy of Right & Left Shift Operation
•\tStudy of Addition, Subtraction, Multiplication & Division Operation
•\tStudy of Data Move Operation
•\tStudy of Comparison Operation

Interfacing Simulation Module
•\tTraffic Light Module
•\tVehicle Parking Module
•\tElevator Lift Module
•\tWashing Machine Module
•\tBottling Plant Module
•\tPacking Module
•\tLevel & Pump Control Module
•\tFan Control Module
•\tStar Delta Module
•\tSafety Door Module
•\tconveyer Belt Module
•\tSeven Segment Module
•\tStepper Motor Control Module
•\tDC Motor Control Module
