86 дюймов Складная умная доска учебное оборудование для цифрового образования удобное и
- Категория: Educational Equipment >>>
- Поставщик: Dongguan,Riotouch,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1583.67 $* | 1662.67 $* |
| Aug-15-2025 | 1569.58 $* | 1647.91 $* |
| Jul-15-2025 | 1317.37 $* | 1383.20 $* |
| Jun-15-2025 | 1543.38 $* | 1620.26 $* |
| May-15-2025 | 1343.50 $* | 1410.21 $* |
| Apr-15-2025 | 1516.56 $* | 1592.5 $* |
| Mar-15-2025 | 1503.51 $* | 1578.71 $* |
| Feb-15-2025 | 1490.86 $* | 1565.30 $* |
| Jan-15-2025 | 1476.9 $* | 1550.67 $* |
Характеристики
Product description
Riotouch M Series Fold interactive smart board blackboard combines interactive display and traditional blackboard together. It integrates with a capacitive LED Interactive display in the central and two foldable writable surface wings on the two sides is suitable for large classrooms and conference rooms.
M Series Fold interactive smart blackboard integrates of a capacitive touchscreen with 4K UHD display, supporting 30-point touch,10-point writing interactive function. With two sides foldable and writable surface wings, it’s easy for delivery and installation. Built-in Android 8.0 OS with Conference system (UMind), Multimedia publish app (UShow), and professional file management app (UFile), M series smart blackboard is a more scientific conference and classroom solution
Details Images

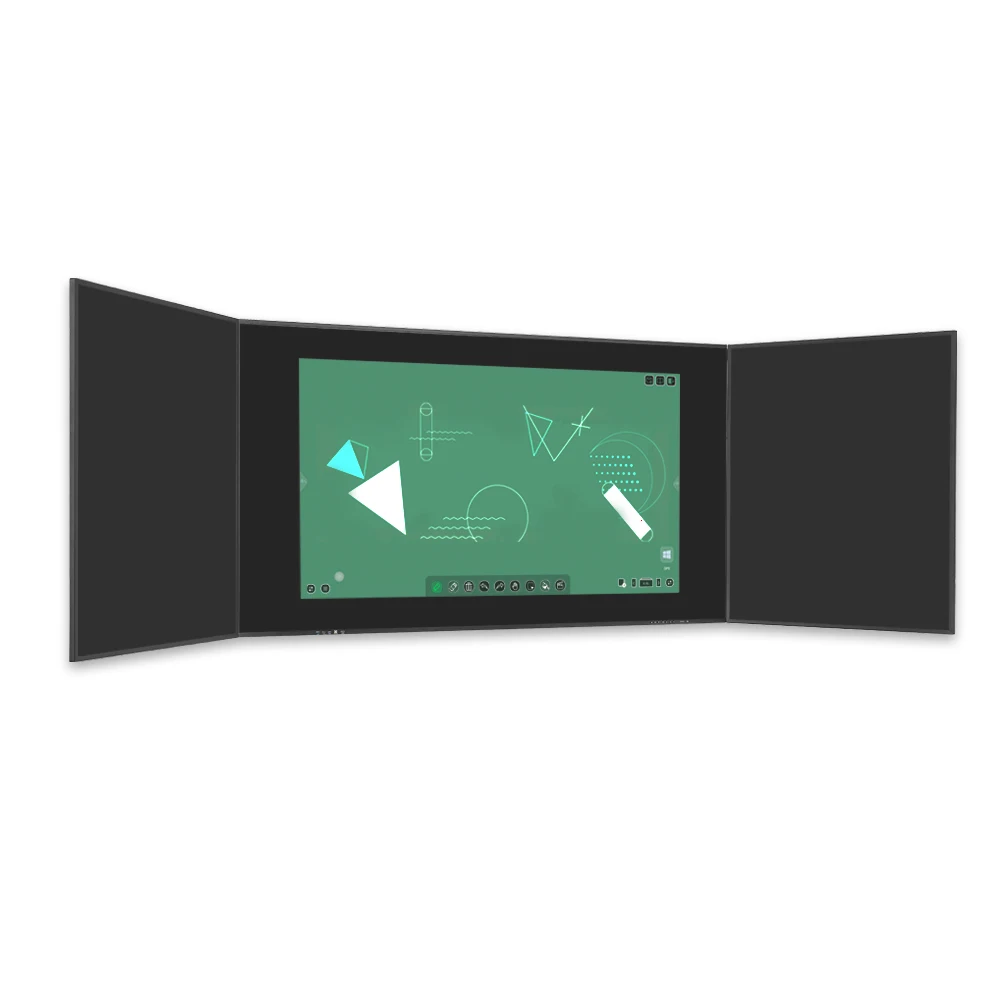

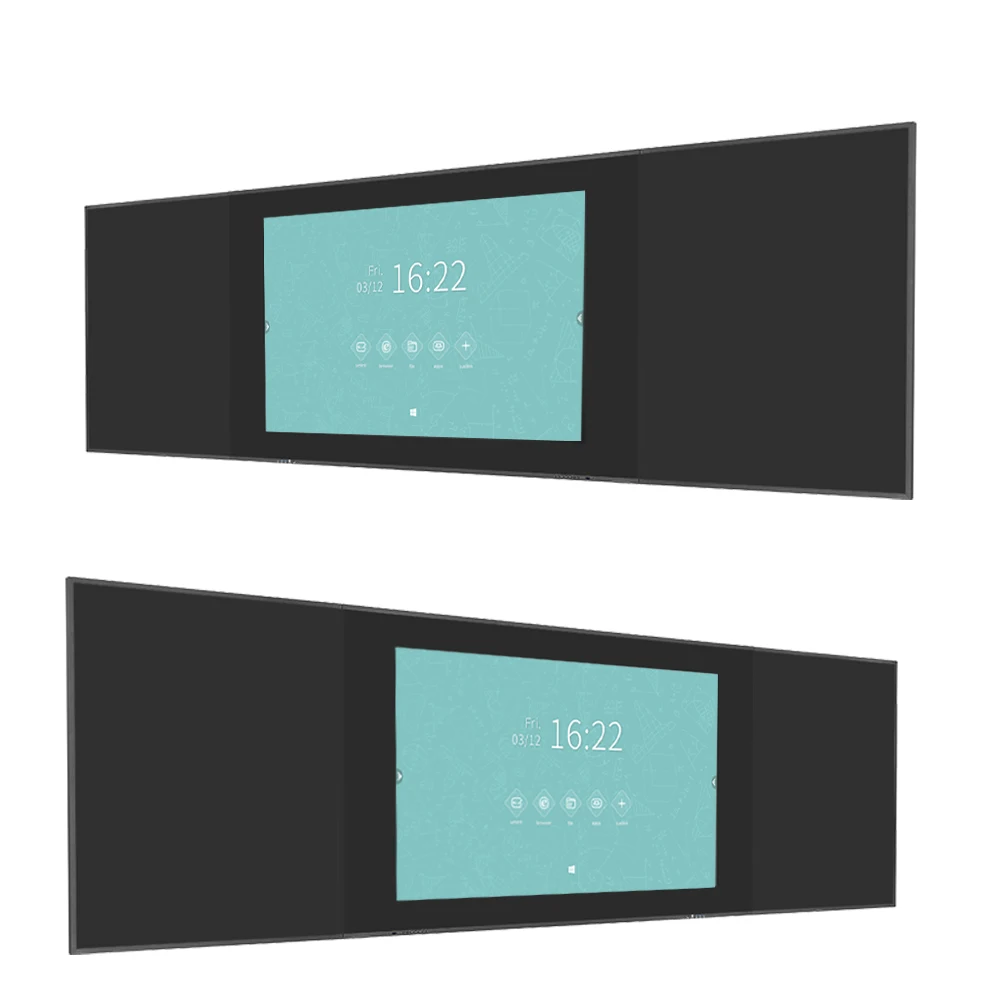

One panel double wings smart blackboard
With One P-CAP 75 inch or 86 inch 4K UHD interactive display in the center and two wings (ceramic blackboards/whiteboards) on the two side which could write with chalk or mark pens
Double panels Double wings smart blackboard
With two P-CAP 75 inch or 86 inch 4K UHD interactive displays in the center and two wings (ceramic blackboards/whiteboards) on the two side which could write with chalk or mark pens, which is suitable for more larger classroom and conference rooms
Specifications
Panel | ||||
Model | M86 | M75 | ||
Size | 86 inch | 75 inch | ||
Panel\\Backlight | D-LED(OD28) | D-LED(OD28) | ||
Display Dimension | 1895.04mm*1065.96mm | 1650.24mm*928.26mm | ||
Resolution | 3840*2160 | 3840*2160 | ||
Glass | chalk, liquid chalk and marker | chalk, liquid chalk and marker | ||
Thickness of glass | 3mm | 3mm | ||
Hardness | Mhos 7H | Mhos 7H | ||
Features | Black, Reversible, double-sided writing | Black, Reversible, double-sided writing | ||
Brightness | 16:09 | 16:09 | ||
Ratio | 4000:1 Typ. | 4000:1 Typ. | ||
Contrast | 400nit (without glass), 350nit (with glass) | 400nit (without glass), 350nit (with glass) | ||
View angle | 8ms(Typ.)\\12ms(Max.) | 8ms(Typ.)\\12ms(Max.) | ||
Response time | 10 Bit (1.07B) | 10 Bit (1.07B) | ||
Color | ( R/L 178 (Min.), U/D 178 (Min.) | ( R/L 178 (Min.), U/D 178 (Min.) | ||
Refresh frequency | 60Hz | 60Hz | ||
Touch | ||||
Type | Capacitive touch | Capacitive touch | ||
Technology | Nano Silver | Nano Touch | ||
Active area | 1903.04mmx1073.8mm | 1654.24mmx932.1mm | ||
Interface | USB2.0/3.0 | USB2.0/3.0 | ||
Structure type | GFF | GFF | ||
Thickness | 3.0mm | 3.0mm | ||
Total Thickness | 3.5±0.3mm | 3.5±0.3mm | ||
Operate system | Win7, 8.1, 10/Android | Win7, 8.1, 10/Android | ||
Touch point | 30 points in windows, 10 points in Android | 30 points in windows, 10 points in Android | ||
Linearity | ±2.5 | ±2.5 | ||
Working current | < 500mA | < 500mA | ||
Stand-by current | 1A | 1A | ||
Working voltage | DC5V | DC5V | ||
Response time | <40ms | <40ms | ||
Penetration rate | ≥80% | ≥80% | ||
Maninboard | ||||
Model | ADV811 | |||
Android version | Android 8.0 64Bit | |||
Chip type | Hi3751ARBCV8110D0N | |||
CPU | Dual-core A73 and dual-core A53 ，1.5GHz | |||
GPU | Quad-core MaliG51 | |||
RAM | 4GB DDR4 | |||
Flash | 32GB (64GB optional) | |||
Radio | ||||
Power(option) | 15W*2 | |||
Front speaker | NO | |||
Microphone | ||||
Type | optional | |||
Software | ||||
U System | Launcher, Center, Float icon, setting, Float Icon | |||
Software app | U mind, Ufile, Ushow, Ufreeze, Ucut, Ustore, OTA | |||
Interfaces | ||||
Type-C | 1 | |||
USB 3.0 | 1 | |||
USB 2.0 | 2 | |||
HDMI 2.0 OUT | 1 | |||
HDMI 2.0 IN | 1 | |||
HDMI 2.0 In (CEC&ARC) | 1 | |||
Display Port (DP) | 1 | |||
VGA IN | 1 | |||
Touch out USB B type | 2 | |||
SPDIF OUT | 1 | |||
Earphone | 1 | |||
MIC | 1 | |||
VGA audio | 1 | |||
RS232 control | 1 (Sub-D, 9 pins) | |||
RJ45 IN | 1 | |||
RJ45 OUT | 1 | |||
Windows OPS Slot | 1 | |||
Wi-Fi for online updates | Yes | |||
Front Interfaces | ||||
Touch | 1 | |||
USB 2.0 | 2 | |||
HDMI | 1 | |||
Basic information | ||||
Voltage | ~ 100-240 V (50/60Hz) | |||
Power | <500W | |||
Stand-by | ≤ 0,5 Watt | |||
Gross weight | 98.27(KG) | 98.27(KG) | ||
Net weight | 85.1(KG) | 85.1(KG) | ||
Panel dimension(W x D x H) | 1991.1mm*93.5mm*1201.0mm | 1991.1mm*93.5mm*1201.0mm | ||
Blackboard dimension(W x D x H) | 986.0mm*17.5mm*1201.0mm | 986.0mm*17.5mm*1201.0mm | ||
Whole size(W x D x H) | 3963.1mm*129.5mm*1201.0mm | 3963.1mm*129.5mm*1201.0mm | ||
Packing size(W x D x H) | 2080mm*208mm*1287mm | 2080mm*208mm*1287mm | ||
Wall mount | 800mm*600mm | 600mm*400mm | ||
Product Application
Our Company
Riotouch has been a professional supplier in the interactive displays and whiteboard in China since 2009. We have our professional sales team, strong Design, R&D, After-sale service team, to provide our super value products and service to our customers. We focus on smart interactive educational equipment, make lessons with more fun & joy, inspire the next generation to be more creative.
Riotouch Production Line
Certification
FAQ
1. Are you a Manufacture?
A: Yes, we are a manufacture of interactive whiteboard and interactive flat panel in China from 2009, located in Dongguan City,
Welcome your visit.
2. What's your product quality control?
A: We have strict QC team, production meeting ISO9001 production system. Our products passed CE, RoHS, FCC certification.
3. What's your after-sale service?
A: We can offer 100% guarantee on our product. Our general warranty is 1 year. For bulk order, we will provide spare parts, If any
problems, you will get our reply on line within 24 hours.
4. What's your MOQ?
A: Generally, our MOQ is 10pcs. But sample order is acceptable. More quantities enjoy better discount.
5. Could you offer the OEM service?
A: Yes, We provide OEM and ODM service and customized service. We also supply software and firmware OEM/ODEM, As we know that all
the hardware designs are almost the same, firmware become very important to win more markets.
6. What is the payment way?
A：T/T，LC,.... Trade Assurance is welcomed!
7. How about the delivery?
A: The delivery would be with in 5-20 days according to the order quantity and size of the items.
