SG-60NC конец трубы формируя машину
- Категория: Станки для развальцовки концов труб >>>
- Поставщик: Zhangjiagang,Nuoen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.38 $* | 0.46 $* |
| Aug-16-2025 | 0.26 $* | 0.28 $* |
| Jul-16-2025 | 0.39 $* | 0.84 $* |
| Jun-16-2025 | 0.18 $* | 0.91 $* |
| May-16-2025 | 0.12 $* | 0.58 $* |
| Apr-16-2025 | 0.22 $* | 0.61 $* |
| Mar-16-2025 | 0.41 $* | 0.96 $* |
| Feb-16-2025 | 0.0 $* | 0.39 $* |
| Jan-16-2025 | 0.28 $* | 0.31 $* |
Характеристики
Product Description

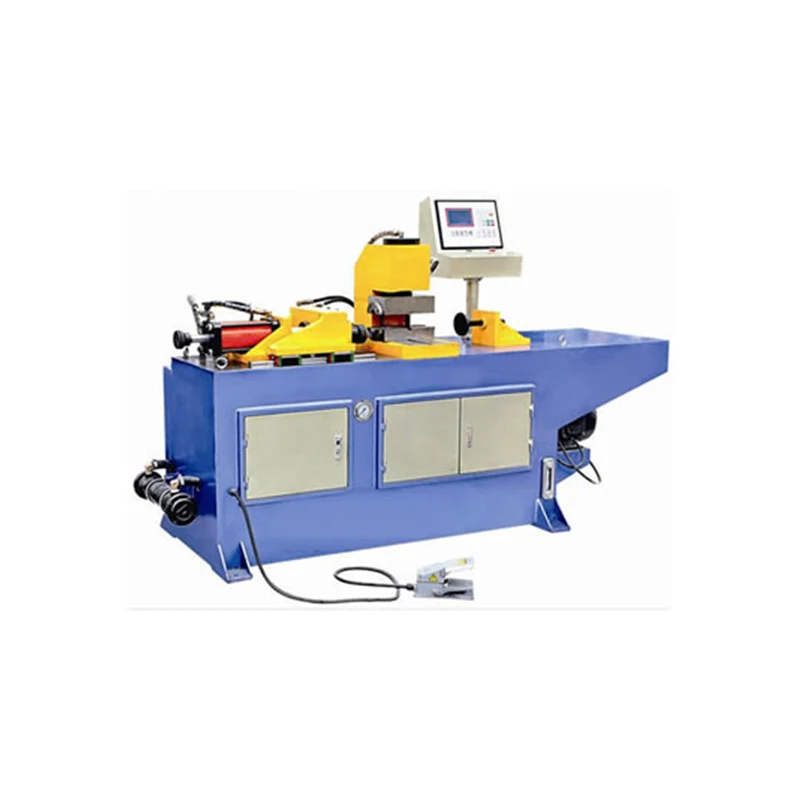

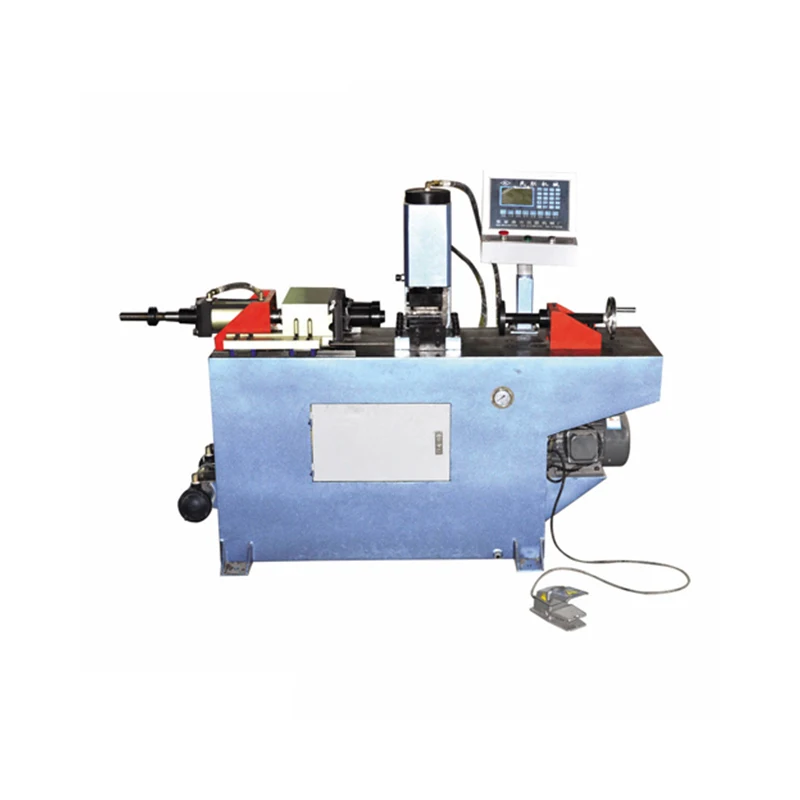

SG-60NC Hydraulic Pipe End Forming Machine
The characteristics of the equipment
1. PLC control (CNC), convenient operation and flexible
settings.
2. Powerful hydraulic clamping and customized, specially designed
clamp dies make the clamp firm enough without damaging the pipe
surface.
3. Forming is driven by hydraulic. The forming moulds are designed by
the professional engineers with much experience. Precise processing
makes the moulds more delicate and accurate.
4. Adopting the premium linear slide rail, providing stable propulsion.
5. The hydraulic system is all assembled by the imported and premium
components, which makes the system more powerful and stable.
6. Equiped with all kinds of forming moulds, for tube end forming like
expanding, contracting, reducing, making flange and other special
formings.
7. Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature.

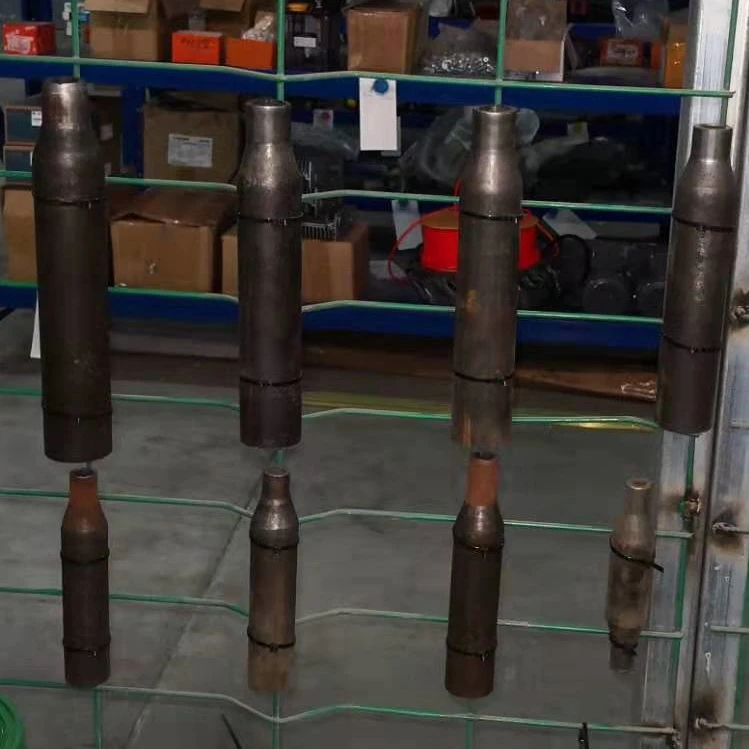

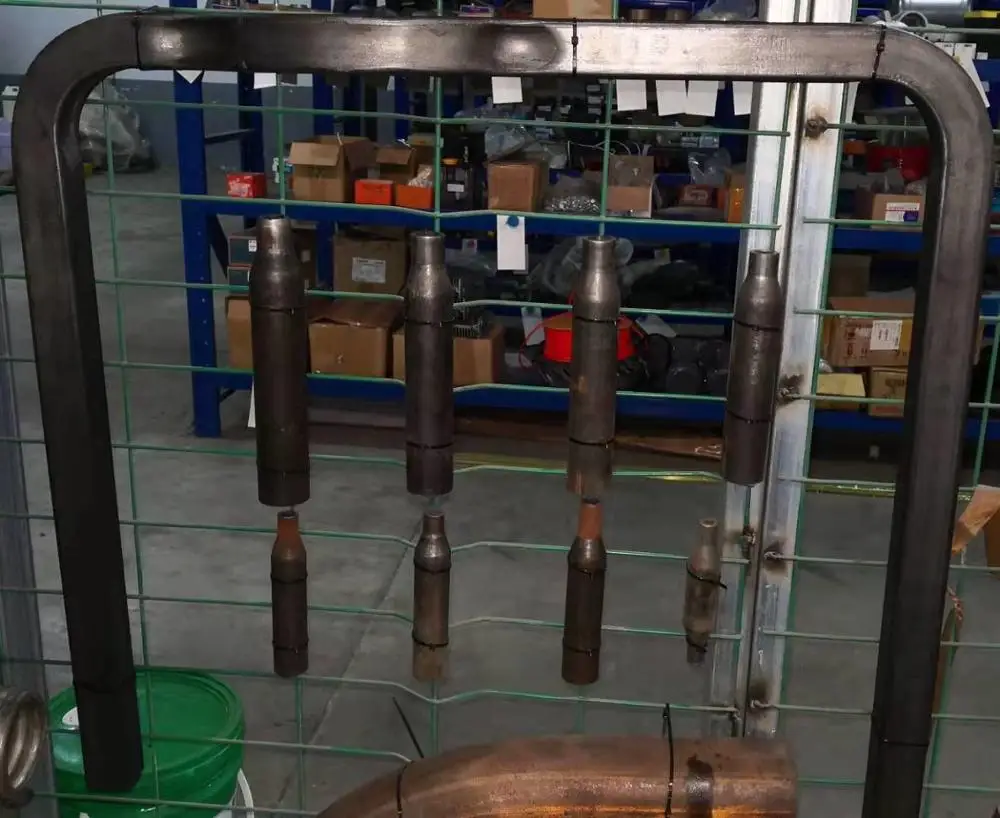

Samples:
Technical parameters
The main model/specifications | SG-60NC-II | Remarks |
Applicable Pipe Diameter | Φ60mm*2mm | Maximum Working Stroke |
Maximum Working Stroke | 130mm | |
Oil Hydraulic Output | 12Mpa | |
Working Speed | 100mm in 3-4/s | |
Machine Size | 1800*800*1350mm | |
Machine Weight | 1000kg |
Company Information
Company Details
Professional: 10 years into machinery.
Brand: NUOEN
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc
Trade information:
FOB Shanghai, CIF your port
Payment Terms: T/T, L/C
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
Free Sample: No
Contact:
Mob: +86 18017581805
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. But any men-made or inappropriate conduct damage will be excluded.If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. Are you looking for distributors?
A6.We cherish every chance to cooperate with every distributors or willing to assist buyer develop into a local distributors. Distributors will enjoy more supports from us, regarding of price terms, technical support, customization, technical cooperation, exclusive policies, etc.
Q7. How to visit your company?
A7: Fly to Shanghai airport, By high speed train From Shanghai to Wuxi (1 hour), then we can pick up you.
