1000BPH полностью автоматическая машина для розлива бутылок оборудование

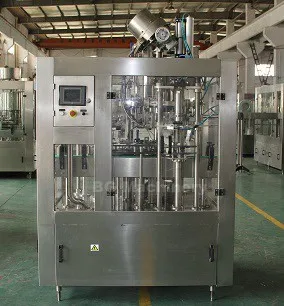

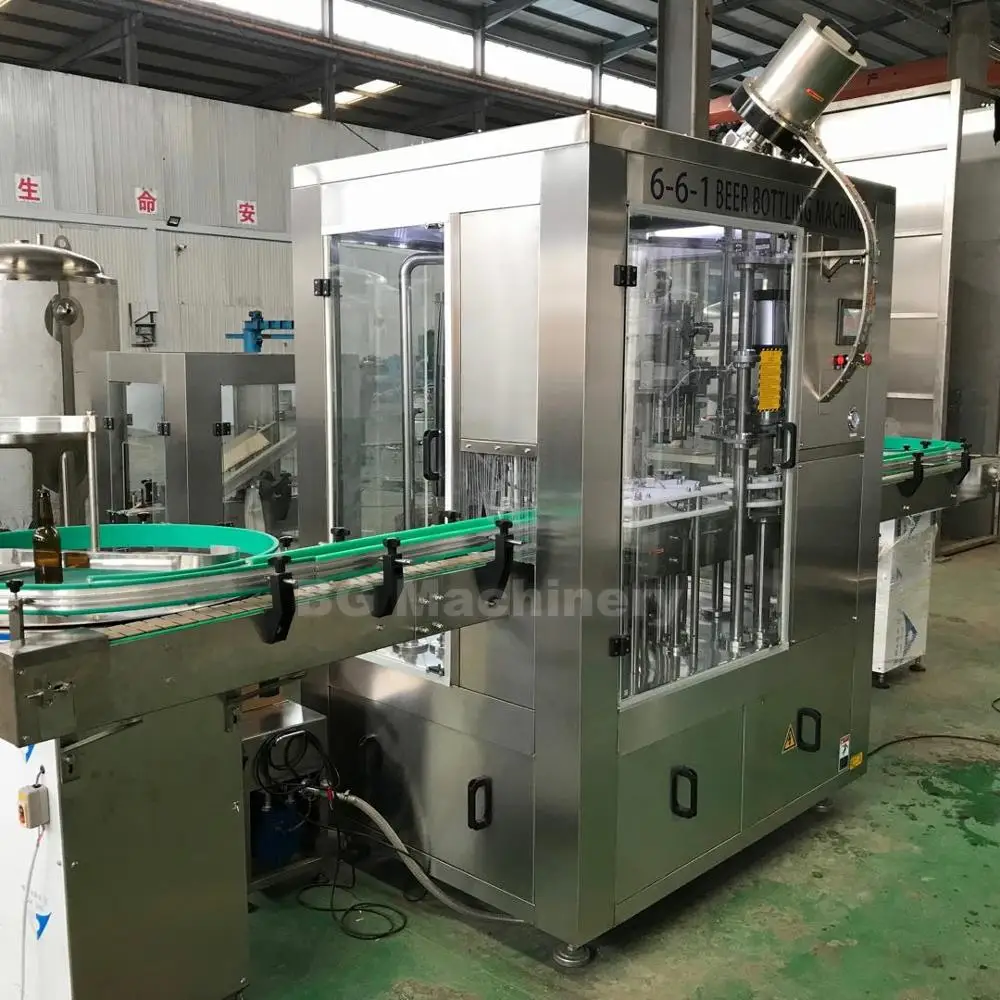

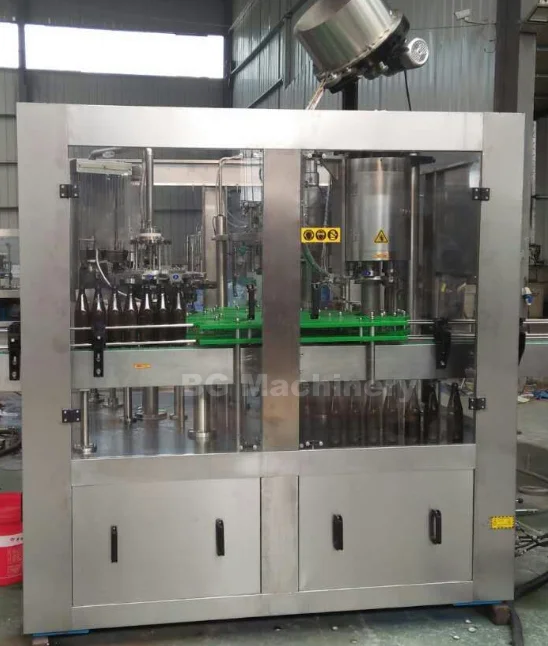

BG-CGF6/6/1 type beer bottle washing filling capping monoblock is designed combined with the actual situation in our country after the introduction and absorption that comes from Germany technologies.

It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt Siemens automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process.

(1) Adopts high precision mechanical valve, has advantages of fast filling speed, high precision in liquid level.
(2) Sealed filling cylinder made of 316 stainless steel and automatic adjustment of the liquid level to realize isobaric filling.
(3) Has CIP cleaning function, touching screen control, the whole machine is protected by stainless door.
(4) Adopt vacuumization and CO2 preparing pressure principal, and then prepare pressure for a second time to make sure the filling quality.
(5) The height of the washing filling capping machine is adjustable to fill different kinds of beer bottles within the design scope.
(6) Main transmission adopts a transmission combination of cog-type belt and gear box type, high efficiency and low noise.
(7) Main transmission adopts stepless speed regulation. The machine adopts SIMENS PLC industrial computer control.
(8) When there are bottles, it will fill. Otherwise, it won't.

(9) There are two kinds of control system, manual and automatic. When using manual system, if there is no beer or cap, the machine can alarm automatically. When using automatic system, it can automatically adjust if you set the requirement.

a. The first Vacuumize
Open the Vacuum valve stem, in the bottle and vacuum channels forming a road. The air in the bottle will be discharged from bottle through this channel; in the bottle a vacuum will be formed. After reach the fixed time, Vacuum valve closed, then it will be finished.

b. CO2 injection
Open the filling valve, a pathway is formed between the bottle and the gas channel. The CO2 filling into the bottle through this channel till CO2 pressure in wine tank equals to the beer tank pressure.

c. The second vacuumizing
After CO2 injection into the bottles, little air will be concentrated on the top of the bottle neck. By the second vacuumizing, this part of resting air will be removed and generate a slight-vacuum state, which is better for the filling work.

d.CO2 injection
Open the filling valve, a pathway is formed between the bottle and the gas channel. The CO2 filling into the bottle through this channel till CO2 pressure in wine tank equals to the beer tank pressure.

e. Beer filling
Open liquid valve and form pathway between the bottle and the beer tank, the material will feed into the bottle from this channel, at the same time, the CO2 in bottle return back to the beer tank at the same speed through air-back pipe. Compressed CO2 in the bottle seal material to continue to run till the material in bottle rising over air-back pipe and form pressure balance

f. Close valve
After the bottle finish filling stand for long time, close the liquor valves and air filling valves, cut off the channel between wine tank and bottle.

g. Air discharge
Open the discharge valves and form a pathway between bottle and air. The pressure in bottle will release through this channel and don't finish release until bottle separate from filling parts.

h. Blow remaining liquid
When the filling parts locates between bottle-out and bottle-in star wheel, open the CO2 filling valves and close it after reach the fixed time. So that the CO2 in bottle will blow the remaining liquid.

We consider all different potential situation in the delivery, so we use every prevention measures to avoid any potential inconvenience or trouble

Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our products.

Container cargo: the equipment will be bound firmly and won't easily swing to the side, or up, or down.
