3 оси Выдвижная низкорамный прицеп 50 тонный низкий прицеп-платформа осей тракторный с низкой платформой для
- Категория: Truck Trailers >>>
- Поставщик: Hubei,Chusheng,Vehicle,Imp.&Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.8 $* | 0.73 $* |
| Aug-18-2025 | 0.0 $* | 0.29 $* |
| Jul-18-2025 | 0.40 $* | 0.10 $* |
| Jun-18-2025 | 0.7 $* | 0.91 $* |
| May-18-2025 | 0.51 $* | 0.34 $* |
| Apr-18-2025 | 0.27 $* | 0.58 $* |
| Mar-18-2025 | 0.55 $* | 0.62 $* |
| Feb-18-2025 | 0.19 $* | 0.16 $* |
| Jan-18-2025 | 0.44 $* | 0.61 $* |
Характеристики
3 axles extendable low bed trailer 50 tons low bed trailer 3 axels tractor trailer low bed for sale
Product Description
For the low bed trailer, the most popular one is tri axles 40ft flatbed container semi trailer, except that also we can design to manufacture 2 axles 20ft container trailer, 3 axles 45ft container semi trailer, 53ft container truck trailer etc, specified as loading weight can be 30tons flatbed trailer, 40tons flatbed container trailer, and 50t container semi trailer, and 60 tons container cargo trailer.
Parameters of low bed semi-trailer
| Heavy Duty Machinery Transport Lowbed Truck Semi Trailer | ||||
| Model | ALP9350LBST | |||
| Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size |
| Dimension Made by Customer Machine Size, Standard Length is 13500mm | 1 | 20 | 4 | |
| (contact supplier for more) | 2 | 40 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
| 3 | 60 | 12 | ||
| 4 | 80 | 16 | ||
| 5 | 100 | 20 | ||
| Manufacture | Xiagong Chusheng Special Purpose Vehicle Manufacturing Co.,Ltd | |||
| Wheel Base (mm) | 1310 | |||
| leaf-spring Pcs | 10 | |||
| Axle | 13/16/18 T | |||
| Suspension | Heavy Duty Mechanic Suspension with Leaf Springs | |||
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded | |||
| Brake System | Dual line braking system with automatic braking system/chambers | |||
| Brake Air Chamber | Double Model | |||
| Kingpin | 2' or 3.5' Interchangeable | |||
| Landing gear | 28T loading capacity with 80T static lifting capacity. | |||
| Platform | 4-6 mm diamond steel plate | |||
| Brake System | Dual Lines Braking System With Automatic Air Chambers | |||
| Brake Air Chamber | Four double and two single chamber | |||
| Electrical System | 24V, 7core socket, lights according to European standards. | |||
| Upper plate | 14mm | |||
| Mainbeam Size | Lower plate | 16mm | ||
| Mid Web | 8 mm | |||
| Height | 500-520mm | |||
| Tool Box | 1 box of standard tools | |||
| Spare tire carrier | 2 sets | |||
| Color and Logo | Depends on the buyer’s requirement. | |||
| Pin Height | According to the height of the tractor saddle. | |||
| Painting | Three coats painting; Any color will be available | |||

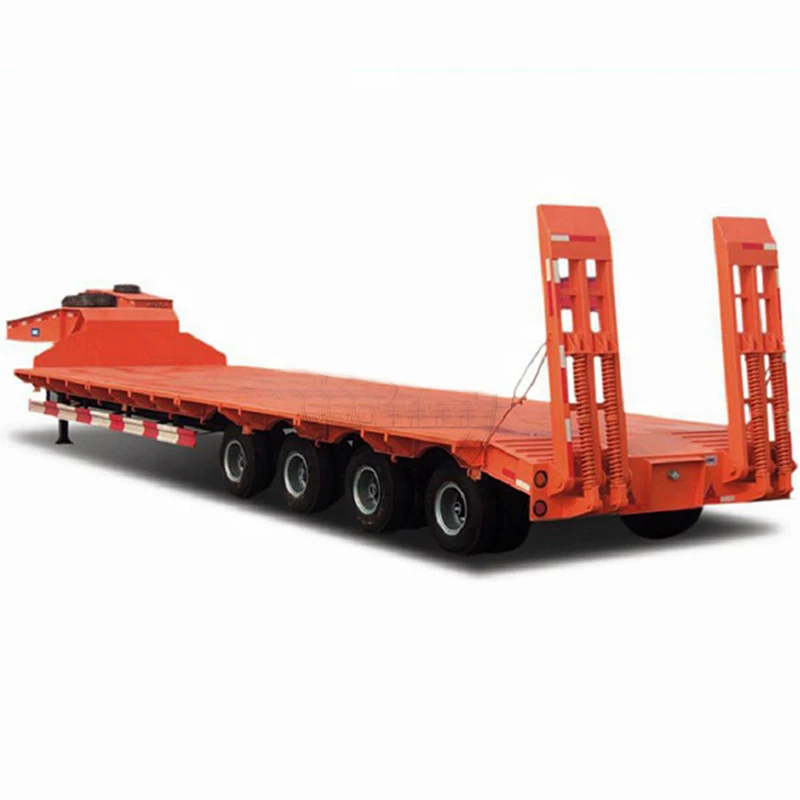

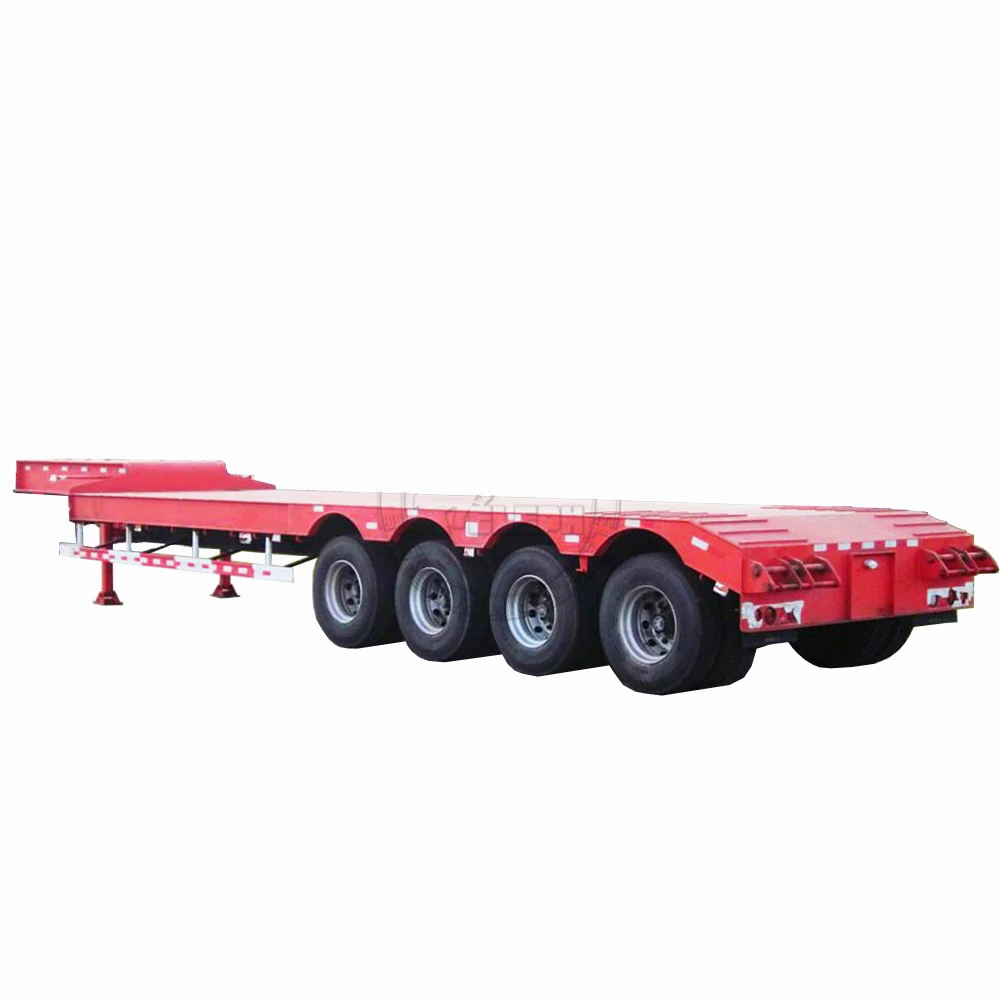

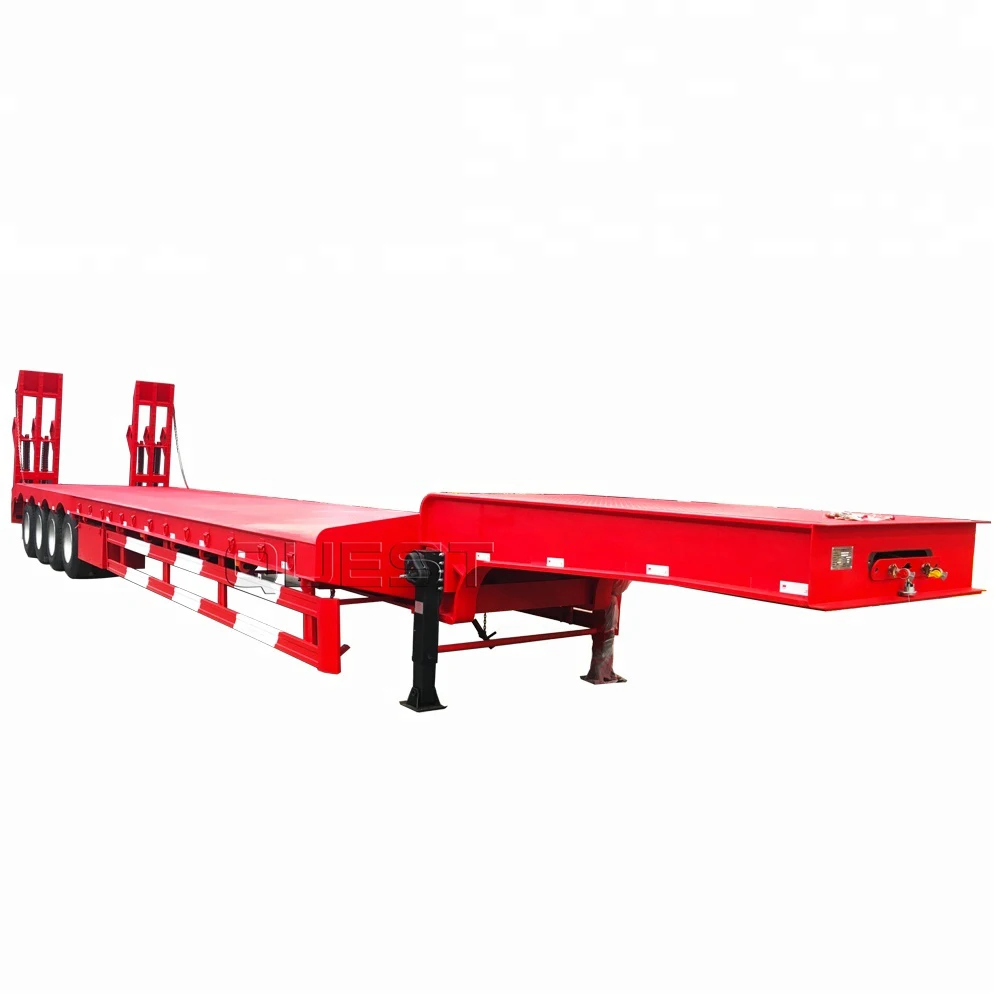

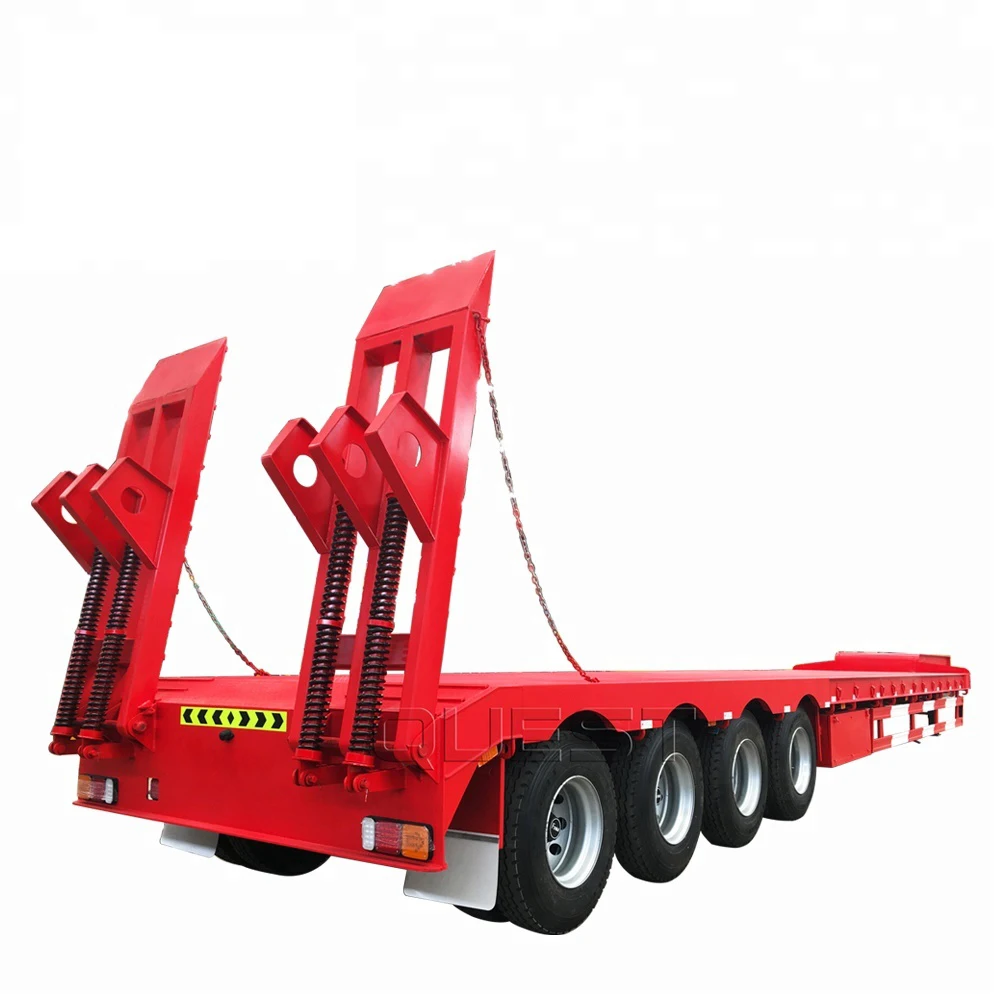

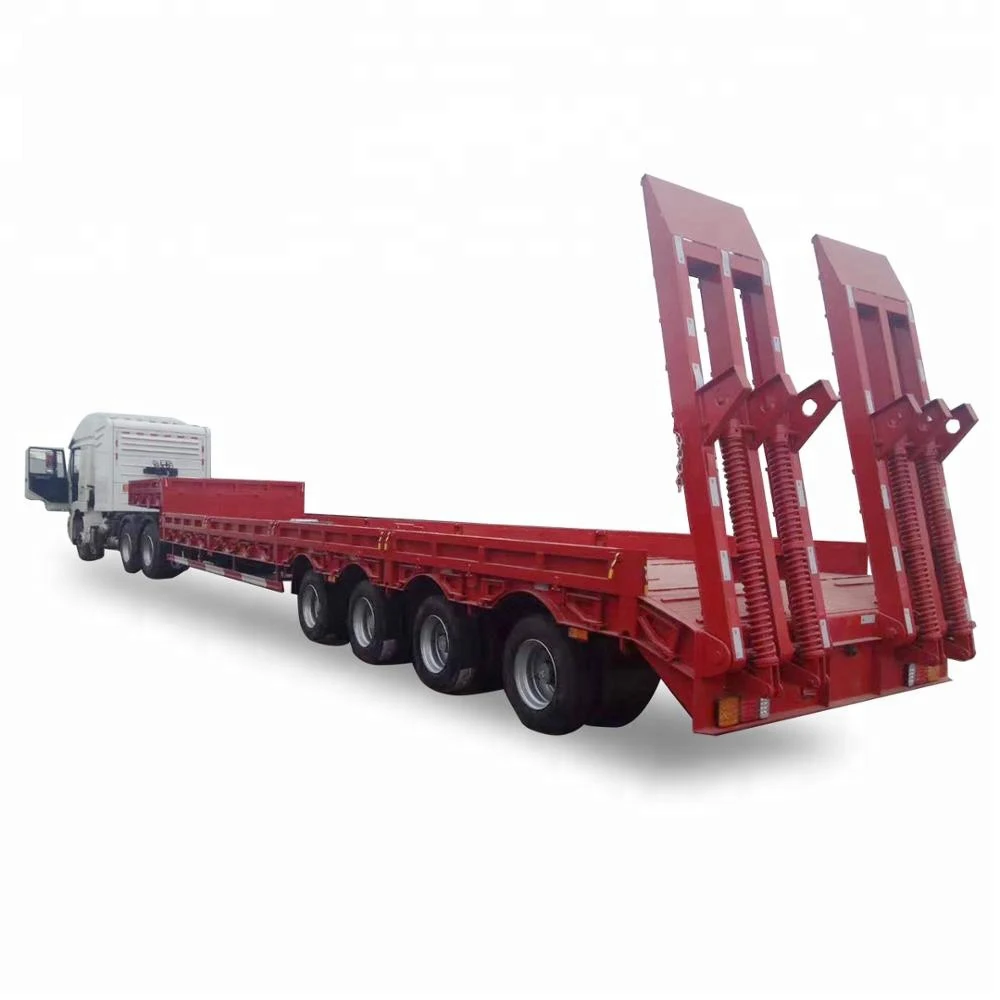

Photos for flat bed trailer:
Detailed image
details for flat bed trailer:
Packing and shipping
1.By container
Using container transportation can save freight cost.But need to cut.
How to load the flatbed semi trailer into container
.
2.By bulk cargo ship
If the number of shipping is more, we can use superposition of three trailers.
It can reduce the size of goods.
Company Information
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
FAQ
1. How long will I receive my product?
Answer: Usually 25-30 days after the deposit is received.
2. What's the payment terms?
Answer: TT, LC, Cash
3. What's the trade terms?
Answer: FOB, CIF, CFR etc.
4. How can I know the quality?
Answer: we can offer quality report; you can send someone to check or your autherize some agent to test.
5. How can I place order?
Answer: confirm the products details , sign the contract and then pay the deposit.
Contacts
