Небольшой объем 360v ev бортовой CDU и

Категория: On Board Chargers >>>
Поставщик: Shijiazhuang,Dilong,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.0 $*	0.36 $*
Aug-16-2025	0.45 $*	0.13 $*
Jul-16-2025	0.61 $*	0.8 $*
Jun-16-2025	0.24 $*	0.36 $*
May-16-2025	0.44 $*	0.95 $*
Apr-16-2025	0.73 $*	0.64 $*
Mar-16-2025	0.56 $*	0.73 $*
Feb-16-2025	0.76 $*	0.8 $*
Jan-16-2025	0.77 $*	0.82 $*

Характеристики

Product Description

Place of Origin: Hebei, China (Mainland)

Brand name: Dilong

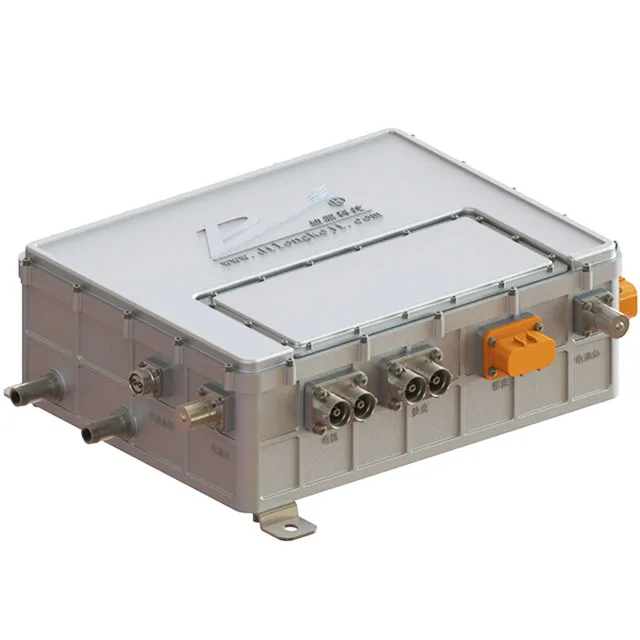

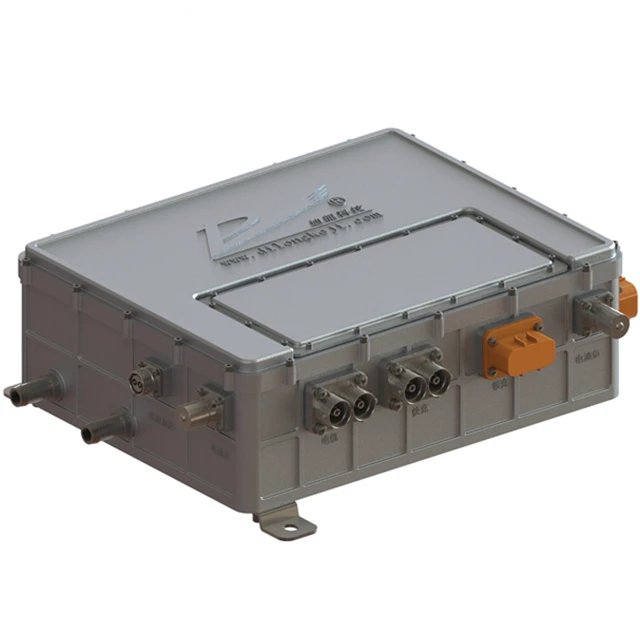

Product name: CDU8KM63-360C-28RC

CDU8KM63-360C-28RC is a liquid-cooled, specifically designed for pure electric vehicles, can freely combine AC-DC, DC-DC, high-voltage box and High-voltage detection Box ‘four-in-one’ conversion into one switching power converter.

Specification

8000W 4 in 1 CDU PDU electric vehicle battery charger

OBC part main parameters:

Mains Input	Rated Voltage	Vac	220
	Voltage Range	Vac	85~264 (85~175V, the power dropped to 3kW)
	FREQ RANGE	HZ	47~63
	Efficiency(MAX)	%	≥94
	Power Factor		≥0.99@220Vac, rated power
	Current	A	≤32A@220Vac
Mains output	Rated output voltage	Vdc	360
	Constant voltage output range	Vdc	250~420
	Maximum current	A	26.4 (Constant power output characteristics)
	Maximum power	W	6600
DC Auxiliary supply	Rated output voltage	Vdc	12 (Optional)
DC Auxiliary supply	Rated output power	W	2 (For BMS activation)

DC-DC part main parameters:

Power input
Input voltage range	Min:260Vdc	TYP:360Vdc	Max: 430Vdc
Input current (full load)	5.1A	3.6A	2.2A
Power output
Rated output voltage@range	28V±1%
Rated output current@rated power	29A
Peak output power	1000W
Efficiency	≥90%

High-voltage Power Distribution Box part main parameters:

Introduction of each circuit
Power interface	Rated	Peak	Pre-charge requirement
Motor input	50KW	90KW	No
Slow charging input	6.6KW	6.8KW	Charger confirmation
DC-DC output	1.2KW	1.4KW	No
PTC output	3KW		No
Air conditioning output	1.5KW	1.8KW	No
DC fast charging input	150A		No

High-voltage detection unit part main parameters:

High-voltage input total voltage	DC60V - DC900V
Fast charging inlet voltage	DC60V - DC900V
Battery heating voltage	DC60V - DC900V
Input total current detection	0A - 400A
Total positive insulation resistance	5KΩ - 6MΩ (between high voltage + to vehicle frame) (>6M is calculated as 6M)
Total negative insulation resistance	5KΩ - 6MΩ (between high voltage - to vehicle frame)
