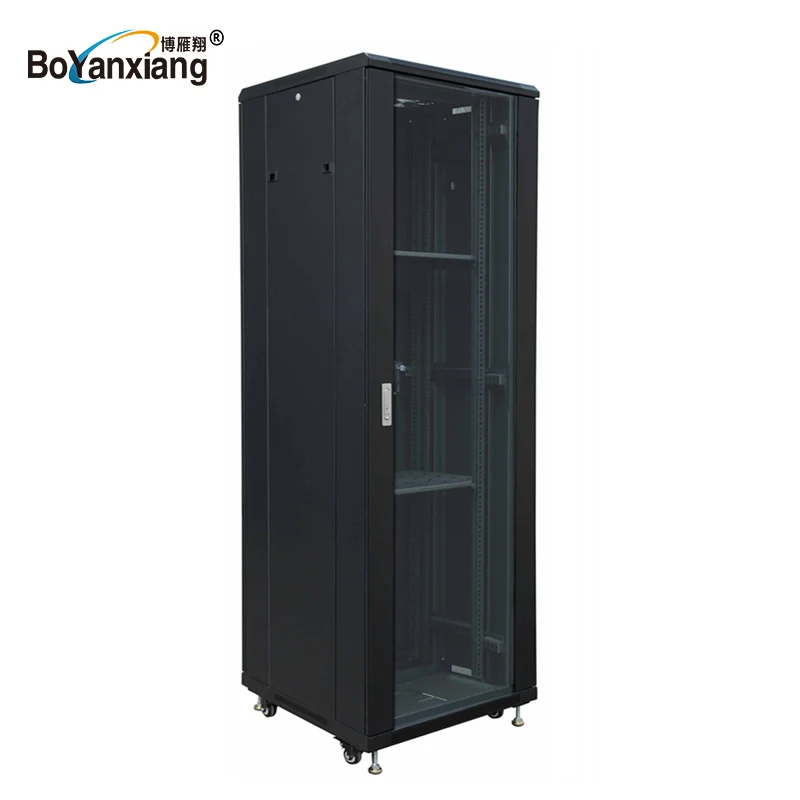

12U/27u внутренний и наружный серверный шкаф для сетевой передачи

19 inch wall mounted rack 6u 9u 12u data cabinet

Feature:

Welded frame, stable structure with precise craftsmanship;

Single section, compatible with 19" standard equipments;

Tempered glass front door with over 180 turning degree;

Removable side panel, easy to install and maintain (lock optional);

Cable entry on the top cover and bottom panel with knock-out plate;

L-shaped mounting proifle, easy to adjust on the mounting rail;

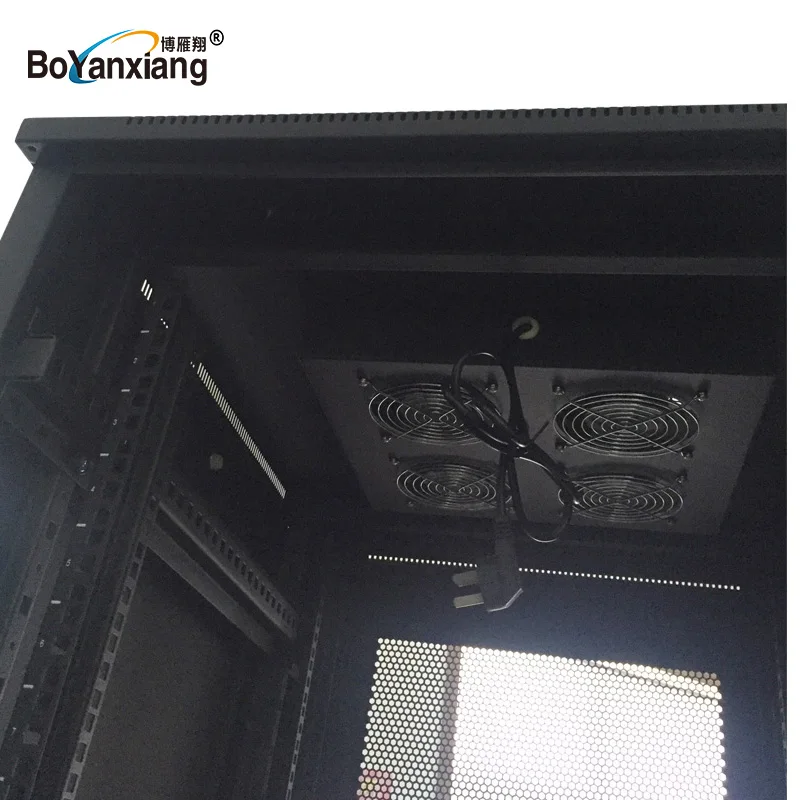

Fan cutout on the top cover, easy to install fan;

Installing back panel, easy to fix on the wall;

Various accessories for option;

Standard:

Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART7, DIN41491, PART7, GB/T3047.2-92 Standard

Material:

SPCC quality cold rolled steel

Thickness: Mounting profile: 1.5mm, others: 1.2mm

Loading Capacity:

Static loading: 60kg

Degree of protection:

IP20

Surface Finish:

Degreaseing, Pickling, Phosphating, Powder Coated

Standard Attached Accessories:

With screw and nut

With 4pcs castors and adjusters

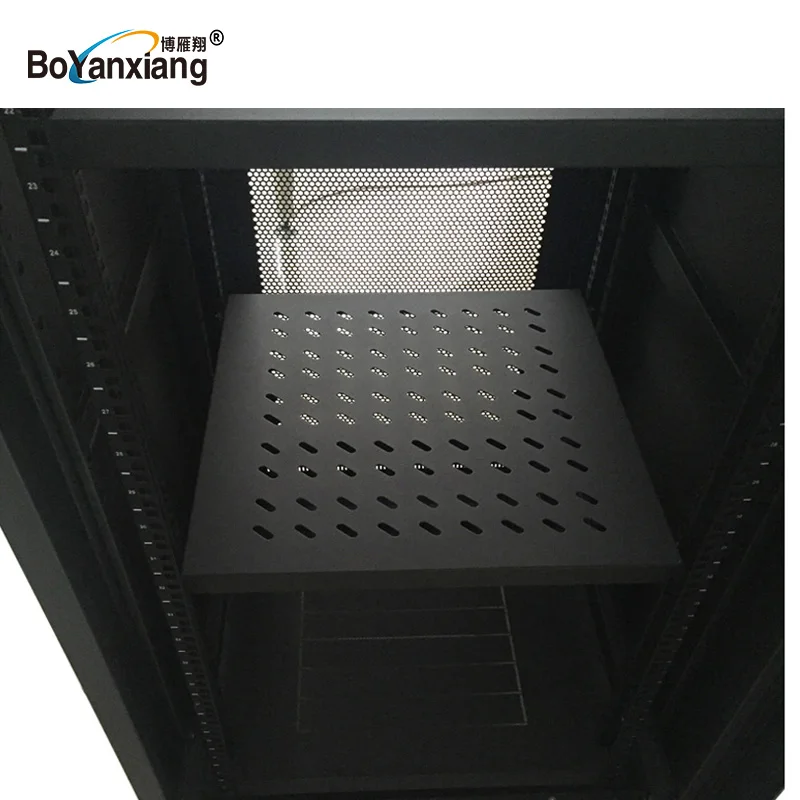

With 2pcs fixed shelves

With 2fans for 600x600mm for cabinets

With 4fans for 600x800/900/1000mm for cabinet

Other Optional Accessories

Sliding shelf

19''PDU

Others according to customer's requirements
