800 мм поперечная длина автоматическая HV LV медная проволока автоматический трансформатор катушечный обмоточный


Поделиться:


Цена:9 370,00 $ - 9 560,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 11150.84 $* 11708.5 $*
Aug-16-2025 11057.45 $* 11610.86 $*
Jul-16-2025 9276.57 $* 9740.28 $*
Jun-16-2025 10869.38 $* 11412.97 $*
May-16-2025 9464.50 $* 9937.24 $*
Apr-16-2025 10682.75 $* 11216.64 $*
Mar-16-2025 10588.51 $* 11117.75 $*
Feb-16-2025 10494.0 $* 11019.77 $*
Jan-16-2025 10401.18 $* 10921.16 $*

Характеристики


Product Description

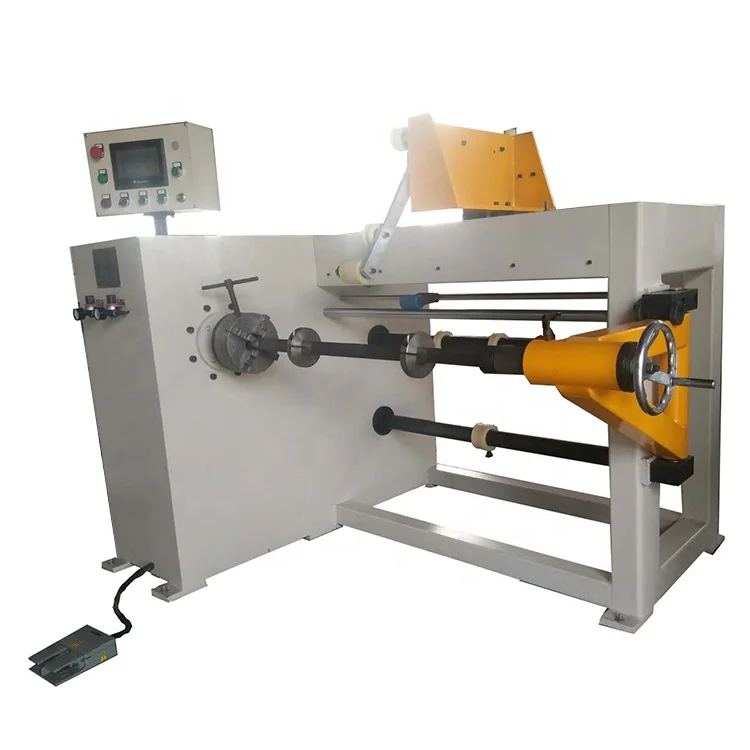

800mm Transverse Length Automatic HV LV Copper Wire Automatic Transformer Coil Winding Machine

automatic wire winder

Introduction

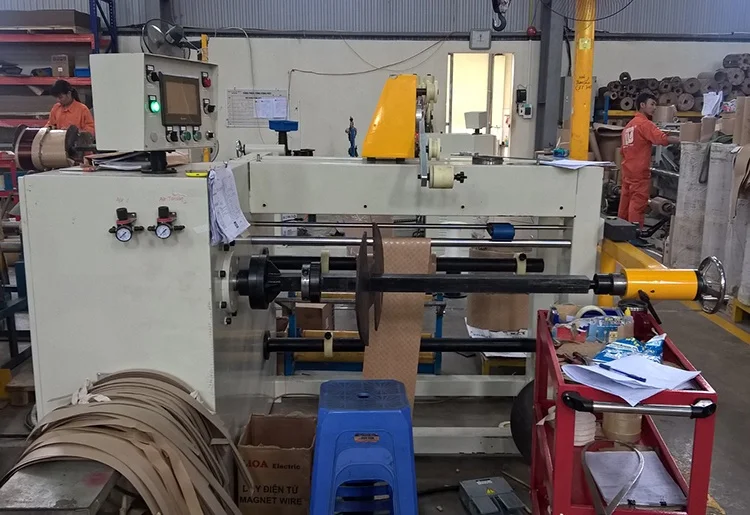

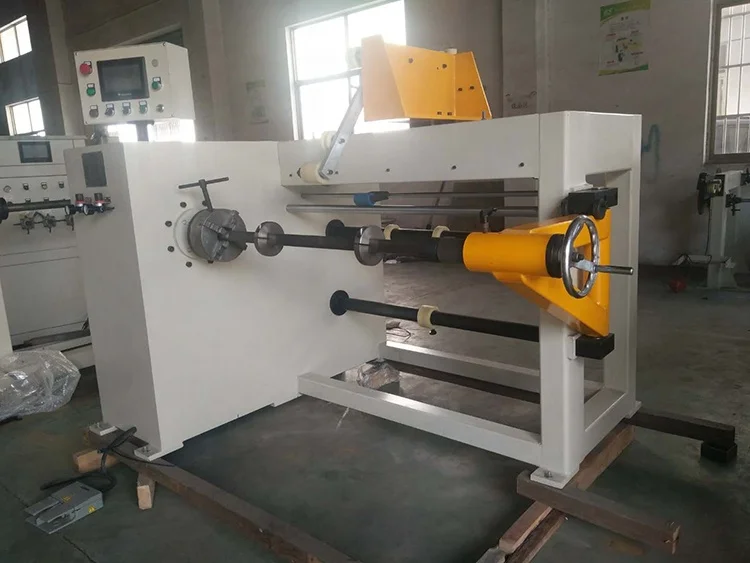

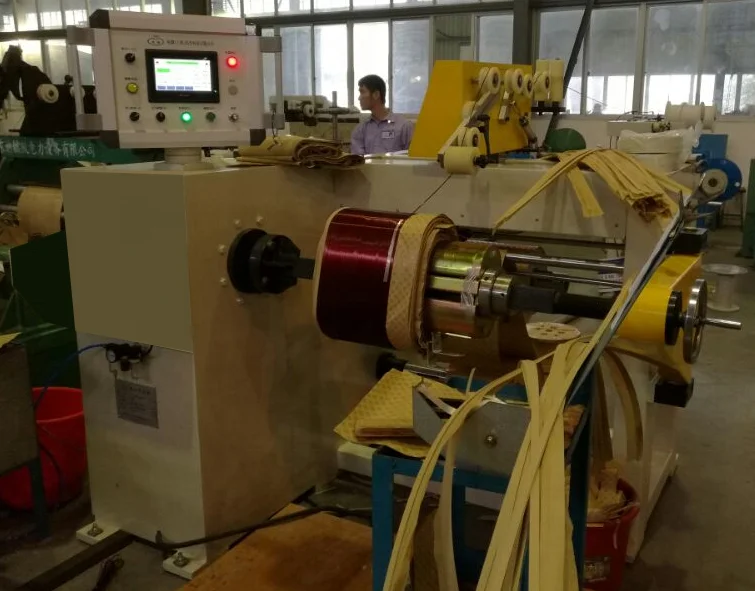

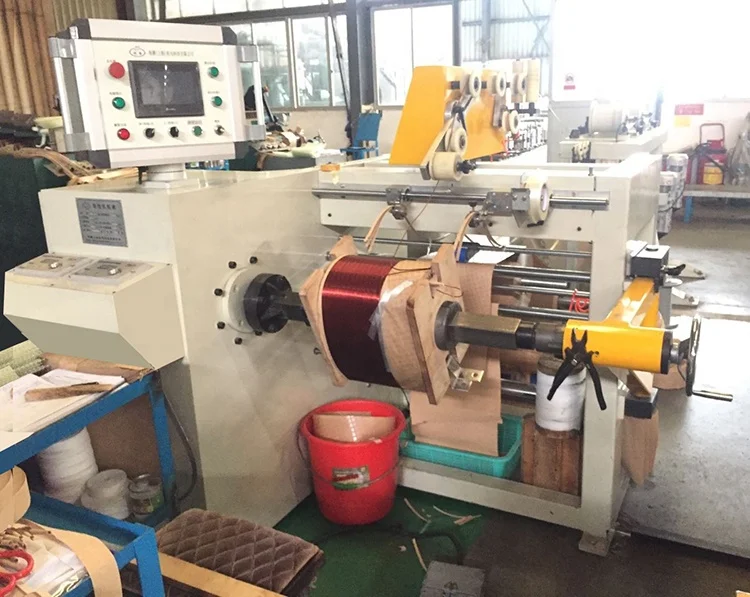

800mm Transverse Length Automatic HV LV Copper Wire Automatic Transformer Coil Winding Machine ZPX800, adopting automatic winding displacement and tension technologies, is especially suitable for winding square and round coil. These coils can be used in small and medium-sized distribution transformer and other similar products. This automatic wire winder is provided with main winding motor, automatic winding displacement unit, layer insulation unit, tension adjustable decoiler, pneumatic system, PLC based control system, and servo motors, etc. The automatic wire winder features high automation, full functions, and strong driving force, etc.



Main Components



1. Main frame

2. Winding unit

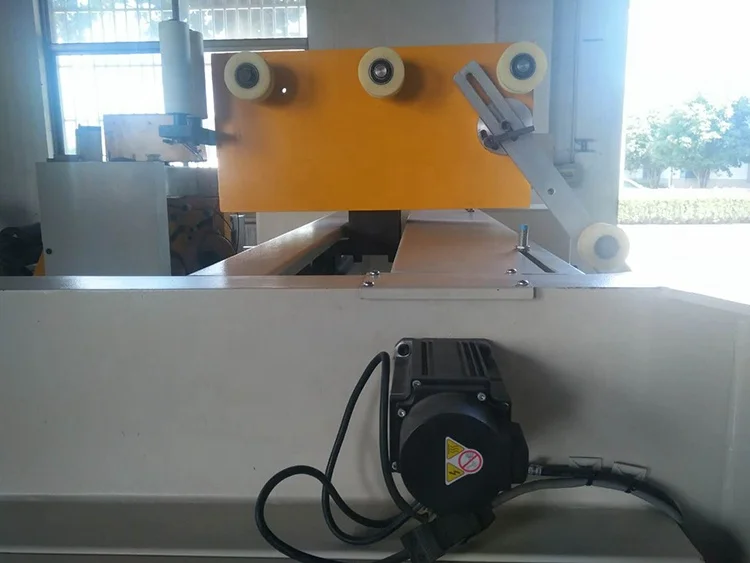

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system



Technical Parameters



Typical standard specifications of ZPX800 are shown below, however these can be easily modified as requested.

Center Height:

850mm

Spindle Length:

950mm

Max. Working Torque:

2000N.M

Winding Speed:

0-160 Rpm

Speed Regulation:

Variable frequency and stepless speed regulation

Axial Height:

≤850mm

Coil OD.:

≤800mm

Max. Load:

700kg

Winding Power:

4Kw

Wire Size:

Flat wire: Max. 5*12mm;

Dia. of round wire: 0.3-5.0mm

Automatic Wire Arrangement Function:

Diameter of wire adjustable, Min. step: 0.01mm

Counting Mode:

5-digit counting, up to 12-segment preset, total turns preset, reversible counting, and power off memory, etc.

Max. Turns Preset Number:

9999.9

Counting Turn Range:

0 - 9999.9

Send Inquiry


Company Information

Gate -foil.jpg

Main Products








ZPX1200.jpgGDY-1T (2).jpgFZT-1T(1)_.jpg
Packaging & Shipping


FAQ

1) Q: Are you manufacturer or trading company?

     A: We are manufacturer and trading company .

2) Q: Are you responsible for installing and training operators overseas?
     A: We will do it if you need.

3) Q: How do you provide after sales service?
     A: We provide technical support online as well as overseas services provided by our skilled technicians.



4) Q: How does your factory control product quality?
     A: Every machine has to be tested before loading.

5) Q:How can I trust you that machines pasted testing before shipping?
     A:  1) We can record the testing video for your reference if you need, or;
          2) You can come to our factory for acceptance.

6) Q: Do you sell only standard machines?
     A: Besides standard machines, we can also manufacture these machines as requested.
