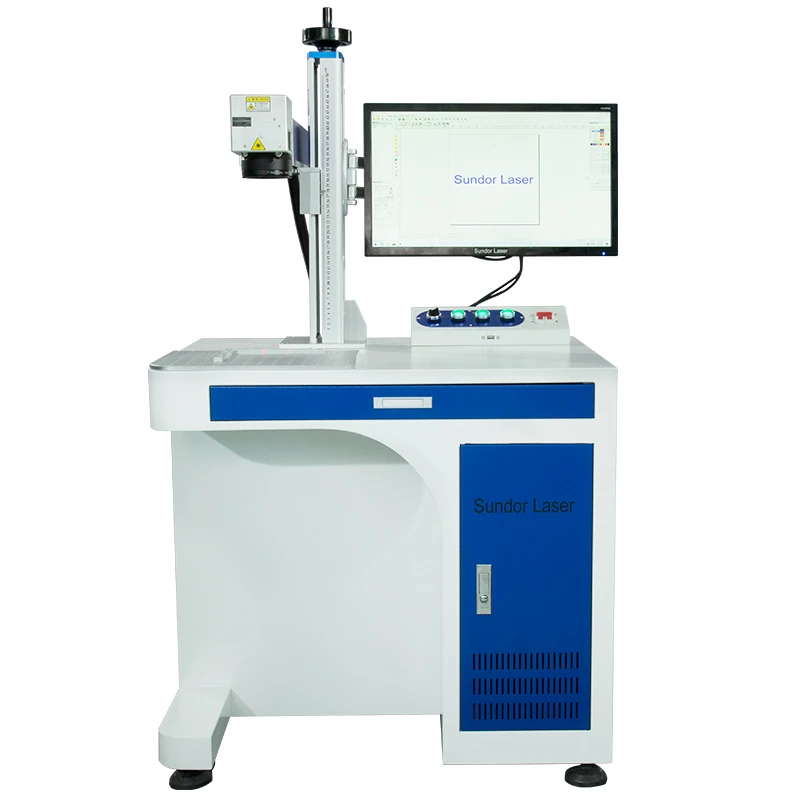

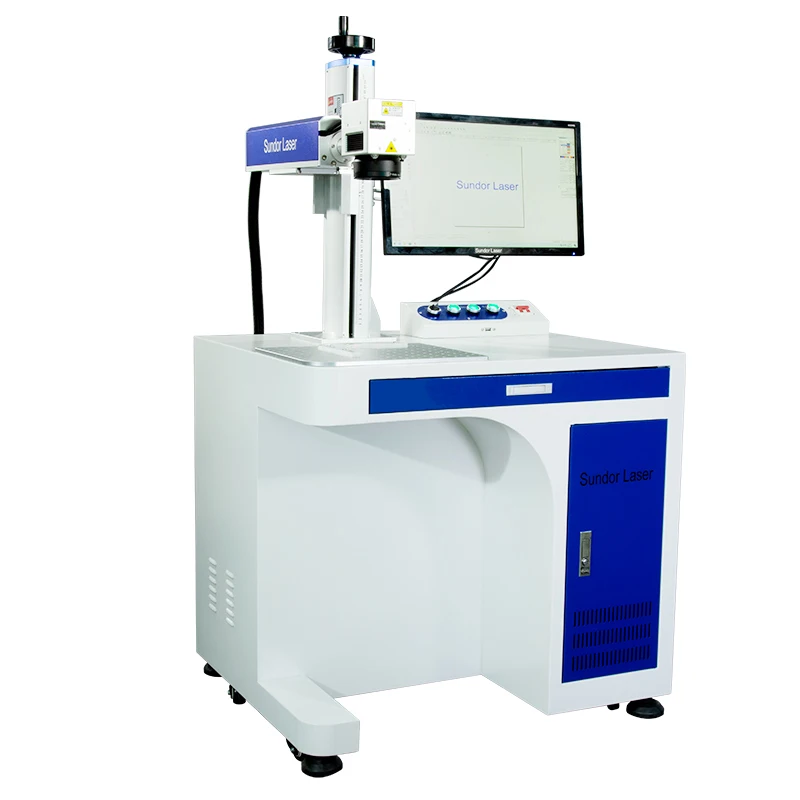

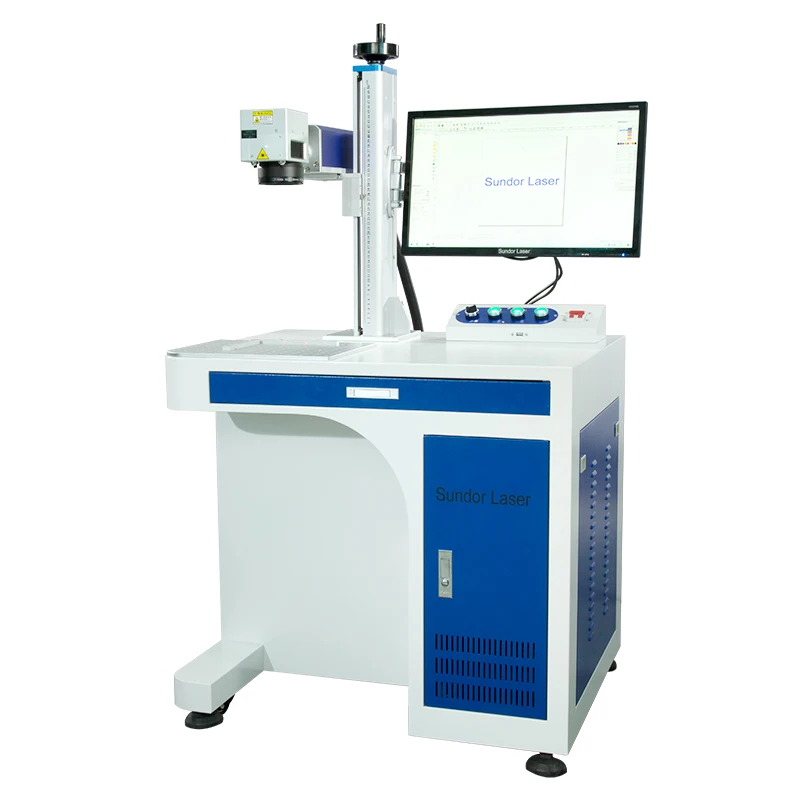

Металл 20 Вт 30 50 динамический волоконный лазерный маркер цветной лазер маркировочная машина с

Описание и отзывы

Трекер стоимости

Характеристики



metal plastic fiber laser marker laser marking machine ipg raycus source verified manufacturer

>>24 hours online service<<



Production description





Model	YLH-20L/30L/50L/100L
Laser source	Raycus
Laser power	20W,30W,50W,100W
Weave length	1064 nm
Marking area	110*110mm,175*175mm,220*220mm,300*300mm,500*500mm
Laser repetition frequency	20KHZ-80KHZ
Beam quality	M²:1.5
Marking speed	7000-12000mm/s
Marking depth	0.01-1mm
Repetition Precision	0.01mm
Minimum Line Width	0.017mm
Minimum Character	0.2 mm
Cooling Style	Air cooling
Positioning Way	Red light
Control software	JCZ EZCAD 2.12 Professional fiber laser marking software
Supported Format	PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC
Control board	JCZ
Operating Voltage	AC220V/50HZ/2A
Gross Power	≤800W
Supported Windows	Windows XP,7,8,10
Certificate	ISO, CE
Material can be processed	all metal material and part of non-metal material,such as hard plastic
Others	USB cable for connection, Flash drive with software and English manuals.
After-sales Service	Warranty for 3 years.We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.                                                    When you have any questions, no matter machine or operate, you can contact us directly. If any parts broken, we will replace a new one for you in free. After warranty we will still supply lifetime maintenance in free. Just with parts cost charging if broken.
Packaging	Wooden box
Packaging Dimension	880*870*1270mm
Gross weight	110kg





1.    The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

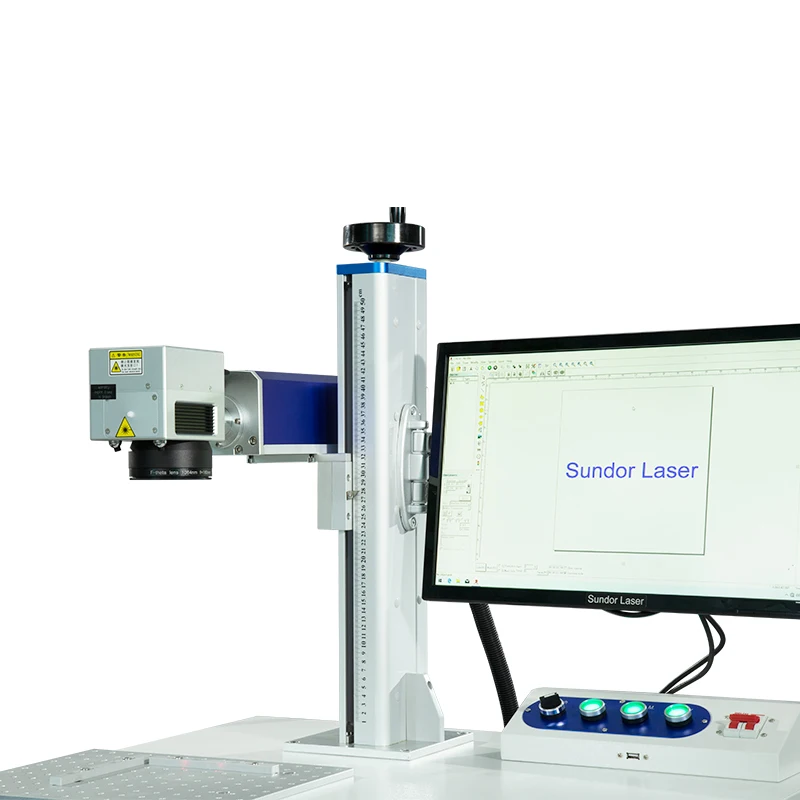

2.    Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.



3.    Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.



4.    Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.



5.    High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.

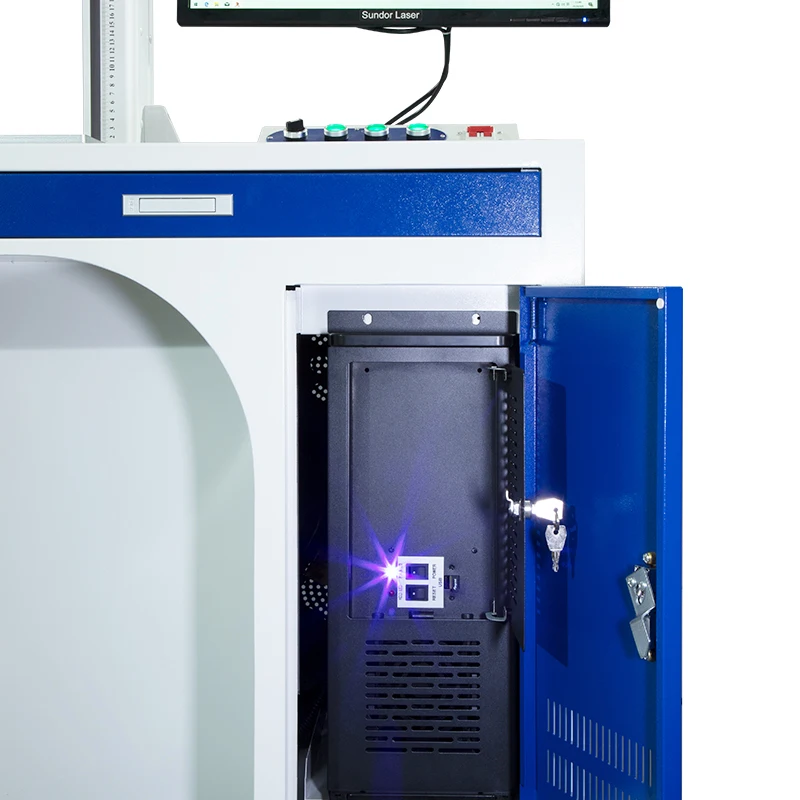

6.    YLH-20E fiber laser marking machine is portable. Power box and laser source can be separated. Easy transport and can be displayed separately according to user’s site space situation.



Product details





Applicable Industries:

Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.

Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising,logo



Applied Materials:

1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition

2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material

Packaging

1.Standard wooden cases with sponge filled inside for packing protection
2. The Wooden case is fumigation free which is suitable by sea & by air.
3. Customized Packing as per Customer's requirement.

 Shipping and payment



Certifications





FAQ

Q1: I know nothing about this machine, what type of machine should I choose?

We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.



Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.



Q3: If some problems happen to this machine, what should I do?

We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.



Q4: What’s consumables of laser marking machine?

A: It does not have consumable. It’s very economical and cost effective.



Q5: What’s package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.



Q6: What’s delivery time?

A: Commonly, the lead time is within 5 working days after receiving the payment.



Q7: What payment terms can you accept?

A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.



Q8: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
