Новый стиль перерабатываемая мини-машина для промывки бутылок из ПЭТ быстрая
- Категория: Recycle Washing Line >>>
- Поставщик: Zhangjiagang,Kooen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 59500.42 $* | 62475.85 $* |
| Aug-19-2025 | 59000.66 $* | 61950.62 $* |
| Jul-19-2025 | 49500.72 $* | 51975.85 $* |
| Jun-19-2025 | 58000.74 $* | 60900.32 $* |
| May-19-2025 | 50500.50 $* | 53025.44 $* |
| Apr-19-2025 | 57000.28 $* | 59850.69 $* |
| Mar-19-2025 | 56500.87 $* | 59325.54 $* |
| Feb-19-2025 | 56000.45 $* | 58800.75 $* |
| Jan-19-2025 | 55500.87 $* | 58275.7 $* |
Характеристики

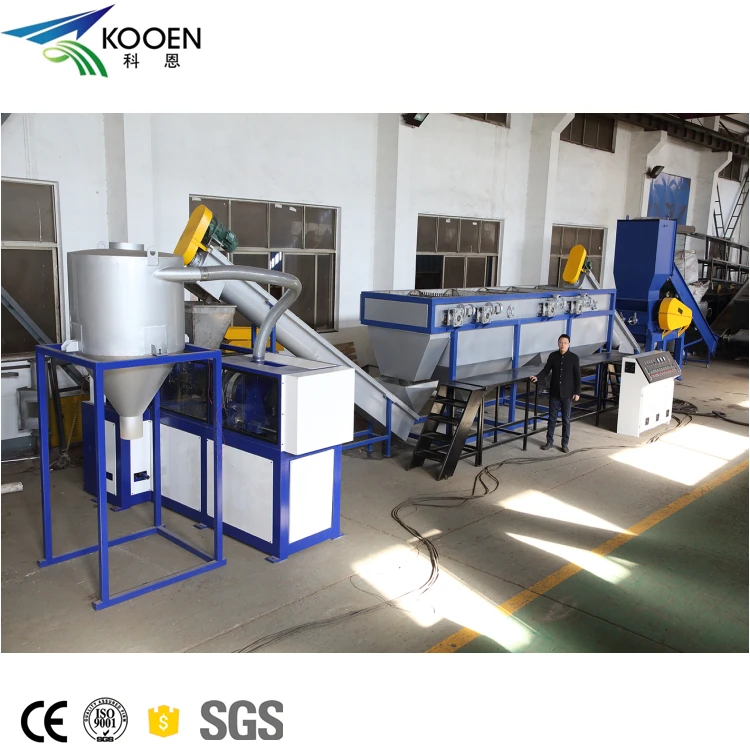

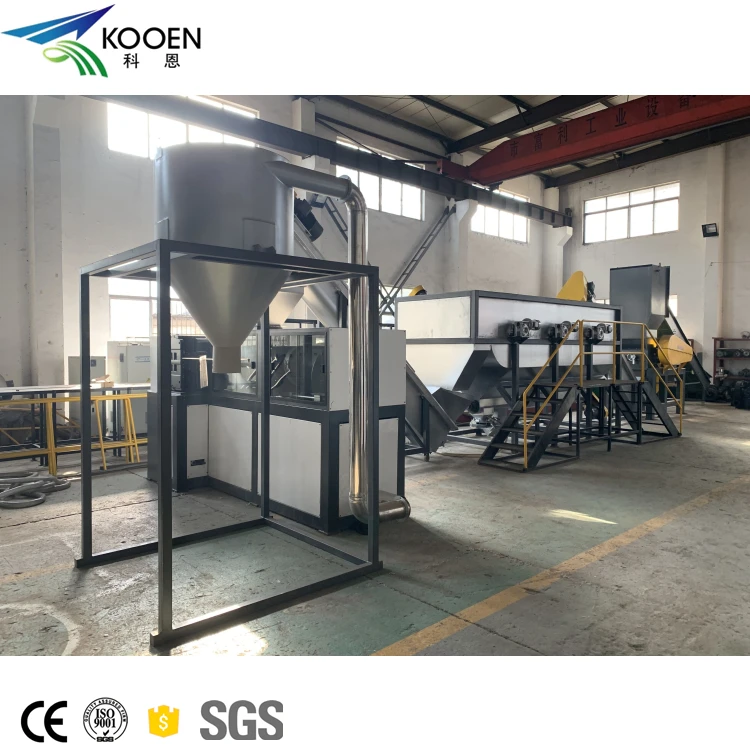

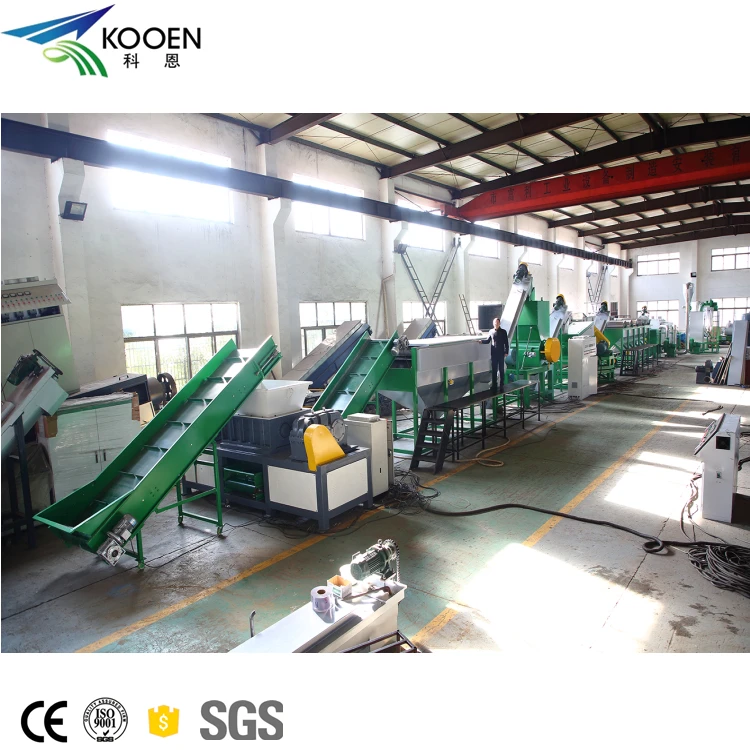

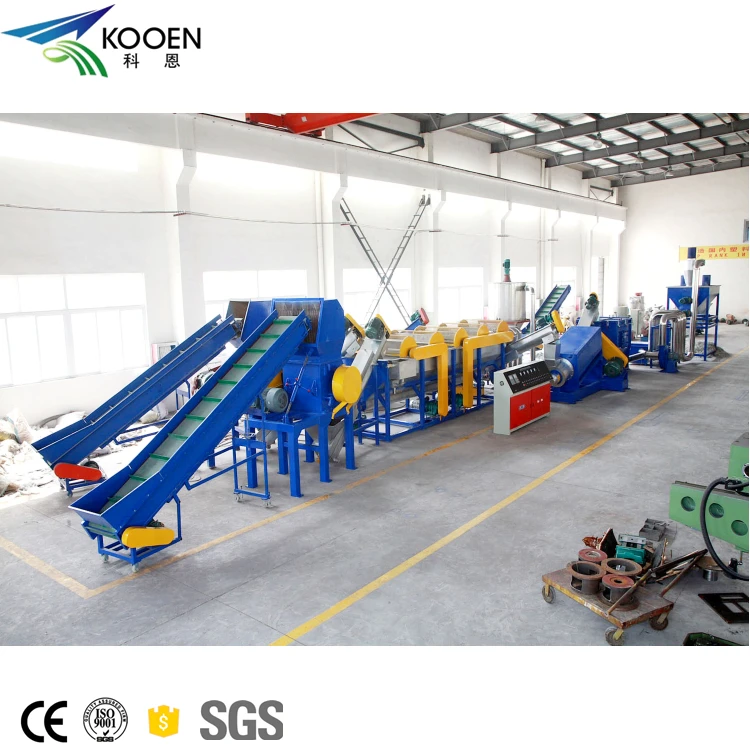

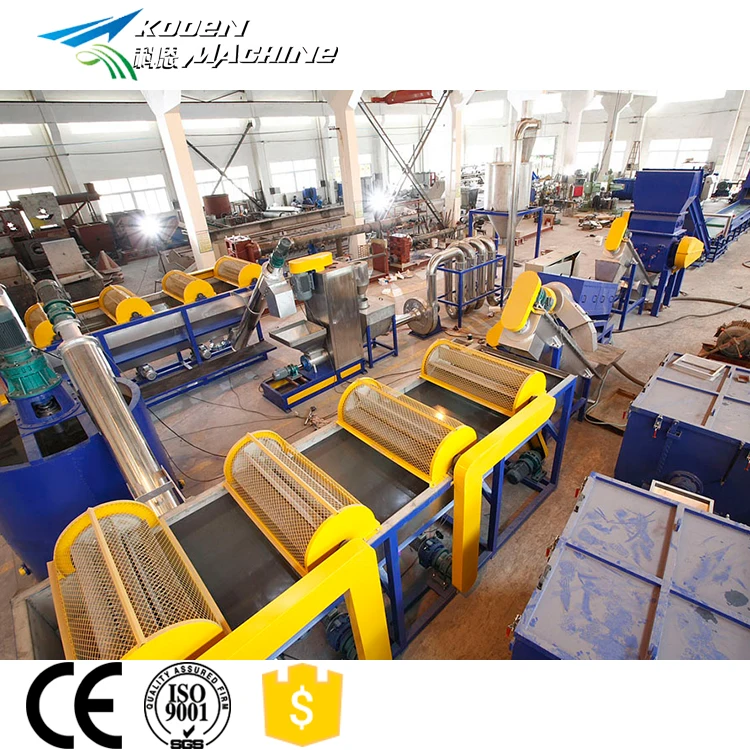

Waste PET plastic bottle flakes washing/recycling line machine equipment
Waste Pet Bottle Recycling Line/Pet Washing Equipments Line Used For Plastic Waste
Working Flow:
Belt conveyor → Bale opener machine → Belt conveyor → Pre-washer (trommel) →Belt conveyor → Mechanical label remover → Manual separating table → Metal detector →Belt conveyor → Crusher *2→ Screw conveyor*2 → Floating washer →Screw conveyor → Hot washer chamber *2 →Screw conveyor*2 → High speed friction machine → Screw conveyor → Floating washer → Screw conveyor →Floating washer → Screw conveyor → Horizontal dewatering machine → Drying pipe system → Zig zag air classification system → Storage hopper → Control cabinet
Main Components:
Machine name | Main specification | ||
| Belt conveyor Control method: frequency control | ||
| Bale opener machine Stirring motor: 7.5kw*2 | ||
 | Trommel (pre washer) Dimension(L*W):5000*1500mm;Material of barrel: Perforated plate, galvanized treatment | ||
| Mechanical Label remover machine Motor Power:11/22/37KW; Blade material: Tungsten steel, removable. Removing labels from bottles, label remove rate reach 99% | ||
| Manual separating table Dimension (L*W*H): 8000*1000*1200mm | ||
| Crusher Motor power: 37/55/90kw Fix knives quantity: 4 pc Moving knives quantity: 10 pc Knife material: SKD-11(from Japan) crushing with water | ||

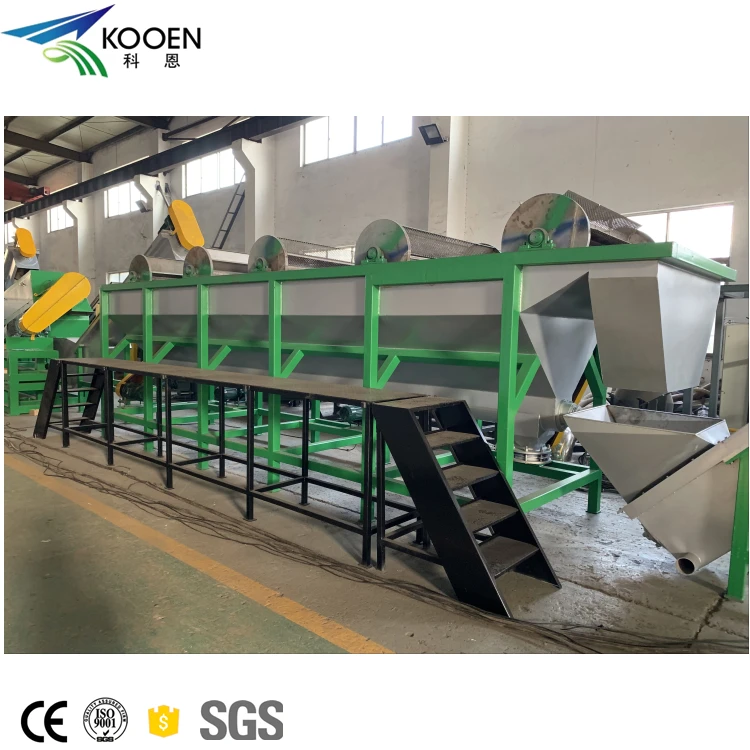

| Floating washer Dimension(L*W): 4500*1500mm Made of SUS304 stainless steel | ||
| Hot washing chamber Diameter of the barrel: 1800/2200mm, Heating type: Electric heating /Steam heating for option | ||
| High speed friction machine Motor power: 22/37/45Kw Rotation speed 1200rpm Main shaft through dynamic balance treatment | ||
| Floating washer tank (the second one ) Dimension(L*W): 4500*1500mm Made of SUS304 stainless steel | ||
| Floating washer tank (the third one ) Dimension(L*W): 4500*1500mm Made of SUS304 stainless steel | ||
| Horizontal dewatering machine Motor power: 22/37/45kw Rotation speed reach 1500rpm Main shaft through dynamic balance treatment Get rid of water | ||
| Drying pipe system Heating power: 36kw Made of stainless steel | ||
| Zig zag air classify system Remove the labels and small dirty at last step | ||
| Storage hopper Volume: 3m3, made of stainless steel | ||
| Control cabinet World famous brand | ||
Final Products (PET Flakes) Quality Reference:
NO. | DESCRIPTION | AA level (ppm) | A level (ppm) |
1 | PVC content | ≤25 | ≤100 |
2 | PE/PP color flake/metal and other impurity content | ≤75 | ≤100 |
3 | Total impurity | ≤100 | ≤150 |
Related products
KOOEN company more plastic recycling machine for reference
more information, please log on our website( www.kooenmachine.com)
Waste PET plastic bottle/flakes washing/recycling line/machine/equipment
