welcome to>>Hangzhou Tianshan Precision Filter Material Co., Ltd.

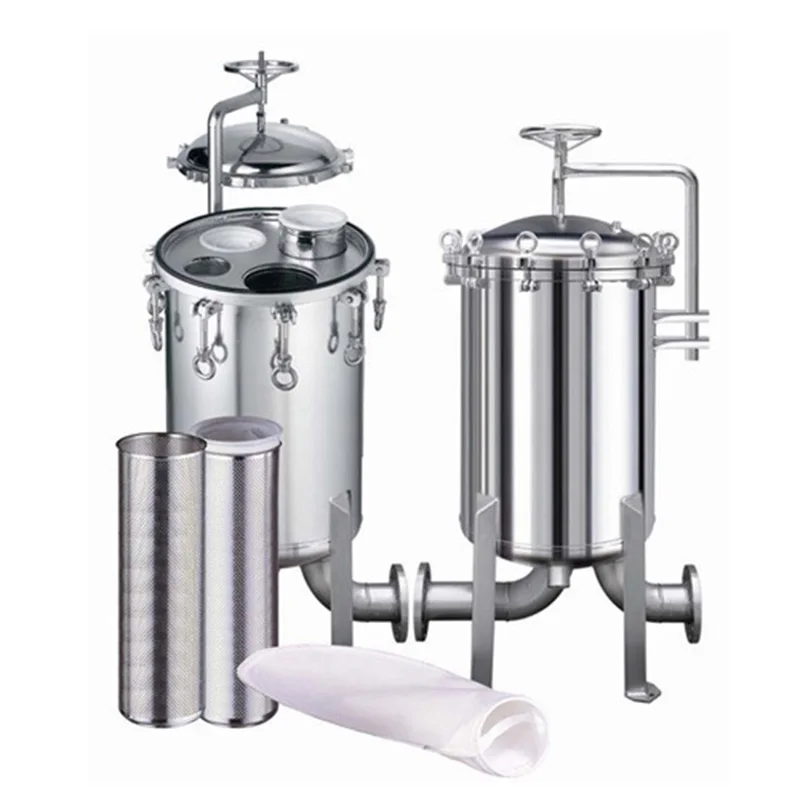

Food grade stainless steel 304/316 micro filtration machine for coconut water filter housing



Complete Stainless Steel Construction	Reduces bacterial/particle adhesion and no dead  space
	Excellent corrosion resistance
Easy To Install/Easy to Clean	Easy To Install Design With Sanitary Connections,  Easy to Clean
	Requires minimum floor space and quickly  dismantles for easy cleaning
Housings Accommodate	Suitable for small to large batch sizes and flow rates
	High pressure & high temperature designs are  available
	Clean-in-Place (CIP) /Steam-in-Place (SIP) Design
Typical Applications	Ideal filtration equipment for food&beverage,  pharmaceutical, biotechnology,
	chemical and other industries
Technical Specification	Designed Pressure:      7.2bar(104psi)with in  30mins.
	Max.operating pressure: 6.0bar(87psi)
	6.0bar(87psi):          Electro polished, Ra≤0.2um
	Designed flow rate:     0.2-100 t/h



Cartridges		Body Closure		Dimensions(mm)
Nos.	Length		d (outlet/inlet)	D	B	H1	H
1	5"	Ferrule clamp	1inch	102	180	120	570
	10"						690
	20"						940
	30"						1190
3	10"	Stud bolts	1 1/4 inch	184	240	180	720
	20"						980
	30"						1210
5	10"	Stud bolts	1.5 inch	219	280	200	130
	20"						990
	30"						1220
	40"						1460
7	20"	Stud bolts	1 3/4 inch	273	420	210	1060
	30"						1290
	40"						1530
9	20"	Stud bolts	2 inch	325	460	210	1080
	30"						1310
	40"						1550
12	20"	Stud bolts	2 1/4 inch	350	480	240	1150
	30"						1380
	40"						1620
18	20"	Stud bolts	3 inch	400	500	260	1160
	30"						1390
	40"						1630
21	20"	Stud bolts	3.5 inch	450	600	280	1190
	30"						1420
	40"						1660



ORDER INFORMATION

PRODUCT		MATERIAL	CARTRIDGE NOS.		ADAPTER		LENGTH	How to Order?-  Example
BJH		304-SUS304	01 - Single		AA-DOE		10" - 10	Material: SUS304
		316-SUS316L	03 - Three		CN-226/FIN		20" - 20	Cartridge Nos.: Single
			05 - Five		BN-222/FIN		30" - 30	Cartridge adapter:DOE
			07 - Seven		AF-220/FLAT SEAL		40" - 40	Cartridge length: 10"
			09 - Nine		BF-222/FLAT SEAL		5" - 05
			10 - Ten		CF-226/FLAT SEAL		Other - XX	Selection Code is:  BJH30401AA10
			12 - Twelve
			18 - Eighteen
			21 - Twenty One
