0 75x3 м бассейн Солнечная нагревательная панель для воды Солнечный
- Категория: Продукты солнечной энергетики >>>
- Поставщик: Dongguan,Xindong,Rubber.,Plastics,&,Hardware,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 55.38 $* | 56.55 $* |
| Jul-17-2025 | 44.18 $* | 45.0 $* |
| Jun-17-2025 | 54.27 $* | 55.9 $* |
| May-17-2025 | 53.41 $* | 54.33 $* |
| Apr-17-2025 | 43.54 $* | 44.83 $* |
| Mar-17-2025 | 52.39 $* | 53.15 $* |
| Feb-17-2025 | 52.3 $* | 53.6 $* |
| Jan-17-2025 | 52.38 $* | 53.29 $* |
Характеристики

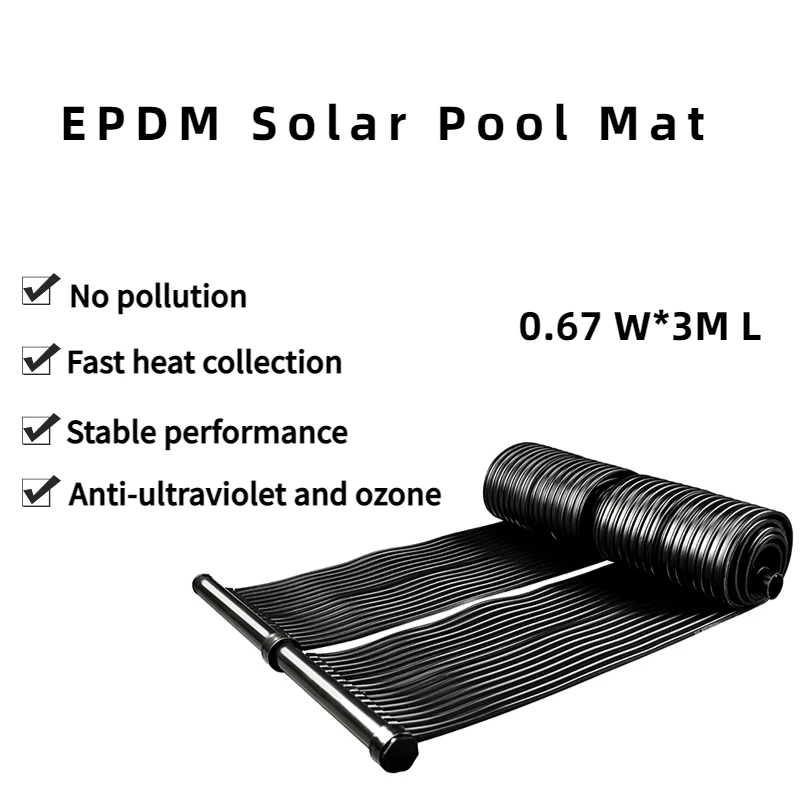

Products Description

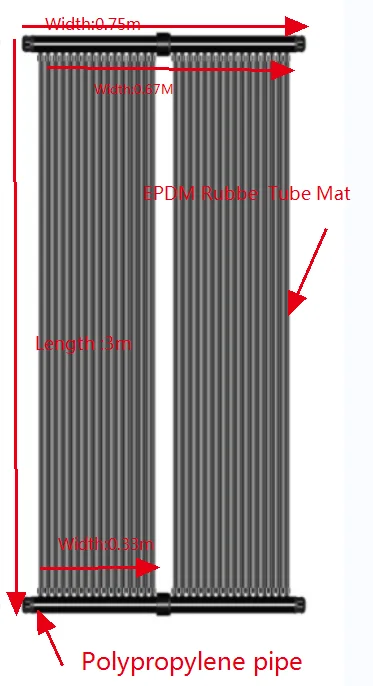

Specifications for EPDM Pool Solar Heating Mat | ||||||
Item # | EP301 | EP302 | EP304 | |||
Item Material | EPDM rubber for mat & Polypropylene for header | |||||

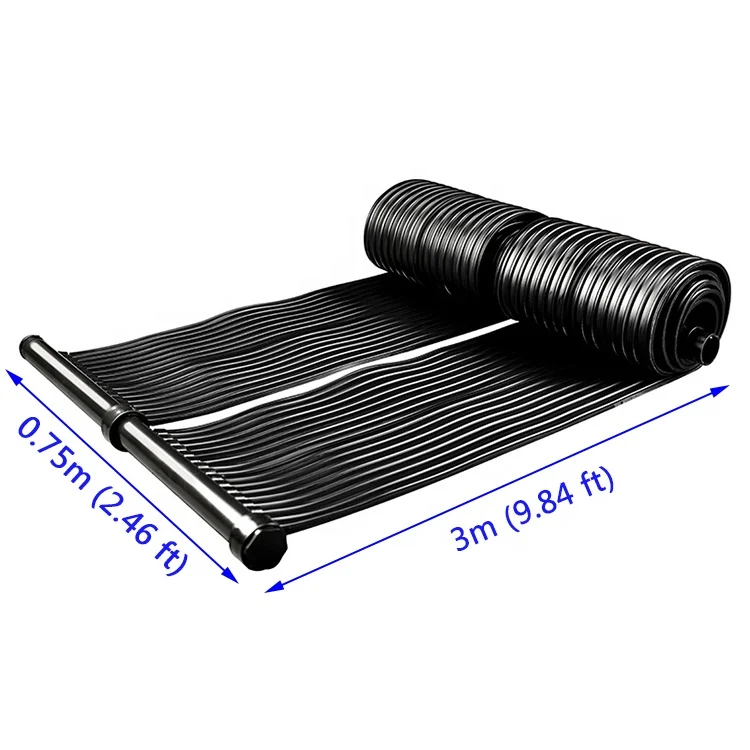

Item Size | 0.33x3m | 0.67*3 | 1.33*3 | |||
Solar Absorption Area | 1 m2 | 2m2 | 4m2 | |||
Test Pressure (air pressure) | 3 MPA | |||||
Temperature Range | -40°C to 120°C | |||||
How Many Mats for a Pool | Solar Absorption Area = 75% Pool Area | |||||
How the Solar Heating Mat Works | Your existing pool filtration system pushes pool water through the tubes in the solar heating mat.When the water in the tiny black tubes,it will be warmed by the sun’s ray more easily due to the smaller and slower flows.Then the warmed water returns to your pool.After a few hours cycle,the water in the pool can increase 6-8 °C. | |||||
Advantage:
* Sufficient capacity: our pool solar heating 300 x 67 cm (L x W) offers a capacity of 4.8L
* High-quality material: Imported EPDM and PP, offers UV resistance, the material is suitable for use in salt water and is particularly weather-resistant and durable. The general use area must not be less than 75% of the pool area.
* Quick installation: hose connection diameter 32-38 mm, connection to your existing pool pump. That's very easy installation,allows you to install the pool heater directly into the water circuit, so that it can be connected directly to the pool filtering.
* Easy function: the black solar mats absorb the sun's rays and become very hot. The water taken from the pool flows through the solar mats and absorbs the heat from them before it is then supplied back to the swimming pool. The pool heater can be rolled up to save space and can be easily stored.
Environmentally friendly heating: use the green, environmentally friendly sun energy source with the environmentally conscious solar panel to heat your pool or outdoor pool. Without the need for additional electricity costs and help you save money.
* High-quality material: Imported EPDM and PP, offers UV resistance, the material is suitable for use in salt water and is particularly weather-resistant and durable. The general use area must not be less than 75% of the pool area.
* Quick installation: hose connection diameter 32-38 mm, connection to your existing pool pump. That's very easy installation,allows you to install the pool heater directly into the water circuit, so that it can be connected directly to the pool filtering.
* Easy function: the black solar mats absorb the sun's rays and become very hot. The water taken from the pool flows through the solar mats and absorbs the heat from them before it is then supplied back to the swimming pool. The pool heater can be rolled up to save space and can be easily stored.
How it works:
1. Water is pumped from the pool by multi-pipe solar panels
2. The absorber collects solar energy and releases heat into the water
3. The water is heated as it flows through the solar panel
4. Then the heated water enters the pool
2. The absorber collects solar energy and releases heat into the water
3. The water is heated as it flows through the solar panel
4. Then the heated water enters the pool
STEP #1 Sizing Your Solar Pool Heater
Recommended minimum panel coverage is 75%
Calculation Example: Rectangle Pool Meters 8m in length x 4m in width x 1.5m in average deepth coverage required.
- Measure your pool i.e. 8m in length x 4m in width x 1.5m in deepth= Pool volume 48 m3
- Recommended minimum panel coverage is 75% = 36 m2
- Each pre-fixed is 1x4m2 =4m2,so you require 9 pcs of pre-fixed to cover a 48 m3 pool ;
- Ideally Solar Panels should face in a southern position.
- Direct sunlight for a minimum of 6 hours every day.
- Larger systems can compensate non ideal installations
Calculation Example: Rectangle Pool Meters 8m in length x 4m in width x 1.5m in average deepth coverage required.
- Measure your pool i.e. 8m in length x 4m in width x 1.5m in deepth= Pool volume 48 m3
- Recommended minimum panel coverage is 75% = 36 m2
- Each pre-fixed is 1x4m2 =4m2,so you require 9 pcs of pre-fixed to cover a 48 m3 pool ;
- Ideally Solar Panels should face in a southern position.
- Direct sunlight for a minimum of 6 hours every day.
- Larger systems can compensate non ideal installations
Panel Body Tie-downs If you need to use two or more solar collector panels, connect them in parallel. Flexible solar collector panels that are designed to fit together in a parallel ganged arrangement reduce the overall water pressure while heating the same amount of water .As illustrated below:

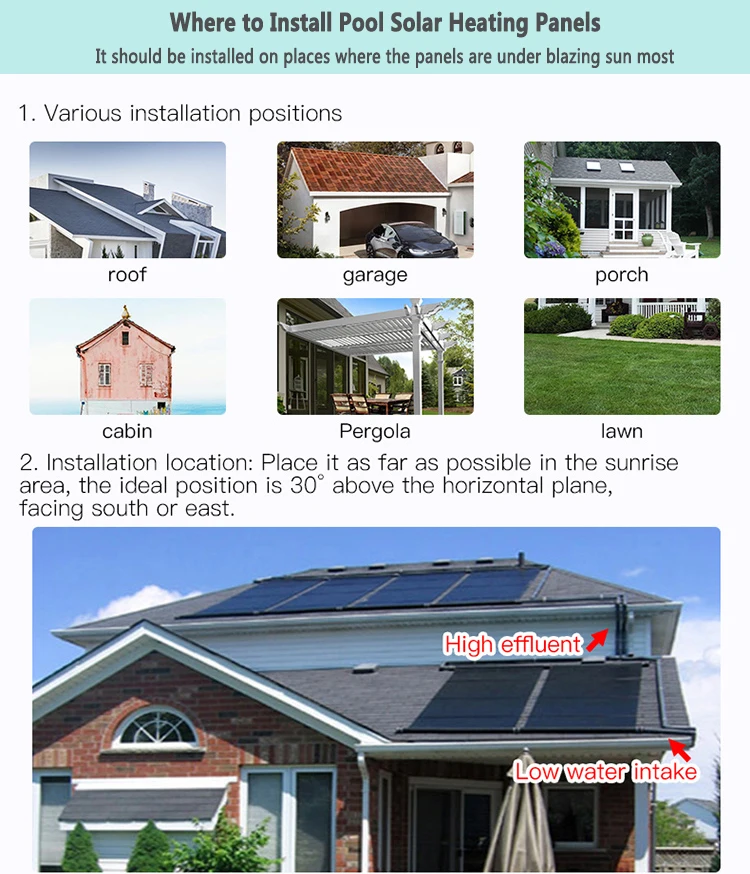

STEP #2 Siting Your Solar Pool Heating System's Collector

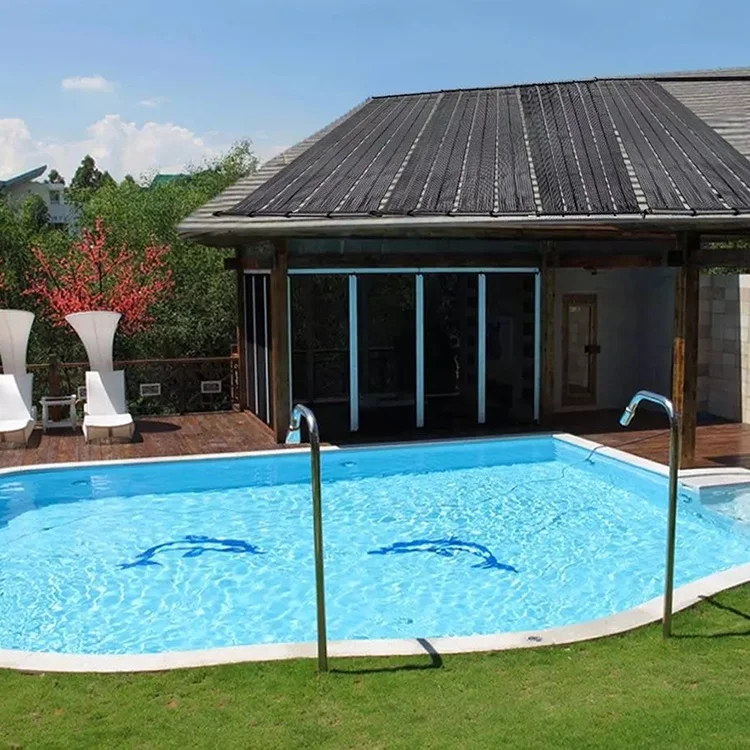

Panels can be mounted on roofs or anywhere near the swimming pool that providesthe proper exposure, orientation, and tilt toward the sun. Both the orientation andtilt of the panel will affect your solar pool heating system's performance.
Collector Orienfafion Solar pool heater panels should be oriented geographically to maximize the amount of daily and seasonal solar energy that they receive. In general, the optimum orientation for a solar collector in the northern hemisphere is true south.
Collector Tilt The angle at which a panel should be tilted varies based on your latitude and the length of your swimming season (summer or year-round). Ideally panels for summer-only heating should be tilted at an angle equal to your latitude minus 10°15°. Panels for year-round heating should be tilted at an angle equal to your latitude. However, studies have shown that not having a panel tilted at the optimum angle will not significantly reduce system performance. Therefore, you can usually mount panels flat on your roof, which might not be at the optimum angle but more aesthetically pleasing.
Collector Tilt The angle at which a panel should be tilted varies based on your latitude and the length of your swimming season (summer or year-round). Ideally panels for summer-only heating should be tilted at an angle equal to your latitude minus 10°15°. Panels for year-round heating should be tilted at an angle equal to your latitude. However, studies have shown that not having a panel tilted at the optimum angle will not significantly reduce system performance. Therefore, you can usually mount panels flat on your roof, which might not be at the optimum angle but more aesthetically pleasing.
STEP #3 Attaching to your roof
Assembling the system
There are three parts need to be assembled into the Header, respectively are water inlet/outlet joint and end cap. The water inlet joint should be assembled into one end of the Header, and the end cap into the other end while the water outlet should be assembled into the diagonal end of the water inlet joint. Spin the joint until it is completely aligned. As illustrated below:
Attaching the end cap
Start by snapping the Header into the collar and the end cap into the black ring. Inthe end, cover the Header with end cap.
Attaching the water water inlet/outlet joint
Insert the water inlet/outlet joint into the Header and be sure to align the embossing on the joint to the groove of the Header.
Spin the joint and until it is completely aligned.
Mounting the Header
Wherever you site the system, you should affix it firmly. For example, attaching the system to your roof, you need to select the precise location at first. Use a pencil to mark an "x” on the roof where the screw will go. Afterwards, use a drill or an electric drill to start the pilot hole for the screw. Hammer the screw expansion pipe (plastic sleeve) into the hole, and tap the screw into the hole after aligning to the mounting base's hole In the end, snap the Header in the mounting base.
Main application areas:
Swimming pool, roof, garage ,porch, cabin,pergola, lawn
Product process
Factory introduction
Dongguan Xindong Rubber. & Plastic Hardware Products Ltd. is a national high-tech enterprise specializing in the research and development, design, manufacture and sales of silicone rubber products. Founded in 2005, the company mainly produces silicone rubber products and plastic products. There are more than 200 employees and the total factory production area is more than 20,000 square meters.
Quality System: ISO9001:2015 quality management system, ISO14001:2015 environmental management system and IATF16949:2016 quality management system certification.
Product series
Molded: silicone rubber sealing products/wire guard rings/plugs/foot pads/bushings/shaped miscellaneous parts/hardware coverings, etc.
Liquid silicone: liquid silicone products and liquid silicone covered products (package hardware/hard plastic parts)
Injection molding: soft plastic products, hard plastic products.
Fixture: glass polishing fixture, laminating fixture, spraying fixture, pressure-holding fixture, etc.
Extrusion: silicone / rubber / soft plastic hose, sealing strips, soft and hard co-extruded composite rubber strips.
Calendering / die-cutting: new energy foam, various sponge gaskets, silicone / rubber foot pads, etc.
Main applications: sealing, wrapping, protection, insulation, shock absorption, liquid drainage, etc.
●Product application fields: automotive, new energy, electronic appliances, communication, mechanical equipment, etc.
Our main customers: BYD , LITEON, LUCKY HARVEST, PHIHONG, American EATON, CVTE Dream-Feature, Poweramp Technology Limited, TANITA, etc.
Quality System: ISO9001:2015 quality management system, ISO14001:2015 environmental management system and IATF16949:2016 quality management system certification.
Product series
Molded: silicone rubber sealing products/wire guard rings/plugs/foot pads/bushings/shaped miscellaneous parts/hardware coverings, etc.
Liquid silicone: liquid silicone products and liquid silicone covered products (package hardware/hard plastic parts)
Injection molding: soft plastic products, hard plastic products.
Fixture: glass polishing fixture, laminating fixture, spraying fixture, pressure-holding fixture, etc.
Extrusion: silicone / rubber / soft plastic hose, sealing strips, soft and hard co-extruded composite rubber strips.
Calendering / die-cutting: new energy foam, various sponge gaskets, silicone / rubber foot pads, etc.
Main applications: sealing, wrapping, protection, insulation, shock absorption, liquid drainage, etc.
●Product application fields: automotive, new energy, electronic appliances, communication, mechanical equipment, etc.
Our main customers: BYD , LITEON, LUCKY HARVEST, PHIHONG, American EATON, CVTE Dream-Feature, Poweramp Technology Limited, TANITA, etc.
FAQ
Q1: Can I get one set as a sample to test the Pool Solar Heating Mat ?
A1: Yes,of course. Though our MOQ is 5 sets,we can offer you one or two sets for your test. You can click "buy samples" at the top of the page.Or you can contact us directly to get know detailed sample policy.
Q2: Are you a manufacturer for the pool solar heaters?
A2: We are a factory and have been making the rubber pool solar heaters for 15 years.
Q3: Will it leak when I get the pool solar heating mat?
A3: We do leakage test for each set after assembly and before packing.We will make sure that our customers receive the solar heating mat in good condition.
Q4: Can you make my custom size?
A4: Yes,we can make the length according to your request once your order qty reaches at least 50 sets.
Q5: How many sets should I use for my 12*6*1.2m inground swimming pool?
A5: The solar absorption area should be at least 75% of your pool area. We have solar heating mats with solar absorption area of 2m2,4m2,6m2 and 8m2. If you choose the 4m2 solar heating mat,it will take 12*6*1.2*75%/4= 16 sets for your pool to get an effective temperature raising
A1: Yes,of course. Though our MOQ is 5 sets,we can offer you one or two sets for your test. You can click "buy samples" at the top of the page.Or you can contact us directly to get know detailed sample policy.
Q2: Are you a manufacturer for the pool solar heaters?
A2: We are a factory and have been making the rubber pool solar heaters for 15 years.
Q3: Will it leak when I get the pool solar heating mat?
A3: We do leakage test for each set after assembly and before packing.We will make sure that our customers receive the solar heating mat in good condition.
Q4: Can you make my custom size?
A4: Yes,we can make the length according to your request once your order qty reaches at least 50 sets.
Q5: How many sets should I use for my 12*6*1.2m inground swimming pool?
A5: The solar absorption area should be at least 75% of your pool area. We have solar heating mats with solar absorption area of 2m2,4m2,6m2 and 8m2. If you choose the 4m2 solar heating mat,it will take 12*6*1.2*75%/4= 16 sets for your pool to get an effective temperature raising
