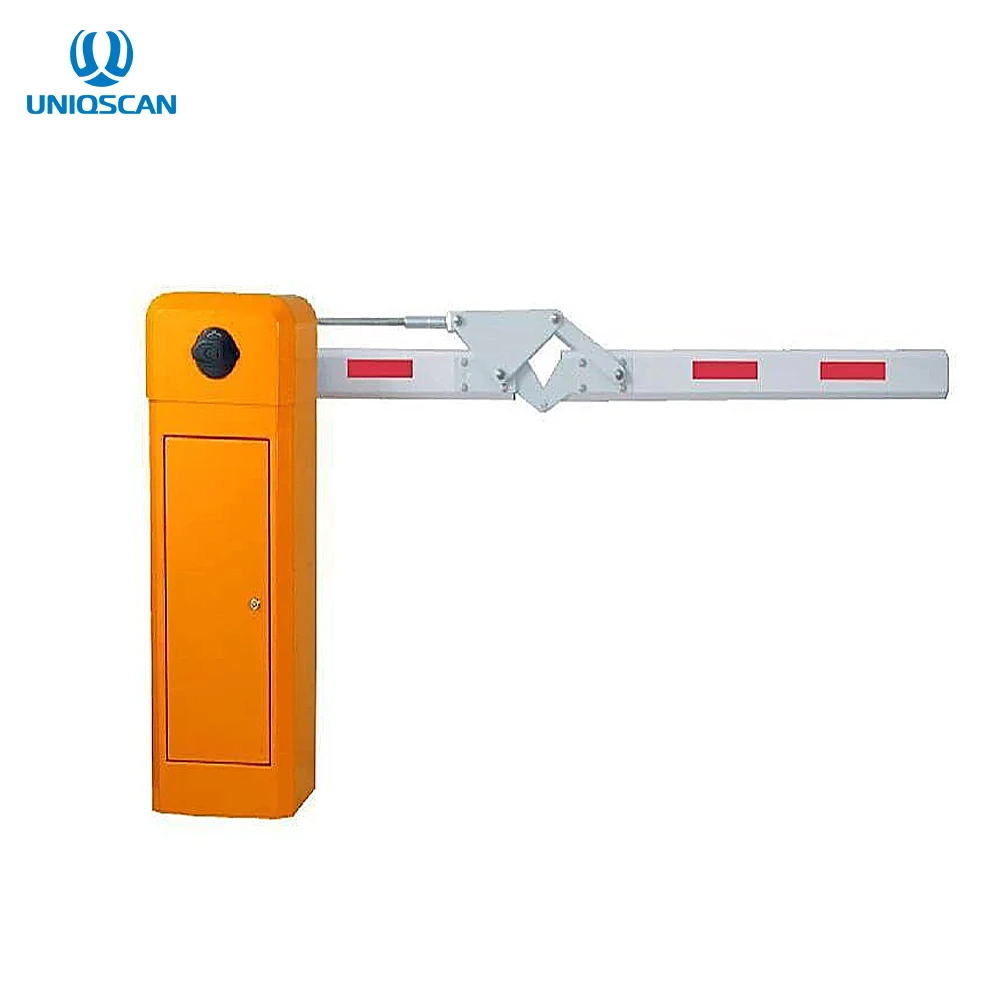

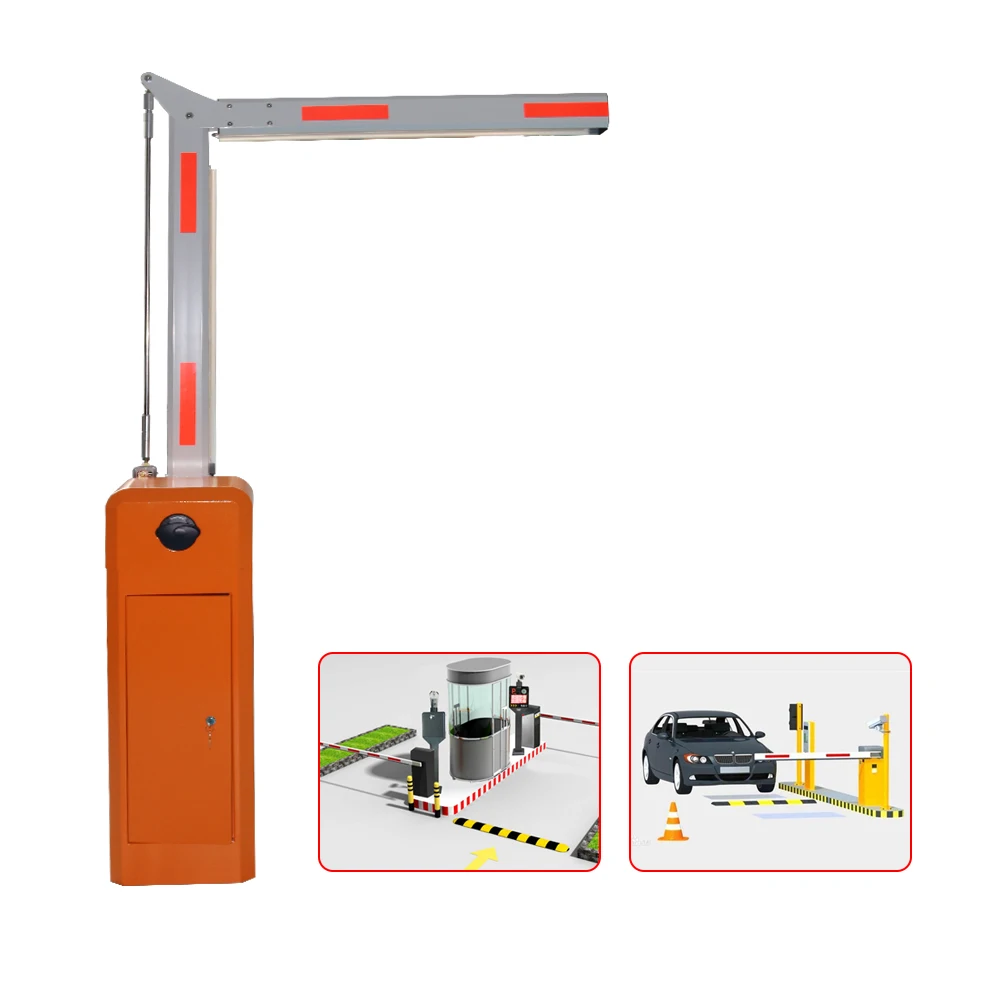

90 Degree Folding Arm Barrier Gate Parking Lot Automatic Boom Barrier System Gate



Features :

• _{^{0.8 second fastest action and 100% duty cycle operation with 5 million MTBF}}
• _{^{Easy installation and maintenance reduces your labor cost}}
• _{^{Heavy-duty and simple-design housing}}
• _{^{System automatically self-checks operation status and reports errors}}

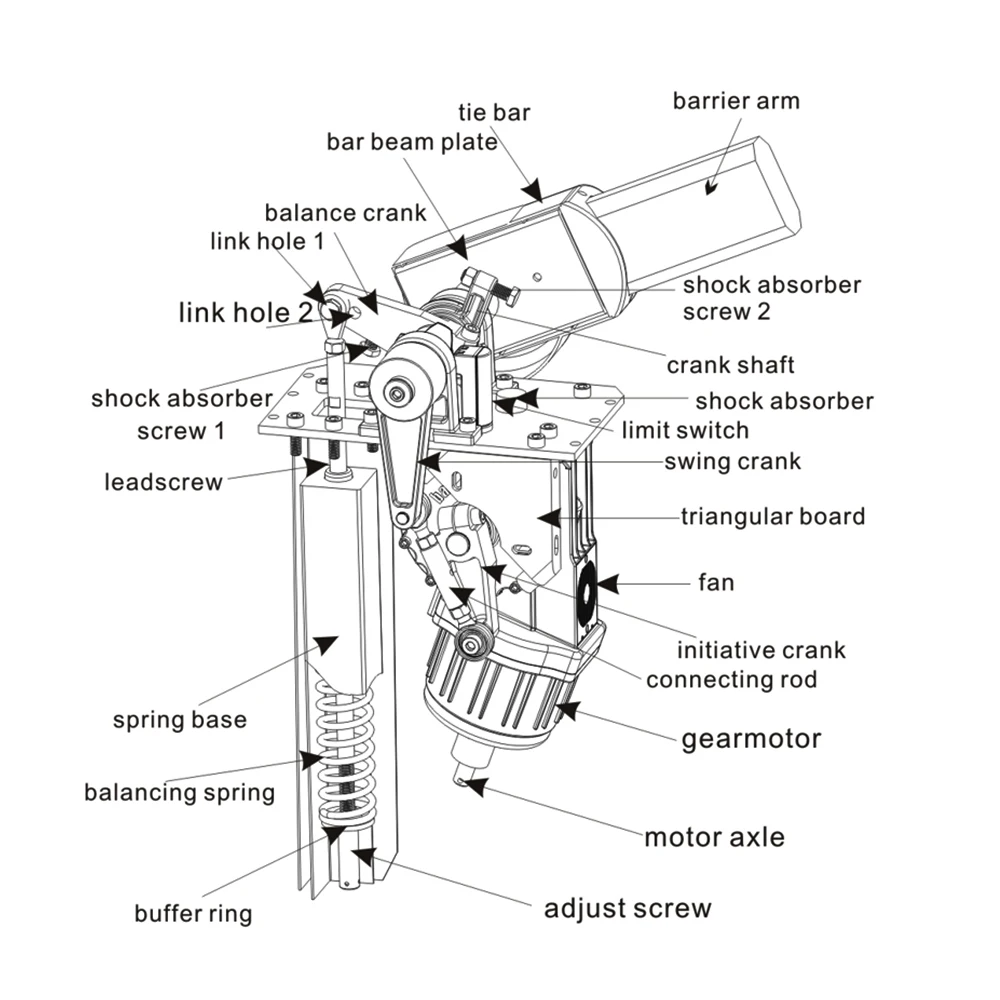

• _{^{Sine lever drive mechanism ensures smooth landing of boom without shaking}}
• _{^{Anti-collision protects boom arm and vehicle (optional)}}
• _{^{Safety--- Anti-hit by pressure resistance bounce}}
• _{^{Safety--- Anti-hit by Loop Detector (Optional)}}
• _{^{Safety--- Anti-hit by IR photocell (Optional)}}
• _{^{Safety--- Anti-hit by "Opening Priority"}}
• _{^{Closing Priority}}
• _{^{Automatically close after the given time}}
• _{^{Automatically close or open by loop detector (Optional)}}
• _{^{Manually control in case of no power}}
• _{^{Boom open up fully or close down in case of power failure}}
• _{^{Anti-condensation in cold climate}}
• _{^{Transparent plastic covers on Control Board}}

Specifications :

Product name	automatic boom barrier
Open/close time	1-6s depends on the arm length
Octagonal Arm	3-6m
Power Supply	AC 220V±10%,50/60HZ
AC Motor	90W concreted decelerating torque motor
Controller	Intel 80C51 MCU, 40 MHz,controlled silicon motor control
Remote distance	>30M
RS 485 interface	9600bps, ASCII decimal encoded
Housing material	2mm cold-roller sheet
Housing Painting	Automobile Painting, 5 years without rust,shedding and fading
IP level	IP54
Housing size	345*310*1000mm
Package size	450*420*1200mm
G.W	60 KG
Operating temperature	-25°c -70°c
Humidity	10%-95%



Characters :

• For security, the barrier will automatically go back when meet obstacles during closing.

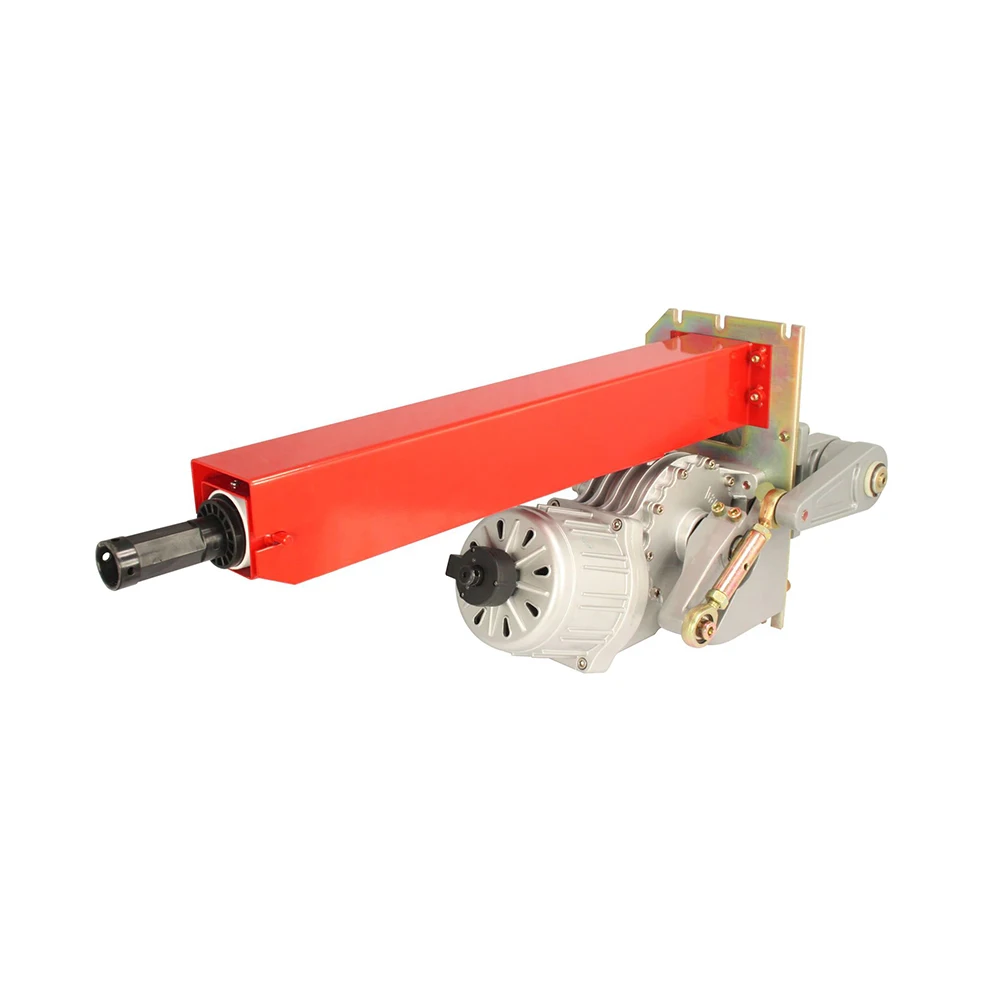

• Brushless DC motor is more powerful and no maintenance.
• Beam can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1s to 6s.
• The barrier can be installation both rightward and rightward.
• All the operation process is soft without any noise and shaking.
• Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.
• Green light and red light are used inside for indication the position of the beam.
• Manual release device to operate the barrier when power failure.

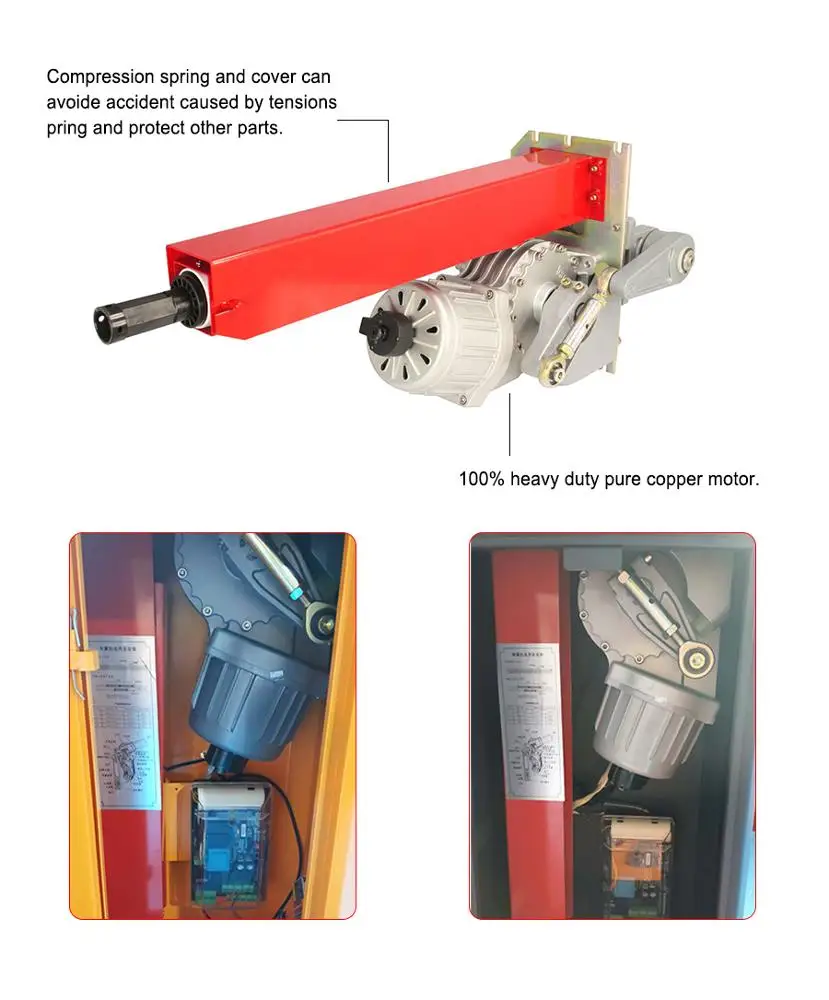

• Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.
• Motor cooling fan to avoid the over-heating possibility.
• Auto closing realization through menu setting on the control panel.
• Wire control, remote control optional
• Infrared protection (requires correlation infrared device)
• Optional housing color: yellow, orange, white, red and blue etc.
• Variable frequency controller automatically detects and optimizes boom moving, ensures

Detail Photo :
