Product Description

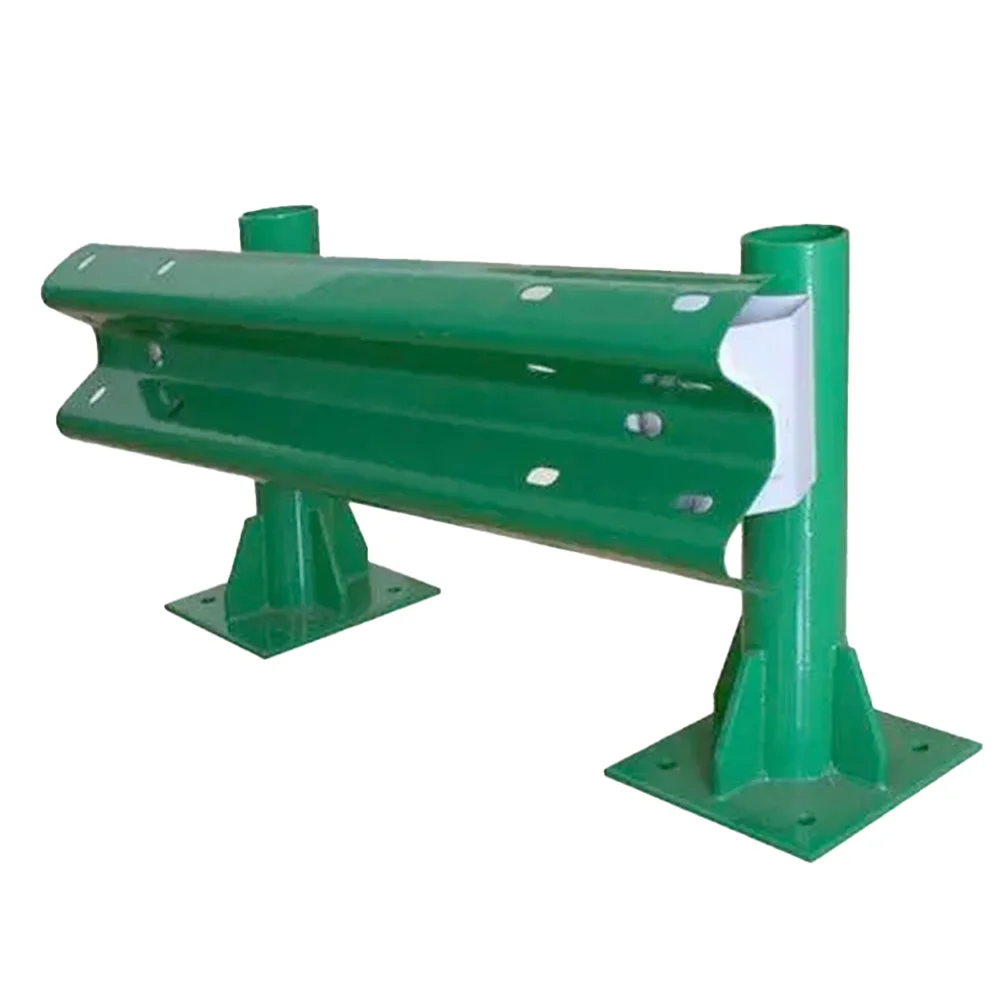

Highway guardrail plate
Highway guardrail plate is composed of two corrugated steel guardrail plates and two columns fixed clamped between them, and the two columns are fixed clamped between two corrugated steel guardrail plates. In the normal operation of the highway, the guardrail can be conveniently inserted into the pre-set insertion hole at the opening by using the insertion column, which plays the role of isolation and protection, and echoes the guardrail belt outside the highway, which is neat and uniform and beautiful.
When the vehicle collides with it, because the corrugated steel guardrail plate has good crashworthiness and the role of absorbing energy, it is not easy to be crashed, and it can also play a good protective role for the vehicle and the driver and passenger. When the road maintenance or other reasons need to be combined, it can be convenient to pull out the guardrail column at the opening and remove it to open a channel to facilitate the passage of vehicles.

Specification
A.The common specifications of the two wave guardrail plate are 4320mm×310mm×85mm×3/4mm, and the column is 114/140mm ×4.5mm.
B.The common specifications of the three-wave guardrail plate are 4320mm×506mm×85mm×3/4mm, and the column is 130mm×130mm×6mm.

Features:
It has the advantages of good impact resistance, low cost, long life, higher safety and green environmental protection. Uses: highway collision prevention facilities, isolation facilities.
1, waveform beam guardrail is the main form of semi-steel guardrail, it is a corrugated steel guardrail plate splicing each other and supported by the column of a continuous structure.
2. It uses the deformation of soil foundation, column and beam to absorb collision energy.
3, corrugated beam guardrail steel flexible phase.







Specification


Product name
Waveform Guardrail
Material
Q235 Q345
Color
Customized Color
Application
Roadway Safety
Feature
Anti-impact
Type
third beam guardrail
Surface treatment
Hot Dippe Galvanized
Keyword
Traffic Road Steel Barrier
Base
Customized Size
Packing
Standard Packing




Standards
Length
Width
Height
Thickness
Zinc Coating
GB/T 31439.1—2015
4320 mm
310 mm
85 mm
3(4) mm
≥ 550g/m²
GB/T 31439.2—2015
4320 mm
506 mm
85 mm
3(4) mm
≥ 550g/m²
AASHTO M – 180
4130 mm
310 mm
82 mm
2.75nmm
≥ 550g/m²
EN1317
4170 mm
310 mm
82 mm
2.6 mm
≥ 550g/m²


Application


During the normal operation of the highway, by inserting and removing the column, the guardrail can be easily inserted into the preset plugging hole at the opening, playing the role of isolation and protection, and the guardrail belt outside the highway is echoed, orderly and uniform, and the beautiful support. When the vehicle collides with it, the corrugated steel guardrail plate is not easy to be damaged due to its good crashworthiness and energy absorption characteristics, and it can also play a good protective role for the vehicle and the driver and passengers.








Packing & Delivery




tandard export Marine packing, wooden pallets, wooden cases.


Company Profile






Shandong Zehao Metal Materials Co., Ltd. is engaged in titanium and its alloys, zirconium and its alloys, tungsten, molybdenum, Monel, Inconel, Inconel, nickel and other superalloy and corrosion resistant alloy research, smelting and processing enterprises. Products cover sheet, strip, profile, bar, wire, pipe, pipe fittings, forged flange and so on.The factory covers an area of 120,000 square meters.Now we have vacuum induction furnace introduced from the United States, vacuum consumable arc furnace made in Germany, 2800mm four-high reversible rolling mill, vacuum annealing furnace and other series of production equipment.It can be customized to produce any size plate within 2.6m * 16m, and the maximum length of a single pipe can reach 15m.

At the same time, we have more than 100 sets of various kinds of testing instruments, the main equipment includes: American non-destructive testing system, spectral analyzer, carbon and sulfur tester, universal testing machine, ultrasonic testing system, fatigue testing machine, etc.

The company has more than ten years of export experience, the products are exported to the United States, the United Kingdom, Germany, Russia, France, Brazil, Japan, South Korea, India, Vietnam, Australia, the Philippines, Zambia, Indonesia and other countries.










Customer praise




FAQ


Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.

Q: What is your payment terms ?
A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best.

Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days.

Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.

Q: How to control and guarantee your shipment quality?
A: 1) All our factories are ISO9001, CE certified facility; 2) World famous origin mills as TISCO, Baosteel. 3) Ex factory inspection by our own laboratory. 4) SGS/BV Third party inspection before delivery.
