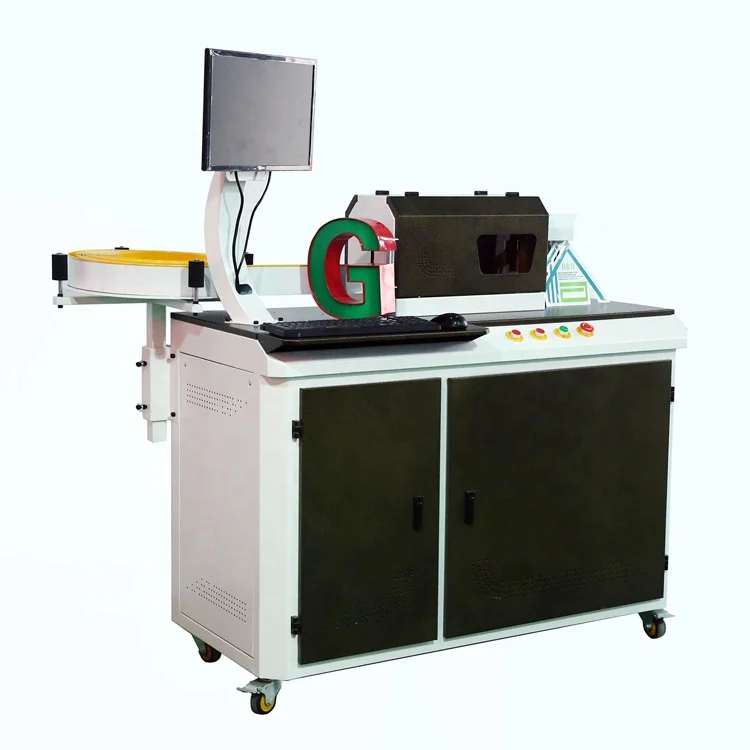

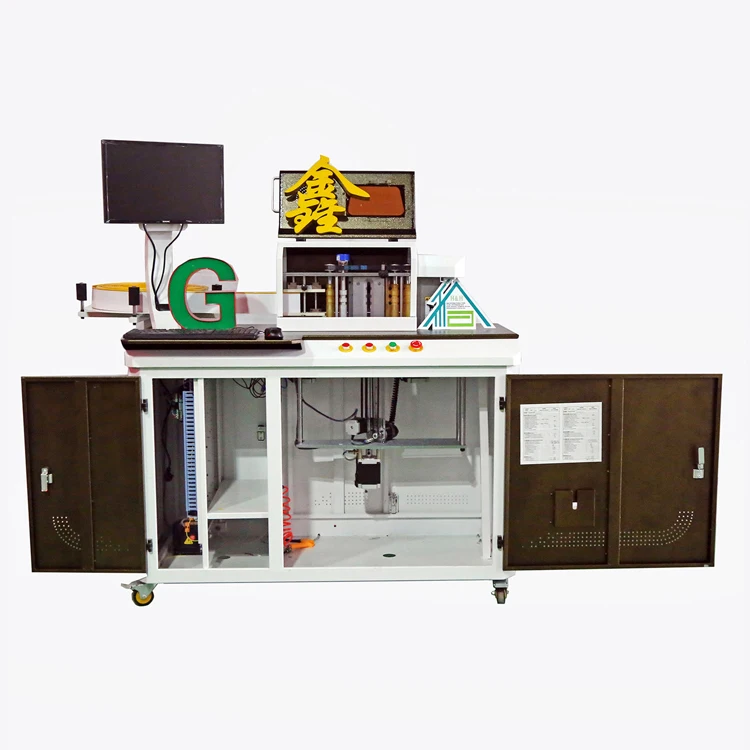

HH-L130 Automatic Aluminum Channel Letter Bending Machine
Technical Parameters
Working Principle | High Accuracy Automatic Feeding, Automatic Cutting, Automatic Bending |
Model | HH-L130 Aluminum Letter Bending Machine |
Flat Aluminum Coils, Rectangle/Triangle aluminum Coils,Aluminum Profiles, Channelume, Aluminum Coils with Foam and PC, High Polymer Coils for channel letter | |
Slot Degree | 45-135 Degree(no limit for flat materials) |
Bending radius | ≥3.5mm |
Material Width | ≤130mm |
Material Thickness | 0.3-1.2mm |
Total Power | 1000W |
File format | dxf, ai,plt |
Machine size | 2000*900*1550mm |
Weight | 300KG |
voltage | 220V |
Air pressure | 0.3-0.8Mpa |
Main Features

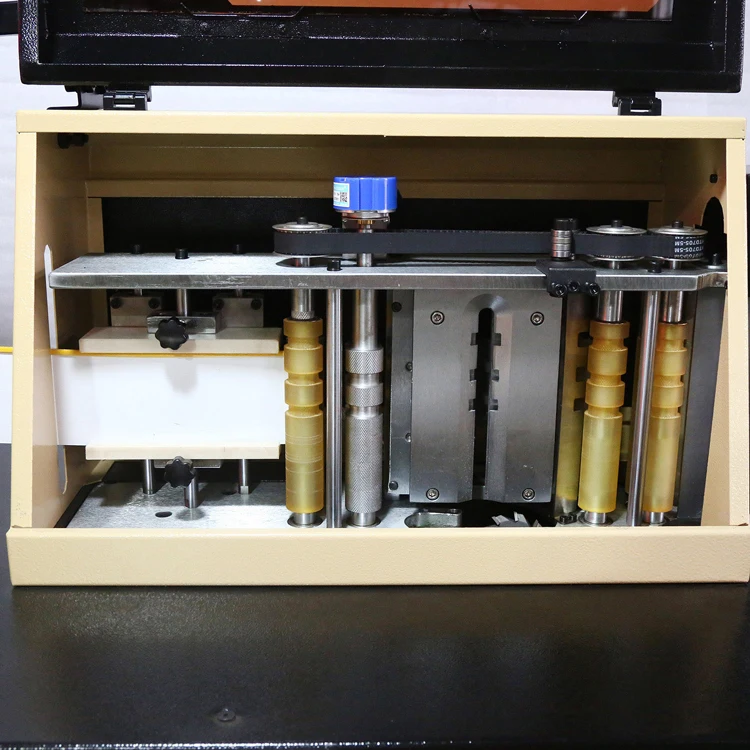

1. Five-axis:
Feeding, lifting, cutting, and bending one-time forming to ensure accurate and stable cutting and
bending .
2. With the closed loop self-test system, the whole deviation is less than 0.1mm.

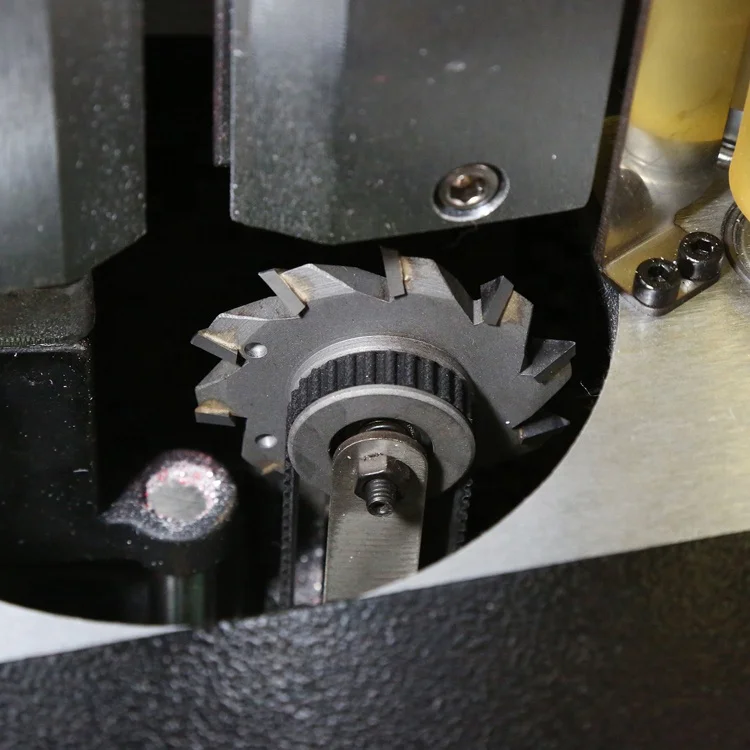

3. Imported square rails for positioning cutting to ensure the cutting stability
4. The intelligent Rebound coefficient compensation to ensure the letter forming accuracy.
5. One-button operation, very easy to use. Cost-effective, stable cutting, low noises
6.Self-innovated Software, easy operation.
7. Simple Machine Test and Operation
8. High cost performance ratio
9. Special for high quality Aluminum Letters making
Letters Making Steps
Applications

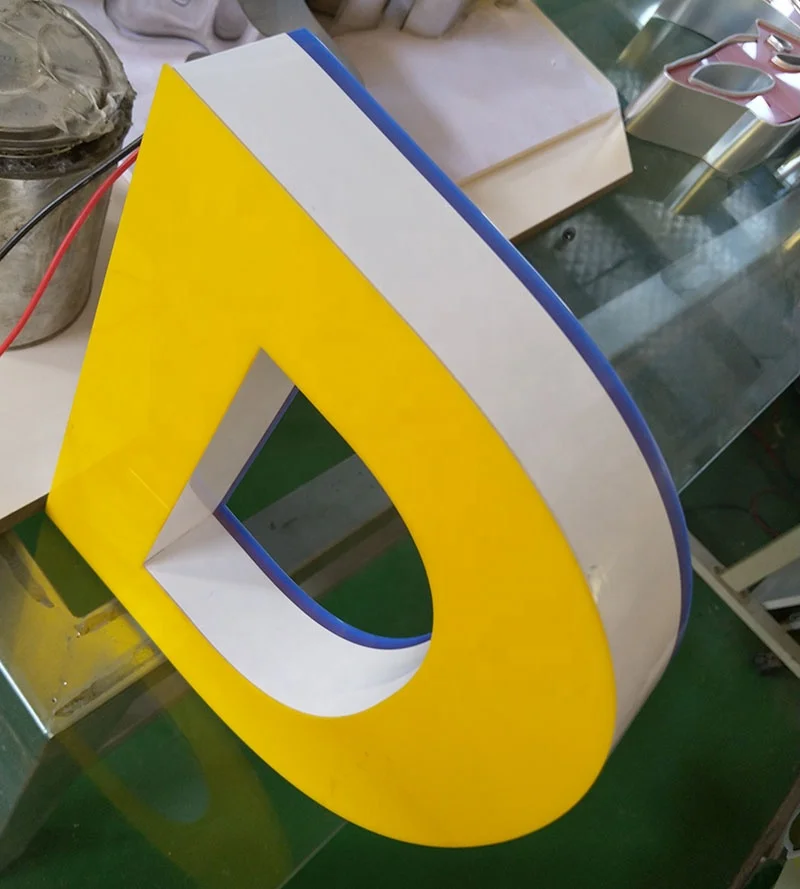

Rimless Letters,Aluminum Edge Letters,Resin Luminous Letters,Super Letters(Liquid Acrylic Letters),Aluminum Profile Letters,Aluminum Letters with Sponge, High Polymer Luminous Letters,Side Luminous Letters,LED Words and Various Aluminum Luminous Letters
Company and Certifcate
Our Service:Installation and Traning
A. Welcome customers to our factory for training. Our professional technicians will make direct and effective
face-to-face training.
B.Our engineer will do an on-site training service at customers' factory.
C.We provide detailed Videos for machine installation, Commissioning,Software Use and Operation Manual,then we will make training via whatsapp, wechat or email
face-to-face training.
B.Our engineer will do an on-site training service at customers' factory.
C.We provide detailed Videos for machine installation, Commissioning,Software Use and Operation Manual,then we will make training via whatsapp, wechat or email
We will ensure our machines running well in customers factory
Exhibitions Dispaly
FAQ
1.what's the package?
we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.what's the warranty?
12months for all machines and 24months for motors.
3.How to install and run the machine?
we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
4.Do you have the any materials for sale?
Yes,we have all kinds of materials such as aluminum coil and stainless steel.
we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.
2.what's the warranty?
12months for all machines and 24months for motors.
3.How to install and run the machine?
we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.
4.Do you have the any materials for sale?
Yes,we have all kinds of materials such as aluminum coil and stainless steel.
