12 В/24 В автоматический 10A-60A MPPT/PWM Бангладеш интеллектуальный контроллер заряда солнечной


Поделиться:


Цена:6,50 $ - 8,50 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 7.76 $* 7.82 $*
Aug-16-2025 7.18 $* 7.39 $*
Jul-16-2025 6.82 $* 6.33 $*
Jun-16-2025 7.62 $* 7.83 $*
May-16-2025 6.95 $* 6.86 $*
Apr-16-2025 7.54 $* 7.74 $*
Mar-16-2025 7.95 $* 7.74 $*
Feb-16-2025 7.78 $* 7.53 $*
Jan-16-2025 7.86 $* 7.46 $*

Характеристики



Product Description

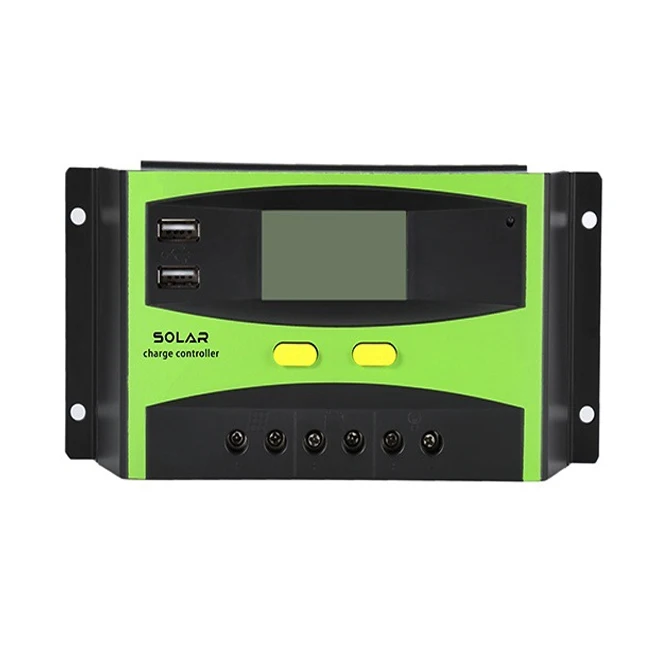

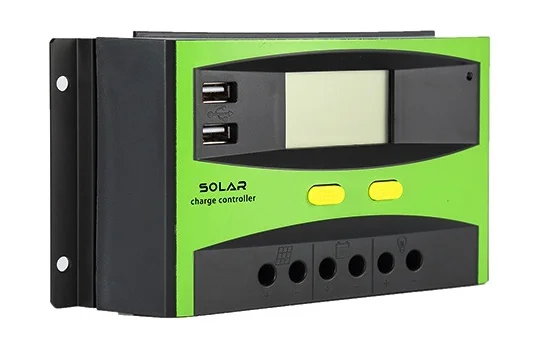

12V/24V Auto 10A-60A MPPT/PWM bangladesh intelligent charge controller solar

Product Features:
10a 20a 30a 40a 50a 60a 12v 24v 48v mppt/pwm charge controller solar for solar system
1.Build-in industrial micro controller;

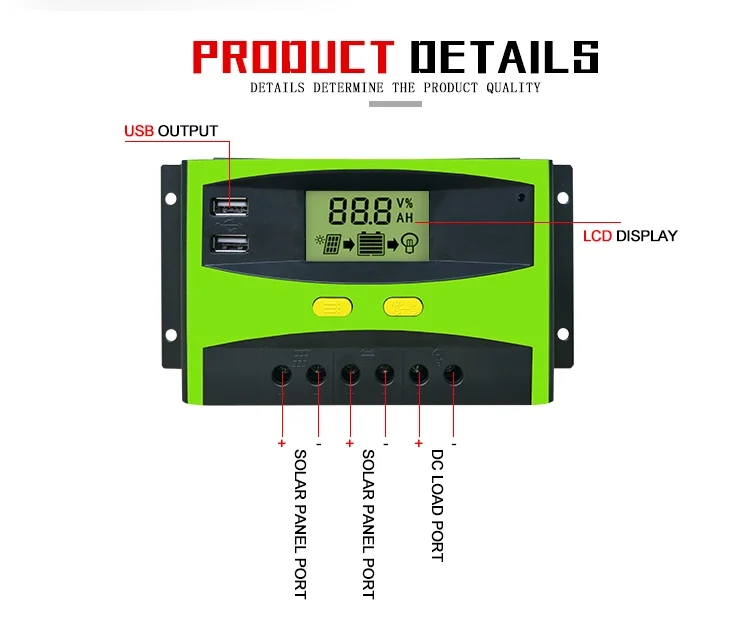

2.Big LCD display, all adjustable parameter;
3.Fully 4-stage PWM charge management;

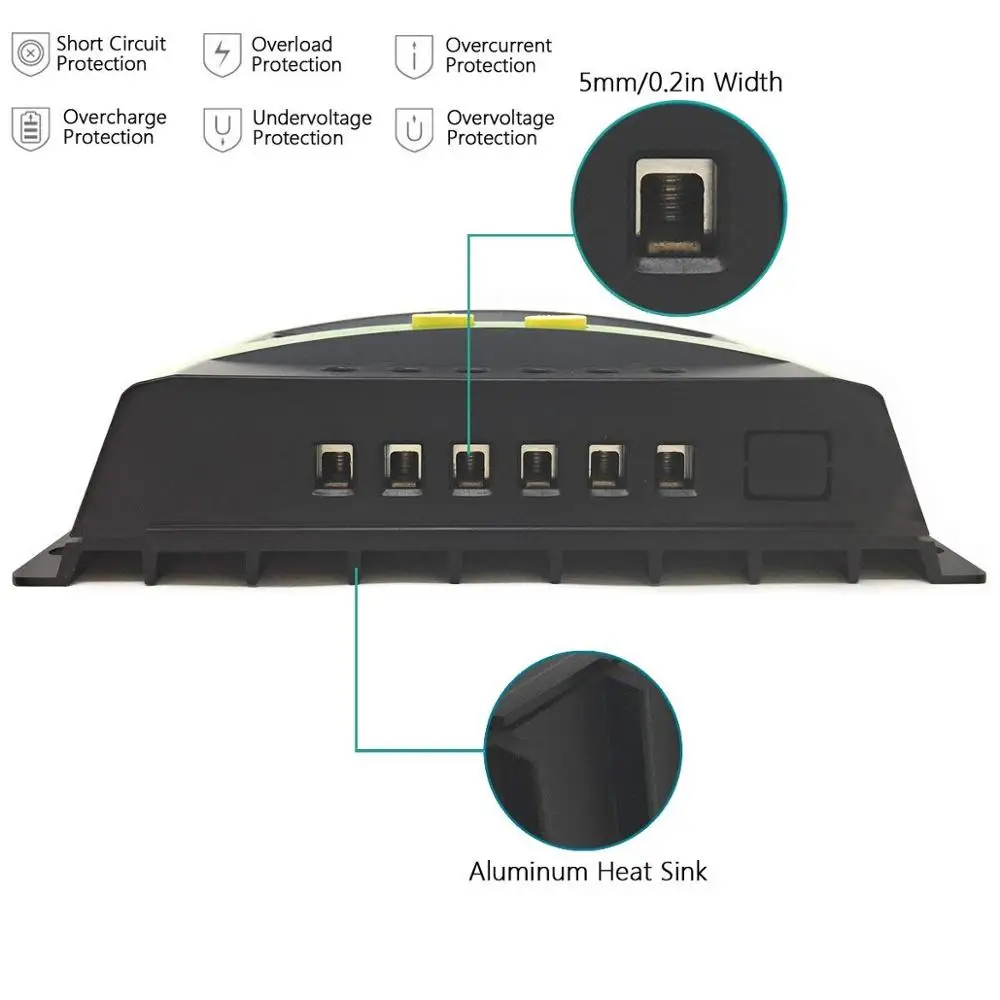

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection;
5.Dual mosfet Reverse current protection,low heat protection.


Model
20A
30A
40A
50A
60A
System voltage
12V/24V,24V/48V,(Automatically switch)
Solar panel input max voltage
50V(12/24V),100V(24V/48V)
Self loss
≤13MA
Max charge current
20A
30A
40A
50A
60A
LVD
10.5V(9-11V),21V(18-22V),42V(36-44V)
LVR
12.6V(11-13.5V),25.2V(22-27V),50.4V(44-54V)
Floating voltage
13.8V(13-15V),27.6V(26-30V),55.2V(52-60V)
Increase the charge
14.4V/28.8V/57.6V The battery voltage is below12V/24V/48V Start extra charge for 2 hours.
Battery overpressure production
15V/30V/60V
Input reverse connection protection
Yes
Load over current protection
Yes,every two seconds to restart
Charging mode
PWM
Operating temperature
-20℃-+55℃
Terminal scale
28-10AWG
Waterproof level
IP32
Product size(mm)
187*90*47(20-30A)
195*107*50(40A)
187*122*57(50-60A)
Packing size(mm)
200*102*53
210*118*59
200*132*63
Weight
780g
850g






















Packing


Packing: Standard Gift carton packing

Packing size(mm):200*132*63

Packing weight:850g






Recommend Products




Customers' feedback




FAQ


1. Why devices are attached, but the controller display no display ?
Check the battery connection cable polarity is correct, check the battery connection cable polarity is pressed, check the battery circuit switch is closed, and finally check the battery voltage to see if the battery has power


2. The system is connected to the solar panel, but there is no charge current or no charge?
Check the solar panel is connected properly, check whether the controller overload protection, short circuit protection, check the voltage and current of the solar panels to see if solar panel malfunction


3. Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

 Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.

4. I need your price list of all your products, do you have a price list?
We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
