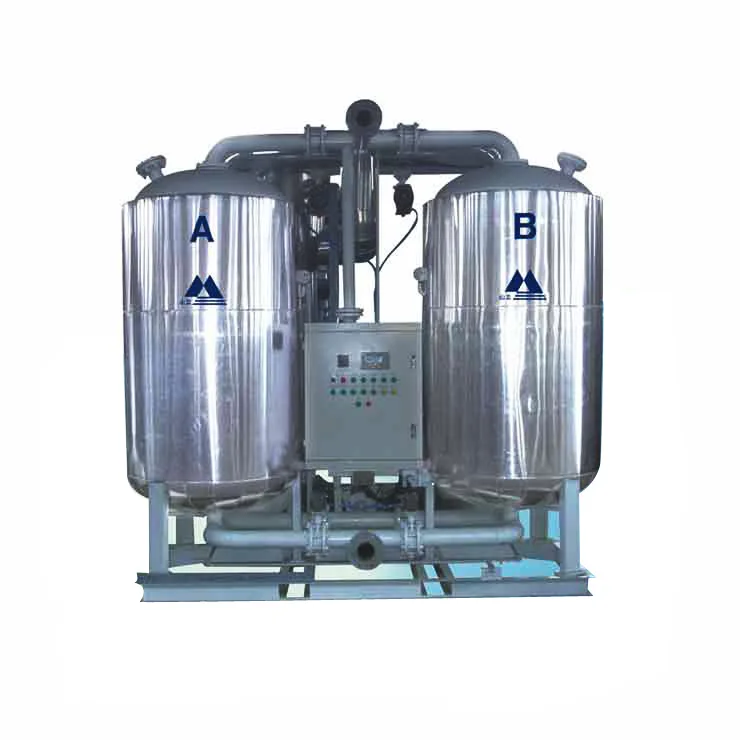

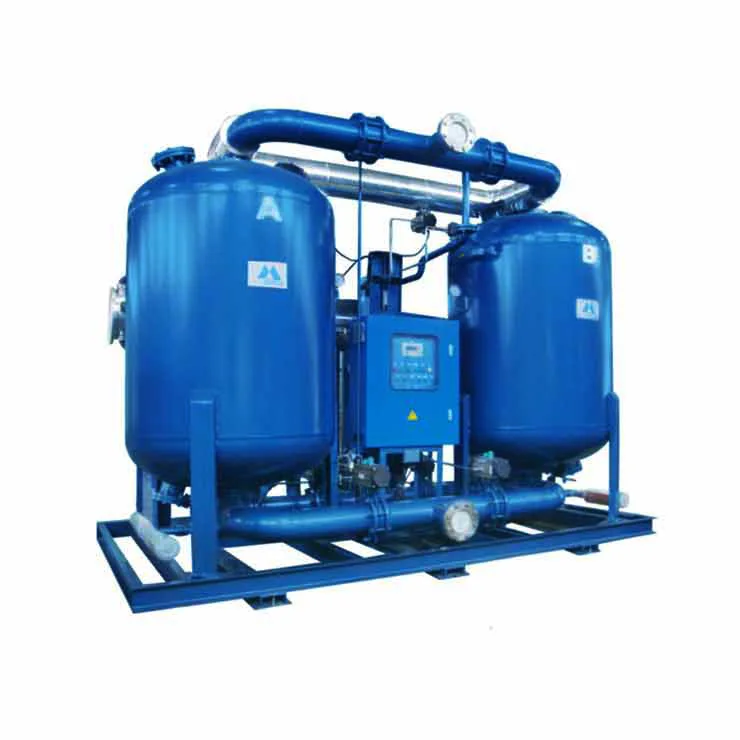

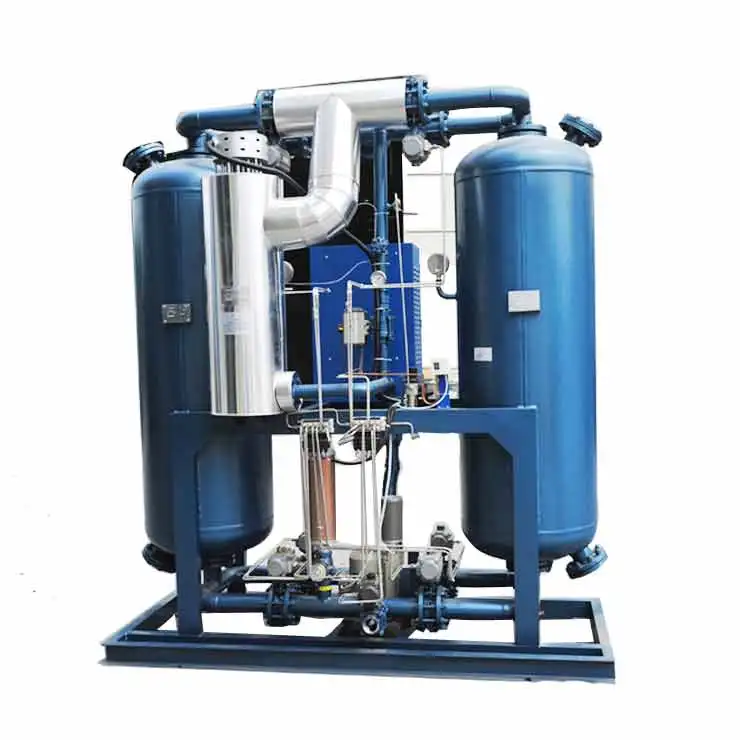

Ханчжоу шанли SDXG-30 Воздуходувка с подогревом адсорбционный осушитель воздуха в Китае (стандарты CE
- Категория: Оборудование с барабаном для сушки >>>
- Поставщик: Hangzhou,Shanli,Purify,Equipment,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11900.25 $* | 12495.84 $* |
| Aug-16-2025 | 11800.88 $* | 12390.80 $* |
| Jul-16-2025 | 9900.3 $* | 10395.76 $* |
| Jun-16-2025 | 11600.49 $* | 12180.69 $* |
| May-16-2025 | 10100.85 $* | 10605.66 $* |
| Apr-16-2025 | 11400.35 $* | 11970.57 $* |
| Mar-16-2025 | 11300.14 $* | 11865.43 $* |
| Feb-16-2025 | 11200.92 $* | 11760.79 $* |
| Jan-16-2025 | 11100.31 $* | 11655.13 $* |
Характеристики
Working Principle |
For added energy savings, it uses a high efficiency blower to take in ambient air required during the heat regeneration cycle to desorb moisture from the desiccant, no compressed air is used during this phase. Dry compressed air is used during the dry air cooling regeneration period for reduced heat and dew point spike at tower switchover. This amounts to an average process air use of 3% of the rated capacity of the dryer. |
Working Conditions and Technical Specifications | |
Air Inlet Temp. | 5~45 ℃ |
Oil Content | ≤0.1PPM |
Air Inlet Pressure | 0.6~1.0MPa |
Pressure Loss | ≤3% Of Inlet Pressure |
Pressure Dew Point | -40℃ (Standard type) |
Air Consumption | ≤3% (air consumption) 0 (zero air consumption) |
Air Flow | 10-300Nm^3/min |
Power | AC 380V-50HZ/ 220V/50Hz |
Ambient Temp. | 5-35 ℃ |

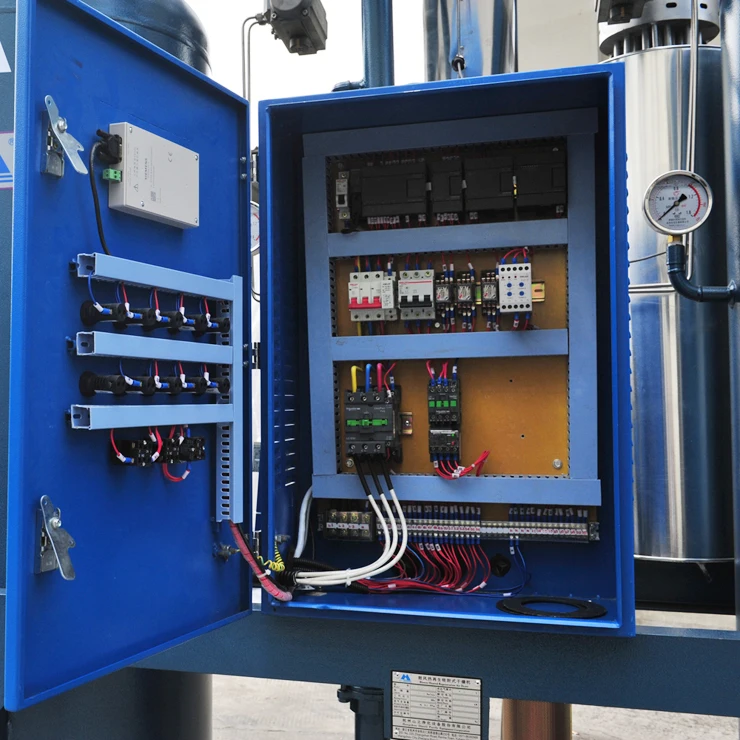

Control Method | Microcomputer Automatic Control/ PLC Control |
Note: All the above parameters are based on our standard working pressure 0.7MPa.
(Please contact us if you need customized service.)
| With Gas Consumption Type | ||||||||
| Model | Capacity | Connection Diameter | Heater power | Blower power | Desiccant weight | weight | Device size | |
| (Mm3/min) | cfm | (KW) | (KW) | (kg) | (kg) | (mm) | ||
| SDXG-10 | 10.9 | 384 | DN50 | 8 | 1.3 | 311 | 940 | 1400x1600x2292 |
| SDXG-15 | 16 | 564 | DN65 | 10 | 1.3 | 486 | 1100 | 1600x1247x2395 |
| SDXG-20 | 22 | 775 | DN65 | 12 | 2.2 | 606 | 1300 | 1700x1377x2435 |
| SDXG-25 | 26.8 | 945 | DN80 | 15 | 5.5 | 716 | 1800 | 1800x1403x2520 |
| SDXG-30 | 32 | 1128 | DN80 | 18 | 5.5 | 860 | 2000 | 1800x1528x2544 |
| SDXG-40 | 43.5 | 1533 | DN100 | 22 | 7.5 | 1158 | 2100 | 2000x1637x2640 |
| SDXG-50 | 53 | 1868 | DN100 | 27 | 7.5 | 1422 | 2800 | 2100x1788x2722 |
| SDXG-60 | 67 | 2361 | DN125 | 36 | 9 | 1608 | 3700 | 2300x1953x2825 |
| SDXG-80 | 90 | 3172 | DN125 | 42 | 9 | 2436 | 4900 | 2720x2146x2940 |
| SDXG-100 | 110 | 3877 | DN150 | 54 | 13 | 2926 | 5700 | 2810x2121x3081 |
| SDXG-120 | 130 | 4582 | DN150 | 72 | 13 | 3476 | 7600 | 2996x2264x3140 |
| SDXG-150 | 160 | 5639 | DN200 | 84 | 13 | 4710 | 11000 | 3470x2591x3433 |
| SDXG-200 | 210 | 7402 | DN200 | 96 | 15 | 6160 | 15000 | 4700x2528x3532 |
Product Overviews
Advantages
Company Information

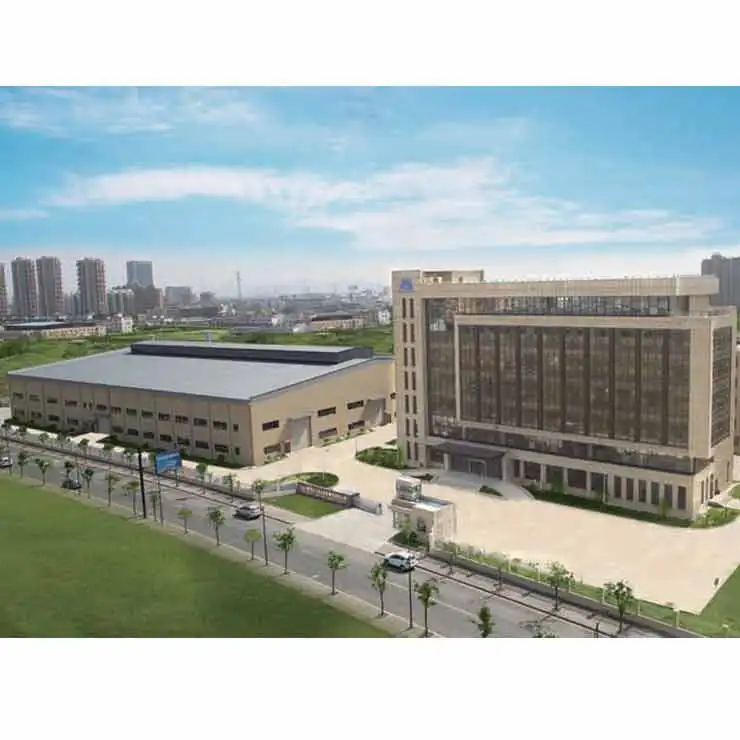

Established in 1997, Hangzhou Shanli Purify Equipment Corporation is an enterprise specialized in design,
development and production of compressed air dryers, filters and other purification equipments. Our compa
ny has a workshop of 30, 000 square meters and more than 300 staff. Shanli has become one of the largest
refrigerated air dryer manufacturers in the Chinese purification industry with the top sales turnover. Our self-
design and self-made equipment is compatible with many famous brands of air compressor to efficiently rem
ove water, oil and dustfrom compressed air. On basis of IS0 9001 certification standard, our design, producti
on, test and services of the machine are all well managed and strictly controlled since year 2001.
Application
Shanli refrigerated air dryers are widely used in industry such as glass making,cement making,ship making,
car making,medician,power plant,aviation,food industry,textile industry,building material,oil and gas industry.
