Китайская малая линия по производству капсул для пейнтбола наполнения мягкими капсулами заводской

China small Softgel Paintball Encapsulation machine Production Line Suitable for soft capsule filling and factory price

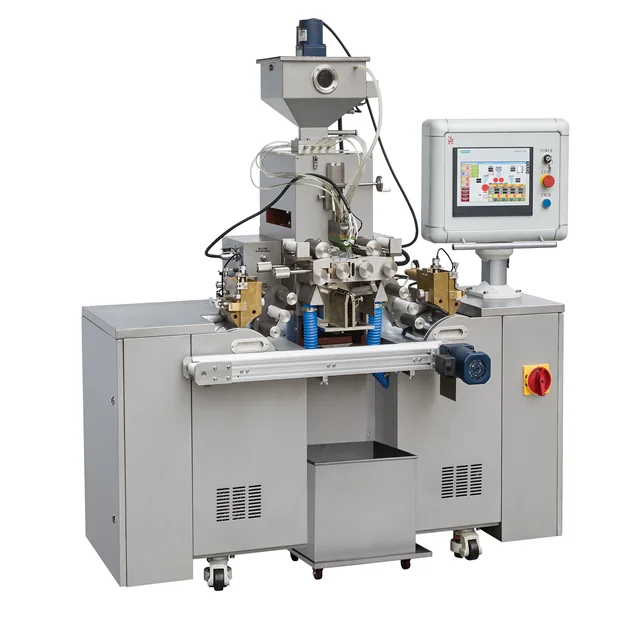

Main features of the equipment:

1. It adopts large-size touch screen and has fault diagnosis function, which can store various operating parameters and reserve network interface.

2. The mold adopts aviation aluminum alloy and has a long service life. Optimized design, the number of cavities is large, and the mesh adhesive rate is low.

3, rubber drum, rubber smearing system and mold parallel design, high stability. It adopts independent motor variable frequency drive, full bearing design, high assembly precision, convenient adjustment, low noise and stable operation.

4, the rubber is micro-lubricated, truly no-clean, improve efficiency and save money.

5, rubber cooling using a separate split professional chiller, low energy consumption, high cooling efficiency.

6, the lower pill uses the net bucket, and there is a cold wind pre-determined type, so that the plastic pill molding is more beautiful, and the transportation is more reasonable.

7. The material bucket is adjustable in temperature, stirrable and with speed regulation, and is more suitable for suppressing Chinese medicine suspension.

8, small footprint, full-featured, very suitable for small and pilot test in the laboratory, but also small batch production.

Main technical parameters of the host:

Machine type                                                             HB0.8-110C

Mold speed                                                                   0~7r/min

Mold size                                                                 Φ72×110mm

Feed pump single column feed quantity             0~0.8ml

Power requirement                                                     380V 50Hz

Noise indicator                                                             <75dBA

Dimensions                                                      1500×860×1700mm

Net weight                                                                       700Kg

Total power                                                                      3.8kw

Pre-Sales Service

* Quickly response.

* Solve customers problems.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
