Экономичный механический штамповочный станок с ЧПУ/револьверный пресс

Экономичный механический штамповочный станок с ЧПУ/револьверный пресс

Категория: Punching Machines >>>
Поставщик: Accurl,Cnc,Machine(anhui),Manufactory,Co.,Ltd.

Цена:43 550,00 $ - 63 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	51825.6 $*	54416.2 $*
Aug-15-2025	51389.69 $*	53958.59 $*
Jul-15-2025	43115.9 $*	45271.16 $*
Jun-15-2025	50518.54 $*	53044.90 $*
May-15-2025	43986.92 $*	46185.79 $*
Apr-15-2025	49647.22 $*	52129.45 $*
Mar-15-2025	49212.62 $*	51673.53 $*
Feb-15-2025	48776.14 $*	51215.9 $*
Jan-15-2025	48341.47 $*	50758.25 $*

Характеристики

Products Description

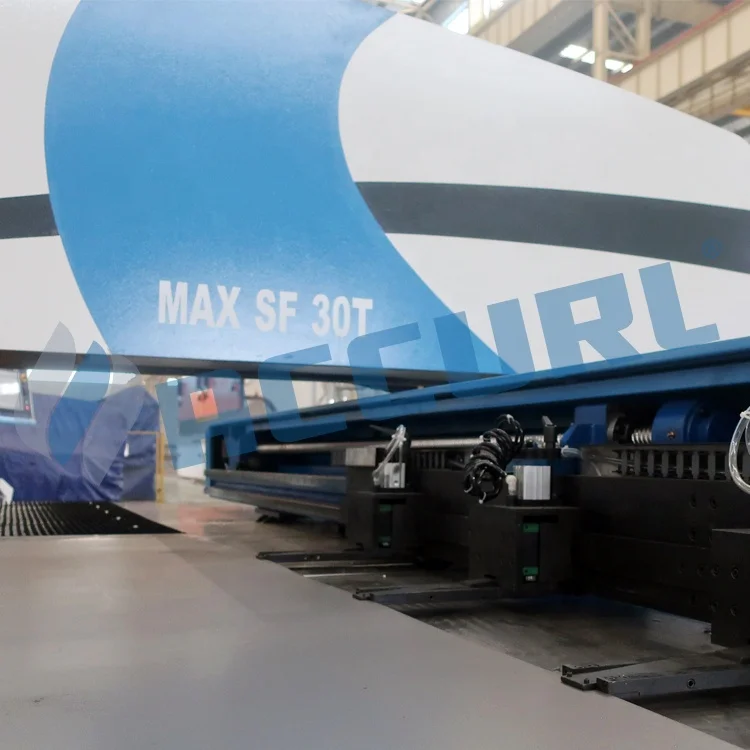

SERVO CNC TURRET PUNCH PRESS MAX SF SERIES

The new generation of ACCURL turret punch is a low energy, high efficiency turret punch with low environmental and maintenance costs. The ACCURL can be configured in 22 or 33 ton options. The ACCURL was designed with a thick turret to ensure longevity of the machine and its tools and to minimize tool deflection.ACCURL performs full punches, hovering, marking and forming operations.The SF model can be upgraded with our Ultra Package which can decrease part processing times by up to 40%.

The ACCURL comes standard with the following features:

Automatic Tool and Linear Components Lubrication System
Pneumatic Ball Transfer and Brush Table for ease of loading/unloading
Vacuum Assist System for slug removal
32 Stations 2 Auto indexing stations
One Mirror-Type Safety System to guard entire work envelope
Man-Sensors on moving tables
Sheet Jam Protectors to detect warped material
Sheet-gripper sensors to detect loose material

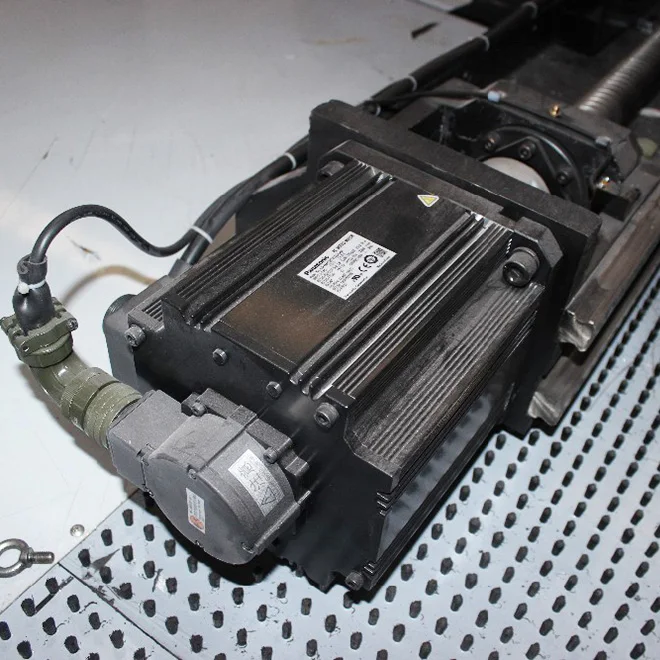

SERVO DRIVE SYSTEM

The punch servo utilizes a direct drive gearbox that supplies power and speed. This servo allows the user to steplessly adjust the punch stroke and accommodate any pressure curve requirements.

The AC punch servo motor can be programmed for various applications.
1. High speed applications.
2. Low noise applications.
3. Forming applications.

SOLID FRAM E STRUCTURE

The ACCURL turret punch utilizes an O-frame structure for rigidity and reliability throughout the life cycle of the machine.
QUALITY ENBINEERINS
All frame configurations are field tested and engineered to last using FEA.

MIXED BALL AND BRUSH TABLE

The standard configuration features a mixed ball and brush table that comes with an
integrated pneumatic ball transfer table to ease loading and unloading.

SHEET JAM PROTECTORS

Sheet Jam Protectors automatically detects deformed or buckled sheets and automatically
stops the machine when triggered.

DROP CHUTE & CONVEYOR

The part Drop Chute and Conveyor options allow processing and sorting to be automated and simplified.

AUTOMATIC CLAMP POSITIONING

Automatic Clamp Positioning reduces set up time and errors, and provides machine run time flexibility and productivity.

MAXIMUM CONTROL

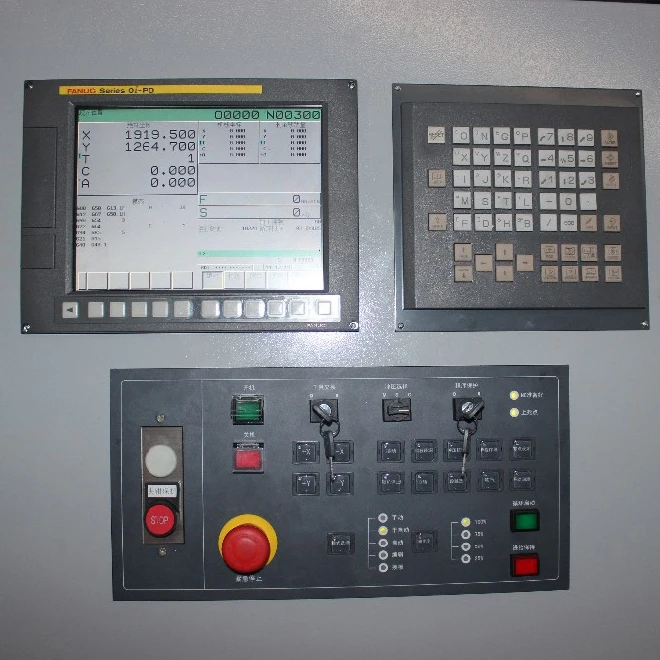

The ACCURL turret punch comes with a FANUC Oi-PD LCD mounted controller. The setup includes an ACCURL Operator panel and FANUC MDI panel.
The FANUC controller allows for precise and reliable machine control, as well as providing a way to monitor secondary systems and keep track of maintenance tasks.

CAD/C AM NESTING SOFT WARE

The G-code for the Oi-PD controller can be generated from nesting software. The operator may nest multiple parts, maximize sheet utilization and streamline their workflow to ensure their turret punch is working in peak condition.

THICK TURRET TOOLING

The ACCURL is compatible with thick turret tooling. The wide variety of specialty tools combined with the programmable ram means the ACCURL can deliver for any application.

The D-station also is configurable with multi-tools with multiple configurations of both A(0.5”) and B (1.25").

Reduce additional operations by utlilizing ACCURL's support of tapping and other specialty tooling.

ACCURL SPECIFICATION

Item	unit	MAX-SF-30T	MAX-SF-50T
Punching Capacity	Ton	30	50
X Traverse Length	mm	2500±10	2500±10
Y Traverse Length	mm	1250±10	2500±10
Max sheet size	mm	1250*5000	1250*5000
Max sheet Thickness	mm	6.35	8.35
Max sheet weight	kg	110	160
X Axis Traverse speed	m/min	120	100
Y Axis Traverse speed	m/min	105	80
Max Traverse speed	m/min	128	105
Punching speed at 25mm Pitch	Hist/min	450	380
Nibbling speed	Hist/min	1200	1050
Tools Type		Thick Turret
Max Punching Diameter	mm	88.9
Number of Tool Stations		32/42/52
Number of Auto Index Stations	Pcs(type)	4(2B+2C)/3(2B+C)/2(B+C)		33
Turret Rotating Speed	rpm	33	33
Auto Index Rotationg Speed	rpm	100	100
Ram Stroke Distance	mm	0~31	0~31
Working Tables Size		Brush+Supporting Ball Set		3
Number of Sheet Clamps	pcs	3	3
Air supply	NL/min	250	250
Air Pressure		6	6
Size of Control cabinet		13507002185
CNC Controller		Fanuc Oi-PD
Number of Controllable Axes		4
Ram Memory		512
Serial Interface		PS232/RJ45/PCMCIA
Punching Precision		±0.1
Machine Dimension(LWH)		594052202420	594052202420
Net weight(approx.)		13500	15800

Related Products

1KW Fiber Laser Cutting Machine

Hydraulic Guillotine Shearing Machine

CNC TURRET PUNCHING MACHINE

Company Profile

Why choose us?

ACCURL is a famous manufacturer of metal sheet equipments in world market. Its Brand ¡°Accurl¡± has been leading brand for many years in the field of international metal sheet equipments. Our group devote ourselves to product development, production and sales.

Our main products are: CNC Press Brake, Shears, Hydraulic press, Laser Cutter and CNC rolling machine these sheet metal processing equipments.we are using advanced technology from German, Japan, and Italy.we can produce large Hydraulic Press and Press Brake more than 16000 ton & 16m.we are with professional R&D team, and we have World-class design and manufacturing capabilities.

We Got 5 Stars Rating!

Exhibition

Product packaging

1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.

2.All the spare parts of themachine were covered by the some soft materials mainly using pearl wool.

3.The outmost is wooden case with fixed formwork.

4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.

Our serives

The use of an interferometer records the machines X and Y axis movement during cutting to ensure accuracy.
Adjustments are made to ensure machine is precisely tuned before shipment.

A Marble test is performed to measure the X and Y axis, calculating any necessary adjustments to ensure perfect level and alignment along length of machine.

A collimator is run along the full length of the guide rail, testing for straightness. Adjustments are made as required to ensure linear accurae linear accuracy.
