Перфорационный станок для металлических

Категория: Other Metal & Metallurgy Machinery >>>
Поставщик: Hebei,Dapu,Import,&,Export,Trade,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.5 $*	0.93 $*
Aug-15-2025	0.45 $*	0.68 $*
Jul-15-2025	0.65 $*	0.43 $*
Jun-15-2025	0.92 $*	0.27 $*
May-15-2025	0.86 $*	0.45 $*
Apr-15-2025	0.35 $*	0.86 $*
Mar-15-2025	0.0 $*	0.55 $*
Feb-15-2025	0.69 $*	0.5 $*
Jan-15-2025	0.38 $*	0.22 $*

Характеристики

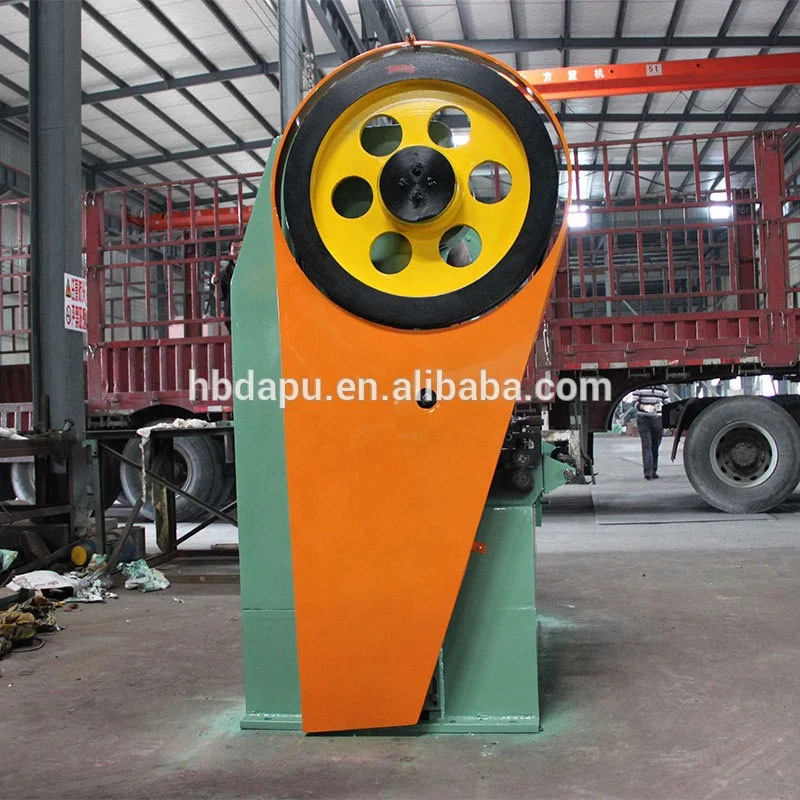

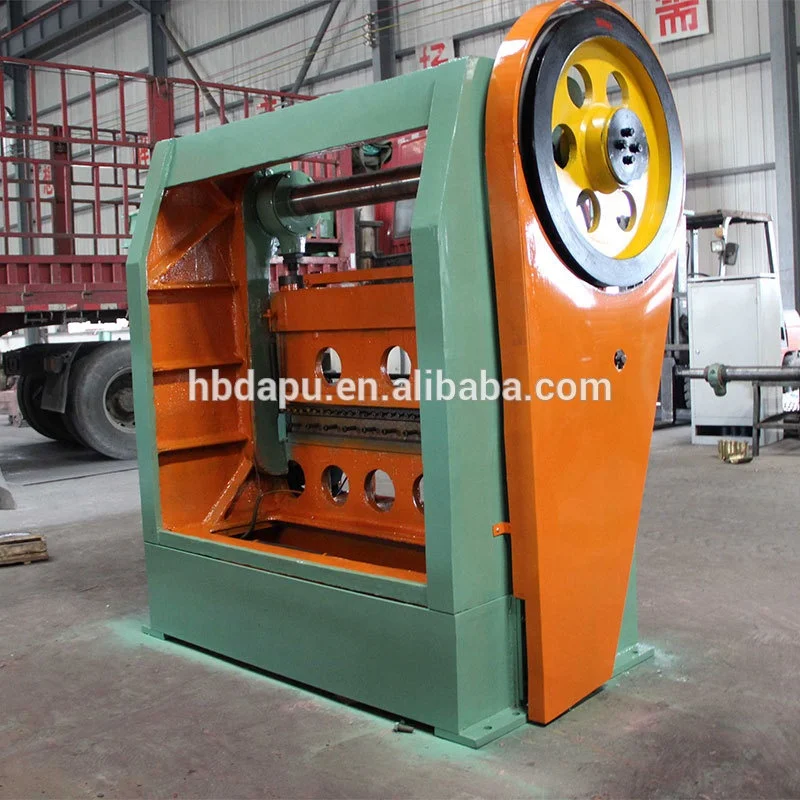

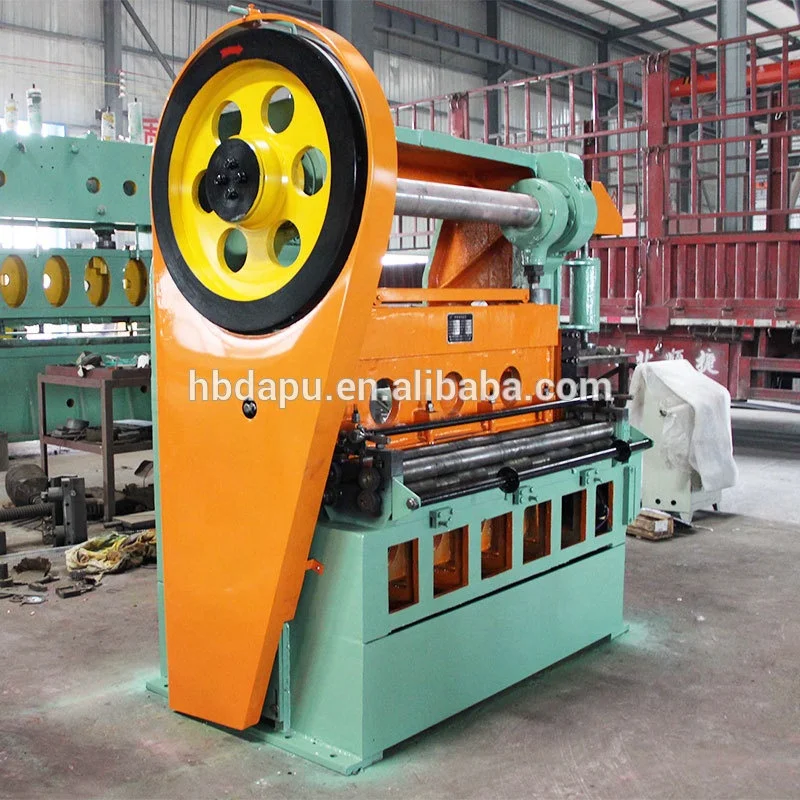

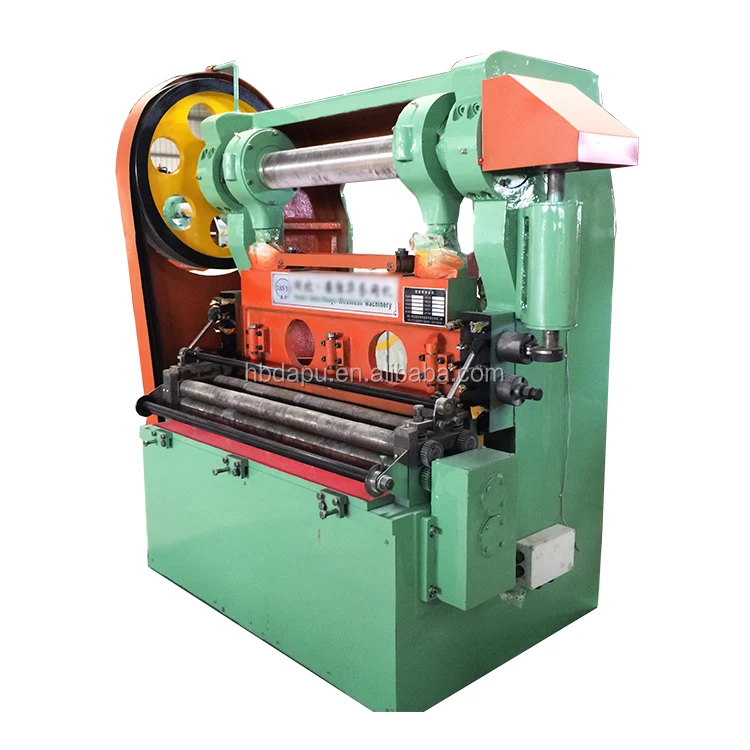

Punching hole mesh perforated metal sheet machine

Punching hole mesh perforated metal sheet machine

Expanded metal mesh machine can be separated two kinds which are stretch net and perforated metal. We can also call it fence machine stretch net machine hole and shaped punching machine..

Expanded metal mesh machine can expand all kinds of steel and iron plate. Then stretch it to fence mesh, this machine can be called fence machine.

Technical Parameters

Description	DP25-16	DP25-25	DP25-63	DP25-100	DP25-160
Material thickness	0.1-1mm	0.1-1.5mm	0.5-3mm	0.5-5mm	0.5-8mm
Material max width	1000mm	1250mm	2000mm	2000/2500mm	3200mm
Stroke per min	280/min	280/min	120/min	90/min	60/min
Distance of feed	0-2.2mm	0-3mm	0-6mm	0-10mm	0-10mm
Mesh size of LWD	≤25mm	≤30mm	150mm	180mm	200mm
Motor	3kw	4kw	11kw	18.5/22kw	30kw
Total weight	2.2T	3T	11T	13/15T	26T

♦We can design the machine according to your metal materials and metal thickness

Punching hole mesh perforated metal sheet machine

Product Details

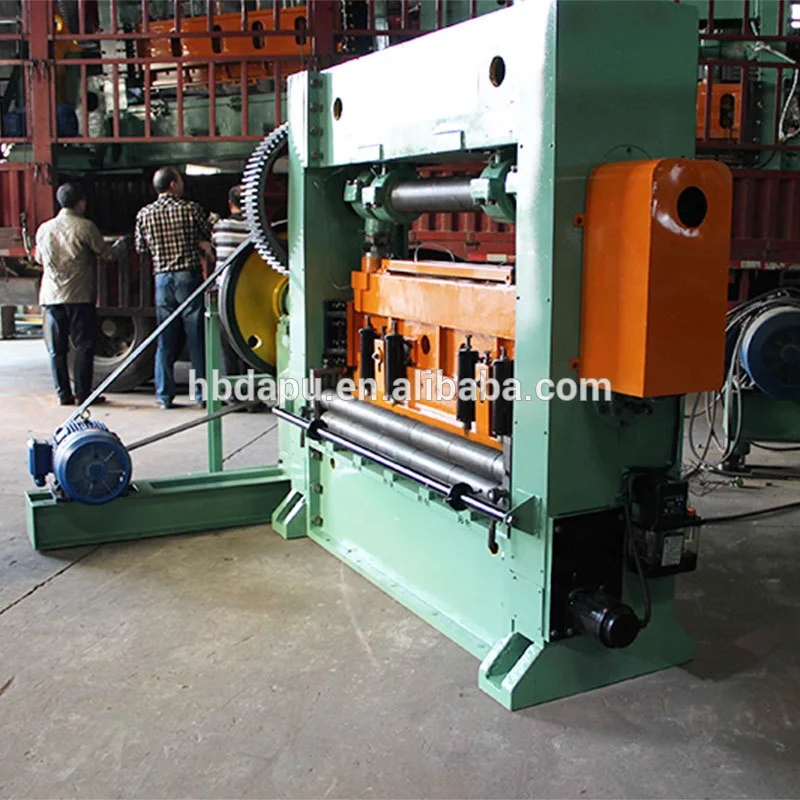

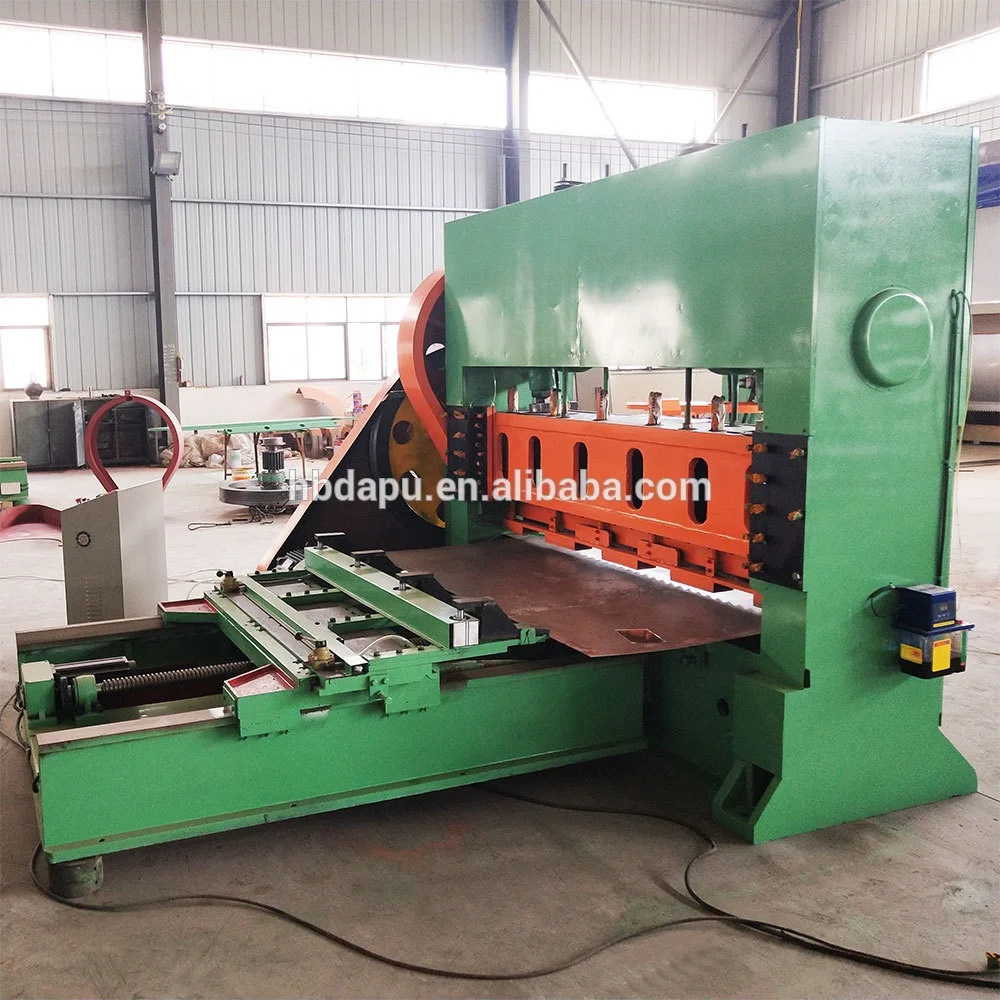

Punching hole mesh perforated metal sheet machine

1. Steel metal cover for rotating wheels to ensure safety operation.

2. Alloy cutter mold can be made of Cr12#1 or YG-8 hardened tool steel, life up to one year.

3. Cast steel base and unit, shock-resistance and working smooth

4. Central lubrication system to decrease machine wearing out and make maintenance easily.

5. Pneumatic clutch brake + step motor. Pneumatic clutch brake to stop the machine, more fast

6. Electric and pneumatic system PLC +Text screen control, easy to operate, one worker is ok

Punching hole mesh perforated metal sheet machine

Certifications

Punching hole mesh perforated metal sheet machine

Company Information

Punching hole mesh perforated metal sheet machine

FAQ

Q:Where is your factory located?

A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
