Характеристики
Product Description
Welcome to our factory learn more about CNC furniture manufacturing machines.
Description | Parameter |
Working Area | Double 1220*2440*200mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | Vacuum and T-slot working table |
Vacuum pump | Yes 7.5Kw vacuum pump |
X, Y Structure | Helical Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Spindle Power | 9.0kw JST ATC air cooling spindle |
Spindle Speed | 0-24000RPM |
ATC number | 4 heads with 4 pieces auto changing tools |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Drive Motors | 1.5Kw high precision servo motor |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | NC Studio control system |
Inverter | Fuling DZB inverter |
Dust collector | Yes Two bags dust collector |
Oil lubrication system | Yes |
X,Y Resolution | <0.01mm |
Software Compatibility | Alphacam/Type3/UcancameV9 /Artcam |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Total Power Consumption | (With Spindle) 15Kw |
Optional Parts | 1.Spindle : 9.0kw HSD ATC air cooling spindle 2. Driver motor :Yaskawa servo motor) 3.Inverter: Taiwan DELTA 4. Control System :Taiwan SYNTEC/EtherCAT |
Main Features
Tool change high speed CNC Router wood working machine for Furniture cabinet cutting
* Heavy duty machine body, welding by thick steel tube.High-performance all-round machinery with extraordinary value, but at a very economical price. With linear tool hanger, constructed with world-class components, consistent high performance.
* Featuring 9.0KW spindle motor and high frequency air-cooling electronic spindle and servo system .
* Vacuum table using high-density (1.3-1.45g/cm) material with great suction strength, comfortably
accommodating all sizes of work piece.
*NC studio controller(Option Taiwan SYNTEC)-enabling this product to accomplish multi-layer 3D job, cutting, engraving, milling, all at ease.
Detailed Images
Heavy duty machine body, welding by thick steel tube
Offer Zone adjustable Vacuum table with 7.5Kw strong power Pump,The work table is international leading vacuum adsorption featured.It can adsorb different size materials closely.
Imported high-precision ball screw which moving smoothly, to ensure the machine's high precision.
Linear Square Guide Rails from Germerny
Integrated Z ball screw system make sure high precision in time long run
Tool setting gauge to set Tool position easily and correctly
Top brands 9KW servo motor driver with air cooling system,high precision and fast speed
Moving head with exhaust fans to cool down it in time,Guarantee long time working
Straight line Auto changing tool moving with Gantry ,make it fastest to change tool ,only need 3 seconds.most other brand cnc router tools installed at the back of machine,it is a waste of time to change each tool
Electric Cabinet
All the electrical components are housed and wired in a mobile, double door electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.

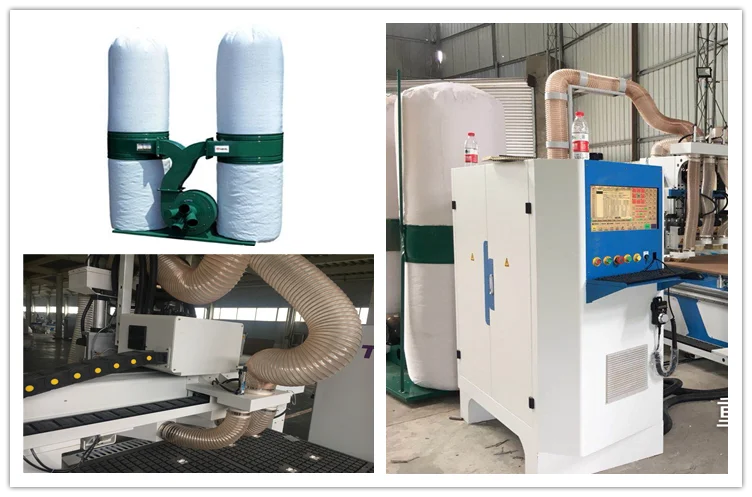

Double bags dust collector to clean dust in time
Related Products
Application
Tool change high speed CNC Router wood working machine for Furniture cabinet cutting
Main applications of cnc wood machine :
1.Furniture industry: wooden doors, cabinet doors, board, office, solid wood furniture
2.Other wood products industry: speakers, game consoles cabinets, computer tables, sewing machine table, musical instruments, etc.
3.Board processing industry: insulation piece, plastic chemical products; PCB; fast train inside body, bowling tracks, stairs; compact grade laminate, epoxy resin, ABS, PP, PE and other cementitious mixtures's milling process
4..Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo's processing.
Our Service
Tool change high speed CNC Router wood working machine for Furniture cabinet cutting
After service and Guaranty of our factory:
1. 2 years quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 18 hours on line service and email each day, free technical support.
5. Machine has been adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.
6. provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.
7. if you have any problem during your use.you need our technician to judge where the problem is and help you to solve it. We can provide team viewer and skype with can till all of your problems solved.
Welcome to our factory learn more about CNC furniture manufacturing machines at any time.
Packing & Delivery
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.
Our Company
Dowin Tech Co., Ltd. specializes in R&D and production of various laser equipment, CNC Router, Dowin has passed CE and FDA qualifications.Facing the chances and challenges of Global Economic Integration,as well as being offered with opportunities of Knowledge Economy Era, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management,Continuous Improvement,Rapid Development,Credit First,Quality First".We aim to be a professional,branding,and International suppliers for various industrial solutions.
Quality and credit goes all the way.Dowin a company surviving fierce market competition,has very strong national culture, and develops shoulder by shoulder with the world and this Era.We are determined to achieve our dreams step by step with the advantages of high technology.
