Характеристики

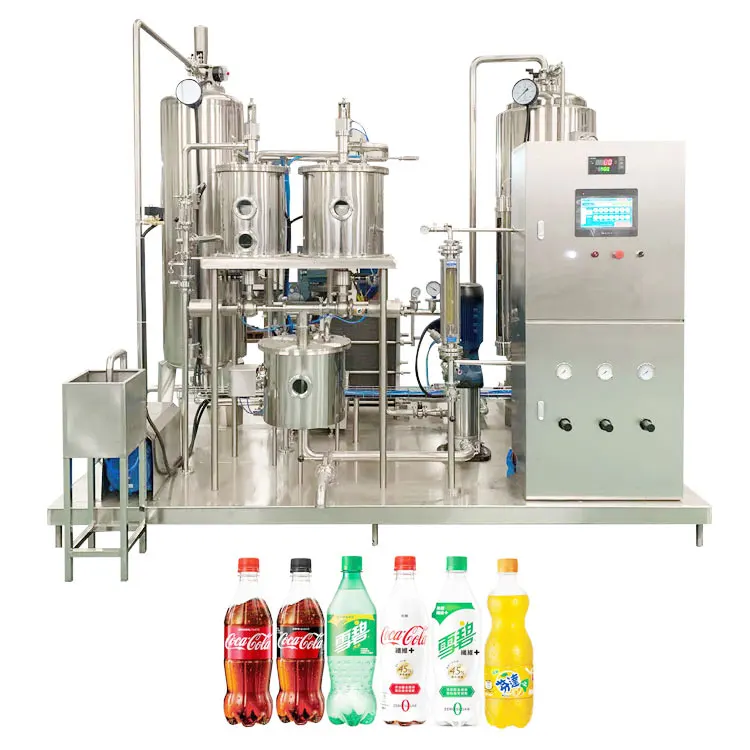

Carbonated water soda drink beverage mixer
Product Description
Machine description:
QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbonated dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, ensure mixing efficiency. Adopt carbon dioxide back flow deoxygenation, which can save carbon dioxide and deoxidize. High quality water pump and SEIMENS electrical equipment and other parts make up a complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of bottle, such as soda water, fruit juice, cola and other soft and hard drinks.
Main features:
1.Automatic with Alarm:The pressure in all tank and the liquid level of the machine are all controlled automatically with PLC.Once a error occurs,the alarm lamp will light and the alarm ring will sound and the mixer will stop automatically.
2.Easy operation and regulation:The operation of the mixer is especially convenient.Only turn around the buttons according to the pre-set program,the normal operation can be carried out.The production capacity,water-sugar proportion and gas content can be adjusted without exchanging and parts.
3.Even mixing and accurate proportion:One time mixing process is adopted,so the mixture is even.The mixing proportion of water and sugar is strictly controlled with measuring needle valve with fine regulation.Its precision can reach about 5%.
4.Enough gas content:The mixer adopts vacuum desoxidation technology at normal temperature.Its desoxidation ratio reaches above 90%.It has a baffle heat exchanger to cool the sugar-water mixture and carry out twice carbonating,So its carbon content is especially high.
Products Structure and Working Procedure
(1). CO2 tank, syrup tank, liquid level device, static mixing device, tank, electrical controlling system, air providing tank, and necessary producing pipe and cleaning pipe including ball valve, magnetism valve, check valve are composed this machine. (See photo 1: main structure)
(2). Main working Procedure
a. Cooling water→multi-grade pump→oxygenating CO2→volume control
b. Cooling syrup→multi-grade pump→syrup tank→volume control
(a and b → multi-grade pump→static mixing device→
c. CO2 air resource→filter and pressure reducing→ tank→filling machine

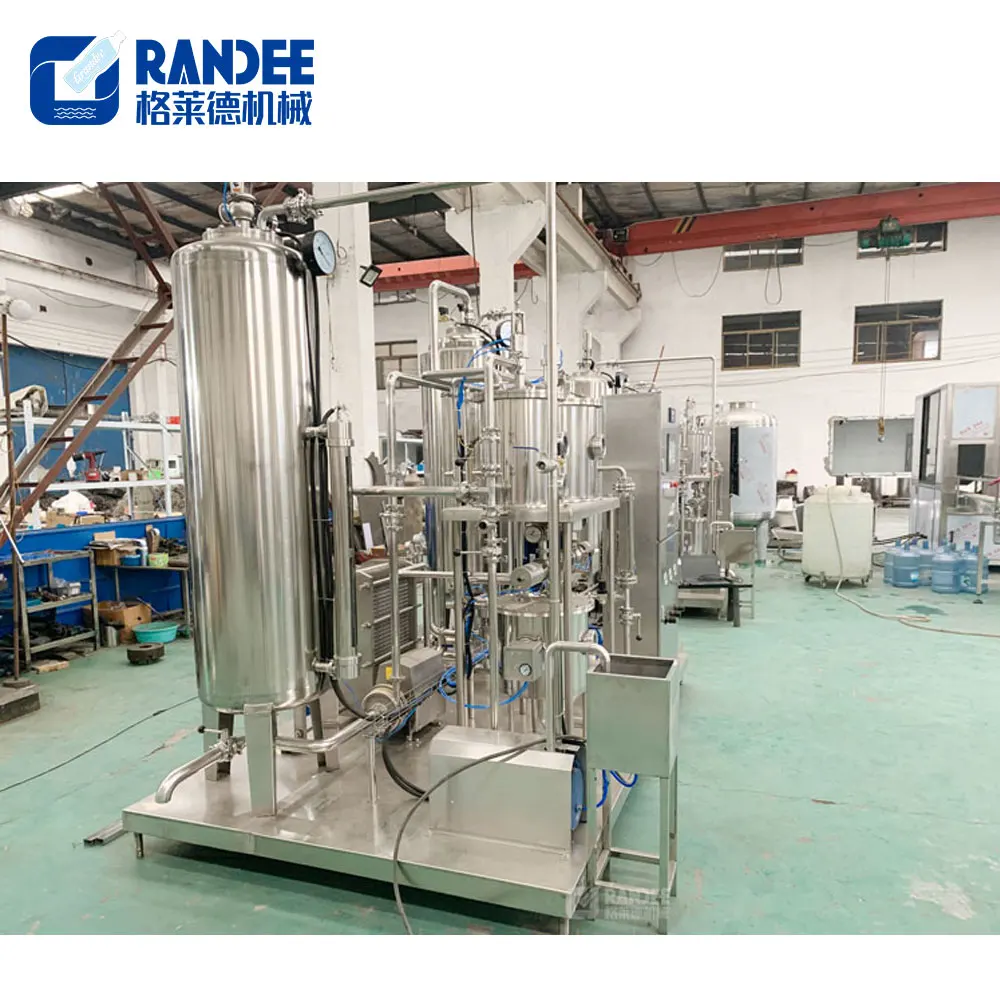

Main machine
Water tank and syrup tank

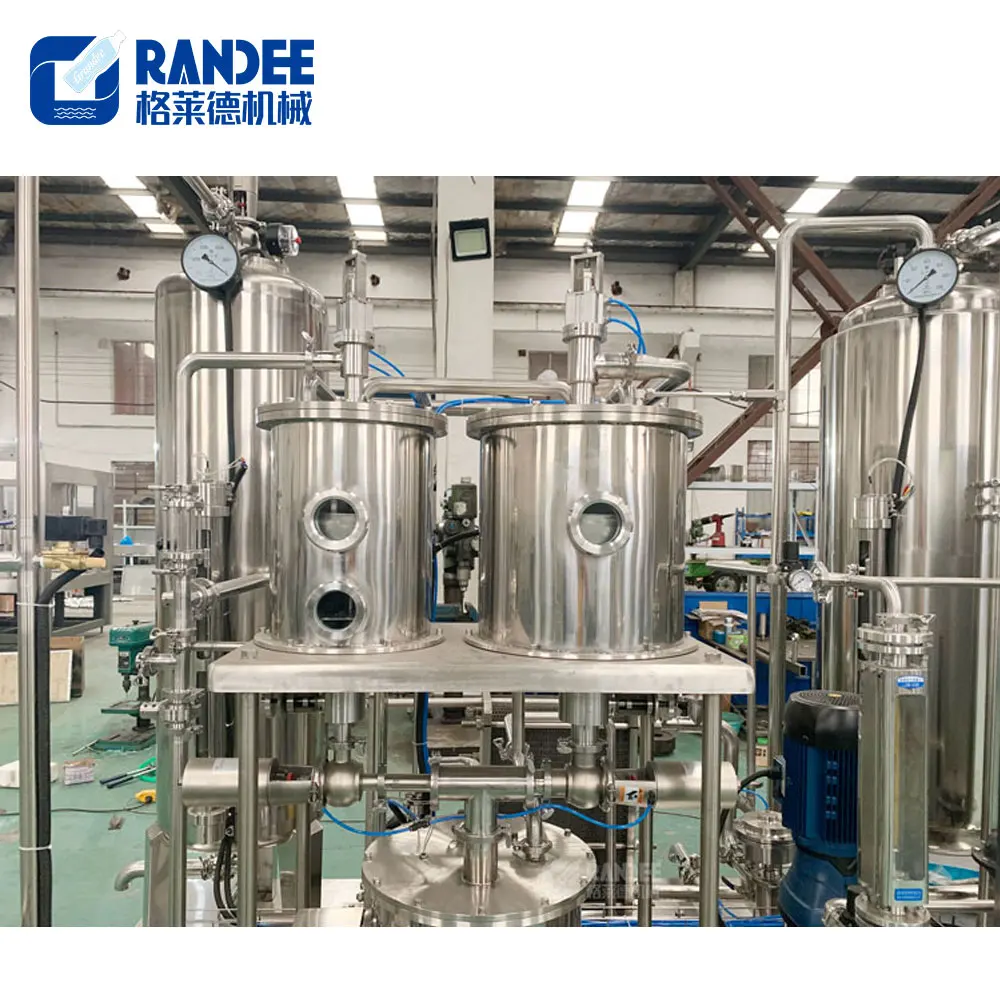

Mixing tank

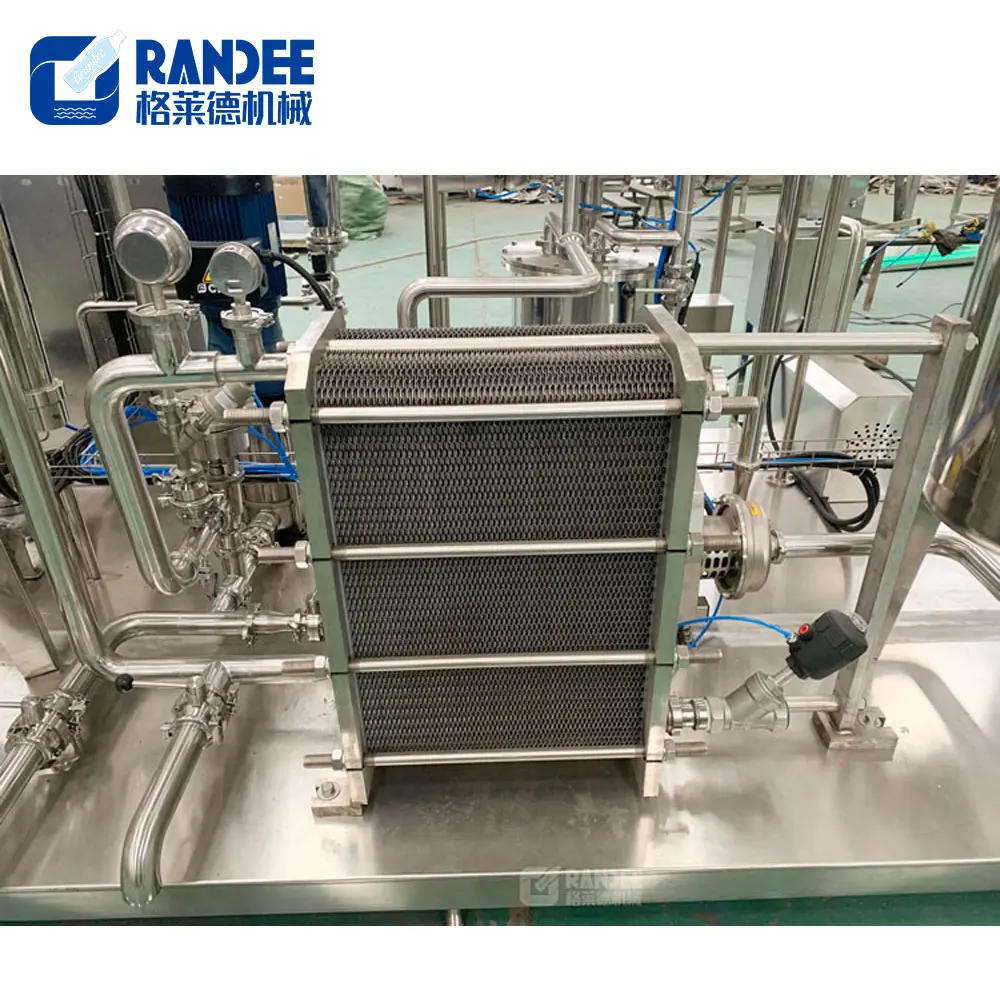

Heat plate exchanger

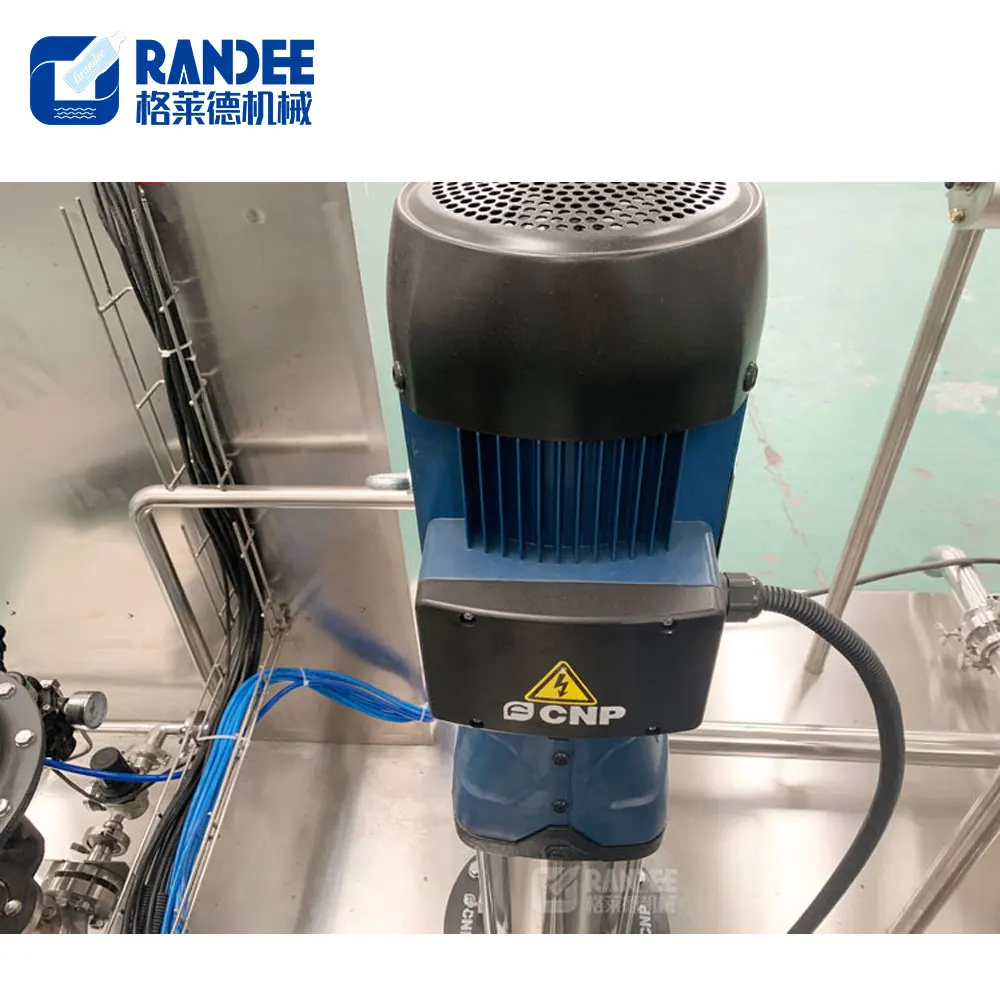

CNP pump
Touch screen
Main technical parameter:
| Model | QHS-1500 | QHS-3000 | QHS-4000 | QHS-5000 | QHS-6000 |
| Production capacity | 1000-2000 | 2500-3000 | 3500-4000 | 4500-5000 | 5500-6000 |
| Adjustable proportion of of syrup and water | 1:3-1:6 | ||||
| CO2 content | 1.5-2.5 | >2.5 | >2.5 | >3.5 | >3.5 |
| Cooling water entry temperature(℃) | 0-5 | ||||
| Working pressure of carbonized and syrup tank(Mpa) | 0.05-0.15 | ||||
| Working pressure of storage tank(Mpa) | 0.2-0.5 | ||||
| Power(KW) | 1.5 | 3.7 | 4.5 | 5.6 | 6.2 |
| Dimension(mm) | 900*700 *2000 | 1720*1140 *2100 | 1860*1300 *2100 | 2020*1500 *2200 | 2020*1500 *2200 |
| Weight(KG) | 500 | 1100 | 1300 | 1600 | 1800 |
Related product
 | Carbonated drink washing filling capping machineCapacity: 2000BPH to 20000BPH for 500ml bottle Filling temperature: 3℃ to 8℃ Bottle range: 200ml-2250ml Bottle dimater: ≤340mm Bottle height: ≤110mm Bottle material: PET bottle Bottle shape: round / flat / square bottle
|
Carbonation drink mixer Process: Water, syrup, CO2 mixing system Carbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8 Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree |
|
| Soda water mixing system Process: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank
Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. |
Automatic sticky / wet glue labeling machine Labeling speed: 60~100B/Min Outer diameter of scroll:Φ300(Max) |  |
Company Information
Project cases
Our exhibition
Workshop deatils
Our team
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.alibaba.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
Q2: What's capacity of carbonated drink mixer?
A2: We have 1000-2000BPH, 2000-2500BPH, 2500-3000BPH, 3500-4000BPH, 4500-5000BPH.
Q3: What is the CO2 content of carbonated drink mixer ?
A3: We can reach 1.5-2.5, 3.0-3.5, 3.5-3.8 or higher.
Q4: Is there additional equipment for this carbonated drink mixer ?
A4: Air cooled type chiller or water cooled type chiller
