Электрическое Отопление сок перемешивают баррель продукты питания и напитки смеситель используются в сфере производства переработки
- Категория: Mixer >>>
- Поставщик: Guangzhou,Hundom,Machinery,Equipment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2797.18 $* | 2937.12 $* |
| Aug-15-2025 | 2773.53 $* | 2912.36 $* |
| Jul-15-2025 | 2327.49 $* | 2443.3 $* |
| Jun-15-2025 | 2726.33 $* | 2862.24 $* |
| May-15-2025 | 2374.9 $* | 2493.59 $* |
| Apr-15-2025 | 2679.98 $* | 2813.4 $* |
| Mar-15-2025 | 2656.41 $* | 2789.5 $* |
| Feb-15-2025 | 2632.62 $* | 2764.12 $* |
| Jan-15-2025 | 2609.7 $* | 2739.37 $* |
Характеристики
Product Description

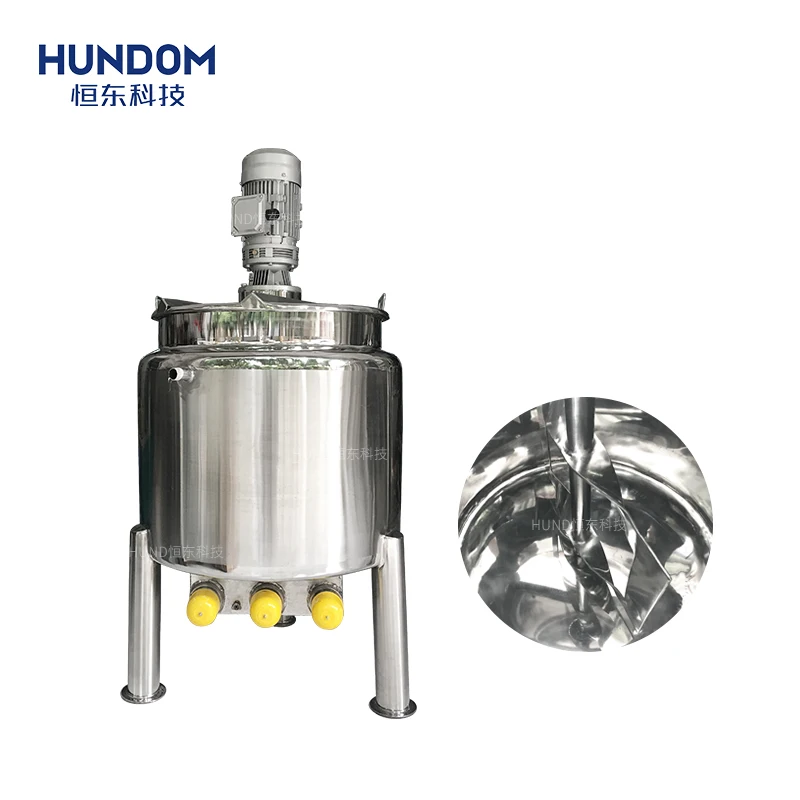

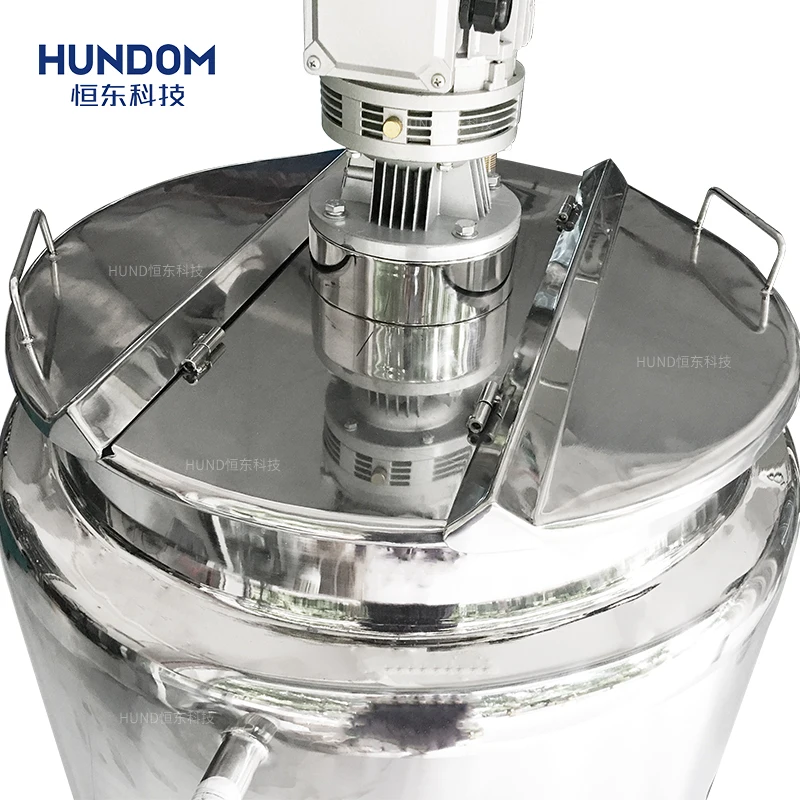

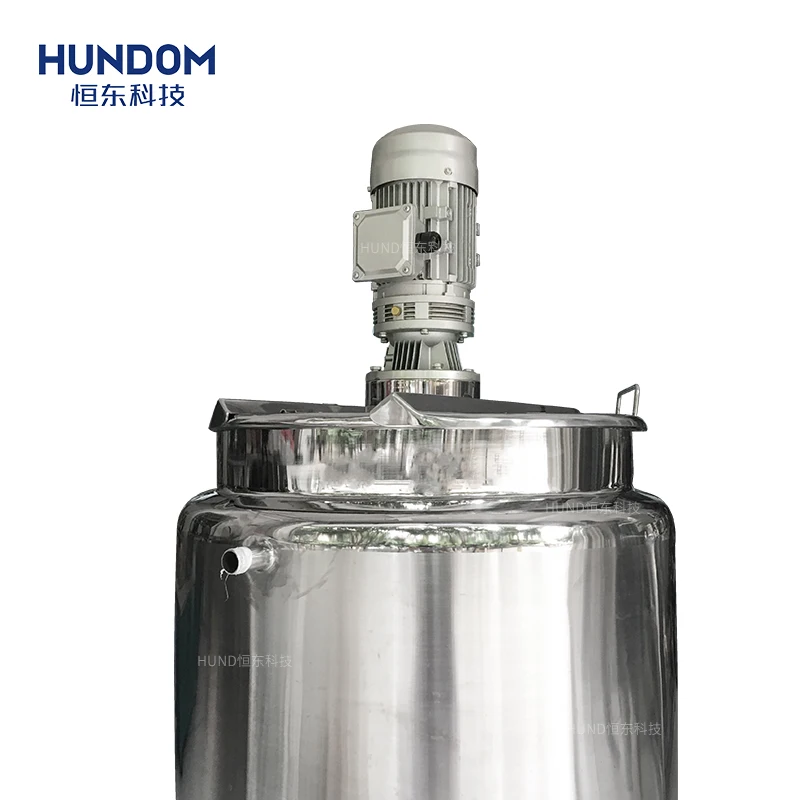

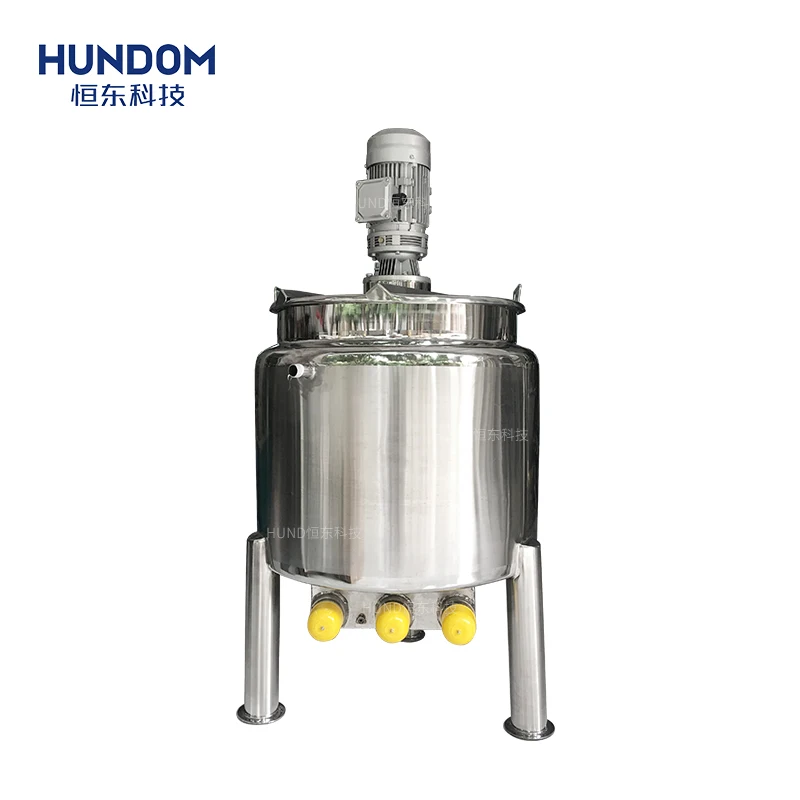

500l cream electric heating mixing tank with agitator stainless steel double jacketed tank
Capacity: 50-5000L(customized is accepted);
Configuration with agitator and/or homogenizer;
Jacket: single layer,double jacket, three-layer
Thickness: 2mm,3mm,4mm,5mm,6mm,8mm etc(design according to pressure);
Head: open lid,seal with manhole/handhole etc;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method: gas,steam,electricity;
Main technical parameter
Capacity | Heating power (KW) | Inner diameter (mm) | Jacket diameter (mm) | Speed(rpm) | Motor power (KW) |
HD-50L | 4*2 | 400 | 600 | 23-600/2800 | 0.75kw/2.2kw |
HD-100L | 6*2 | 500 | 700 | 1.1kw/3.0kw | |
HD-300L | 6*4 | 800 | 1000 | 2.2kw/4.0kw | |
HD-500L | 9*4 | 900 | 1100 | 3.0kw/7.5kw | |
HD-1000L | 12*4 | 1200 | 1400 | 4.0kw/11kw | |
HD-2000L | 15*5 | 1400 | 1600 | 4.0kw/22kw | |
HD-3000L | 15*6 | 1600 | 1800 | 5.5kw/30kw |
Structure:
The equipment is a liquid storage containers, composed of reducer, stirring paddle and the material valve, disc thermometer andother components.
1, the inner layer: adapts stainless steel plate SS304 or SS316L material, and the surface mirror polishing.
1, the inner layer: adapts stainless steel plate SS304 or SS316L material, and the surface mirror polishing.
2, the middle jacket: made of SS304 steel, spiral jacket device, cold water from the bottom up without pressure, to achieve thepurpose of the best heating and cooling.
3,the external insulation group: the environmental polyurethane foam casting, maintaining the temperature difference with the outside, to the effect of insulation.
4, reducer: reducer output shaft connected with the stirring paddle, the use of Looper connection, easy disassemble and cleaning.
5, additional devices: sterile respirator, sterile sampling port, manhole/cover, inlet and outlet, thermometer, CIP cleaning spray balls, Liquid level gauge,ladder, (Other special customized requirements from customers are acceptable.)
6,Mixing speed rpm and impeller type can be customized according to customers request.
3,the external insulation group: the environmental polyurethane foam casting, maintaining the temperature difference with the outside, to the effect of insulation.
4, reducer: reducer output shaft connected with the stirring paddle, the use of Looper connection, easy disassemble and cleaning.
5, additional devices: sterile respirator, sterile sampling port, manhole/cover, inlet and outlet, thermometer, CIP cleaning spray balls, Liquid level gauge,ladder, (Other special customized requirements from customers are acceptable.)
6,Mixing speed rpm and impeller type can be customized according to customers request.
Stirring paddle
Company Introduction
Guangzhou HUNDOM Machinery Equipment Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacture and sales, with more than 18 years of mechanical manufacturing experience. Main production: Stainless steel mixing tank, in-line high shear mixer, transfer pumps, colloid mill etc. HUNDOM has mature technology, professional engineer team and high quality products to meet various requirements in the field of food, pharmaceutical and household chemical industries. We provide a full range of effective solutions and after-sales service for customers, machines are hot sell all over the world. The mature technology and rigorous attitude are the guarantee of HUNDOM Technology’s product quality.
FAQ
Q1 Are you trade or manufacturer?
A: We are a factory with import and export rights, specializing in supporting for global distributors and end users. Also are able to customize your machines according to your requirment.
Q2 How can i trust you when starting our first deal?
A: We can provide the company certification and deal through Alibaba Assurance order, it can guarantee your capital security .
Q3 How to choose the shipment way?
A: By sea, by air and by land are optional, it is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
Q4 How about the after-sales service?
A: We are able to discuss technical details and offer suggestions online first and over the phone in English.You can get the answers in minutes, instead of days.
A: We are a factory with import and export rights, specializing in supporting for global distributors and end users. Also are able to customize your machines according to your requirment.
Q2 How can i trust you when starting our first deal?
A: We can provide the company certification and deal through Alibaba Assurance order, it can guarantee your capital security .
Q3 How to choose the shipment way?
A: By sea, by air and by land are optional, it is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
Q4 How about the after-sales service?
A: We are able to discuss technical details and offer suggestions online first and over the phone in English.You can get the answers in minutes, instead of days.
