Характеристики

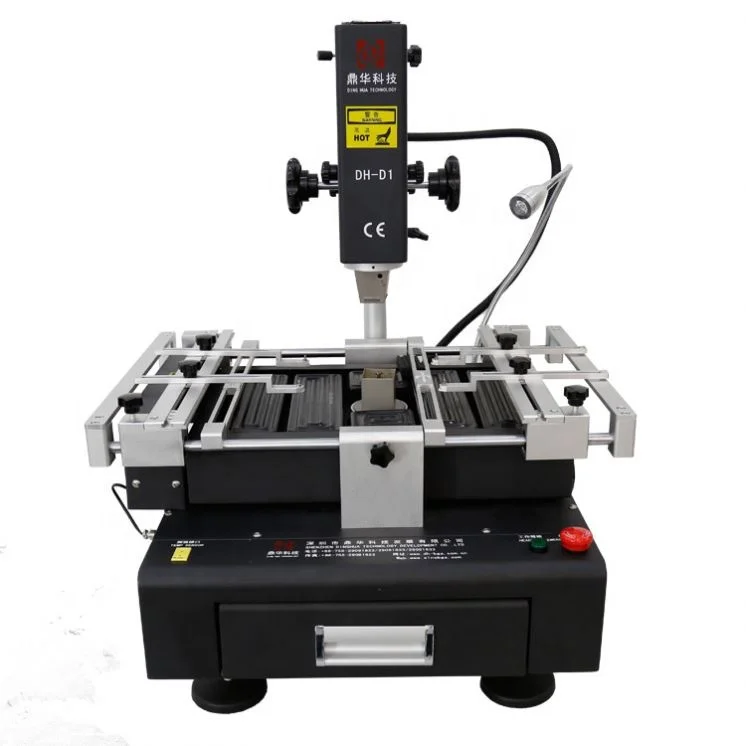

IR6000 bga rework station ic chips remove reballing machine



Product Description


Dinghua radex rd500 low price BGA rework station in india.jpg


Product imga2.jpg





Advantages of DH-D1 BGA rework station


Dinghua radex rd500 low price BGA rework station in india.jpg


1.High success rate of repairing chips.Precise temperature control ensure temperature change according to the materials of the solder balls.


2.Precise temperature control.Target chip can be soldered or desoldered while no other components on PCB are damaged.


(1)No false welding or fake welding.


(2)The frequency of one PID value running in one cycle is about 10 milliseconds while one cycle time of one PID value of our competitors is about 40-60 milliseconds. The faster it captures the frequency, the more precise its temperature control is.


(3)Hot air nozzle is made of Titanium alloy without being rusted,out of shape or discolored.When temperature is too high for the chip,backflow tank design makes hot air reflux to ensure that the bridge will not be detonated, and the peripheral components will not be damaged at the same time.


(4)Three independent heating areas increase temperature gradually,which cannot damage IC chip.Even after PCB has been repaired for times,the appearance and functions of PCB are not affected.


5.Humanized design makes the machine easy to operate. Normally a worker can learn to use it in 10 minutes. No special professional experiences or skills is needed, which is time- and energy-saving for your company.


6.Suitable for various types of PCB of any size.


7. Superior materials guarantee long life span.Cross-flow,upper and bottom cooling fan cool the machine automatically as soon as heating proccess is finished,which effectively avoids deterioration and aging of machine.3-year warranty for heating system is offered.


8.Lifetime unlimited technical support and free training are offered.


9.The super bright LED headlamp is imported from Taiwan Top manufacturer.It can help you clearly see the melting condition of solder ball and check if there is any dirt on the PCB and chip.

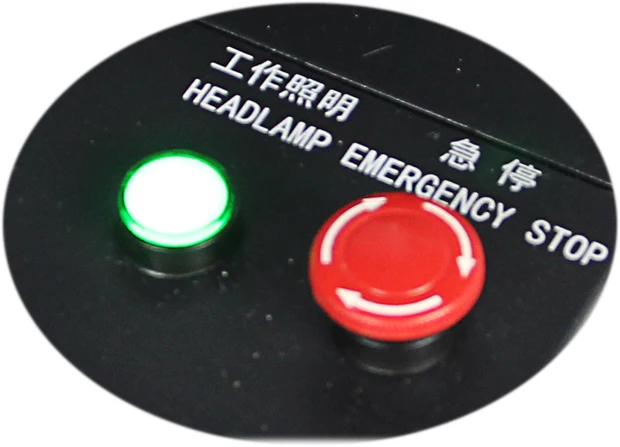

10.There is an Emergency stop is case of any emergency.


IR6000 bga rework station ic chips remove reballing machine


Specification of DH-D1 BGA Rework Station:





























































Power4800W
Top heaterHot air 800W
Bottom heaterHot air 1200W,Infrared 2700W
Power supplyAC220V±10%,50/60HZ
DimenssionL560*W650*H580 mm
PositioningV-groove PCB support,and with external universal fixture
Temperature controlK type thermocouple,closed loop control,independent heating
Temperature accuracy±2℃
PCB sizeMax 420*400 mm,Min 22*22 mm
Workbench fine-tune±15 mm forward/backward,±15 mm right/left
BGA chip2*2 - 80*80 mm
Minimum chip spacing 0.15 mm
Temp sensor1(optional)
Net Weight31 KG

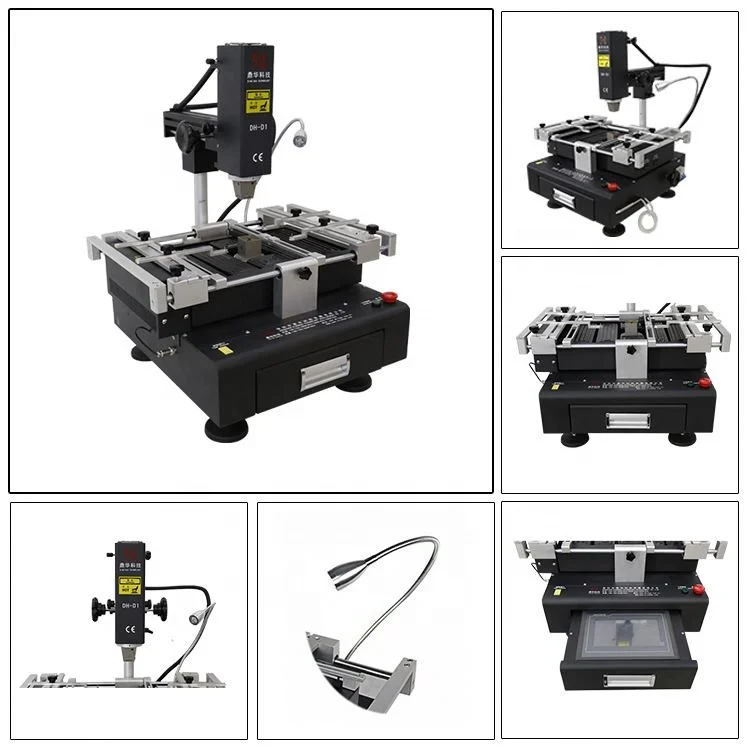

Details of DH-D1 BGA Rework Station:


Dinghua radex rd500 low price BGA rework station in india.jpgDinghua radex rd500 low price BGA rework station in india.jpg


Dinghua radex rd500 low price BGA rework station in india.jpg





Why Choose Us?


1.Strict quality control.


2.Even after PCB and chips have been repaired on BGA rework station for several times,the appearance and functions are not affected.


3.Wide range of application:


Motherboard of computer,smartphone,laptop,digital camera ,air conditioner,TV and other electronic equipments from medical industry,communication industry,automobile industry,etc.


Wide range of application:BGA,PGA,POP,BQFP,QFN,SOT223,PLCC,TQFP,TDFN,TSOP,


PBGA,CPGA,LED chip.


4.High success rate of BGA or other chips rework.


IR6000 bga rework station ic chips remove reballing machine











Our Services


Pre-sales serveice


*Inquiry and consulting is welcome.30min instant reply.


*Sample testing.


*Visiting our factory


*Free professional training


After-sales service


*Free professional training


*Warranty:3 years for heating system and 1 year for whole machine


*Engineer available to serve machinery overseas.





Packaging & Shipping


Packing List:


1.Machine:1 set


2.All packed in stable and strong wooden cases,suitable for import and export.


3.Top nozzle:3 pcs (31*31mm,38*38mm,41*41mm)


   Bottom nozzle:2pcs(34*34mm,55*55mm)


4.Beam:2 pcs


5.Plum knob: 6 pcs


6.Universal fixture:6 pcs


7.Support screw:5 pcs


8.Brush pen:1 pcs


9.Vacuum cup:3 pcs


10.Vacuum needle:1 pcs


11.Tweezer:1 pcs


12.Temp sensor wire:1 pcs


13.Professional Instruction Book:1 pcs


14.Teaching CD for operation: 1 PCS


Packing dimenssion:65*63*64mm    Net Weight:35KG  Gross Weight:45KG


Packing Lisk-750.jpg


Shipping:


1.Shipment will be made within 5 business days after receiving payment.


2.Fast delivery shipment by DHL,FedEX,TNT and other ways including by sea or by air.


IR6000 bga rework station ic chips remove reballing machine


 shipping way.jpg





Company Information





Shenzhen Dinghua Technology & Development Co., Ltd is a professional manufacturer of BGA rework station, rework tools and associated equipments, engaging in design, production, sales and service. We commit to make the professional equipment, provide high quality and perfect service for the customer. As one of pioneer in this industry, we continue to improve and innovate along with the market demands by absorbing the advanced development experience from home and abroad to adhere to our vision of ‘Professionalism, Honesty, Innovative and Responsibility’.


Science and technology are primary productive forces. Through teamwork, we achieved the core thermal-control technology with related patent. At the same time, our products cover 3 categories: high-end, mid-end and low-end for development and production adopt manual, semi-auto to fully automated processes. Our market had expanded into industries like: individual repair, factories, education, military and aerospace etc. And we had established the point-of sales and end service at locally and abroad.


Your satisfaction is our target. We adhere to customer-focus, market oriented and our company provides fist-class products and high-efficient services for customers through continuous innovation. We are honored to work with you to create a brighter future.


Dinghua radex rd500 low price bga rework station in india


QQ20180418175144.jpgDinghua radex rd500 low price BGA rework station in india.jpg
