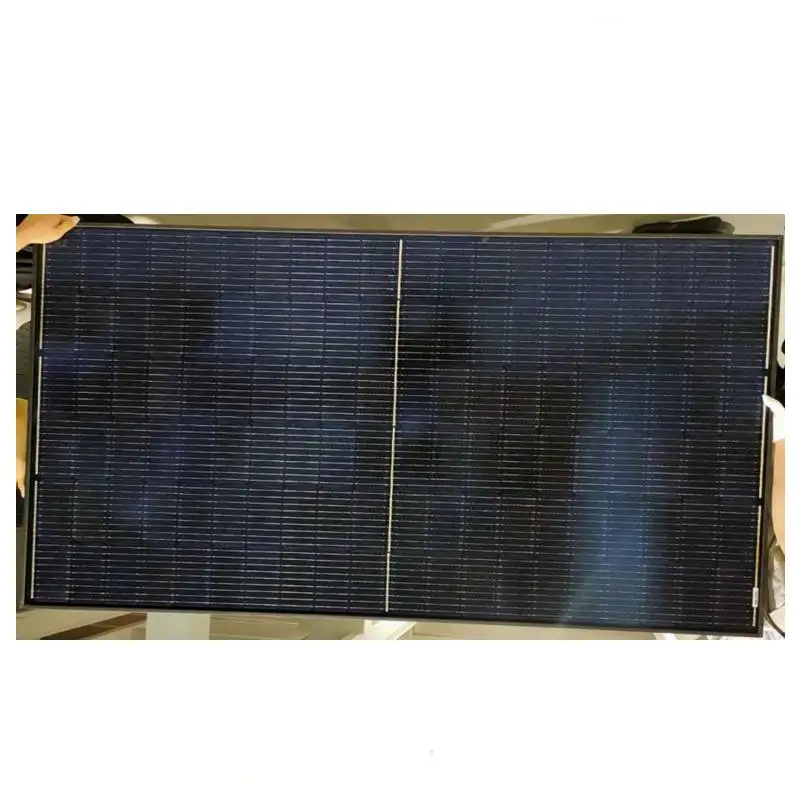

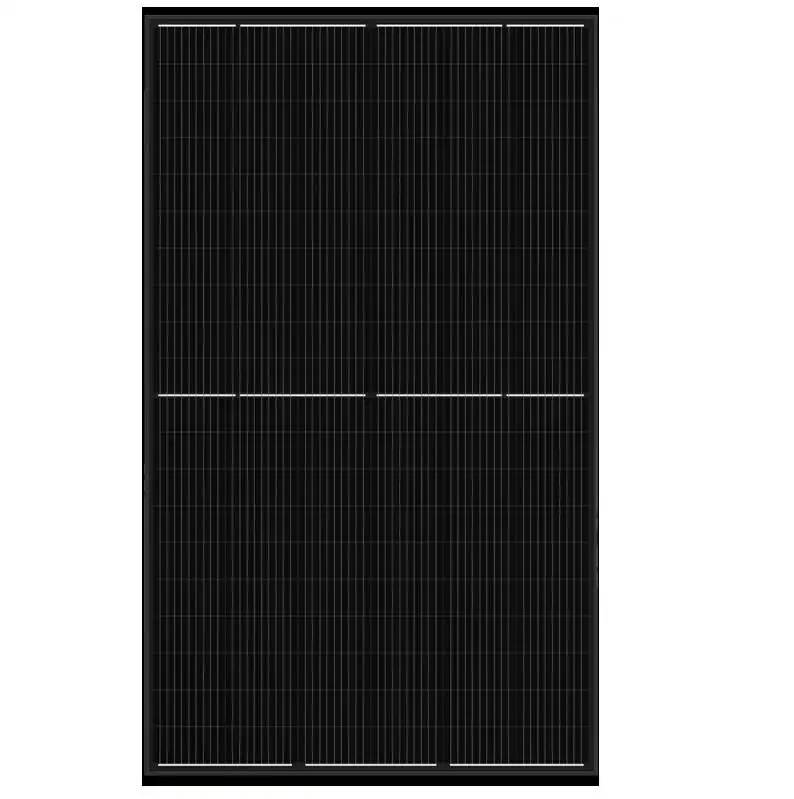

Горячая Распродажа черная монокристаллическая солнечная панель для солнечных батарей 370 Вт 365 360
- Категория: Продукты солнечной энергетики >>>
- Поставщик: Tangshan,Jingxin,Science,And,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 8506.0 $* | 8931.32 $* |
| Aug-17-2025 | 8435.56 $* | 8857.97 $* |
| Jul-17-2025 | 7077.50 $* | 7431.28 $* |
| Jun-17-2025 | 8292.33 $* | 8707.4 $* |
| May-17-2025 | 7219.1 $* | 7580.7 $* |
| Apr-17-2025 | 8149.99 $* | 8556.47 $* |
| Mar-17-2025 | 8077.70 $* | 8481.28 $* |
| Feb-17-2025 | 8006.61 $* | 8406.50 $* |
| Jan-17-2025 | 7934.64 $* | 8331.31 $* |
Характеристики
| ELECTRICAL DATA(STC) | ||||||
| Peak Power Watts-Pmax(Wp) | 350W | 355W | 360W | 365W | 370W | |
| Power Output Tolerance-P MAX (W) | 0~+5W | |||||
| Maximum Power Voltage-V MPP (V) | 33.3 | 33.5 | 33.7 | 34.0 | 34.3 | |
| Maximum Power Current-l MPP (A) | 10.52 | 10.6 | 10.69 | 10.75 | 10.67 | |
| Open Circuit Voltage-V OC (V) | 40.5 | 40.7 | 40.9 | 41.2 | 41.5 | |
| Short Circuit Current-l SC (A) | 11.02 | 11.10 | 11.20 | 11.28 | 11.37 | |
| Module Efficiencyηm (%) | 18.7 | 19.0 | 19.3 | 19.5 | 19.8 | |
| STC | Irradiance 1000w/m2,module temperature 25℃,air mass 1.5 | |||||
| TEMPERATURE RATINGS | |
| Nominal Operating Cell Temperature (NOCT) | 44℃(±2℃) |
| Temperature Coefficient of PMAX | - 0.39%/℃ |
| Temperature Coefficient of VOC | - 0.29%/℃ |
| Temperature Coefficient of ISC | 0.05%/℃ |
| Solar cells | 9BB Monocrystalline 166×83mm |
| Cell orientation | 120cells (6×20) |
| Module dimensions | 1776×1048×35mm |
| Weight | 20.0kgs |
|
Glass |
3.2mm (0.13 inches), HighTransmission, AR Coated Tempered Glass |
| Frame | Silver or black anodized alunnium alloy |
| Backsheet | Silver or black |
| J-Box | IP67 rated |
| Cables | Photovoltaic Technology cable 4.0mm2 (0.006 inches2), 300mm (11.82 inches) |
| By sea | From Tianjin Seaport |
| By air | From Beijing Airport |
| By express | By DHL or others |
FAQ
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Tangshan city, Hebei province.Near Beijing and Tianjin.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will arrange time to pick you up.
3. Q: Do you provide free sample?
A: Sorry, we can supply the sample,but it is not free charge.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do OEM.
5. Q: How about the package?
A: Plywooden box pallet or carton box pallet.
6. Q: Do you accept custom design on size and package?
A: Yes, if the size and package are reasonable.
