Небольшая передвижная бетонная установка Yhzs35 китайского
- Категория: Бетонные машины >>>
- Поставщик: Henan,Landao,Machinery,And,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4783957.61 $* | 4879636.72 $* |
| Jul-16-2025 | 3879902.76 $* | 3957500.50 $* |
| Jun-16-2025 | 4708619.29 $* | 4802791.26 $* |
| May-16-2025 | 4670950.0 $* | 4764369.63 $* |
| Apr-16-2025 | 3729226.62 $* | 3803811.24 $* |
| Mar-16-2025 | 4595612.2 $* | 4687524.48 $* |
| Feb-16-2025 | 4557943.78 $* | 4649102.57 $* |
| Jan-16-2025 | 4520274.1 $* | 4610679.94 $* |
Характеристики

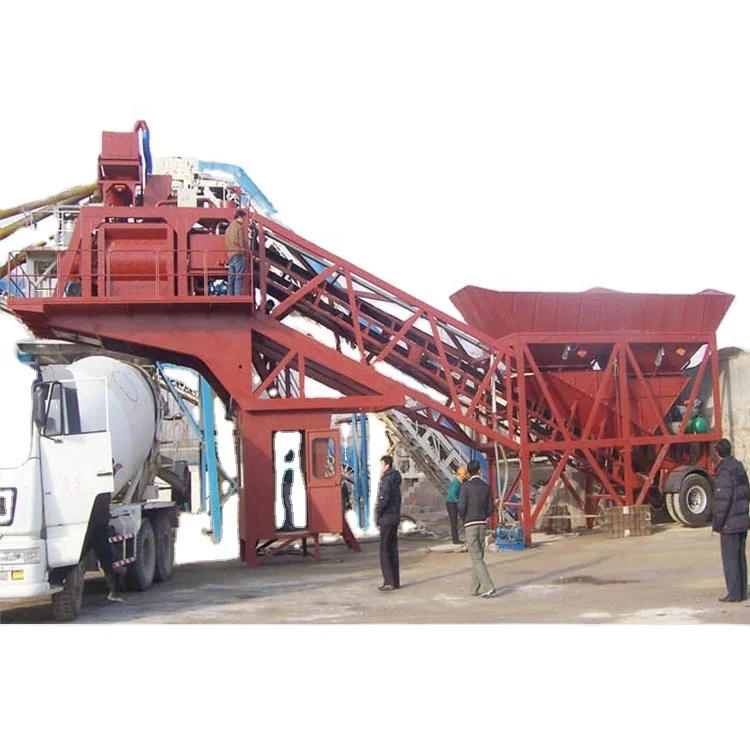

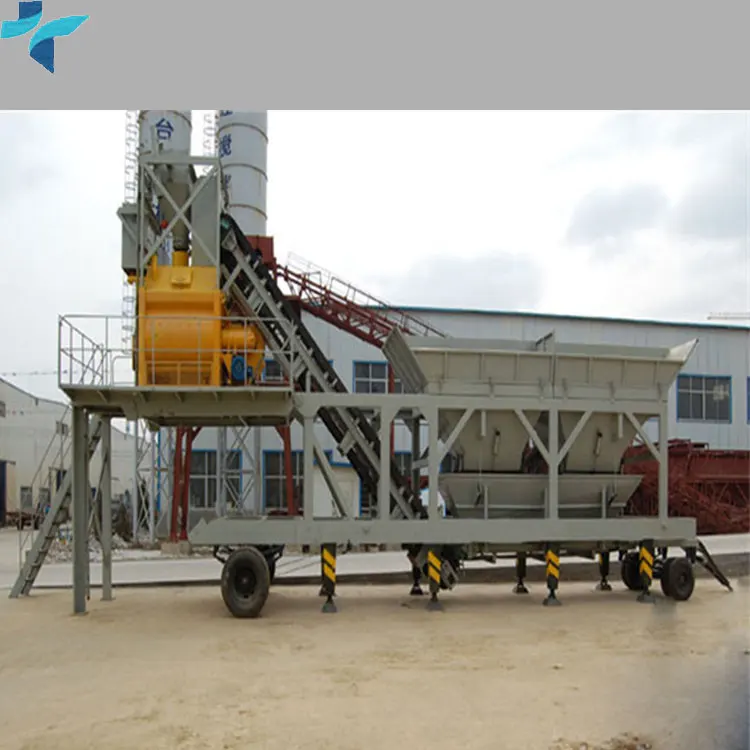

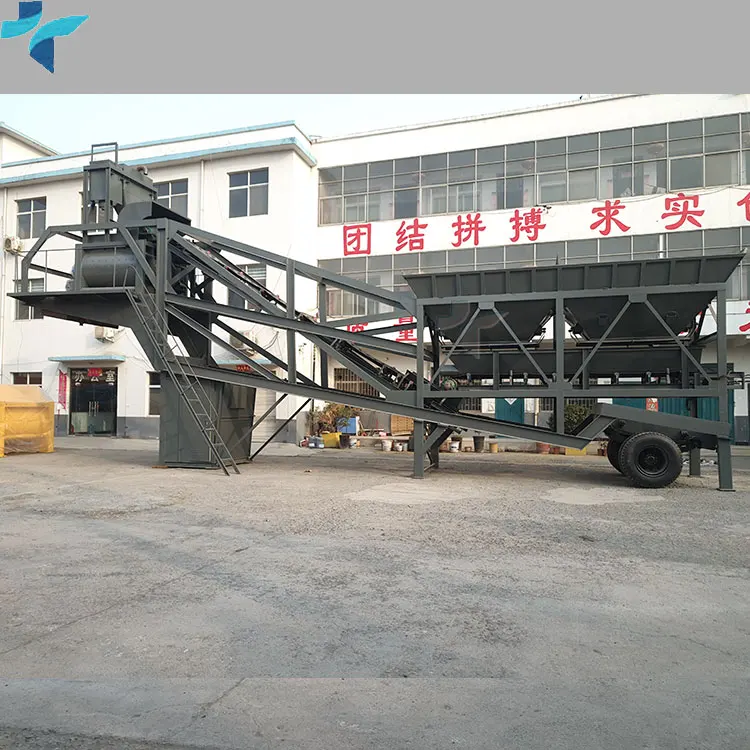

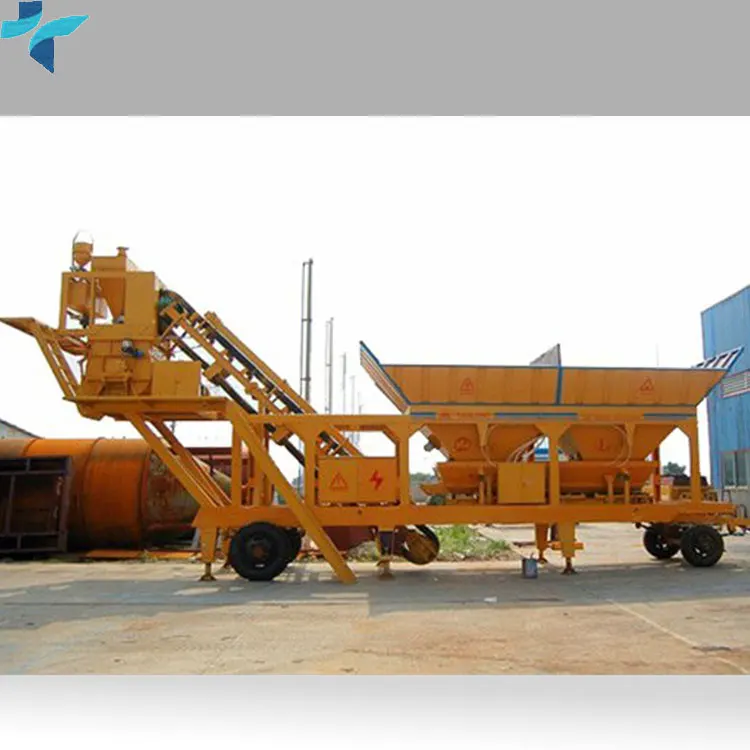

Yhzs35 China Manufacture Small Mobile Concrete Batch Plant
Product Description
Quick Details:
Mobile concrete batching plant, makes the mixing plant movable by gathering batching system, weighing system, mixer, storing system, discharging system and full automatic control system in a towing unit.The mixing station is designed to be compact and can complete most of the functions of the mixing station on a trailing chassis. The movement and installation is very fast, suitable for the short construction period, long construction line and the need of frequent transition
Feature:Easy to remove, convenient to transfer
Store management simple
Compact and modular structure
Microcomputer control system
Technical Parameters
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 |
| Capacity | 25 m3/h | 35 m3/h | 50 m3/h | 75 m3/h |
| Mixer | JS500 | JS750 | JS1000 | JS1500 |
| Mixer Volume | 0.5m3 | 0.75m3 | 1m3 | 1.5m3 |
| Mixer power | 18.5KW | 30KW | 18.5KW*2 | 30KW*2 |
| Loading type | Skip hopper | Skip hopper | Skip hopper | Skip hopper |
| Aggregate bins | 4m3 | 4m3 | 8m3 | 8m3 |
| Aggregate weighing | 1500kg±2% | 1500kg±2% | 2000±2% | 3000±2% |
| Cement weighing | 300kg±1% | 400kg±1% | 500kg±1% | 800kg±1% |
| Water weighing | 200kg±1% | 200kg±1% | 200kg±1% | 300kg±1% |
| Additive weighing | 20kg±1% | 20kg±1% | 20kg±1% | 20kg±1% |
| Control system | Full automatic, Semi-automatic, Manual | Full automatic, Semi-automatic, Manual | Full automatic, Semi-automatic, Manual | Full automatic, Semi-automatic, Manual |
| Discharge height | 3.8m | 3.8m | 4.2m | 4.2m |
| Screw conveyor | Φ219/Φ273mm | Φ219/Φ273mm | Φ219/Φ273mm | Φ219/Φ273mm |
| Silo |
60t/100t/ 150t/200t |
60t/100t/ 150t/200t |
60t/100t/ 150t/200t |
60t/100t/ 150t/200t |
Concrete Mixer is forced twin shaft compulsory mixer blade,high evenly,high efficiency,goodseal.
The aggregate is a cumulative dose or individual measurement and it is used to feed the belt or skip hopper of concrete mixer.nucket belt conveyor is good than flat belt conveyor.because the bucket belt conveyor can not easy leak the aggregate.
Water/Cement/Mine powder/coal powder/additive weighing machine
When to choose mobile concrete batching plant?
- They frequently changing construction site
- They don't want to invest too much money on layout
- They want to put into use operation
Packaging & Shipping
Packaging: Standard exporting packaging by 40HQ.
Delivery Time: 20 working days after deposit is received.
Payment term: T/T, 30% to pay by T/T as advanced payment, 70% to pay by T/T before delivery.
Company Information
| What are our advantage of our team and factory? |
| 1.We have more than 60 machines and will guarantee the short production time and good quality. |
| 2.We are located in Henan Province China,the largest construction town,there is a large advantage on experience and cost.it is easy for you to visit our company and the factory.we will also provide you 24h online chat service. |
| 3.Online chat,quick reply,good quality. |
| 4.We have sell lots of construction equipment,that can demand different purchase demand,it is convenient. |
| 5.We have gained a global sales network reaching in Uganda,Colombia, Bolivia,Brazil,Algeria, Ecuador, Russia, Pakistan, Vietnam, Dubai, Ghana, India and so on. The quality,the price,the delivery time will be the best. |
