ZG2AS L-865/L-864 TYPE A 2000cd в дневное время 20000cd ночью Средняя интенсивность авиационные бордовый летательный аппарат

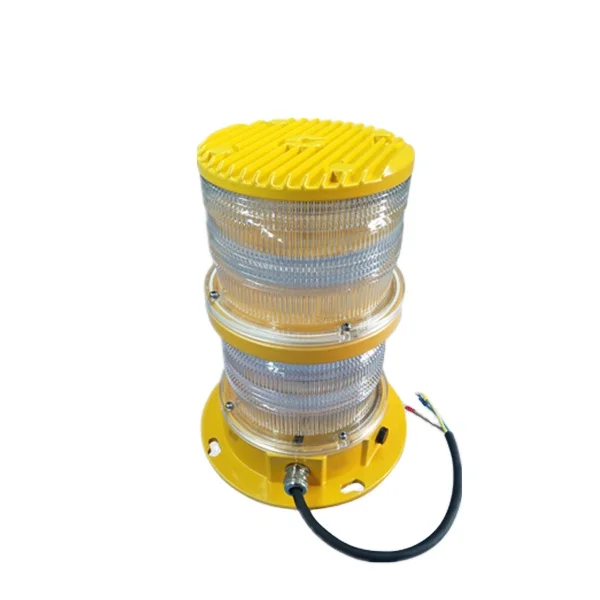

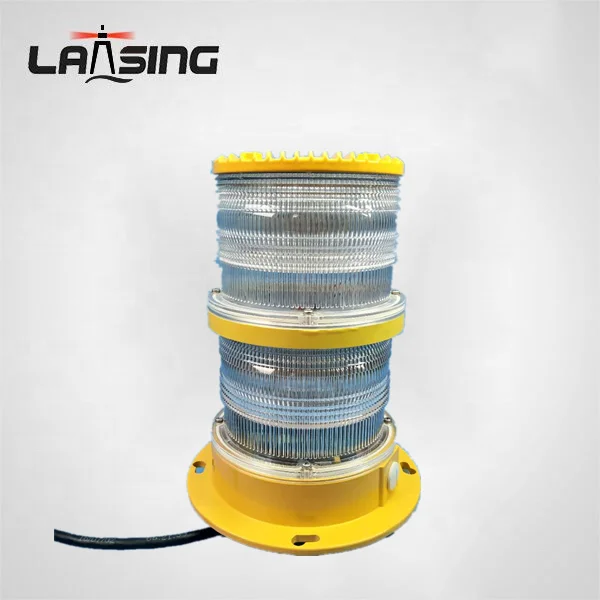

ZG2AS is a new generation medium intensity OB light. It comes with compact-size and light-weight, which makes installation more convenience. The optical part is based on Fresnel lens, a transformed convex lens which can concentrate light to a small specific angel to meet with ICAO requirements. Fresnel lens is often used to design obstruction light. The light's ingress protection level is IP67, assures the light is well sealed to withstand harsh environment include the ocean. If work with control box, more functions like synchronization could be realized. GPS or GPRS functions also available if required.

Widely used in various fields of the Air Force, civilian airports and obstacle free airspace, helipads, iron tower, chimney, ports, wind power plants, bridge and city high-rise buildings where require aviation warning.

Usually used above 45m and less than 150m buildings, could use alone, also could use with Medium OBL type B and Low intensity OBL type B together.

• Based on Led Technologies.

• Customized for both AC or DC conditions.

• Multiple light elements in the source reduce the chances of a complete blackout which

could be caused in case of a single source failure.

• All hardware of obstruction lights are made of corrosion resistant metals.

• Bird spikes for protection against droppings.

• Built in photocell, which can switch ON/OFF the lights automatically at dawn and

dusk (optional).

• Use of quality components and sophisticated technology reduce chances of maintenance

and replacement.

• Low power consumption, which leads to huge savings on electricity bills.

• LED light source ensures long lifetime, maintenance free.

• With GPS function, which can make several lights working at the same time(optional)

• With volt-free alarm contact, it will give an alarm in case of light failure.

• Built-in lightning/surge protection(can withstand strike 7.5KV/5times, Imax 15KV).

• Resistant to shock and vibration.

• No RF Radiations, EMC Compliant.

• Reversed Polarity Protected(DC Type).

• Corrosion resistant lamp & housing-suitable for off-shore use.

• Self-contained compartment-eliminates additional box.
