Chisung автоматическая система платных ворот быстрая скорость
- Категория: Traffic Barriers >>>
- Поставщик: Chisung,Intelligence,Technology,(Shenzhen),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 507.7 $* | 517.85 $* |
| Jul-19-2025 | 411.60 $* | 419.60 $* |
| Jun-19-2025 | 499.15 $* | 509.17 $* |
| May-19-2025 | 495.48 $* | 505.59 $* |
| Apr-19-2025 | 395.63 $* | 403.99 $* |
| Mar-19-2025 | 487.91 $* | 497.18 $* |
| Feb-19-2025 | 483.81 $* | 493.63 $* |
| Jan-19-2025 | 479.66 $* | 489.74 $* |
Характеристики
Automatic Dc Motor Popular Stylish Car Parking Lot Boom Barrier Gate
Product Description
1. Our fast barrier speed gate with high quality, 0.9s Fast Speed Expressway Barrier Gate.
2. DC 24V Servo motor, MTBF10 million times.
Specification of the mechanism and motor controller:
Product name | 0.9s Fast Speed Expressway Barrier Gate |
Model | CSEDZ105S |
Max boom size | 3000mm in length, 75mm in diameter |
Opening time | 0.9seconds |
Energy consumption | Max 150w |
Housing material | Code steel house |
Machine weight(no boom) | 43kg |
Working temp | -40 to +50℃ |
MTBF | 10 million times |
Driving unit | Servo Motor |
IP rating | IP55 |
Motor Controller Specification
Board voltage | DC 24V |
Power consumption | 10W |
Fuse | 5AH |
Input qty | 8 |
Working temp | -40 to +50℃ |
IP rating | IP20 |
Weight | 330g |
Dimension(L-W-H(mm) | 155-110-60 |
Product display

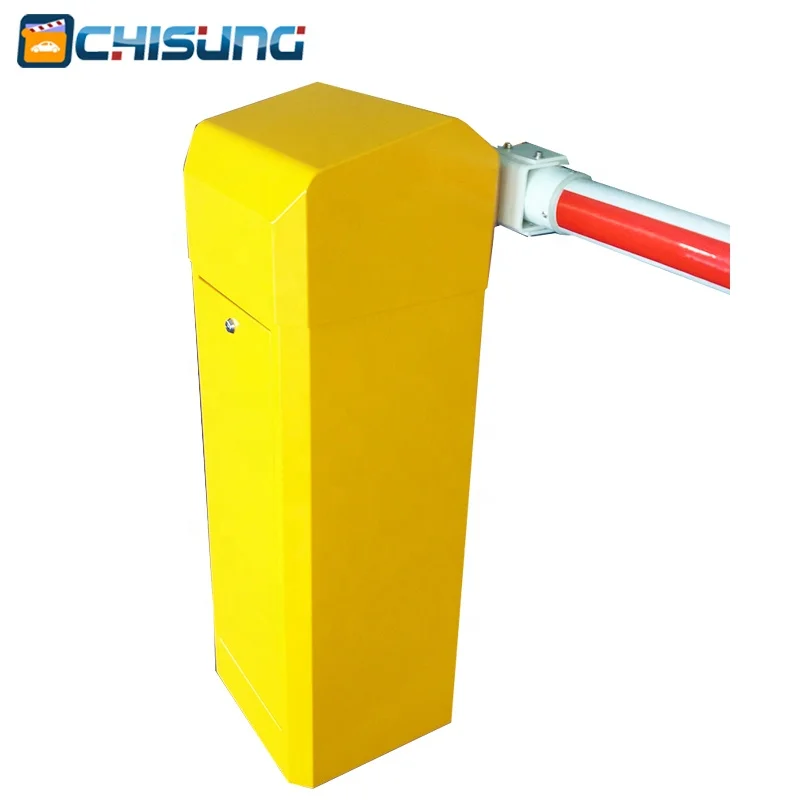

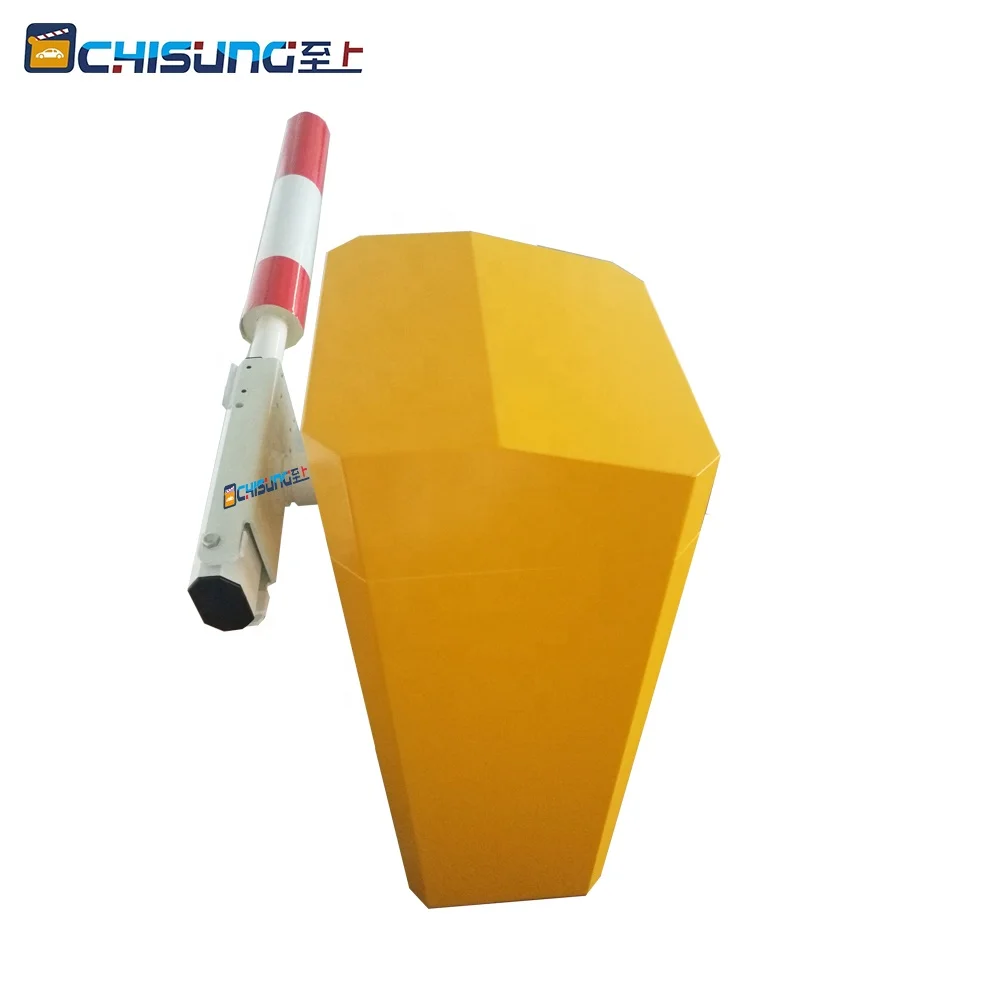

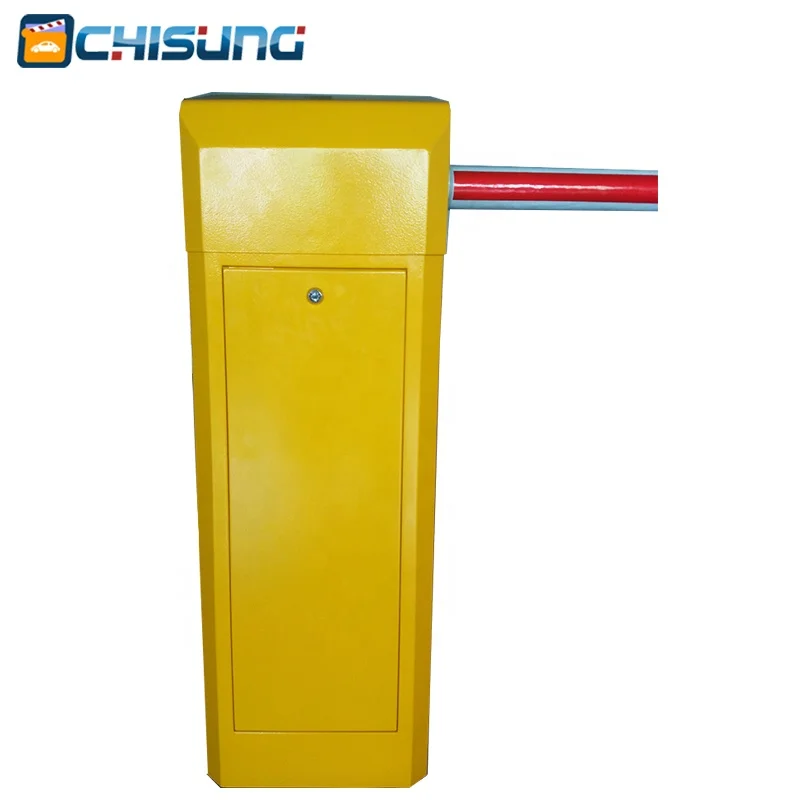

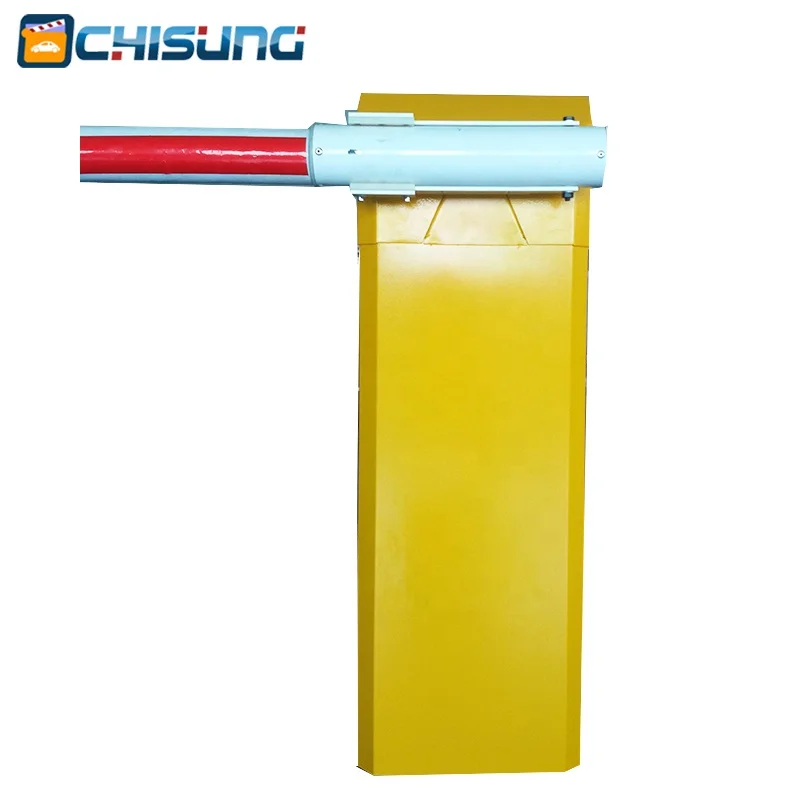

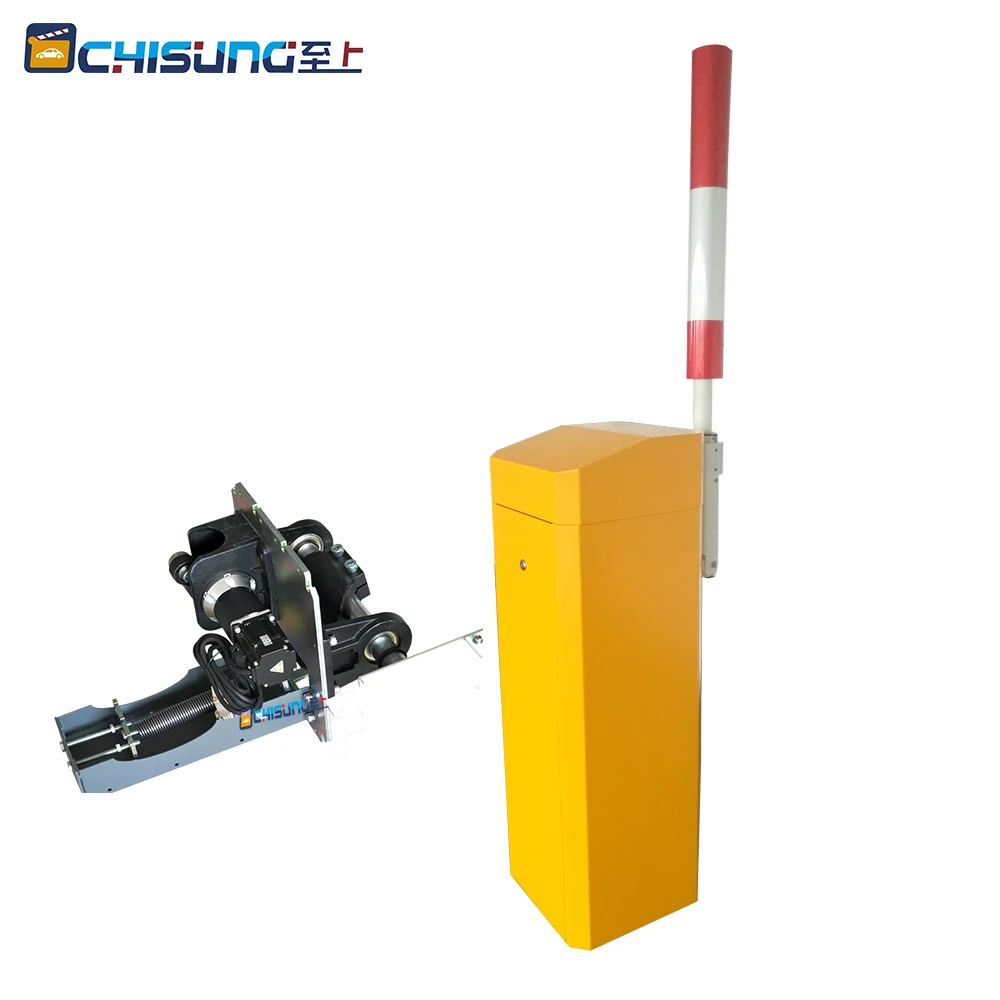

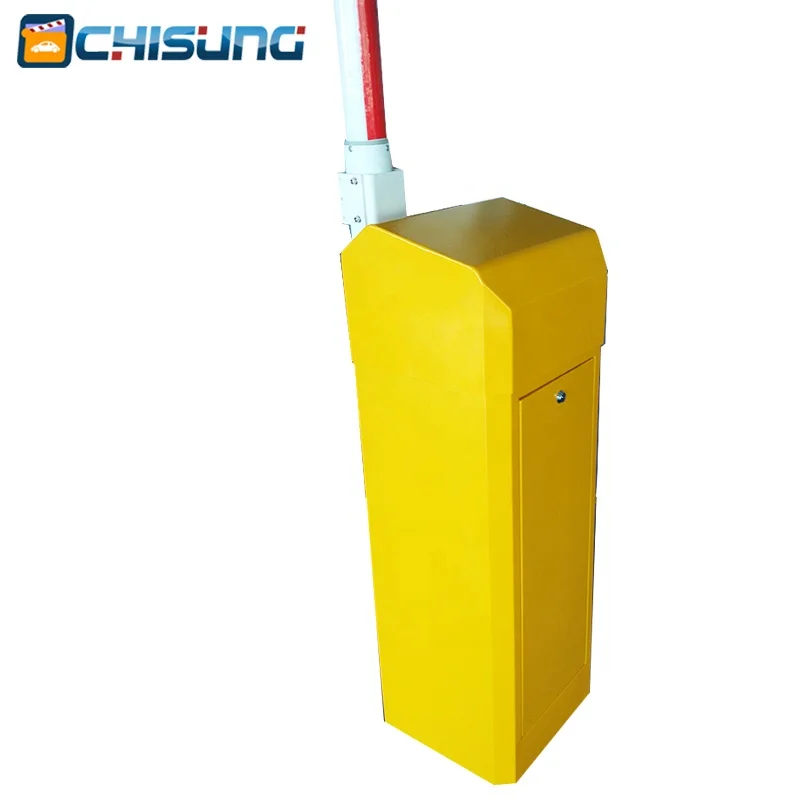

Product pictures:
Related Products
Company Information
Packaging & Shipping
Our Services
FAQ
1.Are you a Trade company or manufacturer for barrier gate ?
--------We are a manufacturer , welcome to visit our factory , and welcome to OEM .
2. Sometimes, Why the barrier boom would open automatically?
-------- Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring
3. How long the Remote-control distance ?
-------- In general, most of CHISUNG 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. CHISUNG recommends using the remote control within 30 meters or 50 meters.
4.Can CHISUNG barrier gate be used outdoors, even in extreme weathers?
-------- Yes, the working temperature is -40℃~+75℃.
5.Is it changeable for the installation direction of the barrier gates?
-------- The installation direction of CSDZ101, 102,201,301,501series barrier gates is fixed. But CSDZ601 and CSDZ701 are adjustable.
