Newest Germany diode bar  808 810nm macro channel 40/60/80/100 W laser diode bars for hair removal machine

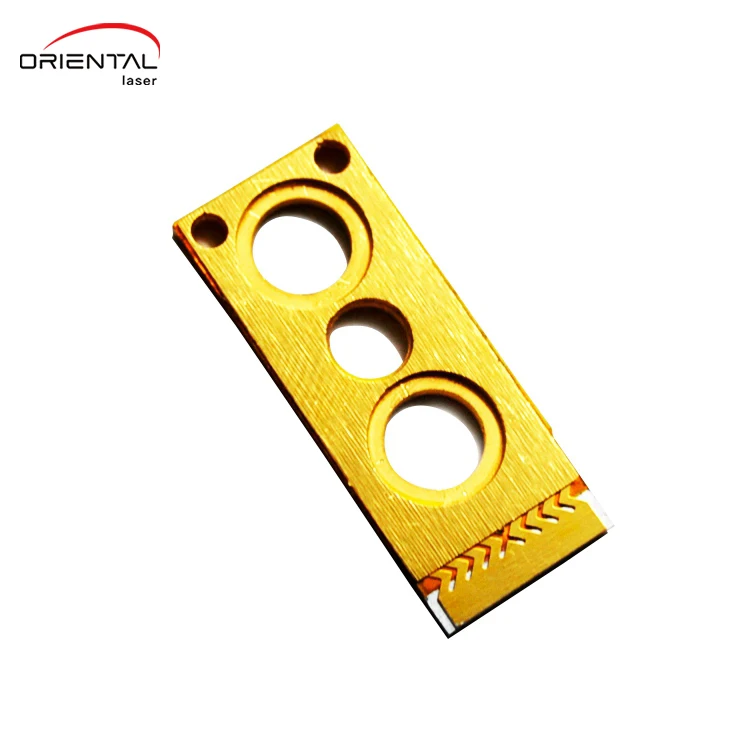

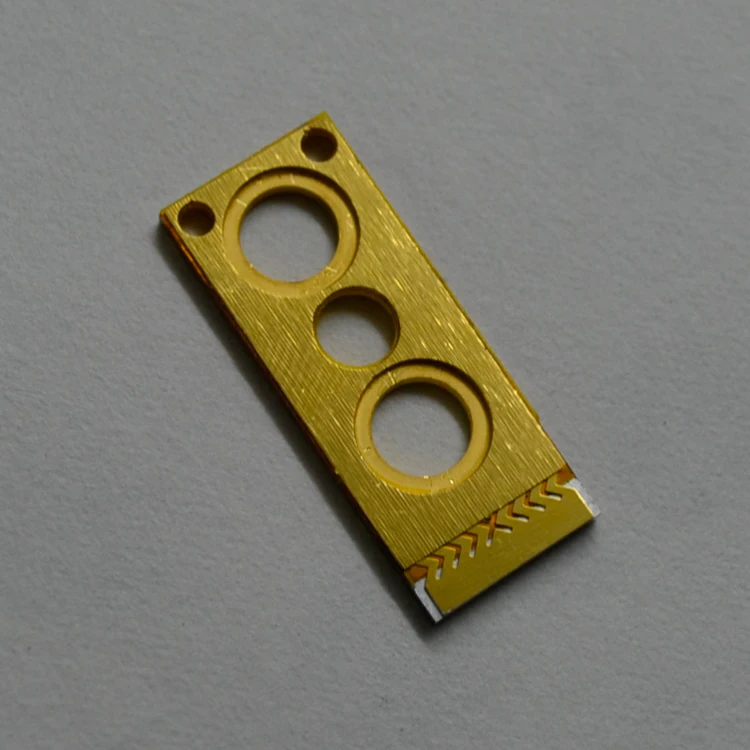

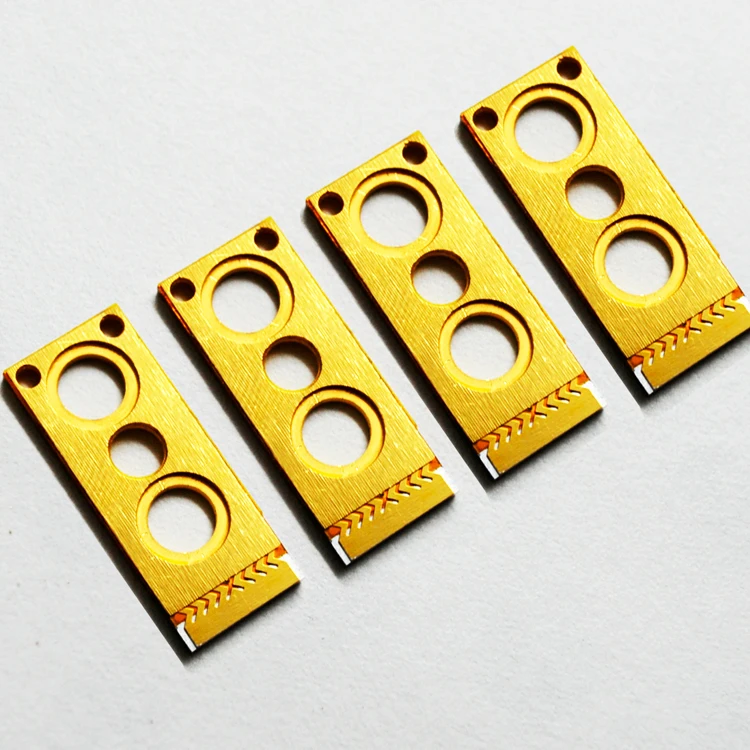

1.diode bars Pictures



2. diode bars Specifictaions



Model No	SPMI-808-100-1.0
Application	Laser hair removal beauty machine and industry application
Operation Mode	CW
Power per submounts	100 W(OEM 40W 60W 80W)
Central wavelength at 25℃	808 ± 2.5nm
Maximum Operating Voltage	2V
Fast Axis Divergence (FWHM)	No
Slow Axis Divergence (FWHM)	No
Expected lifetime	>10000 hours
Typical pitch per bar	1.8mm
Cooling:
Flow rate	0.3L/min ±10% / bar
Water Temperature	15-25 ℃
Water Quality	Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm
cooling system	Do not use any material that combination with copper would form galvanic elements



Click to Contact Us Learn More Information

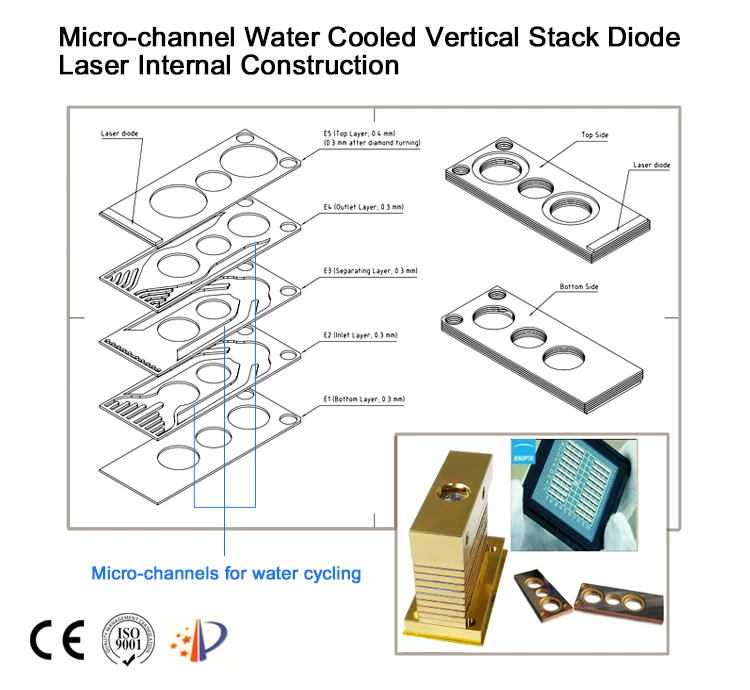

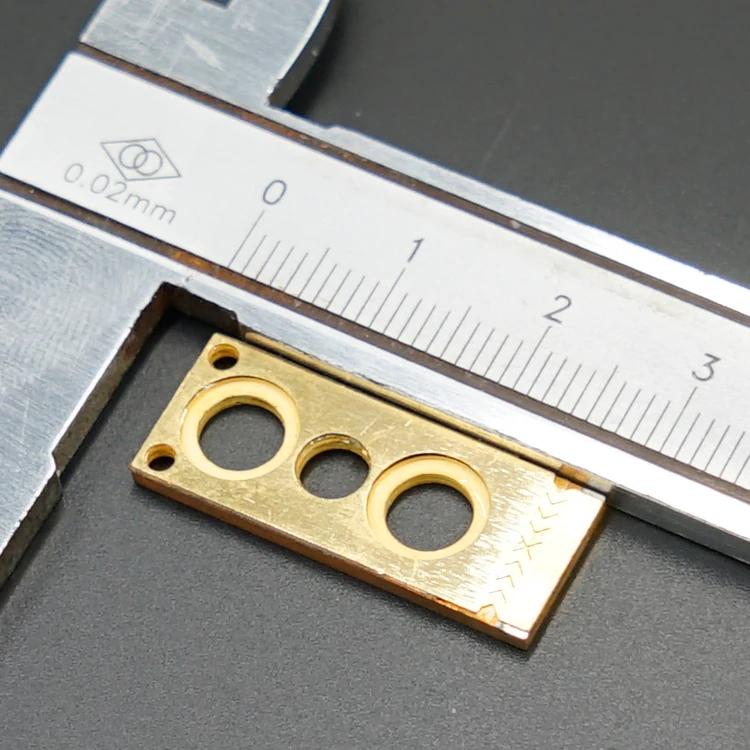

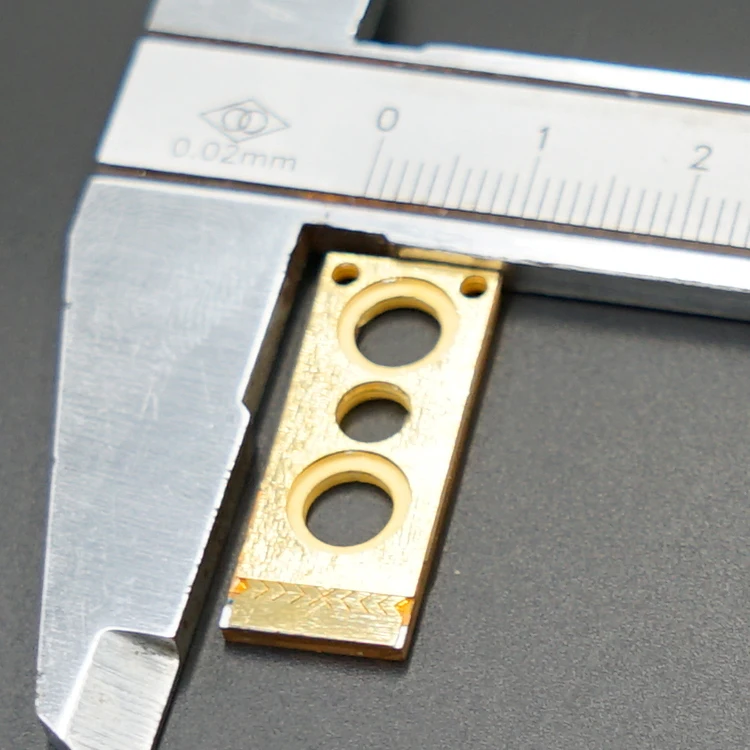

 3.diode bars Dimension





4. diode bars Description



This Single Bar Diode 40/60/80/100 W is used for diode laser hair removal machine repairing and replacement service.Also it can be used for industrial pumping and laser coupler. Oriental-laser focused on diode laser bar assembling for more than 16 years and we have seen various alma soprano diode laser stacks also other brand diode handles.So we can offer the same or similar diode laser bar to recover your diode handles.



(1)Features
>Diode laser bar from Jenoptik
>macro channel cooler Germany imported >lifetime: over 10000 hours
>Special design for macro channel diode laser machine





(2)Advantages



1.High laser power

2.High efficiency

3.Long lifetime high reliability

4.Excellent beam characteristics



(3)Application

Specially design for repairing macro channel diode laser hair removal machine handle or replacement of the same series handle.
